Stub router connection to the rest of the corporate or campus network
Any router where a backup route to dynamic routing is needed for reliability
Edge router connection to the ISP
Any router running an IOS prior to 12.0
The router that serves as the gateway of last resort

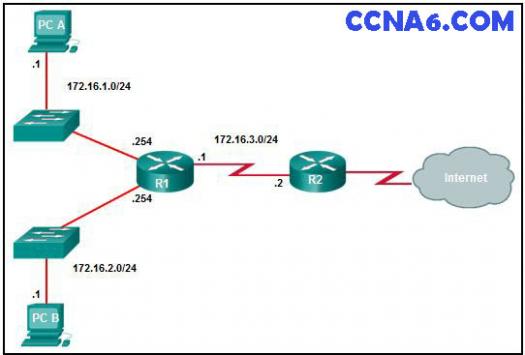

R2(config)# ip route 172.16.2.1 255.255.255.0 172.16.3.1
R2(config)# ip route 172.16.2.0 255.255.255.0 172.16.2.254
R2(config)# ip route 172.16.2.0 255.255.255.0 172.16.3.1
R2(config)# ip route 172.16.3.0 255.255.255.0 172.16.2.254

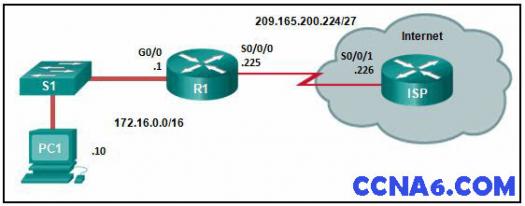

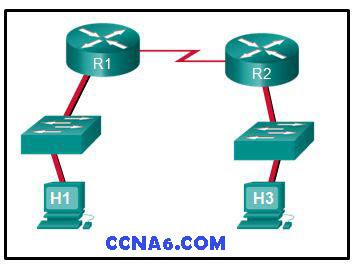

Add the next-hop neighbor address of 22.214.171.124.
Change the exit interface to S0/0/1.
Change the destination network and mask to 0.0.0.0 0.0.0.0.
Add an administrative distance of 254.
Ip route 172.16.0.0 255.255.240.0 S0/0/0 200
Ip route 172.16.32.0 255.255.224.0 S0/0/0 200
Ip route 172.16.0.0 255.255.224.0 S0/0/0 100
Ip route 172.16.32.0 255.255.0.0 S0/0/0 100
Add the next hop neighbor address of 192.168.0.36.
Change the administrative distance to 1.
Change the destination network to 192.168.0.34.
Change the administrative distance to 120.
It is automatically updated and maintained by routing protocols.
It is unaffected by changes in the topology of the network.
It has an administrative distance of 1.
It is identified by the prefix C in the routing table.
They improve network security.
They use fewer router resources.
They improve the efficiency of discovering neighboring networks.
They take less time to converge when the network topology changes.
They automatically switch the path to the destination network when the topology changes.

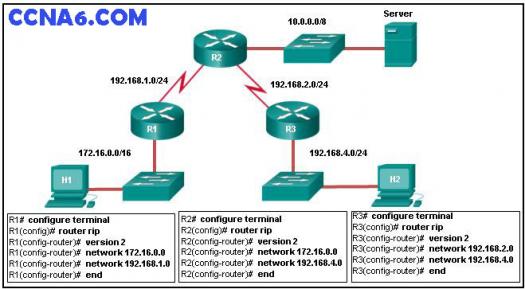

RIPv2 does not support VLSM.
RIPv2 is misconfigured on router R1.
RIPv2 is misconfigured on router R2.
RIPv2 is misconfigured on router R3.
RIPv2 does not support discontiguous networks.

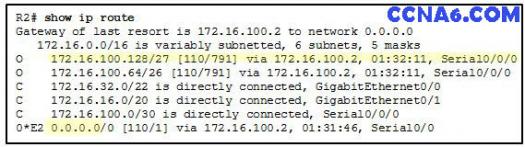

Level 2 child route
Speed of convergence
The autonomous system that is used
Campus backbone architecture
Aggregates Layer 2 broadcast domains
Aggregates Layer 3 routing boundaries
Provides access to the user
Provides fault isolation
Drop the frame.
Send the frame to the default gateway address.
Use ARP to resolve the port that is related to the frame.
Forward the frame out all ports except the port where the frame is received.
Frame error checking
Faster frame forwarding
Frame forwarding using IPv4 Layer 3 and 4 information
Ingress port buffering
When the Layer 2 switch needs to forward user traffic to another device
When the Layer 2 switch is the default gateway of user traffic
When the Layer 2 switch needs to be remotely managed
When the Layer 2 switch is using a routed port
Auto secure MAC addresses
Dynamic secure MAC addresses
Static secure MAC addresses
Sticky secure MAC addresses
Another switch was connected to this switch port with the wrong cable.
An unauthorized user tried to telnet to the switch through switch port Fa0/8.
NAT was enabled on a router, and a private IP address arrived on switch port Fa0/8.
A host with an invalid IP address was connected to a switch port that was previously unused.
Port security was enabled on the switch port, and an unauthorized connection was made on switch port Fa0/8.
They are numbered VLANs 1002 to 1005.
They cannot be used across multiple switches.
They are reserved to support Token Ring VLANs.
They are not stored in the vlan.dat file.

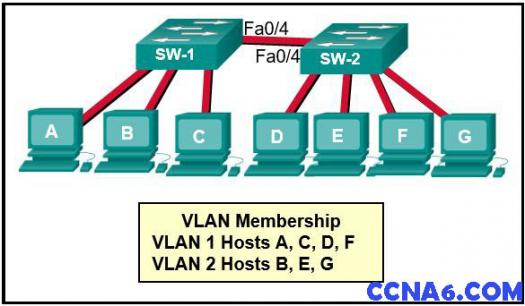

Switch(config)# interface gigabitethernet 1/1Switch(config-if)# spanning-tree vlan 1
Switch(config)# interface gigabitethernet 1/1Switch(config-if)# spanning-tree portfast
Switch(config)# interface gigabitethernet 1/1Switch(config-if)# switchport mode trunk
Switch(config)# interface gigabitethernet 1/1Switch(config-if)# switchport access vlan 1
Access-class 5 in
Access-list 5 deny any
Access-list standard VTYpermit 10.7.0.0 0.0.0.127
Access-list 5 permit 10.7.0.0 0.0.0.31
Ip access-group 5 out
Ip access-group 5 in
Access-group 11 in
Access-class 11 in
Access-list 11 in
Access-list 110 in
To notify other DHCP servers on the subnet that the IP address was leased
To notify other hosts not to request the same IP address
For hosts on other subnets to receive the information
For routers to fill their routing tables with this new information
Traffic that is destined for 172.16.4.1 and 172.16.4.5 will be dropped by the router.
Traffic will not be routed from clients with addresses between 172.16.4.1 and 172.16.4.5.
The DHCP server function of the router will not issue the addresses from 172.16.4.1 through 172.16.4.5 inclusive.
The router will ignore all traffic that comes from the DHCP servers with addresses 172.16.4.1 and 172.16.4.5.
Issue the command ip helper-address 10.10.200.10 on the router interface that is the 10.10.100.0/24 gateway.
Issue the command default-router 10.10.200.10 at the DHCP configuration prompt on the 10.10.100.0/24 LAN gateway router.
Issue the command ip helper-address 10.10.100.0 on the router interface that is the 10.10.200.0/24 gateway.
Issue the command network 10.10.200.0 255.255.255.0 at the DHCP configuration prompt on the 10.10.100.0/24 LAN gateway router.
The MAC address of the IPv6 enabled interface
A randomly generated 64-bit hexadecimal address
An IPv6 address that is provided by a DHCPv6 server
An IPv4 address that is configured on the interface

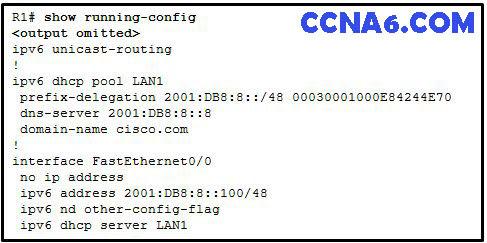

Ipv6 dhcp server LAN1
Ipv6 nd other-config-flag
Prefix-delegation 2001:DB8:8::/48 00030001000E84244E70

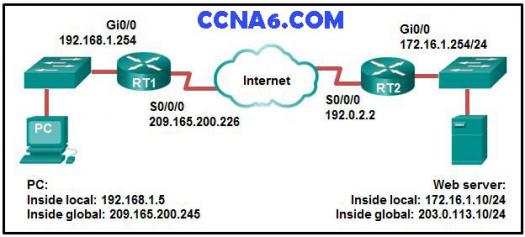

The output is the result of the show ip nat translations command.
The host with the address 126.96.36.199 will respond to requests by using a source address of 192.168.10.10.
The host with the address 188.8.131.52 will respond to requests by using a source address of 184.108.40.206.
Traffic with the destination address of a public web server will be sourced from the IP of 192.168.1.10.
The output is the result of the show ip nat statistics command.
It allows sites to use private IPv6 addresses and translates them to global IPv6 addresses.
It allows sites to connect multiple IPv4 hosts to the Internet via the use of a single public IPv4 address.
It allows sites to connect IPv6 hosts to an IPv4 network by translating the IPv6 addresses to IPv4 addresses.
It allows sites to use private IPv4 addresses, and thus hides the internal addressing structure from hosts on public IPv4 networks.
Show ip protocols
Show ip interface
Show cdp neighbors
To gather logging information for monitoring and troubleshooting
To select the type of logging information that is captured
To specify the destinations of captured messages
To periodically poll agents for data
To provide statistics on packets that are flowing through a Cisco device
To provide traffic analysis
System messages will be forwarded to the number following the logging trap argument.
System messages that exist in levels 4-7 must be forwarded to a specific logging server.
System messages that match logging levels 0-4 will be forwarded to a specified logging device.
System messages will be forwarded using a SNMP version that matches the argument that follows the logging trap command.
This is a notification message for a normal but significant condition.
This is an alert message for which immediate action is needed.
This is an error message for which warning conditions exist.
This is an error message that indicates the system is unusable.
It is a key for enabling an IOS feature set.
It is a proprietary encryption algorithm.
It is a compression file type used when installing IOS 15 or an IOS upgrade.
It is a way to compress an existing IOS so that a newer IOS version can be co-installed on a router.

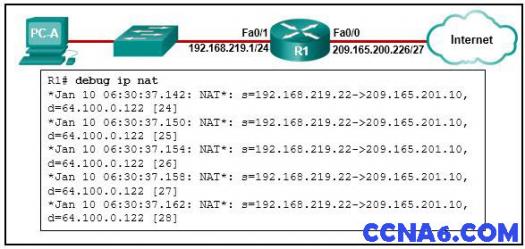

The address on Fa0/0 should be 220.127.116.11.
The NAT source access list matches the wrong address range.
The inside global address is not on the same subnet as the ISP.
The inside and outside NAT interfaces have been configured backwards.

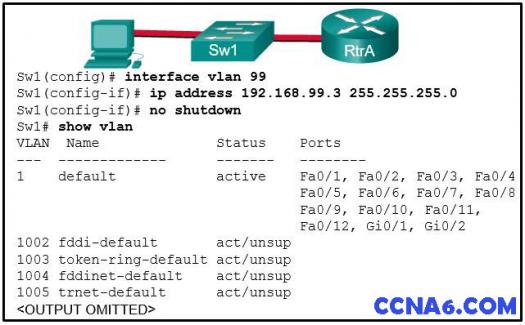

Because there is a cabling problem on VLAN 99
Because VLAN 99 is not a valid management VLAN
Because VLAN 1 is up and there can only be one management VLAN on the switch
Because VLAN 99 has not yet been created
