CCNA 4 Final Exam

Based on the given information, the most likely cause of the problem is the data link layer of the OSI model. The data link layer is responsible for providing error-free transmission of data over the physical network. If the routers RTA and RTB cannot ping from serial interface to serial interface, it suggests that there may be an issue with the data link layer, such as incorrect configuration or a faulty physical connection between the routers.

The correct answer is HDLC. HDLC (High-Level Data Link Control) is a Layer 2 encapsulation protocol used by default on Cisco routers. It is a synchronous serial protocol that provides a reliable and efficient way to transmit data over point-to-point links. HDLC is commonly used in WAN connections and is the default encapsulation for serial interfaces on Cisco routers.

The term "authenticator" describes the role of a Cisco switch in the 802.1X port-based access control. The authenticator is responsible for enforcing the authentication process and controlling access to the network. It verifies the credentials provided by the supplicant (the client device) and communicates with the authentication server to validate the user's identity. The authenticator acts as a gateway between the supplicant and the network, allowing or denying access based on the authentication result.

A WAN, or Wide Area Network, is a network that connects multiple LANs (Local Area Networks) over long distances. Unlike LANs, which are typically confined to a single location, WANs allow for communication and data transfer between LANs that are geographically separated. This enables organizations with multiple branches or offices to share resources and information efficiently. Therefore, the statement "A WAN interconnects LANs over long distances" best describes what a WAN is.

The three core components in the Cisco IoT system are fog computing, data analytics, and cyber and physical security. Fog computing refers to the decentralized computing infrastructure that brings computing resources closer to the edge devices in the network. Data analytics involves analyzing and interpreting large amounts of data collected from various IoT devices to derive meaningful insights. Cyber and physical security are crucial components to protect the IoT system from cyber threats and ensure the safety and integrity of the physical devices and infrastructure.

When connecting offices at different locations using the Internet, two important business policy issues that should be addressed are privacy and security. Privacy is crucial to protect sensitive information and ensure that only authorized individuals have access to it. Security measures are necessary to safeguard the network from cyber threats such as hacking, data breaches, and unauthorized access. By addressing these issues, businesses can ensure the confidentiality and integrity of their data while utilizing the cost-effective benefits of Internet connectivity.

Extended access control lists (ACLs) should be placed as close as possible to the source of the traffic to be denied. This is because ACLs are evaluated sequentially, and placing them closer to the source allows for earlier filtering and reduces unnecessary traffic on the network. By denying unwanted traffic at the source, network resources are conserved and potential security threats are mitigated more efficiently.

The network administrator would use RSPAN (Remote Switched Port Analyzer) to make the suspicious traffic available for analysis at the college data center. RSPAN allows the administrator to monitor traffic on one or more ports and send it to a monitoring port on a different switch, which can then be analyzed at the data center. This would enable the administrator to investigate the unusual amount of traffic being received on the switch port connected to the college classroom computer.

A trap is an SNMP message type that immediately informs the network management system (NMS) of certain specified events. When an event occurs, such as a device failure or a threshold being exceeded, the device sends a trap message to the NMS. This allows the NMS to be notified in real-time and take appropriate actions to address the event. Traps are proactive notifications that help in quickly identifying and resolving network issues.

IP SLA (Internet Protocol Service Level Agreement) is a feature that sends simulated data across the network and measures performance between multiple network locations. It allows network administrators to monitor and analyze network performance, identify potential issues, and troubleshoot network problems. By simulating traffic and measuring response times, IP SLA provides valuable insights into network performance and helps ensure that service level agreements are met.

The probable cause of the problem is that there is an incorrect wildcard mask statement for network 10.10.0.0/16 on Router2. This means that the wildcard mask used for the OSPF network statement on Router2 does not match the subnet mask of the 10.10.0.0/16 network. As a result, Router2 is not advertising this network to Router1, causing it to not show up in Router1's routing table.

The sales staff needs VPN client software to establish a remote VPN connection. VPN client software is a program that allows users to connect to a VPN server and access the corporate network securely. It encrypts the user's internet traffic and creates a secure tunnel between the user's device and the VPN server, ensuring that their data is protected from unauthorized access while traveling and accessing sales data.

An enterprise would decide to implement a corporate WAN when its employees become distributed across many branch locations. This is because a WAN (Wide Area Network) allows for the connection of multiple branch locations over a large geographic area, providing communication and data sharing capabilities between these locations. As employees are spread out across different branches, a WAN becomes necessary to ensure efficient and effective communication and collaboration between them.

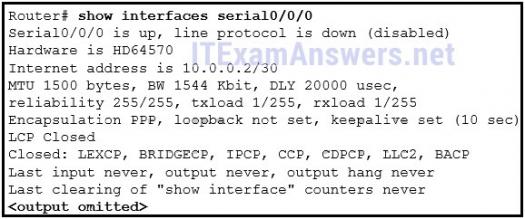

Based on the given output, the most likely cause of the communication failure is a PPP issue. The output shows that the "line protocol is down," which indicates a problem with the link layer protocol used for establishing and configuring the connection between the two peers. This suggests that there may be an issue with the PPP configuration or authentication, causing the communication to fail.

PPPoE (Point-to-Point Protocol over Ethernet) is the correct answer because it is the protocol that allows Internet Service Providers (ISPs) to send PPP frames over DSL networks. PPPoE is commonly used in DSL connections to establish a point-to-point connection between the user's equipment and the ISP's network. It encapsulates PPP frames within Ethernet frames, enabling the transmission of PPP packets over Ethernet-based networks like DSL.

ATM is less efficient compared to Frame Relay. This is because ATM has a fixed cell size of 53 bytes, which includes both data and overhead. This fixed size means that even small amounts of data have to be padded to fill an entire cell, resulting in wasted bandwidth. In contrast, Frame Relay has a variable frame size, allowing for more efficient utilization of bandwidth by sending only the necessary amount of data. Therefore, ATM is considered less efficient in terms of bandwidth utilization compared to Frame Relay.

A site-to-site VPN allows multiple sites or networks to connect securely over the internet. In this type of VPN, internal hosts at each site send normal, unencapsulated packets, meaning that the packets are not modified or encrypted before being transmitted. The VPN connection is established between the routers or firewalls at each site, rather than being defined on individual hosts. This allows all hosts within the network to communicate securely without requiring VPN client software to be installed on each host. Additionally, individual hosts do not have the ability to enable or disable the VPN connection as it is managed at the network level.

MPLS (Multiprotocol Label Switching) is a WAN (Wide Area Network) solution that uses labels to identify the path in sending packets through a provider network. Labels are added to packets at the ingress router and are used to determine the next hop for forwarding the packets. This allows for efficient routing and traffic engineering, as well as providing quality of service features. MPLS is commonly used by service providers to provide reliable and scalable connectivity for their customers.

A trust boundary is a concept used in Quality of Service (QoS) to determine which devices within a network trust the markings on packets. It helps in ensuring that the QoS policies are enforced correctly and that the markings on packets are respected by the trusted devices. By identifying the trust boundary, network administrators can control and prioritize traffic based on the markings, ensuring that the desired QoS is maintained throughout the network.

DTP (Dynamic Trunking Protocol) should be disabled to help mitigate VLAN attacks. DTP is a Cisco proprietary protocol used to negotiate trunk links between switches. By disabling DTP, the switch ports will not automatically form trunk links, reducing the risk of unauthorized VLAN hopping attacks. This prevents an attacker from connecting to a switch port and potentially gaining access to multiple VLANs. Disabling DTP ensures that trunking is only enabled on specific ports where it is required, improving network security.

DSL is not a shared medium, meaning that the connection is dedicated to the user and not shared with other users in the area. This ensures that the user has consistent and reliable speeds, without being affected by the number of users on the network. In contrast, cable technology often uses a shared medium, where multiple users share the same bandwidth, leading to potential slowdowns during peak usage times. Therefore, DSL has an advantage over cable technology in terms of providing a more consistent and reliable internet connection.

The wildcard mask 0.0.1.255 means that the first three octets of the IP address (172.16.2) should match exactly, while the last octet can have any value except for 255. Therefore, the IP address range that covers all IP addresses matching this filter is from 172.16.2.0 to 172.16.3.255.

In software defined network architecture, the function that is removed from network devices and performed by an SDN controller is the control plane. The control plane is responsible for making decisions about how data is routed and managed within the network. By centralizing this function in the SDN controller, network devices can focus solely on the data plane, which is responsible for forwarding data packets. This separation of control plane and data plane allows for greater flexibility, scalability, and programmability in network management.

CHAP is preferred over PAP as the authentication protocol because it uses a three-way authentication periodically during the session to reconfirm identities. This adds an extra layer of security by continuously verifying the identities of both the client and the server. Additionally, CHAP transmits login information in encrypted format, ensuring that it cannot be easily intercepted and read by unauthorized individuals. Lastly, CHAP uses an unpredictable variable challenge value to prevent playback attacks, making it more resilient against such attacks compared to PAP.

Virtualization helps with disaster recovery within a data center by allowing for greater flexibility in hardware requirements. In a virtualized environment, virtual machines can be created and run on different physical servers, which means that hardware does not have to be identical. This is beneficial for disaster recovery because it allows for easier and faster restoration of services in the event of a hardware failure. Instead of needing an exact replacement for a failed server, virtual machines can be migrated to other available hardware, reducing downtime and improving overall resilience.

Standard IPv4 ACLs are configured in the interface configuration mode. They can be created with a number but not with a name. These ACLs are used to filter traffic based on source IP addresses only, not considering source ports.

When creating an extended access control list entry, three values or sets of values that are included are: access list number between 100 and 199, destination address and wildcard mask, and source address and wildcard mask. These values are necessary to specify the specific access list number range, the destination address and its corresponding wildcard mask, and the source address and its corresponding wildcard mask. This allows for granular control and filtering of network traffic based on the specified source and destination addresses within the defined access list number range.

MPLS (Multiprotocol Label Switching) is a WAN technology that can serve as the underlying network to carry multiple types of network traffic such as IP, ATM, Ethernet, and DSL. MPLS uses labels to efficiently route traffic through the network, making it a versatile option for carrying different types of traffic. It provides a scalable and flexible solution for organizations that need to support various network protocols and technologies over a wide area network.

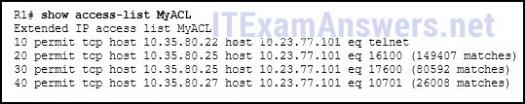

The given output indicates that the router has not received any Telnet packets from the IP address 10.35.80.22 that are intended for the IP address 10.23.77.101. This can be inferred from the fact that there are no matches for line 10 in the ACL, suggesting that the ACL is not monitoring or blocking any traffic from this specific source and destination. Therefore, the correct answer is that the router has not received any Telnet packets from 10.35.80.22 destined for 10.23.77.101.

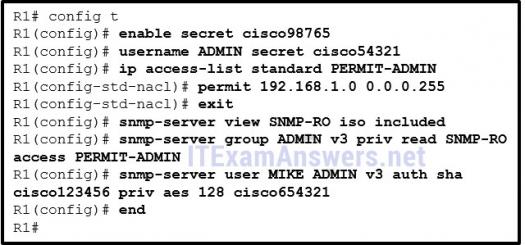

The SNMP authentication password that must be used by the member of the ADMIN group configured on router R1 is "cisco123456". This is because it is the only password listed in the options provided.

A DSLAM (Digital Subscriber Line Access Multiplexer) is a device that is needed at a central office to aggregate many digital subscriber lines from customers. It collects and combines the DSL signals from multiple customers and routes them to the appropriate network. DSLAMs play a crucial role in providing high-speed internet access over DSL technology by efficiently managing and distributing the data traffic.

A seasoned network administrator is likely to have more experience and knowledge in troubleshooting network issues. They may have encountered similar problems before and developed an intuition or educated guess about the possible causes. Therefore, a less-structured approach based on an educated guess would be more appropriate for them as they can quickly identify and resolve the problem without following a strict step-by-step process. This approach allows them to leverage their expertise and make informed decisions based on their past experiences.

The primary reason an attacker would launch a MAC address overflow attack is to be able to see frames that are destined for other hosts. By overflowing the MAC address table of a switch, the attacker can cause the switch to flood all incoming frames to all ports, allowing them to capture and analyze network traffic that is intended for other hosts. This can potentially provide the attacker with sensitive information or allow them to eavesdrop on communications between other network devices.

Creating an ACL in SNMPv3 is done to specify the source addresses that are allowed to access the SNMP agent. This is important for security purposes as it restricts access to the SNMP agent only to authorized devices or networks. By defining the specific source addresses, the ACL ensures that only trusted sources can communicate with the SNMP agent, preventing unauthorized access and potential security breaches.

The correct answer is the ARP table. The ARP table is used to pre-populate the adjacency table on Cisco devices that use CEF (Cisco Express Forwarding) to process packets. The adjacency table contains information about the next-hop devices and their MAC addresses, which is necessary for forwarding packets efficiently. The ARP table is used to map IP addresses to MAC addresses, allowing the adjacency table to be populated with this information before packet forwarding occurs.

Cable broadband is the appropriate solution for a home user who needs a wired connection not limited by distance. Cable broadband uses coaxial cables to provide high-speed internet access, which is not limited by the distance from the service provider's location. This makes it a suitable choice for home users who require a reliable and fast wired connection without worrying about distance limitations. DSL, WiMax, and ADSL are not ideal for this scenario as they have distance limitations or rely on wireless technology.

The only type of ACL available for IPv6 is named extended. This type of ACL allows for more granular control over network traffic by specifying source and destination addresses, as well as additional parameters such as protocols and ports. Named extended ACLs are commonly used in IPv6 networks to enforce security policies and restrict access to specific resources.

DHCP spoofing attacks can be mitigated by implementing DHCP snooping on trusted ports. DHCP snooping is a security feature that can be enabled on network switches to prevent unauthorized DHCP servers from providing IP addresses to clients. By enabling DHCP snooping on trusted ports, the switch will only allow DHCP responses from trusted DHCP servers, thus preventing spoofed DHCP responses from malicious sources. This helps to ensure that clients receive valid IP addresses from legitimate DHCP servers and reduces the risk of falling victim to DHCP spoofing attacks.

DSL, or Digital Subscriber Line, is a public WAN access technology that utilizes copper telephone lines to provide access to subscribers. It works by using different frequencies to transmit data over the existing phone lines, allowing for simultaneous voice and data transmission. In this case, the subscribers' connections are multiplexed into a single T3 link connection, which is a high-speed digital transmission line. Therefore, DSL is the correct answer.

DSL (Digital Subscriber Line) requires the use of PPPoE (Point-to-Point Protocol over Ethernet) to provide PPP (Point-to-Point Protocol) connections to customers. DSL is a technology that uses existing copper telephone lines to provide high-speed internet access. PPPoE is a network protocol that allows the transmission of PPP frames over Ethernet networks. By using PPPoE, DSL providers can establish PPP connections with their customers, allowing them to authenticate and establish secure connections for internet access.

SNMP trap messages provide a solution to the main disadvantage of SNMP polling. SNMP polling involves the management system continuously sending requests to the managed devices to gather information. This can result in a high volume of network traffic and increased processing load on the managed devices. SNMP trap messages, on the other hand, allow the managed devices to send unsolicited notifications to the management system when specific events occur. This reduces the need for continuous polling and helps in reducing network traffic and device load.

DWDM is a technology that allows multiple wavelengths of light to be transmitted simultaneously over a single optical fiber. This enables high-capacity and long-range communications, making it suitable for connections between ISPs. It does not support the SONET or SDH standards, which are related to synchronous digital transmission over fiber optic networks. Additionally, DWDM does not involve copper cables or assign incoming electrical signals to specific frequencies.

A named ACL can be used in this situation because it allows for more specific control over the traffic. With a named ACL, the network administrator can specify the IP address of the test computer as the only allowed source address, effectively blocking any other host from connecting to the web server. Standard and extended ACLs do not provide the level of specificity needed for this scenario.

Frame Relay and ATM are both private WAN technologies. Frame Relay is a packet-switching technology that allows for the efficient transmission of data over a wide area network. ATM (Asynchronous Transfer Mode) is a cell-switching technology that provides high-speed transmission of voice, video, and data. Both technologies are commonly used by organizations to establish private networks for secure and reliable communication between remote locations.

A broadband modem is specific to a WAN environment as it is used to connect to the internet via a broadband connection. It is not typically found on a LAN as LANs usually use Ethernet connections.

A CSU/DSU (Channel Service Unit/Data Service Unit) is also specific to a WAN environment. It is used to connect a router to a digital circuit, such as a T1 or T3 line, and is responsible for converting the digital data from the router into a format that can be transmitted over the circuit. CSU/DSUs are not typically found on a LAN as LANs usually use Ethernet connections.

ISPs can use CHAP (Challenge Handshake Authentication Protocol) to periodically challenge broadband customers over DSL networks with PPPoE. CHAP is a secure authentication protocol that verifies the identity of the customer by exchanging a series of challenge-response messages. This helps to ensure that only authorized users can access the network and protects against unauthorized access or attacks. PAP (Password Authentication Protocol) is a less secure authentication protocol compared to CHAP and is not commonly used. HDLC (High-Level Data Link Control) and Frame Relay are data link layer protocols that are not specifically designed for authentication purposes in this context.

LLQ stands for Low Latency Queueing, which is a QoS mechanism that allows delay-sensitive data, such as voice, to be sent first before packets in other queues are sent. LLQ assigns a strict priority queue for delay-sensitive traffic, ensuring that it is given preferential treatment and minimal delay. This mechanism is commonly used in networks where real-time applications like voice and video need to be prioritized to maintain quality and minimize latency.

The best way for the network administrator to determine how the change has affected performance and availability on the company intranet is to conduct a performance test and compare it with the baseline that was established previously. This will allow the administrator to measure any changes in performance metrics such as response time, throughput, and error rates. By comparing the test results with the baseline, the administrator can identify any improvements or degradation in performance and make necessary adjustments if needed.

The primary difference between a company LAN and the WAN services it uses is that the company must subscribe to an external WAN service provider. This means that the company does not have direct control over its WAN links, unlike its LAN. The LAN may use different network access layer standards, while the WAN will use only one standard. However, the key distinction is that the company relies on an external provider for its WAN services.

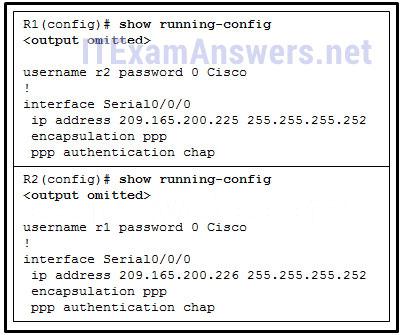

The partial output of the show running-config command shows that the hostnames of the routers are "R1" and "R2", but the usernames configured on the routers are "r1" and "r2". The usernames should match the hostnames in order for the link to be established.

The correct answer is a central site that connects to a SOHO site without encryption. Generic Routing Encapsulation (GRE) tunneling is a protocol that encapsulates packets in order to create a virtual point-to-point link between two remote sites. It is commonly used to create a secure tunnel over an untrusted network. In this scenario, since the connection is without encryption, it suggests that the data being transmitted does not require security. Therefore, using GRE tunneling without encryption would be appropriate in this case.

The given answer states that R1 will send system messages of levels 0 (emergencies) to level 4 (warnings) to a server. This is supported by the command "logging trap 4" which sets the logging level to 4, indicating that messages of levels 0 to 4 will be sent to the server. The answer also mentions that the syslog server has the IPv4 address 192.168.10.10, which is mentioned in the exhibit.

Congestion avoidance tools are designed to manage network traffic by controlling the flow of data and preventing congestion. UDP (User Datagram Protocol) is a connectionless protocol that does not provide any congestion control mechanisms. Unlike TCP (Transmission Control Protocol), which uses congestion avoidance techniques like windowing and congestion control algorithms, UDP does not have built-in mechanisms to manage congestion. Therefore, UDP traffic cannot be effectively managed using congestion avoidance tools.

One possible cause of the problem could be that host A is not able to access the internet because it does not have Network Address Translation (NAT) configured. NAT is required to translate the private IP addresses used within the host A network to a public IP address that can be used on the internet. Without NAT, host A would not be able to establish a connection to the internet.

Disabling automatic trunking negotiation can help mitigate the threat of VLAN attacks. Trunking allows multiple VLANs to be carried over a single link, but it can also be exploited by attackers to gain unauthorized access to VLANs. By disabling automatic trunking negotiation, the network administrator can manually configure trunk links, ensuring that only authorized VLANs are allowed. This reduces the risk of unauthorized access and potential VLAN attacks.

VSAT (Very Small Aperture Terminal) technology can be used to create a private WAN (Wide Area Network) via satellite communications. VSAT utilizes small satellite dishes and modems to establish a two-way communication link with satellites in orbit. This allows for the transmission of data over long distances, making it suitable for creating private WAN connections. VPN (Virtual Private Network) is a technology used to create secure connections over public networks, but it is not specifically related to satellite communications. 3G/4G cellular and WiMAX are wireless technologies used for mobile and fixed broadband connections, respectively, but they do not involve satellite communications.

Level 0 indicates the highest severity level in IOS log messages. The severity levels range from 0 to 7, with level 0 being the most critical. This level is used for emergency system messages that require immediate attention, such as system crashes or major failures.

Frame Relay and MetroE are more likely to be used by businesses than by teleworkers or home users. These technologies are typically used for larger-scale networks and provide high-speed and reliable connections. Cable and DSL are more commonly used by teleworkers or home users as they are more cost-effective and readily available for residential use. VPN, on the other hand, can be used by both businesses and teleworkers/home users as it allows for secure remote access to a network.

The show ppp multilink command on a Cisco router will display the serial interfaces that are participating in the multilink. It will not display the link LCP and NCP status, the queuing type on the link, or the IP addresses of the link interfaces.

The purpose of the implicit final command entries, permit icmp any any nd-na and permit icmp any any nd-ns, in the creation of an IPv6 ACL is to allow IPv6 to MAC address resolution. These entries permit the forwarding of ICMPv6 Neighbor Discovery (ND) packets, specifically the Neighbor Advertisement (ND-NA) and Neighbor Solicitation (ND-NS) packets. These packets are essential for IPv6 devices to resolve IPv6 addresses to MAC addresses, enabling communication on the local network. By allowing these packets, the ACL ensures that the necessary address resolution process can take place.

Neighbor adjacency is formed with some routers, but not all routers is an example of a network issue at the network layer. This suggests that there may be a problem with the routing protocols or configurations, causing some routers to form adjacency while others do not. This can lead to inconsistent routing and communication issues within the network.

The SNMP manager is unable to read configuration variables on the R1 SNMP agent because the ACL (Access Control List) is not permitting access by the SNMP manager. This means that the SNMP manager's IP address (172.16.10.1) is not allowed to access the SNMP agent.

Host H1 does not have a default gateway configured. A default gateway is the IP address of the router interface that connects the local network to other networks. It is used by the host to send packets to destinations outside of its own network. Without a default gateway, H1 cannot send packets to networks other than its own, which means it cannot reach H4 and H5 that are on different networks.

In the troubleshooting process, ownership research and documentation would typically occur during the stage of gathering symptoms. This stage involves collecting information about the problem, including its nature, frequency, and any relevant details. Researching and documenting ownership is important to determine who is responsible for resolving the issue and to keep a record of the problem for future reference.

Multilink PPP provides the function of spreading traffic across multiple physical WAN links. This means that instead of relying on a single link, Multilink PPP allows for the aggregation of multiple links to increase bandwidth and improve overall network performance. By distributing traffic across these links, Multilink PPP helps to balance the load and prevent congestion on any one link. This can be particularly useful in scenarios where a single link may not provide sufficient bandwidth or redundancy.

A leased line is a private dedicated connection between two locations, typically provided by a telecommunications provider. It offers high-speed and reliable connectivity, making it suitable for a private WAN architecture. Ethernet WAN is another example of a private WAN architecture, where Ethernet technology is used to connect multiple locations within a company's network. Both leased line and Ethernet WAN provide secure and dedicated connections, making them suitable options for a private WAN architecture.

NHRP (Next Hop Resolution Protocol) is the technology that creates a mapping of public IP addresses for remote tunnel spokes in a DMVPN (Dynamic Multipoint VPN) configuration. It is responsible for resolving the next hop address, allowing the spokes to communicate with each other directly without going through a central hub. NHRP enables efficient and scalable communication in DMVPN networks by dynamically mapping the public IP addresses of the spokes.

WAN technologies provide services at the physical layer and data link layer of the OSI model. The physical layer is responsible for transmitting raw bits over a physical medium, such as cables or wireless signals. WAN technologies, like DSL or T1 lines, operate at this layer to establish the physical connection between network devices. The data link layer is responsible for framing the raw bits into packets and providing error detection and correction. WAN technologies, like Frame Relay or Ethernet, operate at this layer to ensure reliable data transmission over the physical connection.

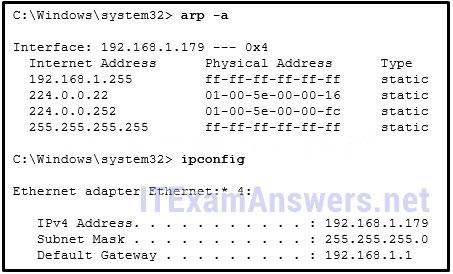

Based on the output of the arp -a command, the technician can see that the default gateway device's MAC address is not listed. This suggests that the PC is unable to reach the default gateway, which could be due to a misconfiguration in the IP settings or an issue with the default gateway device itself. Additionally, the ipconfig command shows that the IP configuration is incorrect as the IP address, subnet mask, and default gateway do not match the expected values. Therefore, the two possible causes of the problem are that the IP configuration is incorrect and the default gateway device cannot be contacted.

Video traffic is unpredictable and inconsistent because it can vary in terms of quality, bandwidth requirements, and network resources consumed. Additionally, video traffic latency should not exceed 400 ms to ensure smooth playback and real-time communication. This means that video traffic needs to be delivered with minimal delay to maintain a good user experience.

The playout delay buffer compensates for jitter in an audio stream by buffering packets and then replaying them outbound in a steady stream. This buffer helps to smooth out any variations in packet arrival times, ensuring a consistent and uninterrupted audio playback experience.

Port security is an effective security countermeasure for preventing CAM table overflow attacks. By enabling port security, only a specific number of MAC addresses are allowed to communicate through a switch port. This prevents an attacker from flooding the switch with fake MAC addresses, which could lead to a CAM table overflow attack.

If connectivity to the ISP was established via a PPPoE configuration, the routing table of stub router R1 would include the following entries:
- A static route with a next hop of Dialer1 for the default route (0.0.0.0/0).
- Two directly connected routes for the subnets 192.168.1.1/32 and 192.168.1.2/32, both with a next hop of Dialer1.

The network administrator is verifying that the Dialer1 interface has been assigned an IP address by the ISP router. This is because the "show ip interface brief" command displays the IP address information for all interfaces on the router, and by checking the output of this command, the administrator can confirm if the Dialer1 interface has been assigned an IP address by the ISP router.

The output in the exhibit shows that the device is able to successfully ping the device at 192.168.100.1, indicating that there is connectivity between the two devices. Additionally, the output shows that there are 4 hops between the device and the device at 192.168.100.1, indicating that there are 4 intermediate devices between them in the network path.

A management console is required for a Type 1 hypervisor because it allows administrators to configure and manage the virtual machines and the hypervisor itself. It provides a centralized interface to monitor and control the virtualization environment, allowing tasks such as creating and deploying virtual machines, managing storage and networking, and monitoring performance. Without a management console, it would be difficult to efficiently manage and administer the virtualization infrastructure.

The troubleshooting method being used by the technician is divide-and-conquer. This method involves breaking down a problem into smaller, more manageable parts and then systematically testing each part to identify the cause of the issue. In this case, the technician is asking the user to enter the IP address of the web server to see if the page can be displayed, which helps narrow down the possible causes of the error message. By dividing the problem into smaller steps and testing each step, the technician can efficiently troubleshoot and identify the root cause of the issue.

The three implicit access control entries that are automatically added to the end of an IPv6 ACL are: deny ipv6 any any, permit icmp any any nd-ns, and permit icmp any any nd-na. These entries deny any IPv6 traffic, permit ICMP traffic for Neighbor Discovery Neighbor Solicitation (nd-ns), and permit ICMP traffic for Neighbor Discovery Neighbor Advertisement (nd-na).

Dense wavelength-division multiplexing (DWDM) technology allows for bidirectional communications over a single strand of fiber. This means that both upstream and downstream data can be transmitted simultaneously on the same fiber, increasing the capacity and efficiency of the network. This feature is achieved by using different wavelengths of light to carry multiple signals over the same fiber, each signal occupying a specific wavelength. This enables higher data transmission rates and allows for more efficient use of the available fiber infrastructure.

A logical topology diagram of a network should include the connection type and interface identifier. The connection type shows how devices are connected to each other, such as through Ethernet or wireless connections. The interface identifier specifies which specific interface on a device is being used for the connection. Including these two pieces of information helps to provide a clear understanding of how devices are interconnected in the network.

PPP can use both synchronous and asynchronous circuits, allowing it to be used in a variety of network environments. It is not limited to only Cisco devices, as it is a widely used protocol that can be implemented on different types of equipment. PPP carries packets from multiple network layer protocols in LCPs, allowing for interoperability between different network protocols. It uses LCPs to establish, configure, and test the data-link connection, ensuring a reliable and efficient connection. Additionally, PPP uses LCPs to agree on format options such as authentication, compression, and error detection, providing flexibility and customization options for the connection.

Cable would be an appropriate broadband solution for the company. Cable internet is typically faster and more reliable than DSL or satellite, making it suitable for the company's requirement of at least 10 Mb/s download speed. Additionally, cable internet is widely available and can be easily accessed even if the company is located 5 miles away from the nearest provider.

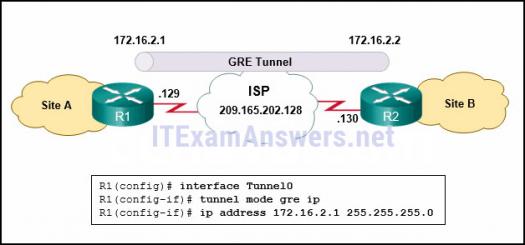

The purpose of the generic routing encapsulation (GRE) tunneling protocol is to manage the transportation of IP multicast and multiprotocol traffic between remote sites. GRE allows the encapsulation of multiple protocols within IP packets, enabling the routing of different types of traffic over a single IP network. It provides a flexible solution for connecting remote sites and supports multicast traffic, which is essential for transmitting data to multiple recipients simultaneously. By encapsulating and tunneling different protocols, GRE facilitates efficient and reliable communication between remote sites.

A GRE tunnel creates nonsecure tunnels between remote sites, meaning that the data transmitted through the tunnel is not encrypted or secured. It also creates additional packet overhead, which means that it adds extra information to the packets being transmitted, increasing the size of the packets. Additionally, a GRE tunnel supports the transportation of multiple Layer 3 protocols, allowing different network protocols to be transmitted through the tunnel.

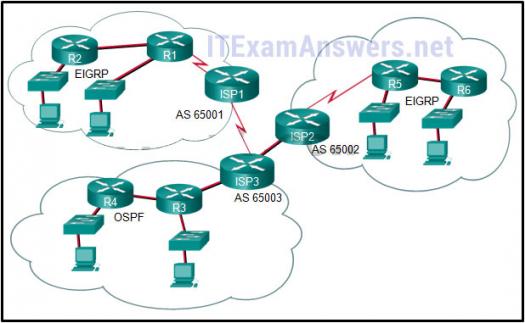

IGP (Interior Gateway Protocol) routing protocols are used to exchange routing information between routers within each AS (Autonomous System). These protocols are designed to work within a single autonomous system and are used to determine the best path for routing traffic between routers. Examples of IGP routing protocols include OSPF (Open Shortest Path First), RIP (Routing Information Protocol), and EIGRP (Enhanced Interior Gateway Routing Protocol). These protocols enable routers within an AS to share information about network topology, reachability, and metrics, allowing for efficient and effective routing within the autonomous system.
