CCNA 1 Chapter 9

The correct answer is to ask the user what URL has been typed and what error message displays. This is the first step a network administrator should take in order to gather information about the issue and understand the specific problem the user is facing. By asking for the URL and error message, the administrator can start troubleshooting and determine if it is a configuration issue, a network problem, or any other potential cause for the inability to access the web server. Rebooting the web server, replacing the NIC, or asking the user to log off and log on again may not address the root cause of the problem.

The command "nslookup" is used to determine if a DNS server is providing name resolution. Nslookup is a command-line tool that allows users to query DNS servers to obtain information about domain names, IP addresses, and other DNS records. By using nslookup, users can verify if a DNS server is able to resolve domain names correctly and retrieve the corresponding IP addresses.

The two physical-layer network problems mentioned in the answer are hardware failure and loose cable connections. Hardware failure refers to any malfunction or breakdown of the physical components of a network, such as routers, switches, or cables. Loose cable connections can cause disruptions in network connectivity and result in intermittent or no connection. These problems directly affect the physical infrastructure of the network and can lead to network outages or poor performance.

The bottom-up troubleshooting method begins by examining cable connections and wiring issues. This method involves starting with the physical components and working upwards to identify and resolve issues. By checking the cables and wiring first, any problems related to faulty connections or damaged wires can be identified and fixed before moving on to other troubleshooting steps. This approach ensures that the foundation of the system is stable before investigating other potential causes of the problem.

For a wireless connection to occur, three settings that must match on the client and access point are SSID, authentication, and encryption key. The SSID (Service Set Identifier) is the name of the wireless network and must be the same on both the client and access point for them to connect. Authentication refers to the method used to verify the identity of the client, such as a password or certificate, and it must be set up the same way on both devices. The encryption key is used to secure the wireless connection and must be identical on both the client and access point for successful communication.

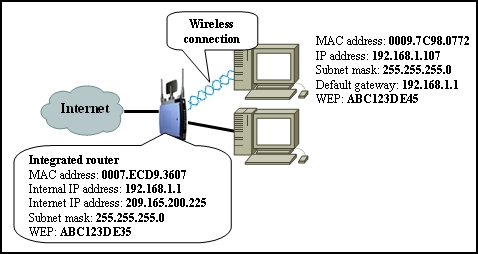

The wireless host is unable to access the internet because the WEP key is incorrect. The WEP key is a security feature that is used to encrypt and decrypt data transmitted over the wireless network. If the WEP key is incorrect, the wireless host will not be able to establish a secure connection with the network, preventing it from accessing the internet.

The correct answer is "tracert." Tracert is a command used to trace the route that a packet takes from the source to the destination in the Internet. It displays the IP addresses and the time it takes for each hop along the path, allowing users to identify any delays or network congestion.

Broadcasting the SSID makes it easier for hackers to identify the wireless network. Using open authentication allows anyone to connect to the network without providing a password. Using the default internal IP address makes it easier for hackers to target the access point. Configuring NAT, enabling MAC address filters are security measures that would make it harder for hackers to gain access.

The incorrect configuration in the network shown is the host IP address.

The blinking green activity LED on the ports indicates that the ports are operational and are receiving traffic. This means that the network problem is not caused by the Linksys integrated router itself, but rather by another component or issue in the network.

The problem could be that a crossover cable is being used. A crossover cable is used to directly connect two devices of the same type, such as two computers, without the need for a switch. However, in this scenario, a PC is plugged into a switch, which requires a straight-through cable. A straight-through cable is used to connect different types of devices, such as a PC and a switch. Therefore, if a crossover cable is being used, it would not allow the PC to connect to the network.

The technician's decision to send the customer a new cable modem to try is an example of the troubleshooting technique known as substitution. Substitution involves replacing a component or device with a known working one to determine if the issue is resolved. In this case, by sending a new cable modem, the technician is substituting the existing modem to see if it resolves the unstable Internet connection problem.

In the divide-and-conquer method, the first troubleshooting step is to check the workstation TCP/IP configuration. This step is important because it helps identify any misconfigurations or issues with the network settings on the workstation that may be causing the inability to reach the Internet. By checking the TCP/IP configuration, it is possible to verify if the workstation has the correct IP address, subnet mask, default gateway, and DNS settings. This step helps narrow down the problem and determine if the issue lies within the workstation itself.

Remote-access software allows technicians to remotely access and control a computer or device from a different location. This means that they can troubleshoot and diagnose issues without physically being present at the site. They can run diagnostics, check settings, and make necessary changes without needing to travel to the location. This saves time and resources, making the troubleshooting process more efficient. It also allows for quicker resolution of problems as technicians can immediately address issues remotely.

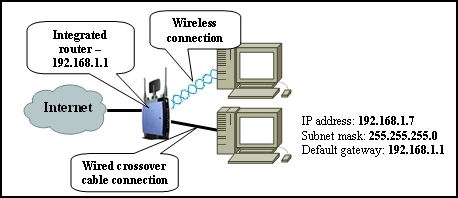

The correct answer is that the wired connection is the wrong type of cable. This means that the physical connection between the host and the network is not properly established due to the use of an incompatible cable.

The ipconfig /renew command is used to request a new IP configuration from a DHCP server. This command is typically used when a device's IP lease is about to expire or when the device needs to obtain a new IP address from the DHCP server. By running ipconfig /renew, the device sends a request to the DHCP server to allocate a new IP address and update its network configuration accordingly.

To verify connectivity between the router and the ISP, two items that could be checked are the router status page and the connectivity status as indicated by LEDs. The router status page provides information about the router's connection to the ISP, including IP address, DNS settings, and connection status. The connectivity status as indicated by LEDs on the router can also provide a visual indication of whether the router is successfully connected to the ISP.

Following a troubleshooting event, it is important to add the final resolution to the documentation as it provides a clear and concise summary of how the problem was resolved. Additionally, including the results of successful and unsuccessful troubleshooting steps is crucial as it helps in understanding what worked and what did not, enabling future troubleshooting efforts to be more efficient and effective.

When acting as a DHCP server, an ISR can provide three types of information to a client. The first is the DNS server address, which is crucial for the client to resolve domain names to IP addresses. The second is the default gateway, which is the IP address of the router that connects the client to other networks. Lastly, the ISR can provide a dynamic IP address to the client, which is temporarily assigned from a pool of available addresses. These three pieces of information are essential for the client to establish network connectivity and access resources on the network.

Help desk personnel assist end users in identifying when the problem occurred by gathering information about the issue and troubleshooting its root cause. They also help in implementing the solution to the problem by providing step-by-step instructions or remotely accessing the user's computer to resolve the issue.

The two troubleshooting techniques that are suitable for both home networks and large corporate networks are documenting the troubleshooting process and keeping a record of system upgrades and software versions. These techniques are important in both scenarios as they help in maintaining a systematic approach to troubleshooting and allow for better tracking of changes and upgrades made to the network. By documenting the troubleshooting process, it becomes easier to identify patterns and trends in network issues, while keeping a record of system upgrades and software versions ensures that any changes can be easily reverted if they cause problems.

The technician should first ensure that the correct cable is being used between the PC and the Linksys integrated router. Using the wrong cable could prevent a console session from being established. Additionally, the technician should check the link status LED on the integrated router to ensure that it is lit. If the LED is not lit, it could indicate a problem with the physical connection or the router itself. Checking these two factors will help diagnose the problem with establishing a console session.

Network baselines should be performed after the network is installed and running optimally to establish a benchmark for normal network performance. This baseline can be used for comparison in the future to identify any deviations or abnormalities. Additionally, network baselines should be performed after major changes are implemented on the network to assess the impact of these changes on network performance and ensure that the changes have not negatively affected the network's functionality.
