OSI Network Layer Chapter 5

Reviewed by Editorial Team
The ProProfs editorial team is comprised of experienced subject matter experts. They've collectively created over 10,000 quizzes and lessons, serving over 100 million users. Our team includes in-house content moderators and subject matter experts, as well as a global network of rigorously trained contributors. All adhere to our comprehensive editorial guidelines, ensuring the delivery of high-quality content.
Learn about Our Editorial Process
| By Sharangkan
S
Sharangkan
Community Contributor
Quizzes Created: 3 | Total Attempts: 872
| Attempts: 392
Quiz Flashcard
SettingsSettings
Please wait...
  • 1/21 Questions

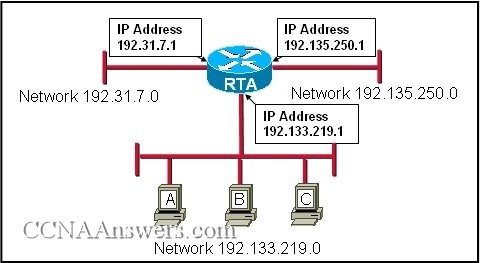

    Refer to the exhibit. Using the network in the exhibit, what would be the default gateway address for host A in the 192.133.219.0 network? - ProProfs

    Refer to the exhibit. Using the network in the exhibit, what would be the default gateway address for host A in the 192.133.219.0 network?

    • 192.135.250.1
    • 192.31.7.1
    • 192.133.219.0
    • 192.133.219.1
Please wait...
OSI Network Layer Chapter 5 - Quiz
About This Quiz

This OSI Network Layer Chapter 5 quiz assesses knowledge of network configurations, routing protocols, and gateway functions. It is designed for learners preparing for CCNA certification, focusing on practical skills in managing and understanding network layers and routing tables.

Quiz Preview

  • 2.

    If the default gateway is configured incorrectly on the host, what is the impact on communications?

    • The host is unable to communicate on the local network.

    • The host can communicate with other hosts on the local network, but is unable to communicate with hosts on remote networks

    • The host can communicate with other hosts on remote networks, but is unable to communicate with hosts on the local network.

    • There is no impact on communications

    Correct Answer
    A. The host can communicate with other hosts on the local network, but is unable to communicate with hosts on remote networks
    Explanation
    If the default gateway is configured incorrectly on the host, the host can still communicate with other hosts on the local network. However, it will be unable to communicate with hosts on remote networks. The default gateway is responsible for routing traffic between different networks, so if it is configured incorrectly, the host will not be able to send data to hosts outside of its local network.

    Rate this question:

  • 3.

    8. What is the purpose of a default gateway?

    • Physically connects a computer to a network

    • Provides a permanent address to a computer

    • Identifies the network to which a computer is connected

    • Identifies the logical address of a networked computer and uniquely identifies it to the rest of the network

    • Identifies the device that allows local network computers to communicate with devices on other networks

    Correct Answer
    A. Identifies the device that allows local network computers to communicate with devices on other networks
    Explanation
    The purpose of a default gateway is to identify the device that allows local network computers to communicate with devices on other networks. The default gateway acts as a bridge between the local network and external networks, forwarding network traffic between them. It is responsible for routing data packets to the appropriate destination outside of the local network.

    Rate this question:

  • 4.

    What type of routing uses information that is manually entered into the routing table?

    • Dynamic

    • Interior

    • Static

    • Standard

    Correct Answer
    A. Static
    Explanation
    Static routing uses information that is manually entered into the routing table. In a static routing environment, network administrators manually configure the routes and their associated metrics, and these routes remain unchanged unless manually modified. This type of routing is commonly used in small networks or in situations where the network topology is stable and does not require frequent updates.

    Rate this question:

  • 5.

    12. What is a component of a routing table entry?

    • The MAC address of the interface of the router

    • The destination Layer 4 port number

    • The destination host address

    • The next-hop address

    Correct Answer
    A. The next-hop address
    Explanation
    A component of a routing table entry is the next-hop address. This is the address that specifies the next router or interface to which the packet should be forwarded in order to reach its destination. The next-hop address helps in determining the path that the packet should take through the network.

    Rate this question:

  • 6.

    When the destination network is not listed in the routing table of a Cisco router, what are two possible actions that the router might take? (Choose two.)

    • The router sends an ARP request to determine the required next hop address.

    • The router discards the packet

    • The router forwards the packet to the interface indicated by the source address.

    • The router forwards the packet out the interface indicated by the default route entry.

    Correct Answer(s)
    A. The router discards the packet
    A. The router forwards the packet out the interface indicated by the default route entry.
    Explanation
    When the destination network is not listed in the routing table of a Cisco router, the router might take two possible actions. First, it may discard the packet because it does not have a specific route for the destination network. Second, if there is a default route entry in the routing table, the router may forward the packet out the interface indicated by the default route entry. In this case, the default route acts as a catch-all route for any destination networks that are not explicitly listed in the routing table.

    Rate this question:

  • 7.

    What are the key factors to consider when grouping hosts into a common network? (Choose three.)

    • Gateways

    • Purpose

    • Physical addressing

    • Software version

    • Geographic location

    • Ownership

    Correct Answer(s)
    A. Purpose
    A. Geographic location
    A. Ownership
    Explanation
    When grouping hosts into a common network, it is important to consider the purpose of the network, as hosts with similar purposes can be grouped together for better organization and management. Geographic location is also a key factor, as hosts in close proximity can be grouped together to minimize network latency and improve performance. Ownership is another important factor, as hosts owned by the same organization or entity can be grouped together for easier administration and security management.

    Rate this question:

  • 8.

    Which intermediary devices could be used to implement security between networks? (Choose two.)

    • Router

    • Hub

    • Switch

    • Firewall

    • Access point

    • Bridge

    Correct Answer(s)
    A. Router
    A. Firewall
    Explanation
    Routers can be used to implement security between networks by filtering and controlling the flow of data packets based on predefined rules. They can also perform Network Address Translation (NAT) to hide the internal network structure. Firewalls, on the other hand, are dedicated security devices that monitor and control incoming and outgoing network traffic based on a set of security rules. They act as a barrier between internal and external networks, preventing unauthorized access and protecting against various types of threats.

    Rate this question:

  • 9.

    14. What are three common problems with a large network? (Choose three.)

    • Too few broadcast

    • Performance degradation

    • Security issues

    • Limited management responsibility

    • Host identification

    • Protocol compatibility

    Correct Answer(s)
    A. Performance degradation
    A. Security issues
    A. Host identification
    Explanation
    A large network can face three common problems. The first problem is performance degradation, which means that the network may become slower and less efficient due to the increased number of devices and traffic. The second problem is security issues, as a large network is more vulnerable to attacks and breaches. The third problem is host identification, which refers to difficulties in identifying and managing the numerous devices connected to the network. These three problems can significantly impact the functionality and reliability of a large network.

    Rate this question:

  • 10.

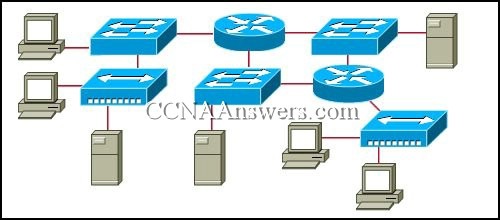

    Refer to the exhibit. All devices shown in the exhibit have factory default settings. How many broadcast domains are represented in the topology that is shown? - ProProfs

    Refer to the exhibit. All devices shown in the exhibit have factory default settings. How many broadcast domains are represented in the topology that is shown?

    • 3

    • 4

    • 5

    • 7

    • 8

    • 11

    Correct Answer
    A. 4
    Explanation
    In the given exhibit, there are four devices connected to a switch. Each device connected to the switch represents a separate broadcast domain. Therefore, there are four broadcast domains represented in the topology shown.

    Rate this question:

  • 11.

    16. Which three statements are true about routes and their use? (Choose three.)

    • If no route to the destination network is found, the packet is returned to the previous router.

    • If the destination network is directly connected, the router forwards the packet to the destination host.

    • If multiple network entries exist for the destination network, the most general route is used to forward the packet.

    • If no route exists for the destination network and a default route is present, the packet is forwarded to the next-hop router

    • If the originating host has a default gateway configured, the packet for a remote network can be forwarded using that route

    • If a host does not have a route manually configured for the destination network, the host will drop the packet

    Correct Answer(s)
    A. If the destination network is directly connected, the router forwards the packet to the destination host.
    A. If no route exists for the destination network and a default route is present, the packet is forwarded to the next-hop router
    A. If the originating host has a default gateway configured, the packet for a remote network can be forwarded using that route
    Explanation
    If the destination network is directly connected, the router forwards the packet to the destination host. This means that if the destination network is directly connected to the router, it will send the packet directly to the intended destination.

    If no route exists for the destination network and a default route is present, the packet is forwarded to the next-hop router. This means that if there is no specific route available for the destination network, but a default route is configured, the packet will be sent to the next-hop router specified in the default route.

    If the originating host has a default gateway configured, the packet for a remote network can be forwarded using that route. This means that if the originating host has a default gateway configured, it can use that route to forward packets to remote networks.

    Rate this question:

  • 12.

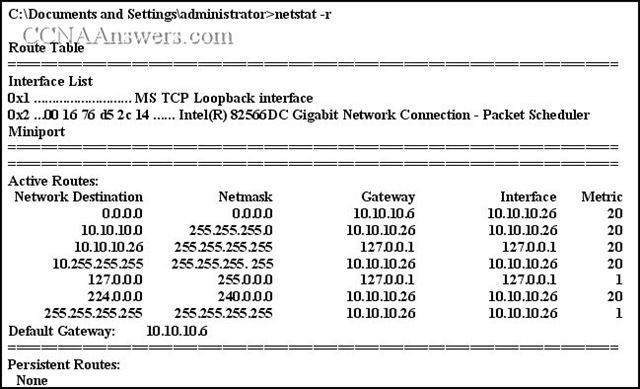

    Refer to the exhibit. A network administrator is troubleshooting a connectivity problem and needs to determine the address that is used to forward network packets out the network. Using the netstat -r command, the administrator would identify which address as the address to which all hosts send packets that are destined for an outside network? - ProProfs

    Refer to the exhibit. A network administrator is troubleshooting a connectivity problem and needs to determine the address that is used to forward network packets out the network. Using the netstat -r command, the administrator would identify which address as the address to which all hosts send packets that are destined for an outside network?

    • 10.10.10.26

    • 127.0.0.1

    • 10.10.10.6

    • 10.10.10.1

    • 224.0.0.0

    Correct Answer
    A. 10.10.10.6
    Explanation
    The address 10.10.10.6 is the correct answer because it is the default gateway address. The default gateway is the IP address of the router that connects the local network to the outside network. All hosts on the local network send packets destined for an outside network to the default gateway, which then forwards the packets to their destination.

    Rate this question:

  • 13.

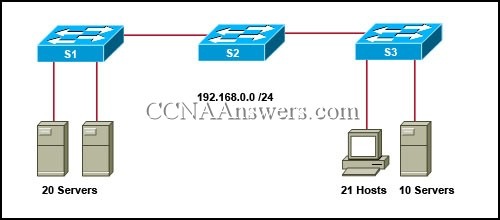

    Refer to the exhibit. A network administrator notices that there are too many broadcasts on the network. What two steps can the network administrator take to resolve this problem? (Choose two.) - ProProfs

    Refer to the exhibit. A network administrator notices that there are too many broadcasts on the network. What two steps can the network administrator take to resolve this problem? (Choose two.)

    • Replace S2 with a router.

    • Place all servers on S1

    • Disable TCP/IP broadcasts.

    • Subnet the 192.168.0.0 /24 network.

    • Disable all unused interfaces on the switches

    Correct Answer(s)
    A. Replace S2 with a router.
    A. Subnet the 192.168.0.0 /24 network.
    Explanation
    The network administrator can resolve the problem of too many broadcasts on the network by replacing S2 with a router. This will help to segment the network and reduce the number of broadcasts. Additionally, subnetting the 192.168.0.0 /24 network can also help to reduce broadcasts by dividing the network into smaller subnets, limiting the broadcast domain size. By implementing these two steps, the network administrator can effectively address the issue of excessive broadcasts on the network.

    Rate this question:

  • 14.

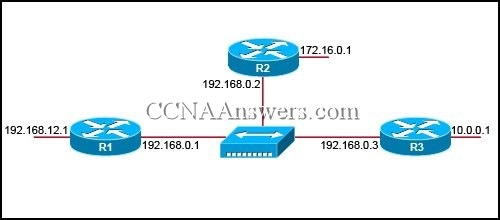

    Refer to the exhibit. The network in the exhibit is fully operational. What two statements correctly describe the routing for the topology that is shown? (Choose two.) - ProProfs

    Refer to the exhibit. The network in the exhibit is fully operational. What two statements correctly describe the routing for the topology that is shown? (Choose two.)

    • 192.168.0.2 is the next-hop address that is used by R3 to route a packet from the 10.0.0.0 network to the 172.16.0.0 network.

    • 10.0.0.1 is the next-hop address that is used by R1 to route a packet from the 192.168.12.0 network to the 10.0.0.0 network

    • 192.168.0.1 is the next-hop address that is used by R1 to route a packet from the 192.168.12.0 network to the 172.16.0.0 network.

    • 172.16.0.1 is the next-hop address that is used by R3 to route a packet from the 10.0.0.0 to the 172.16.0.0 network.

    • 192.168.0.1 is the next-hop address that is used by R2 to route a packet from the 172.16.0.0 network to the 192.168.12.0 network.

    • 192.168.0.2 is the next-hop address that is used by R2 to route a packet from the 172.16.0.0 network to the 192.168.12.0 network.

    Correct Answer(s)
    A. 192.168.0.2 is the next-hop address that is used by R3 to route a packet from the 10.0.0.0 network to the 172.16.0.0 network.
    A. 192.168.0.1 is the next-hop address that is used by R2 to route a packet from the 172.16.0.0 network to the 192.168.12.0 network.
    Explanation
    R3 uses the next-hop address 192.168.0.2 to route a packet from the 10.0.0.0 network to the 172.16.0.0 network. R2 uses the next-hop address 192.168.0.1 to route a packet from the 172.16.0.0 network to the 192.168.12.0 network.

    Rate this question:

  • 15.

    20. What two characteristics are commonly associated with dynamic routing protocols? (Choose two.)

    • Require no device configuration

    • Provide routers with up-to-date routing tables

    • Require less processing power than static routes require

    • Consume bandwidth to exchange route information

    • Prevent manual configuration and maintenance of the routing table

    Correct Answer(s)
    A. Provide routers with up-to-date routing tables
    A. Consume bandwidth to exchange route information
    Explanation
    Dynamic routing protocols are commonly associated with two characteristics: providing routers with up-to-date routing tables and consuming bandwidth to exchange route information. These protocols automatically update the routing tables on routers by exchanging information with other routers in the network. This allows routers to dynamically adapt to changes in the network topology. However, this exchange of information requires the use of network bandwidth, as routers continuously share and update routing information with each other.

    Rate this question:

  • 16.

    21. What statement describes the purpose of a default route?

    • A host uses a default route to transfer data to another host on the same network segment.

    • A host uses a default route to forward data to the local switch as the next hop to all destinations.

    • A host uses a default route to identify the Layer 2 address of an end device on the local network.

    • A host uses a default route to transfer data to a host outside the local network when no other route to the destination exists.

    Correct Answer
    A. A host uses a default route to transfer data to a host outside the local network when no other route to the destination exists.
    Explanation
    A default route is used by a host to transfer data to a host outside the local network when there is no other specific route available for the destination. It serves as a fallback option when the host does not have a specific route for a particular destination network. By using a default route, the host can send traffic to a default gateway, which will then handle forwarding the data to the appropriate destination outside the local network.

    Rate this question:

  • 17.

    1. In an IPv4 environment, what information is used by the router to forward data packets from one interface of a router to another?

    • Destination network address

    • Source network address

    • Source MAC address

    • Well known port destination address

    Correct Answer
    A. Destination network address
    Explanation
    In an IPv4 environment, the router uses the destination network address to forward data packets from one interface to another. The destination network address helps the router determine the appropriate next hop for the packet based on the routing table. The router compares the destination network address of the packet with the entries in its routing table to determine the best path for forwarding the packet to its destination. The source network address, source MAC address, and well-known port destination address are not directly used by the router for forwarding data packets.

    Rate this question:

  • 18.

    2. What information is added during encapsulation at OSI Layer 3?

    • Source and destination MAC

    • Source and destination application protocol

    • Source and destination port number

    • Source and destination IP address

    Correct Answer
    A. Source and destination IP address
    Explanation
    During encapsulation at OSI Layer 3, the source and destination IP addresses are added. This is because Layer 3, also known as the Network Layer, is responsible for routing and addressing in a network. The IP addresses are used to identify the source and destination devices in the network, allowing for proper routing of data packets.

    Rate this question:

  • 19.

    In a connectionless system, which of the following is correct?

    • The destination is contacted before a packet is sent.

    • The destination is not contacted before a packet is sent.

    • The destination sends an acknowledgement to the source that indicates the packet was received.

    • The destination sends an acknowledgement to the source that requests the next packet to be sent.

    Correct Answer
    A. The destination is not contacted before a packet is sent.
    Explanation
    In a connectionless system, the destination is not contacted before a packet is sent. In this type of system, each packet is sent independently and does not require a prior connection setup or communication with the destination. The source simply sends the packet to the network, and the network routes it to the destination based on the packet's address. The destination does not need to be aware of the incoming packet or be contacted beforehand.

    Rate this question:

  • 20.

    4. Which IP packet field will prevent endless loops?

    • Type-of-service

    • Identification

    • Flags

    • Time-to-live

    • Header checksum

    Correct Answer
    A. Time-to-live
    Explanation
    The time-to-live (TTL) field in an IP packet determines the maximum number of hops (routers) that the packet can traverse before being discarded. This prevents endless loops by ensuring that packets do not circulate indefinitely within a network. Each router decrements the TTL value by 1, and if the TTL reaches 0, the packet is discarded. This mechanism helps to prevent network congestion and ensures that packets are delivered efficiently.

    Rate this question:

  • 21.

    5. Which portion of the network layer address does a router use to forward packets?

    • Host portion

    • Broadcast address

    • Network portion

    • Gateway address

    Correct Answer
    A. Network portion
    Explanation
    A router uses the network portion of the network layer address to forward packets. The network portion identifies the specific network that the packet needs to be sent to. By examining this portion of the address, the router can determine the appropriate path for the packet to reach its destination network.

    Rate this question:

Quiz Review Timeline (Updated): Mar 22, 2023 +

Our quizzes are rigorously reviewed, monitored and continuously updated by our expert board to maintain accuracy, relevance, and timeliness.

  • Current Version
  • Mar 22, 2023
    Quiz Edited by
    ProProfs Editorial Team
  • Nov 30, 2011
    Quiz Created by
    Sharangkan

Related Topics

Recent Quizzes

CCNA Security v2.0 Final Exam CCNA Security v2.0 Final Exam
CCNA 2 - Chapitre 10 CCNA 2 - Chapitre 10
CCNA Routing & Switching 200-125: New Questions - Part 3 CCNA Routing & Switching 200-125: New Questions - Part 3
CCNA Routing & Switching 200-125: New Questions - Part 1 CCNA Routing & Switching 200-125: New Questions - Part 1
CCNA 4 Final Exam CCNA 4 Final Exam
CCNA 4 V6.0 FINAL EXAM ANSWERS 100% OPTION C CCNA 4 V6.0 FINAL EXAM ANSWERS 100% OPTION C
CCNA 4 V6.0 FINAL EXAM ANSWERS 100% OPTION B CCNA 4 V6.0 FINAL EXAM ANSWERS 100% OPTION B
CCNA Exam: Trivia! MCQ Quiz CCNA Exam: Trivia! MCQ Quiz
CCNA Cyber Ops (210-250 SECFND) CCNA Cyber Ops (210-250 SECFND)

Featured Quizzes

Which Sonic Character Are You? Which Sonic Character Are You?
Do I Have a Crush on Him? Quiz Do I Have a Crush on Him? Quiz
What Is My Ethnicity? Let's Take Ethnicity Quiz What Is My Ethnicity? Let's Take Ethnicity Quiz
What Ethnicity Do I Look Like? What Ethnicity Do I Look Like?
Best Friend Quiz: Are You Really Best Friends? Best Friend Quiz: Are You Really Best Friends?
Are You Ready For IQ Quiz: Test Your Intelligence Now Are You Ready For IQ Quiz: Test Your Intelligence Now
Back to Top Back to top
Advertisement
×

Wait!
Here's an interesting quiz for you.

We have other quizzes matching your interest.
