    Which of these rules has been violated in the drawing above? - ProProfs

    Which of these rules has been violated in the drawing above?

    • Dimensions should not be duplicated
    • Dimensioning to hidden lines should be avoided
    • Avoid placing dimensions inside the object
    • Overall dimensions should be furthest away from the object
Please wait...
I.E.D. Warm-up Quiz #5 (Spring 2014) - Quiz
About This Quiz

The I. E. D. Warm-up Quiz #5 (Spring 2014) assesses various skills in engineering design and basic mathematics. It covers dimensioning, energy transformations, solving proportions, understanding design constraints, and brainstorming rules.

Quiz Preview

  • 2.

    A businessman wants to expand the parking area in front of his office building. What type of engineer should he hire?

    • Civil engineer

    • Chemical engineer

    • Electrical engineer

    • Environmental engineer

    Correct Answer
    A. Civil engineer
    Explanation
    The businessman should hire a civil engineer because they specialize in the design and construction of infrastructure projects, including parking areas. They have the knowledge and expertise to assess the site, create plans and drawings, and oversee the construction process to ensure that the parking area is built safely and efficiently.

    Rate this question:

  • 3.
    Which views are necessary to properly represent the part above for dimensioning purposes? - ProProfs

    Which views are necessary to properly represent the part above for dimensioning purposes?

    • Front, Top, Right Side

    • Front, Back, Isometric

    • Front, Hidden, Section

    • Front, Perspective, Shaded

    Correct Answer
    A. Front, Top, Right Side
    Explanation
    To properly represent the part above for dimensioning purposes, the necessary views are the Front, Top, and Right Side views. These views provide a comprehensive and accurate representation of the part from different angles, allowing for accurate measurements and dimensioning. The Front view shows the front-facing side of the part, the Top view shows the part from above, and the Right Side view shows the part from the right side. Together, these views provide a complete understanding of the part's shape and dimensions.

    Rate this question:

  • 4.
    Which figure to the left represents the multi-view drawing of the central puzzle piece? - ProProfs

    Which figure to the left represents the multi-view drawing of the central puzzle piece?

    • Figure 4

    • Figure 1

    • Figure 2

    • Figure 3

    Correct Answer
    A. Figure 4
  • 5.

    What term best describes a list of items below?
    • Must have a minimum of 5 parts
    • Must be made of wood
    • Must cost less than $5.00 to make

    • Design constrains

    • Product description

    • Indicators

    • Design statement

    Correct Answer
    A. Design constrains
    Explanation
    The term "design constraints" best describes a list of items that must have a minimum of 5 parts, be made of wood, and cost less than $5.00 to make. Design constraints refer to the limitations or requirements that must be considered during the design process. In this case, the list of requirements acts as constraints for designing a product, specifying the minimum number of parts, the material it should be made of, and the cost limitation.

    Rate this question:

  • 6.

    Which of the following is not a rule for brainstorming?

    • Select a leader for the session.

    • No criticism.

    • Piling on is welcome.

    • Quantity over quality.

    Correct Answer
    A. Select a leader for the session.
    Explanation
    In brainstorming, the goal is to generate as many ideas as possible without any judgment or criticism. This encourages creativity and allows for a free flow of ideas. Piling on is also encouraged, meaning that participants can build upon each other's ideas to further develop them. Additionally, quantity over quality is emphasized, as the focus is on generating a large number of ideas rather than perfecting each one. However, selecting a leader for the session goes against the principle of equal participation and can hinder the free exchange of ideas.

    Rate this question:

  • 7.

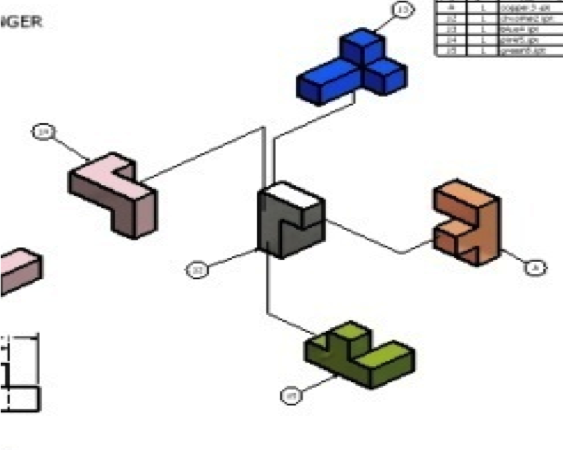

    What are the part indicators called on this image? - ProProfs

    What are the part indicators called on this image?

    • Balloons

    • Nodes

    • Bubbles

    • Numeric indicators

    Correct Answer
    A. Balloons
    Explanation
    The correct answer is "balloons" because the objects shown in the image resemble balloons. They have a round shape and are filled with air or gas, similar to actual balloons. Therefore, "balloons" is the most appropriate term to describe these part indicators.

    Rate this question:

  • 8.
    Solve the proportion. - ProProfs

    Solve the proportion.

    • X = 12

    • X = 6

    • X = 3

    • X = 9

    Correct Answer
    A. X = 12
    Explanation
    The given answer, x = 12, is correct because it satisfies the proportion. In a proportion, the two fractions are equal to each other. Since x is equal to 12 in all four equations, it means that the proportion is balanced and correct.

    Rate this question:

  • 9.

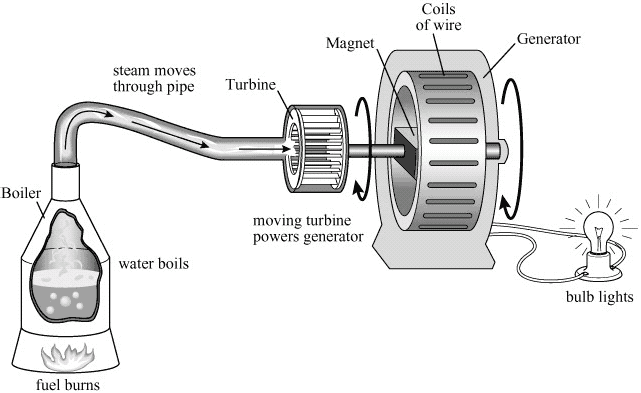

    What series of energy transformations are illustrated in the diagram? - ProProfs

    What series of energy transformations are illustrated in the diagram?

    • Thermal, kinetic, electrical

    • Thermal, chemical, electrical

    • Chemical, kinetic, electrical

    • Thermal, kinetic, chemical

    Correct Answer
    A. Thermal, kinetic, electrical
    Explanation
    The diagram illustrates a series of energy transformations starting with thermal energy, which is converted into kinetic energy. The kinetic energy is then transformed into electrical energy. This sequence of transformations represents the conversion of heat energy into movement energy, and then into electrical energy.

    Rate this question:

  • 10.

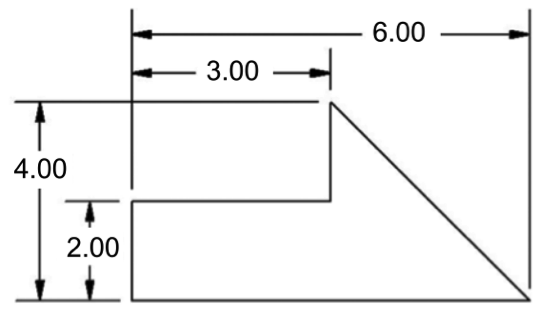

    What is the area of the figure above? - ProProfs

    What is the area of the figure above?

    • 12

    • 24

    • 18

    • 15

    Correct Answer
    A. 12
  • 11.

    Which one of the line types is described as line used to define where there is material  after a part of the object is cut away?

    • Section line

    • Object line

    • Break line

    • Center line

    Correct Answer
    A. Section line
    Explanation
    A section line is a line used to define where there is material after a part of the object is cut away.

    Rate this question:

  • 12.
    The lines that indicate where the part originated from are called ___. - ProProfs

    The lines that indicate where the part originated from are called ___.

    • Trails

    • T-lines

    • Transitions

    • Translations

    Correct Answer
    A. Trails
    Explanation
    The lines that indicate where the part originated from are called "trails".

    Rate this question:
