Can You Pass This Hardest Test Of CCNA Networking Exam?

A switch is a device that provides segmentation within a single network. It operates at the data link layer of the OSI model and uses MAC addresses to forward data packets to the intended recipient. Unlike a hub, which broadcasts data to all connected devices, a switch intelligently directs data only to the device it is intended for, thereby reducing network congestion and improving overall network performance. A server is a device that provides various services to clients, and a transceiver is a device used for transmitting and receiving data.

Switch latency describes the time delay between when a frame enters and exits a switch. It refers to the amount of time it takes for a switch to process and forward a frame from one port to another. This delay can be affected by various factors such as the switch's processing power, the size of the forwarding table, and the congestion level in the network. By minimizing switch latency, network performance can be improved as frames can be quickly and efficiently forwarded within the network.

Hubs operate at Layer 1 of the OSI model because they are physical devices that simply transmit signals between connected devices. Signals are distributed through all ports on a hub, meaning that any signal received by the hub is transmitted out to all connected devices. Additionally, bandwidth is shared among all connected users on a hub, meaning that the total available bandwidth is divided among all devices connected to the hub. Layer 2 addresses are not used to make decisions on a hub, as hubs do not have the ability to analyze or interpret layer 2 addresses.

A switching table is used in network switches to determine the destination of incoming data packets. It maps the source MAC addresses of the packets to the corresponding switch ports. This allows the switch to forward the packets to the correct destination without flooding the entire network. Therefore, the source MAC addresses are used to build a switching table.

Hubs are concerned with bits. A hub is a basic networking device that connects multiple devices in a network. It operates at the physical layer of the OSI model, which deals with the transmission of raw data in the form of bits over a communication channel. Hubs simply receive incoming bits from one port and broadcast them to all other ports. They do not analyze or interpret the data at higher layers, such as frames, packets, or datagrams. Therefore, the correct answer is bits.

The correct answer is FF:FF:FF:FF:FF:FF. This is the Layer 2 broadcast address, which is used to send a message to all devices on a network. When a device sends a message to this address, it is received by all devices on the network.

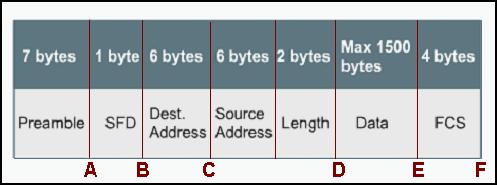

In fast-forward mode, a switch forwards a frame as soon as it receives the destination MAC address. Looking at the graphic, point C represents the destination MAC address. Therefore, point C must be reached before the frame is forwarded by a switch using fast-forward mode.

A Layer 2 Ethernet switch performs three functions. Firstly, it increases the available bandwidth per user by providing dedicated connections for each device connected to it. Secondly, it decreases the size of collision domains by creating separate collision domains for each port, reducing the chances of collisions and improving network performance. Lastly, it isolates traffic among segments by forwarding packets only to the intended destination, enhancing network security and efficiency.

Bridges use the store-and-forward form of buffering. In this method, the bridge receives the entire frame before forwarding it to the destination. It checks the frame for errors and can also perform filtering or other operations on it. This buffering technique ensures that the entire frame is error-free before it is forwarded, reducing the chances of transmitting corrupted data.

Switching tables in a Cisco LAN switch are stored in the Content Addressable Memory (CAM). CAM is a type of memory that allows for fast lookups and retrieval of information. In the case of a LAN switch, the CAM stores the MAC addresses and corresponding port information for each device connected to the switch. This allows the switch to quickly determine the destination port for incoming frames and efficiently forward them to the appropriate device.

When an Ethernet bridge receives an incoming frame, it performs the following actions:
1. The source MAC address and input interface pair are added to the bridging table. This helps the bridge keep track of which devices are connected to which interfaces.
2. If no match to the destination MAC address is found in the bridging table, the frame is flooded out all other interfaces. This means that the frame is sent to all connected devices, allowing the correct recipient to receive it.
3. If a match to the destination MAC address is found in the bridging table, the frame is forwarded out the associated interface. This means that the frame is sent directly to the device that matches the destination MAC address in the bridging table.

A switch has higher throughput compared to a bridge because switching occurs in hardware. Unlike bridges which use software-based switching, switches have dedicated hardware components that allow for faster and more efficient data transfer. This hardware-based switching enables switches to process and forward data packets at a much higher speed, resulting in increased throughput. By utilizing hardware resources, switches can handle higher volumes of network traffic and provide better performance compared to bridges.

In store-and-forward mode, the switch waits to receive the entire frame before forwarding it. This ensures that the frame is error-free and complete before being transmitted. Therefore, before a frame is forwarded, it must reach point F, which represents the end of the frame.

Adding switches to a network decreases the number of collision domains because switches create separate collision domains for each port, reducing the likelihood of collisions. Additionally, adding switches increases the amount of bandwidth available to users since switches provide dedicated bandwidth for each port, allowing for simultaneous data transmission.

The switching mode that changes to store-and-forward mode after it detects a given number of errors is adaptive cut-through. This mode initially uses cut-through switching, where it forwards packets as soon as the destination address is received, without checking for errors. However, if a certain number of errors are detected, it switches to store-and-forward mode, which involves receiving the entire packet, checking for errors, and then forwarding it. This adaptive approach helps to ensure better data integrity and reduce the chances of transmitting erroneous packets.

A network administrator would segment a network with a Layer 2 switch to enhance user bandwidth by dividing the network into smaller segments, reducing congestion and improving overall network performance. Additionally, segmenting the network with a Layer 2 switch allows the administrator to isolate traffic between segments, providing better security and control over network traffic flow.

Asymmetric switching is often used to provide high bandwidth uplinks for a number of lower bandwidth client interfaces. It also provides connections between network segments that operate at different bandwidths. Additionally, it may require buffering frames before forwarding them to the destination interface.
