Your challenge is to select the correct steps to successfully create a cube using Pro Desktop. The dimensions of the cube are 80mm x 80mm x 80mm. The circles are 40 mm diameter and each feature (the hole and the peg) have been extruded to a distance of 5mm. Before you choose your answer read each option carefully.

Questions and Answers

1.

Step 1Choose the correct file type you would use to draw the cube.
- A.

  Design
- B.

  Engineering Drawing
- C.

  Photo Album
2.

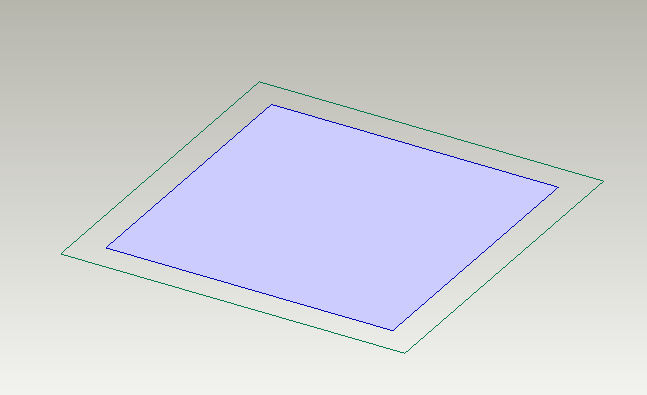

Step 2.Draw the square 80mm x 80mm on the work plane. Select the correct task.
- A.

  Select the line tool and sketch 80mm line.
- B.

  Select the rectangle tool and sketch 80mm diameter square
- C.

  Select the rectangle tool and sketch 80mm x 80mm square
3.

Step 3.Construct the 3D cube shape. Select the correct tool.
- A.

  Extrude profile
- B.

  Revolve profile
- C.

  Sweep profile
4.

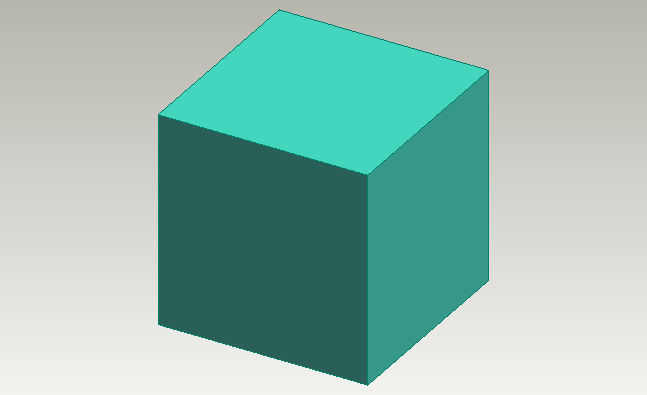

Step 4.To extrude the sketch profile of the cube select the correct task.
- A.

  Add material - Below work plane - Distance 80mm
- B.

  Add material - Above work plane - Distance 80mm
- C.

  Subtract material - Above work plane - Distance 80mm
5.

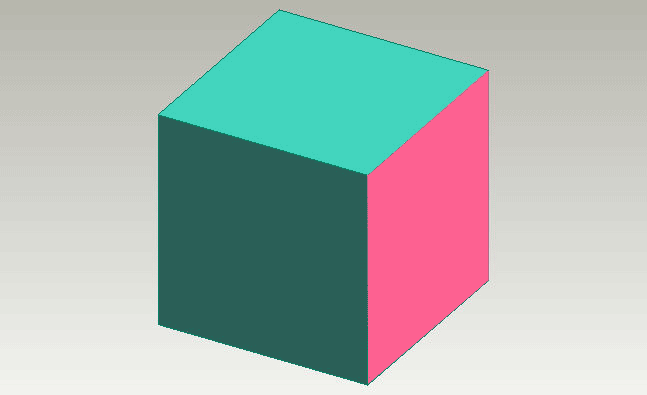

Step 5.To create the sketch on the top of the cube you need to select the correct part of the cube.
- A.

  Select Object
- B.

  Select Edge
- C.

  Select Face
6.

Step 6. To create the circle on the top of the cube you need to start a new drawing.Select the correct task.
- A.

  Select face - right button click - New Sketch
- B.

  Select face - right button click - New Workplane
- C.

  Select edge - right button click - New Sketch
7.

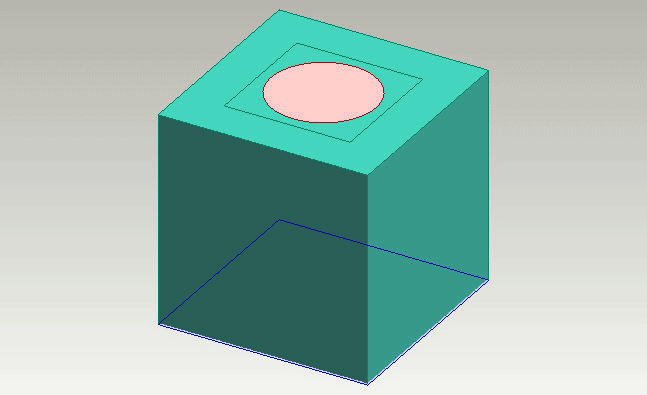

Step 7. Create the 40mm diameter circle on the top of the cube. Select the correct task.
- A.

  Select Circle tool - click and drag a circle 40mm diameter.
- B.

  Select Circle tool - click and drag a rectangle 40mm diameter.
- C.

  Select Circle tool - click and drag a circle 40mm radius.
8.

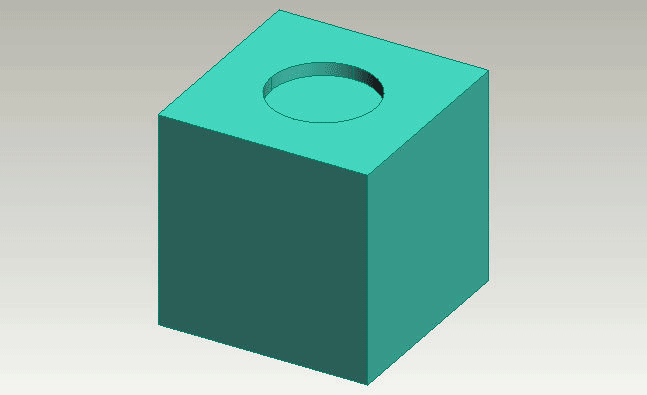

Step 8.To create a 5 mm deep circular hole on the top face select the correct task.
- A.

  Project profile > subtract material > above workplane
- B.

  Extrude profile > subtract material > below workplane
- C.

  Extrude profile > add material > below workplane
9.

Step 9.To create the peg on the right hand face of the cube select the correct task.
- A.

  Select face > new work plane > sketch circle profile
- B.

  Select edge > new sketch > sketch circle profile
- C.

  Select face > new sketch > sketch circle profile
10.

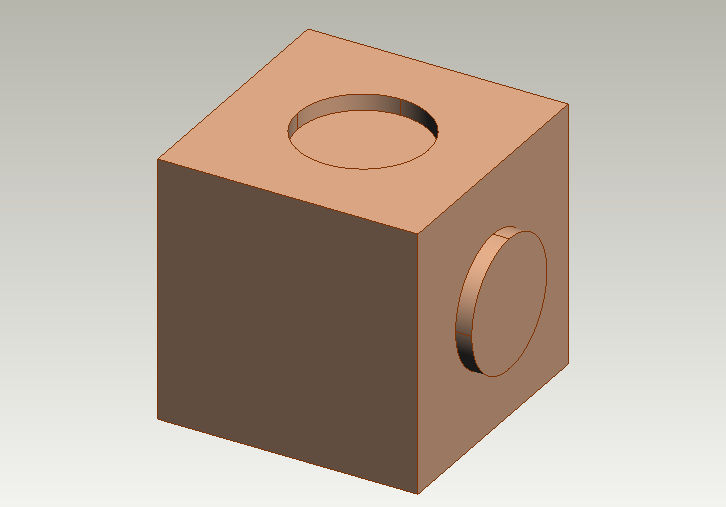

Step 10.To create the peg (the round part that sticks out) select the correct task.
- A.

  Extrude profile > subtract material > above work plane
- B.

  Project profile > add material > above work plane
- C.

  Extrude profile > add material > above work plane
11.

Step 11.To round the corners of the cube select the correct task.
- A.

  Select edge > round edge
- B.

  Select face > round edge
- C.

  Select edge > chamfer edge
12.

Describe how you would fit 2 cubes together in an assembly. Useful Pro Desktop TermsAssembly, Add component, Mate, Align, Center Axes, Select Face. Offset, Fix Component (these terms are not in order of task).
