Computer Aided Design Second Quarter Exam

Three dimensional objects are represented in a three-dimensional coordinate system. The X, Y, and Z axes are used to determine the position of points in this system. The X-axis represents the horizontal direction, the Y-axis represents the vertical direction, and the Z-axis represents the depth or distance from the viewer. Therefore, the correct answer is X, Y, Z.

The attributes palette is a tool that provides options for users to input color and pattern. This allows users to customize the appearance of various elements within a design or document. By selecting different colors and patterns from the attributes palette, users can create visually appealing and unique designs. Therefore, the statement "The attributes palette allows a user to input color and pattern" is true.

Vectorworks is a computer-aided design (CAD) software that is commonly used for creating architectural and landscape designs. It allows users to create images by using points and line segments to define shapes and objects. This makes the statement "Vectorworks creates images using point and line segment" true.

The given statement is false. Vectorworks is not created and designed to be used exclusively by architects. It is a versatile software that can be used by professionals in various fields such as architecture, landscape design, interior design, and entertainment industries. It provides tools and features that cater to the specific needs of these different industries, making it a popular choice among professionals in these fields.

The palette pictured below is responsible for the addition of color. This means that using the palette, you can select and apply different colors to objects or elements in a design or artwork. The palette provides a range of colors to choose from, allowing you to add vibrancy and visual interest to your creations.

The explanation is that the default system of measurement in the United States is indeed called the imperial system. This system includes units such as inches, feet, pounds, and gallons, which are commonly used in everyday life and official documentation in the United States.

The correct answer is "fillet edge" because the blue arrow points towards a tool that is commonly referred to as a fillet edge.

When trying to select multiple objects, a user must hold the Shift key. Holding down the Shift key allows the user to select multiple objects by clicking on each object while keeping the Shift key pressed. This key modifier is commonly used in various software applications to enable the selection of multiple items at once.

When drawing in plan view, all drawings are represented by simple lines without any color or shading. This type of drawing is commonly known as a wireframe. Wireframes provide a simplified representation of objects or structures, focusing on their overall shape and structure rather than their appearance. They are often used in architectural or engineering drawings to convey the basic layout and dimensions of a design.

When adding depth to a circle, the resulting form will be a cylinder. A cylinder is a three-dimensional shape with two circular bases that are parallel and congruent. The depth added to the circle forms the curved surface of the cylinder, while the original circle becomes the base of the cylinder.

Plan drawings are objects that are drawn from above or a bird's-eye view and are kept two-dimensional. They provide a visual representation of a space or structure, typically used in architecture, engineering, and design. These drawings show the layout, dimensions, and relationships between different elements in a space, such as walls, doors, and furniture. They are an essential tool for planning and visualizing a project before it is constructed.

In a CAD class, images are created using points, lines, curves, and other mathematical equations to define shapes and objects. These images are known as vector-based images because they are based on mathematical formulas rather than individual pixels. Unlike raster images like Jpeg, which are made up of a grid of pixels, vector-based images can be scaled without losing quality. Therefore, the correct answer is Vector-Based.

The tool identified by the blue arrow is responsible for the creation of hemispheres.

To combine two or more three-dimensional forms, a user must use the "Add Solids" command. This command allows the user to merge multiple solid objects into one cohesive form. By selecting this command, the user can easily combine various three-dimensional shapes and create a unified object. The other options listed, such as Resource Browser, Add Surface, and Extrude, do not specifically cater to the task of combining three-dimensional forms.

A drawing done two-dimensionally that shows the left, right, back, or front sides of an object using two dimensions is commonly referred to as an "elevation" drawing.

When adding depth to a two-dimensional shape in Vectorworks, the user must take advantage of the "Extrude" command. This command allows the user to create a three-dimensional object by extending the shape along the z-axis, giving it depth and volume. By selecting the shape and using the Extrude command, the user can easily transform a flat shape into a three-dimensional form in Vectorworks.

To adjust the scale of your document, a user can navigate through the "Document Setup" menu. This menu is likely to contain options and settings related to the document, such as page size, margins, orientation, and scaling. By accessing the "Document Setup" menu, the user can make the necessary adjustments to the scale of their document.

To create a donut-like shape using vectorworks, the user can utilize the "sweep" command. This command allows the user to create a new shape by sweeping a profile along a path, which is perfect for creating a donut shape. By selecting a circular profile and specifying the desired path, the user can easily generate a donut-like shape using the sweep command in vectorworks.

OpenGL (Open Graphics Library) is a widely-used API (Application Programming Interface) for rendering 2D and 3D graphics. It provides a set of functions that allow developers to create and manipulate three-dimensional objects and view them in full color. By utilizing the hardware acceleration capabilities of modern graphics cards, OpenGL can render complex scenes quickly and efficiently, making it the fastest option for viewing rendered three-dimensional shapes in full color.

The clip surface command in Vectorworks allows users to cut away shapes from other shapes. This feature is useful when you need to remove or hide certain parts of an object or shape, creating a clean and precise cut. It enables users to easily modify and edit their designs by removing unwanted elements and creating cutouts or voids within shapes.

The Object Info palette in Vectorworks allows the user to manipulate the size, depth, and length of objects. This palette provides detailed information and controls for selected objects, allowing the user to make precise adjustments to their dimensions and properties.

The statement is false because users cannot create complex three-dimensional forms by simply selecting the add surface command. This command may be a part of the process, but it alone cannot create complex three-dimensional forms. Additional actions and commands would be required to create such forms.

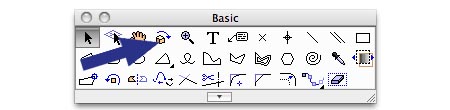

The tool identified by the arrow is commonly referred to as a "Fly-Over." This term is used to describe a feature or tool that allows the user to hover over an object or element to reveal additional information or options. The fly-over tool is often represented by a cube with a curved arrow over it, indicating the ability to hover and explore further.

The given question is asking where a selection of standard furniture symbols and icons can be found. The correct answer is "Resource Browser" because the Resource Browser is a tool or feature in a software program that allows users to access and manage various resources, such as symbols, icons, images, and other design elements. Therefore, it is likely that the furniture symbols and icons can be found in the Resource Browser palette.

The tools responsible for the creation of two-dimensional shapes in the vectorworks basic tool pallet are the Rectangle tool, rotated rectangle, ellipse, and regular polygon. These tools allow users to create shapes such as rectangles, rotated rectangles, ellipses, and polygons with multiple sides. The square and triangle tools are not mentioned in the correct answer, indicating that they are not responsible for creating two-dimensional shapes in this specific tool pallet.
