The Penultimate CCNA 2 Chapter 1

The given commands "R1(config)# line vty 0 4" and "R1(config-line)# password check123" are used to set a password for connecting to the router via Telnet. The "login" command is used to enable login authentication for the VTY lines. Therefore, the outcome of entering these commands is that the password "check123" will be set for connecting to the router via Telnet.

The most likely problem is that the interfaces on the router are not enabled. The "no shutdown" command is used to enable an interface on a Cisco router. Without enabling the interfaces, the router will not be able to send or receive any traffic, resulting in the pings not working.

The network administrator should use a cross-over cable to connect two routers directly via their FastEthernet ports. A cross-over cable is used to connect similar devices, such as two routers, without the need for a hub or switch in between. It allows the transmit signals from one device to be connected to the receive signals of the other device, ensuring proper communication between them. This is different from a straight-through cable, which is used to connect dissimilar devices, such as a router and a switch. A rollover cable is used to connect a computer to a router for console access, and a serial cable is used for serial connections.

If a router cannot find a valid configuration file during the startup sequence, it will prompt the user for a response to enter setup mode. This means that the router will require the user to provide the necessary configuration settings manually in order to proceed.

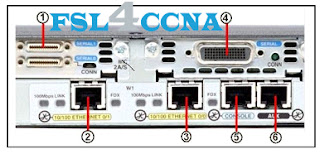

Interfaces 1 and 4 could be used for a leased line WAN connection. A leased line is a dedicated connection between two locations, and it requires a physical connection. Interfaces 1 and 4 are the only options provided in the exhibit, so they are the possible interfaces for a leased line connection.

The cause of the problem is that host 1 and host 2 are on different networks. This means that they are not able to communicate with each other because they are not in the same network range. In order for them to communicate, they need to be on the same network and have compatible IP addresses and subnet masks.

Passwords can be used to restrict access to the VTY interface, console interface, and privileged EXEC mode. The VTY interface is used for remote access to the device, so setting a password for it ensures that only authorized users can connect remotely. The console interface is the physical connection to the device, so setting a password for it ensures that only authorized users can access the device directly. Privileged EXEC mode is the mode that allows users to make configuration changes, so setting a password for it ensures that only authorized users can make these changes.

The command "copy running-config startup-config" should be executed to save configuration changes to NVRAM. This command copies the current running configuration of the router to the startup configuration file in NVRAM, which will be used to load the configuration on subsequent reboots.

The three configuration commands that must be made on the Sydney router to establish connectivity with the Melbourne site are:
1. Sydney(config-if)# ip address 201.100.53.2 255.255.255.0: This command sets the IP address and subnet mask for the interface connecting to the Melbourne site.
2. Sydney(config-if)# no shutdown: This command activates the interface, allowing it to send and receive data.
3. Sydney(config-if)# clock rate 56000: This command sets the clock rate for the interface, which is necessary for serial connections.

The correct flow of routines for a router startup is to first load the bootstrap, then load the IOS (Internetwork Operating System), and finally apply the configuration. This sequence ensures that the router's basic software (bootstrap) is loaded, followed by the main operating system (IOS), and then the specific configuration settings for the router to function properly.

From the routing table output, it can be concluded that the FastEthernet0/0 and Serial0/0/0 interfaces of this router were configured with an IP address and the no shutdown command. This means that these interfaces are operational and ready to transmit data. Additionally, it can be concluded that an IP packet received by this router with a destination address of 198.18.9.1 will be forwarded out of the Serial0/0/0 interface.

The output of the running-configuration of a router displays the commands that are currently in effect and determine the current operation of the router. It does not provide information about password encryption, saving to NVRAM, or the configuration that will be used on the next reboot.

Based on the information provided in the exhibit, RouterA has a route to the network 192.168.3.0/24 through interface S0/0/1. Therefore, if RouterA receives a packet destined for 192.168.3.146, it will forward it out through interface S0/0/1. Similarly, RouterB has a route to the network 10.5.27.0/24 through interface S0/0/1. So, if RouterB receives a packet destined for 10.5.27.15, it will forward it out through interface S0/0/1.

ROM contains diagnostics executed on hardware modules. This statement is correct because ROM (Read-Only Memory) in a router contains the diagnostics that are executed during the boot sequence to check the hardware modules for any issues or errors.

Flash memory does not lose its contents during a reboot. This statement is correct because flash memory is non-volatile memory, meaning it retains its contents even when the device is powered off or rebooted. In a router, the IOS (Internetwork Operating System) is stored in flash memory, allowing the router to retain its operating system and configuration even after a reboot.

A router changes the Layer 2 source and destination address in the header address information it receives from an attached Ethernet interface before transmitting the information out another interface. This is because Layer 2 addresses are specific to the local network, and as the router forwards the information to a different network, it needs to update the Layer 2 addresses to ensure proper delivery. The Layer 3 addresses, on the other hand, remain unchanged as they are used for routing the information across different networks.

Load balancing allows a router to distribute network traffic across multiple paths, which helps to optimize resource utilization and improve performance. This means that a router can forward packets over different paths to the same destination network, ensuring that the network is not overloaded or congested. In addition, EIGRP, a routing protocol, supports unequal cost load balancing, which means that it can distribute traffic across paths with different metrics (such as bandwidth or delay) to achieve better load distribution.

During the boot process, a router can load the Cisco IOS from two locations: TFTP server and Flash memory. The TFTP server is a remote location where the router can retrieve the IOS image over the network. Flash memory, on the other hand, is a non-volatile storage location within the router itself where the IOS image can be stored and loaded during boot-up. Both options provide the router with the necessary IOS image to start up and function properly.

A router performs packet switching by receiving packets from different sources and forwarding them to their intended destinations. It also performs segmentation of broadcast domains by dividing a network into smaller subnets, which helps to reduce network congestion and improve performance. Additionally, a router selects the best path based on logical addressing, such as IP addresses, to determine the most efficient route for forwarding packets in a network.

When R4 accepts the ping into the Ethernet interface, the two pieces of header information included are the destination IP address: 192.168.10.134 and the destination MAC address: 9999.DADC.1234. These two pieces of information are necessary for the packet to reach its intended destination, as the destination IP address identifies the specific host, and the destination MAC address identifies the specific network interface card (NIC) on that host.

When a router receives a packet from one network that is destined for another network, it first decapsulates the Layer 3 packet by stripping off the Layer 2 frame header. Then, it uses the destination IP Address in the IP header to look up the next-hop address in the routing table. After that, the router encapsulates the Layer 3 packet into a new Layer 2 frame and forwards it out the exit interface. These three processes ensure that the packet is properly routed to its intended destination network.

The default sequence for loading the configuration file is NVRAM, TFTP, CONSOLE. This means that the router will first look for the configuration file in the NVRAM (non-volatile random access memory), which is where the startup configuration is stored. If it is not found there, the router will then try to load the configuration file from a TFTP (Trivial File Transfer Protocol) server. If it is still not found, the router will prompt the user to enter the configuration manually through the console port.

The router will change the frame type to one supported by the WAN link before forwarding the frame. This is because different types of WAN links require different frame types for communication. The router will modify the frame to match the required frame type of the WAN link it is connected to.

The frame was received on the Fa0/0 interface of the router and will be switched to the S0/0/0 interface. This is because the router uses the destination MAC address to determine which interface to forward the packet. The router will look at the destination MAC address in the frame and use it to determine the appropriate interface to forward the packet. In this case, the destination MAC address corresponds to the S0/0/0 interface, so the frame will be switched to that interface.

The output of the "show version" command provides information about the router's startup process. It includes the last restart method, which indicates how the router was last restarted (e.g., power cycle, software reload). It also displays the configuration register settings, which determine how the router boots up and other system behaviors. Additionally, the output shows the location from where the IOS (Internetwork Operating System) loaded, which indicates the source of the router's operating system. However, it does not provide information about the command buffer contents or the amount of NVRAM and FLASH used.
