  • 1/30 Questions

    During a power failure, you want a valve that is adding material to a tank to stop flowing. Therefore, you would want the valve to be a/an

    • Air-to-open valve.
    • Air-to-close valve.
    • Fail-in-place.
    • It doesn’t matter, the power is off.
Please wait...
PTEC 132 - Exam 5 - Spring 14 - Chapter 11 - Quiz
About This Quiz

In physics, we get to understand how different tools and machines have various tools function. A valve acts a way to control entry or exit if a substance. This is a PTEC 132 - Exam 5 - Spring 14 – Chapter 11. Why don’t you give it a try and get to review some of the things that may be See morecovered in the upcoming exam? All the best!

Quiz Preview

  • 2.

    A/an  _______ is a device that reacts to an instrument signal by creating linear or rotational motion.

    • Modulator

    • Agitator

    • Controller

    • Actuator

    Correct Answer
    A. Actuator
    Explanation
    An actuator is a device that responds to an instrument signal by generating linear or rotational motion. It converts the input signal into physical movement, allowing it to control various mechanical systems or components. Actuators are commonly used in industries such as robotics, automotive, and aerospace to control valves, pumps, motors, and other equipment.

    Rate this question:

  • 3.

    _____________ provide excellent modular control with or without a positioner.

    • Cylinder type actuators

    • Control valve actuators

    • Dual positioner thrusters

    • Spring and diaphragm actuators

    Correct Answer
    A. Spring and diaphragm actuators
    Explanation
    Spring and diaphragm actuators provide excellent modular control with or without a positioner. These actuators use a combination of a spring and a diaphragm to control the movement of the valve. The spring provides the necessary force to open or close the valve, while the diaphragm acts as a flexible barrier between the actuator and the valve. This design allows for precise control of the valve's position, making spring and diaphragm actuators a reliable choice for controlling flow in various applications.

    Rate this question:

  • 4.

    If a control valve and its spring and diaphragm actuator are both direct acting, then it will __________ if air is lost to it.

    • Fail open

    • fail closed

    • fail intermediate

    • Fail in the last position

    Correct Answer
    A. Fail open
    Explanation
    If a control valve and its spring and diaphragm actuator are both direct acting, it means that the valve will open when the actuator receives a signal to open. Therefore, if air is lost to the valve, the actuator will not receive the signal to close the valve, causing it to fail in the open position.

    Rate this question:

  • 5.

    A valve positioner can do which of the following:

    • Position the valve stem in reference to the instrument signal.

    • Reverse the direction of flow through the valve.

    • Reverse the action of the signal received from the controller.

    • Both a and b

    • . Both a and c

    Correct Answer
    A. . Both a and c
    Explanation
    A valve positioner is a device that is used to accurately position the valve stem based on the instrument signal. It ensures that the valve is in the correct position to regulate the flow of fluid or gas. Additionally, a valve positioner can also reverse the action of the signal received from the controller, meaning it can change the valve's position based on the inverse of the signal received. Therefore, the correct answer is "Both a and c" because a valve positioner can both position the valve stem in reference to the instrument signal and reverse the action of the signal received from the controller.

    Rate this question:

  • 6.

    The three pressure gauges on a pneumatic valve positioner are:

    • Signal, Output and Supply

    • Signal, Input and Supply

    • Input, Output and Valve

    • Input, Output and Position

    Correct Answer
    A. Signal, Output and Supply
    Explanation
    The three pressure gauges on a pneumatic valve positioner are Signal, Output, and Supply. These gauges are used to monitor and measure different aspects of the valve positioner system. The Signal gauge measures the input signal from the controller, the Output gauge measures the output pressure to the actuator, and the Supply gauge measures the supply pressure to the positioner. These gauges are essential in ensuring that the valve positioner is functioning properly and that the appropriate pressures are being maintained for optimal valve operation.

    Rate this question:

  • 7.

    A controller’s output signal can be reversed by

    • An I/P transducer.

    • reversing the lead wires.

    • the valve positioner.

    • Both a and b

    Correct Answer
    A. the valve positioner.
    Explanation
    A controller's output signal can be reversed by the valve positioner. A valve positioner is a device that is used to control the position of a valve based on the input signal from a controller. It can modify the output signal to reverse the direction of the valve movement. This allows for precise control and adjustment of the valve position, which is essential in many industrial processes.

    Rate this question:

  • 8.

    In the processing industry, the most common control valve body style in theButterfly.

    • Butterfly.

    • Three-Way.

    • Globe

    • Double-port .

    Correct Answer
    A. Globe
    Explanation
    The most common control valve body style in the processing industry is the Globe valve.

    Rate this question:

  • 9.

    An I/P or valve positioner will reverse an increasing signal from the __________ to a decreasing signal to the __________ __________.

    • Controller, control valve

    • System, actuator device

    • Damper, motor drive

    • spring, fail safe

    Correct Answer
    A. Controller, control valve
    Explanation
    An I/P or valve positioner is a device that is used to control the position of a control valve based on the input signal from a controller. In this case, the increasing signal from the controller is reversed by the I/P or valve positioner to a decreasing signal, which is then used to control the position of the control valve. This allows for precise and accurate control of the system by adjusting the flow of fluid through the control valve based on the input from the controller.

    Rate this question:

  • 10.

    Which of the following is considered to be the device that directly controls the manipulated variable.

    • The measuring element

    • The transmitting elemen

    • The comparing and controlling element

    • The final control element

    Correct Answer
    A. The final control element
    Explanation
    The final control element is considered to be the device that directly controls the manipulated variable. It is responsible for adjusting the process variable based on the feedback received from the comparing and controlling element. The final control element is typically a valve, actuator, or motor that regulates the flow, pressure, or temperature in a system to maintain the desired setpoint.

    Rate this question:

  • 11.

    The _________ is the device that provides motion to the valve.

    • Spring

    • Bonnet

    • Body

    • Actuator

    Correct Answer
    A. Actuator
    Explanation
    The actuator is the device that provides motion to the valve. It is responsible for opening and closing the valve, controlling the flow of fluid or gas. The actuator can be operated manually or automatically, depending on the application. It converts a control signal into mechanical motion, allowing the valve to be adjusted or regulated as needed. The spring, bonnet, and body are all components of the valve itself, but they do not directly provide motion to the valve.

    Rate this question:

  • 12.

    The stem on a control valve that is sticking will ________ rather than move smoothly.

    • Jump

    • twist

    • Pivot

    • Bend

    Correct Answer
    A. Jump
    Explanation
    When a stem on a control valve is sticking, it means that it is not able to move smoothly. Instead, it will jump or jerk as it tries to move. This jumping motion is a clear indication that there is an issue with the valve, such as dirt or debris causing it to get stuck. The other options, twist, pivot, and bend, do not accurately describe the movement of a sticking stem.

    Rate this question:

  • 13.

    A control valve with a spring and diaphragm actuator is said to air-to-close, if there is a power loss (loss of actuating energy) the valve will:

    • be forced completely closed by the spring.

    • Be forced completely open by the spring.

    • remain in its last position.

    • Hunt for the best option.

    Correct Answer
    A. Be forced completely open by the spring.
    Explanation
    In a control valve with a spring and diaphragm actuator, the term "air-to-close" means that the valve requires air pressure to close. In the event of a power loss or loss of actuating energy, there will be no air pressure to keep the valve closed. As a result, the spring in the actuator will force the valve to open completely. Therefore, the correct answer is that the valve will be forced completely open by the spring.

    Rate this question:

  • 14.

    Actuators and valves are either direct acting or ______________ acting.

    • Forward

    • Reverse

    Correct Answer
    A. Reverse
    Explanation
    In the context of actuators and valves, the term "reverse acting" refers to the opposite action or movement compared to direct acting. Direct acting actuators and valves respond to a signal or input by moving in the same direction as the input, while reverse acting ones move in the opposite direction. This distinction is important in various applications where different types of actuation are required for specific purposes or control mechanisms.

    Rate this question:

  • 15.

    The tag on a pneumatically actuated control valve identifies it as air-to-open. If the positioner has been configured (set) to reverse the signal, then the valve will fail _________.

    • Closed

    • Open

    • In last state

    Correct Answer
    A. Open
    Explanation
    If the tag on a pneumatically actuated control valve identifies it as air-to-open, it means that the valve is designed to open when air pressure is applied. However, if the positioner has been configured to reverse the signal, it means that the valve will actually close when air pressure is applied. Therefore, if the valve fails, it will fail to open, resulting in it being closed.

    Rate this question:

  • 16.

    A butterfly valve is opened with a _________ _________.

    • rotary motion

    • Sliding motion

    Correct Answer
    A. rotary motion
    Explanation
    A butterfly valve is opened with a rotary motion because it operates by rotating a disc or vane within the valve body. This disc is attached to a shaft, which can be turned to either open or close the valve. As the shaft rotates, the disc also rotates, allowing or blocking the flow of fluid through the valve. This rotary motion is an effective way to control the flow rate and pressure in a system, making it the correct answer.

    Rate this question:

  • 17.

    A double acting cylinder type actuator always requires a positioner.

    • True

    • False

    Correct Answer
    A. True
    Explanation
    A double acting cylinder type actuator always requires a positioner because it is designed to operate in both directions, meaning it can extend and retract. A positioner is necessary to accurately control the position of the actuator and ensure it reaches the desired endpoints. Without a positioner, the actuator may not be able to accurately stop at the desired positions, leading to potential issues or inaccuracies in the system it is being used for.

    Rate this question:

  • 18.

    If a spring and diaphragm actuator loses air it will be forced into its fail-safe position.

    • True

    • False

    Correct Answer
    A. True
    Explanation
    If a spring and diaphragm actuator loses air, it means that there is no air pressure to keep the actuator in its normal operating position. In this case, the spring inside the actuator will push the diaphragm into its fail-safe position, which is typically a fully closed or fully open position depending on the design of the actuator. This fail-safe position ensures that the actuator does not cause any unintended operation or damage to the system in the absence of air pressure. Therefore, the statement is true.

    Rate this question:

  • 19.

    A valve positioned is used to do all of the following except:

    • Provide split range control

    • Position the valve

    • Mimic a valve trim type

    • Reverse the action

    • Send a signal back to the controller

    Correct Answer
    A. Send a signal back to the controller
    Explanation
    A valve positioned is used to provide split range control, position the valve, mimic a valve trim type, and reverse the action. However, it does not send a signal back to the controller. This means that the valve positioned does not communicate with the controller to provide feedback or relay information about its position or status.

    Rate this question:

  • 20.

    A tag with the label ATC/atc, the ATC represents the _________and the atc represents the ________.

    • Positioner, valve

    • Actuator, valve

    • Valve, positioner

    • Valve, actuator

    Correct Answer
    A. Actuator, valve
    Explanation
    The correct answer is "actuator, valve". In this context, the term "ATC" refers to the actuator, which is a device responsible for controlling or moving a mechanism or system. On the other hand, "atc" represents the valve, which is the component that regulates the flow or direction of a fluid or gas. Therefore, the ATC tag represents the actuator, and the atc tag represents the valve.

    Rate this question:

  • 21.

    An actuator accessory used to manually override the actuator or to limit its motion is called a _______.

    • switch

    • Handwheel

    • manual valve

    • Manual actuator

    Correct Answer
    A. Handwheel
    Explanation
    A handwheel is a type of actuator accessory that allows for manual control and override of an actuator. It is used to manually operate the actuator or to limit its motion. By turning the handwheel, the operator can directly control the movement of the actuator, providing a convenient and reliable way to adjust or override its automated functions.

    Rate this question:

  • 22.

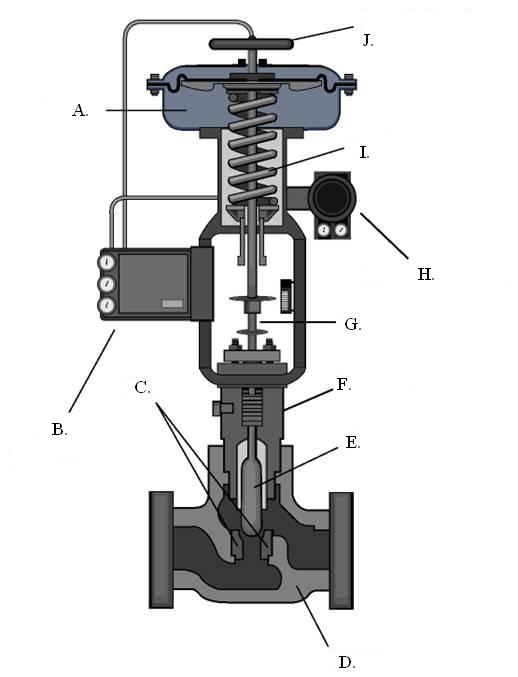

    The top portion of the valve that connects the valve to the actuator and can be removed to allow entry into the valve body cavity is called a ___________.

    • Spring

    • Bonnet

    • Seat

    • Actuator

    Correct Answer
    A. Bonnet
    Explanation
    The top portion of the valve that connects the valve to the actuator and can be removed to allow entry into the valve body cavity is called a bonnet. The bonnet acts as a cover for the valve body and houses the stem and packing. It is designed to provide a secure connection between the valve and the actuator while also allowing for maintenance and repair by providing access to the valve internals.

    Rate this question:

  • 23.

    The pushing rod that transfers the motion of the actuator to the valve plug is called a ___________.

    • Spring

    • Bonnet

    • Stem

    • Actuator

    Correct Answer
    A. Stem
    Explanation
    The pushing rod that transfers the motion of the actuator to the valve plug is called a stem. The stem connects the actuator to the valve plug and allows for the opening and closing of the valve. It is responsible for transmitting the force and motion from the actuator to the valve plug, controlling the flow of fluid or gas through the valve.

    Rate this question:

  • 24.

    The stationary part of the valve trim connected to the body comes in contact with the valve plug is called the __________.

    • Actuator

    • Bonnet

    • Spring

    • Seat

    Correct Answer
    A. Seat
    Explanation
    The stationary part of the valve trim connected to the body that comes in contact with the valve plug is called the seat. The seat provides a tight seal when the valve is closed, preventing any leakage. It is usually made of a durable material such as metal or synthetic material to withstand the pressure and flow of the fluid passing through the valve.

    Rate this question:

  • 25.
    What do these symbols represent? - ProProfs

    What do these symbols represent?

    • Pressure reducing regulator

    • Back pressure regulator

    • Reverse valve positioner

    • Forward valve positioner

    Correct Answer
    A. Back pressure regulator
    Explanation
    A back pressure regulator is a device used to control the pressure of a fluid flowing through a system. It maintains a constant pressure upstream by adjusting the flow rate downstream. This is achieved by sensing the pressure downstream and adjusting the valve accordingly to maintain the desired pressure. In other words, a back pressure regulator ensures that the pressure in the system does not exceed a certain limit by regulating the flow rate.

    Rate this question:

  • 26.

    What are the possible combinations of actuator and valve actions?

    • Direct/direct

    • Direct/reverse

    • reverse/direct

    • Reverse/reverse

    • All of the above

    • None of the above

    Correct Answer
    A. All of the above
    Explanation
    The possible combinations of actuator and valve actions include direct/direct, direct/reverse, reverse/direct, and reverse/reverse. This means that the actuator and valve can both move in the same direction (direct), or they can move in opposite directions (reverse). Therefore, all of the given options are correct.

    Rate this question:

  • 27.

    What are valve positioners are used for?

    • Position the valve

    • Reverse the action of the valve

    • Mimic a valve trim type

    • Provise split-range control

    • All of the above

    • Both a and c

    Correct Answer
    A. All of the above
    Explanation
    Valve positioners are used for multiple purposes. They can be used to accurately position the valve, reverse the action of the valve, and mimic a valve trim type. Additionally, they can provide split-range control. Therefore, the correct answer is "all of the above."

    Rate this question:

  • 28.

    What position does an actuator fail if it does not have a spring?

    • Fail open

    • Fail close

    • Fail in place

    • Does not fail

    Correct Answer
    A. Fail in place
    Explanation
    If an actuator does not have a spring, it will fail in place. This means that it will remain in its current position and will not be able to move or perform any action. Without a spring, the actuator does not have the ability to return to a default or neutral position in case of failure. Therefore, it will simply stop functioning and remain in the position it was in when the failure occurred.

    Rate this question:

  • 29.
    What do these symbols represent? - ProProfs

    What do these symbols represent?

    • Pressure reducing regulator

    • Back pressure regulator

    • Reverse valve positioner

    • Forward valve positioner

    Correct Answer
    A. Pressure reducing regulator
    Explanation
    These symbols represent different types of regulators used in various industrial processes. A pressure reducing regulator is used to reduce the pressure of a fluid or gas to a desired level. A back pressure regulator is used to maintain a constant pressure in a system by adjusting the flow rate. A reverse valve positioner is a device that controls the position of a valve in the opposite direction to its normal operation. A forward valve positioner, on the other hand, controls the position of a valve in the same direction as its normal operation.

    Rate this question:
