RCDD Chapter 1 Principles Of Transmission

Time Division Multiplexing (TDM) is a technique that combines multiple digital data streams into one data stream. It works by dividing the available time slots into smaller intervals and assigning each data stream a specific time slot. This allows multiple streams to be transmitted simultaneously over a single communication channel, effectively maximizing the number of communications channels available. PCM and DSC are not specifically designed for combining multiple data streams, making TDM the correct answer in this context.

A sinusoid is the most fundamental example of an analog signal because it represents a smooth, continuous waveform that oscillates between positive and negative values. It is characterized by its frequency, amplitude, and phase. Sinusoids are commonly used to represent various types of signals in fields such as electronics, telecommunications, and physics. They can be easily generated and analyzed mathematically, making them a fundamental building block for understanding analog signal processing.

Codecs are devices that convert speech to digital data and then decode it back to speech. They are used in various communication systems to compress and decompress audio signals, allowing for efficient transmission and storage of speech data. Codecs are commonly used in applications such as voice over IP (VoIP) systems, video conferencing, and digital audio recording. They play a crucial role in converting analog speech signals into digital format for transmission or storage, and then decoding it back to speech at the receiving end.

The given options, "Voltage" and "Current," are both measurements of a quantity, whereas "Time" is a description of the reference. In the context of phase, time refers to the position of a waveform in relation to a reference point. It indicates the point in time at which a waveform starts or reaches a certain point. Therefore, "Time" is the correct answer as it aligns with the concept of phase being a description of the reference in terms of time.

The gauge of a conductor refers to its diameter, with a higher gauge number indicating a smaller diameter. Therefore, the smallest size conductor among the given options is 36 Gauge, as it has a smaller diameter compared to 34 Gauge, 28 Gauge, and 32 Gauge.

Single mode optical fibers have a small core diameter, typically between 8 and 9 um, which allows for the transmission of a single mode of light. They also have low attenuation, with a range of 0.3 to 1.0 dB/km at the commonly used wavelengths of 1310 nm and 1550 nm. These characteristics make single mode optical fibers suitable for long-distance communication systems, as they can transmit signals over longer distances without significant loss or dispersion.

Human beings can hear sounds within the frequency range of 20 Hz to 20,000 Hz. This range is known as the audible range of frequencies for humans. Frequencies below 20 Hz are known as infrasound, which is below the threshold of human hearing, while frequencies above 20,000 Hz are known as ultrasound, which is also beyond the range of human hearing. Therefore, the correct answer is 20 Hz to 20,000 Hz.

The relative power loss in the insulation due to molecular excitement and subsequent kinetic and thermal energy losses is known as the dissipation factor. This factor represents the efficiency of the insulation material in storing and releasing electrical energy. A higher dissipation factor indicates a greater power loss in the insulation, which can lead to decreased efficiency and increased heat generation.

The AWG system is a standard used to measure the size of electrical wires. In this system, the size of the wire corresponds to the number of steps involved in the wire drawing process. The wire drawing process involves pulling the wire through a series of progressively smaller dies to achieve the desired diameter. Therefore, the statement that the size in the AWG system represents the number of steps involved in the wire drawing process is true.

A down-to-upstream ratio of at least 10:1 is necessary for good internet performance. This means that the download speed should be at least 10 times faster than the upload speed. This is important because most internet activities, such as browsing websites, streaming videos, and downloading files, require faster download speeds. A higher down-to-upstream ratio ensures that users can access and download content quickly and efficiently.

When converting analog signals to a digital signal, the sampling rate must be at least twice the highest frequency according to the Nyquist-Shannon sampling theorem. This theorem states that in order to accurately reconstruct a continuous signal from its samples, the sampling rate must be at least twice the highest frequency component of the signal. Therefore, the statement that the sampling rate must be at least three times the highest frequency is incorrect.

The largest size conductor is 4/0. The size of a conductor is determined by its gauge, with a larger gauge indicating a smaller conductor size. In this case, 4/0 is larger than 3/0, 2/0, and 1/0, making it the largest size conductor among the options given.

The maximum splice loss of 0.3 dB is recommended for optical fiber. This means that when two fiber optic cables are spliced together, the maximum acceptable loss in signal strength is 0.3 dB. This ensures that the splice is of high quality and minimizes the signal loss, allowing for efficient transmission of data through the fiber optic network.

Voice telephone circuits are generally limited to the range of 300 Hz. - 3400 Hz. This range is commonly known as the voice frequency range. It is the range of frequencies that humans can perceive and produce when speaking. By limiting the circuit to this range, telephone systems can effectively transmit and reproduce human speech, while filtering out unnecessary frequencies that are not relevant to voice communication.

The best possible shield is a solid wall metal tube (conduit) because it provides complete protection against electromagnetic interference. The solid wall structure of the conduit prevents any external electromagnetic waves from penetrating and interfering with the signals or devices inside. This makes it an effective shield for sensitive electronic equipment or communication systems that require high levels of protection. Braided wire, reverse spiral-wrapped wire, and metal foils may offer some level of shielding, but they are not as effective as a solid wall metal tube in providing comprehensive protection.

Annealed copper sets the standard for comparing conductivity of other metals and is said to have 100% conductivity. This means that it has the highest level of electrical conductivity among all metals. Annealing is a heat treatment process that increases the ductility and conductivity of copper, making it an ideal conductor for various applications. Copper is widely used in electrical wiring and transmission due to its excellent conductivity properties.

UHF stands for Ultra High Frequency, and it refers to the frequency range between 300 and 3000 MHz. This range is commonly used for various communication purposes, including television broadcasting, mobile phones, Wi-Fi, and satellite communication. Frequencies within this range are capable of transmitting signals over longer distances and have better penetration through obstacles compared to higher frequencies.

The rating for oxidation resistance for aluminum is poor. This means that aluminum is not very resistant to oxidation, which is the process of a material reacting with oxygen and forming an oxide layer. This poor rating suggests that aluminum is more likely to corrode or deteriorate when exposed to oxygen or other oxidizing agents.

To achieve ethernet (100BASE-T4) rates of 100 Mb/s for 100 m (328 ft) on 24 AWG, balanced twisted-pair cables, four pairs are needed. Each pair can transmit data at a rate of 25 Mb/s, and by using all four pairs simultaneously, a total data rate of 100 Mb/s can be achieved.

When the power of a signal is doubled, it results in an increase of 3 dB. Decibels (dB) is a logarithmic unit used to measure the ratio of two power levels. In this case, a doubling of power corresponds to a ratio of 2:1, which is equivalent to a 3 dB increase. This is because the logarithm of 2 is approximately 0.301, and when multiplied by 10, it gives a value of approximately 3 dB. Therefore, the correct answer is +3 dB.

The sampling rate for converting analog signals to digital is typically twice the frequency of the analog signal, according to the Nyquist-Shannon sampling theorem. In this case, the analog signal has a frequency of 4 kHz, so the sampling rate would be 8 kHz, which is equivalent to 8000 samples per second.

Capacitance unbalance is a measure of electric field coupling. Capacitance is the ability of a capacitor to store electrical energy, and unbalance refers to the difference in capacitance between two or more components. Electric field coupling occurs when there is a transfer of electrical energy between two conductors through their electric fields. Therefore, capacitance unbalance is a measure of the degree to which electric fields are coupled between components, indicating the level of electrical energy transfer.

ATM (Asynchronous Transfer Mode) and OC3 (Optical Carrier 3) both use an encoding rate of 155 Mb/s. This means that data is transmitted at a rate of 155 megabits per second. This high-speed transmission rate allows for efficient and fast data transfer, making it suitable for applications that require high bandwidth, such as video streaming or large file transfers.

Tight twisting of conductors is used between computers and other data processing equipment. This is done to reduce electromagnetic interference (EMI) and crosstalk, which can negatively impact the performance and reliability of the data transmission. The tight twisting helps to cancel out the electromagnetic fields generated by the adjacent conductors, ensuring a cleaner and more reliable signal transmission.

The rate for ATM (STS-3) is 155 Mb/s.

Demultiplexing is the process of separating a composite signal into its individual channels. In other words, it is the reverse process of multiplexing, where multiple signals are combined into a single composite signal. Demultiplexing is commonly used in telecommunications and data transmission systems to transmit multiple signals over a single transmission medium. By demultiplexing the composite signal at the receiving end, the individual channels can be extracted and processed separately.

EM fields are usually expressed in Volt/meters because the electric field strength (E) is measured in volts per meter. This unit represents the amount of electric potential difference (voltage) per unit distance. It is commonly used to quantify the strength of electric fields in various applications, such as telecommunications, electromagnetic radiation, and electrical engineering.

Mutual conductance, also known as transconductance, is a measure of how much the output current of a device changes in response to a change in input voltage. It is expressed in Siemens (S), which is the unit of conductance. Ohms is the unit of resistance, Henrys is the unit of inductance, and Farads is the unit of capacitance, none of which are directly related to mutual conductance. Therefore, the correct answer is Siemens (S).

To achieve a DS1 rate of 1.544 Mb/s for a distance of 1500 m (4920 ft) on 24 AWG, balanced twisted-pair, two pairs are needed. This is because the DS1 rate requires a certain amount of bandwidth and signal quality, which can be achieved by using two pairs of wires in parallel. Using only one pair would not provide enough bandwidth and signal quality to achieve the required rate. Using three or four pairs would be unnecessary and would not provide any additional benefit in this scenario.

Crosstalk refers to signal interference between cable pairs. It can occur when a cable pair picks up unwanted signals from either adjacent pairs or nearby cables. This interference can disrupt the quality of the transmitted signals and lead to errors or loss of data. Therefore, both adjacent pairs and nearby cables can cause crosstalk.

In pulse code modulation, the sampled value is assigned one of 256 levels. These levels can be represented by an 8-bit binary number, as 8 bits can represent 2^8 = 256 different combinations. This allows for a wide range of values to be accurately represented in the digital signal.

Analog signals can be converted into digital signals through a multistep process. The first step is filtering, where the analog signal is passed through a filter to remove any unwanted frequencies. Then, the signal is sampled, which involves taking periodic samples of the analog signal at specific intervals. After sampling, the signal is quantized or companded, which involves assigning discrete values to each sample to represent the analog signal accurately. Finally, the digital signal may be amplified to ensure it has sufficient strength for further processing or transmission.

Twisting pairs of conductors helps to minimize cross talk, decrease capacitance unbalance, and decrease mutual inductance. By twisting the pairs, the electromagnetic interference between adjacent pairs is reduced, minimizing cross talk. Twisting also helps to balance the capacitance between the conductors, reducing capacitance unbalance. Additionally, the twisting action reduces the magnetic field coupling between the conductors, decreasing mutual inductance. Overall, twisting pairs of conductors helps to improve the performance and reliability of the cable by reducing interference and imbalances.

The numerical aperture of a fiber optic cable determines its ability to gather and transmit light. In this case, the numerical aperture of the 62.5/125 fiber is 0.275. This means that the fiber optic cable has a relatively high ability to gather and transmit light, making it suitable for applications that require high-speed data transmission over short distances.

Delays greater than 50 milliseconds are perceptible in telephony if they are of sufficient strength. This means that if there is a delay of more than 50 milliseconds in a telephone conversation, it will be noticeable to the person speaking or listening. The strength of the delay refers to how noticeable or significant it is.

The correct answer is 802.3af. This standard approved by IEEE in June 2003 deals with Data Terminal Equipment (DTE) Power via Media Dependent Interface (MDI).

Pulse code modulation (PCM) is the correct answer because it refers to the process of converting an analog signal into a digital form by sampling the signal at regular intervals and quantizing each sample into a binary code. PCM is widely used in telecommunications and digital audio applications to accurately represent analog signals in a digital format. Time division multiplexing (TDM) is a different technique used for transmitting multiple signals over a single communication channel. Adaptive differential pulse code modulation (ADPCM) and digital subscriber modulation (DSM) are not relevant to the process of converting analog signals to digital data.

The relative length and uniformity of pair twists affect both mutual inductance and capacitance unbalance. Mutual inductance is the phenomenon where the magnetic field of one conductor induces a voltage in another conductor. The length and uniformity of pair twists affect the magnetic coupling between the conductors, thus impacting mutual inductance. Capacitance unbalance refers to the difference in capacitance between two conductors in a cable. The relative length and uniformity of pair twists also affect the distribution of electric fields and, consequently, the capacitance unbalance.

A DS-1 (Digital Signal 1) has a data rate of 1.544 Mb/s and is capable of carrying 24 channels. This means that it can transmit digital data at a speed of 1.544 million bits per second and can accommodate up to 24 separate channels for data transmission.

The correct answer is that "Poor means less than 20 dB", "Fair means 20 to 40 dB", and "Excellent means more than 60 dB". This means that a shield with a rating of less than 20 dB is considered poor in effectiveness, a rating of 20 to 40 dB is considered fair, and a rating of more than 60 dB is considered excellent.

Signals travel at speeds ranging from .6c to .8c in a cable. This means that the speed of the signals is between 60% and 80% of the speed of light.

Transmission circuits are generally classified based on the direction of data flow. Simplex transmission circuits allow data to flow in only one direction, from the sender to the receiver. Half-duplex transmission circuits allow data to flow in both directions, but only one direction at a time. Full-duplex transmission circuits allow data to flow in both directions simultaneously. Therefore, the correct answer includes all three classifications: Simplex, Half-duplex, and Full-duplex.

This statement is false. Stranded conductors actually have a slightly larger outside diameter compared to the corresponding solid conductor diameter. This is because stranded conductors are made up of multiple smaller wires twisted together, which results in a larger overall diameter. This larger diameter allows for better flexibility and resistance to breakage.

Loading coils are used in telecommunication systems to compensate for the attenuation of signals over long distances. They are placed at regular intervals along the transmission line to boost the signal strength. The two types of loading coils mentioned in the answer, D loading and H loading, refer to different configurations of the coils. Each type is designed to provide specific impedance matching and signal enhancement properties based on the characteristics of the transmission line and the desired signal quality.

Shields can be made of various materials, including foil and braided metal strands. Foil is a thin and flexible material that can be easily molded and shaped to create a shield. It is commonly used for lightweight shields that provide protection against heat or electromagnetic interference. On the other hand, braided metal strands are often used for more heavy-duty shields that offer protection against electrical interference or physical impact. These strands are made by intertwining multiple metal wires together, creating a strong and durable shield.

The maximum cable attenuation coefficient for singlemode inside plant fiber is 1.0 dB/km at both 1310 nm and 1550 nm. This means that for every kilometer of fiber, the signal strength decreases by 1.0 dB at these wavelengths. Attenuation is an important factor to consider in fiber optic communication as it affects the quality and distance of signal transmission.

For optical fiber, a maximum connection loss of 0.75 dB is recommended. This means that the total loss in the connection between two fiber optic cables should not exceed 0.75 dB. This loss can occur due to factors such as insertion loss, reflection loss, and bending losses in the fiber. Keeping the connection loss below 0.75 dB ensures efficient transmission of signals through the fiber optic network.

The correct answer is ANSI/TIA/EIA-232-F. This standard defines the interface between data terminal equipment (DTE) and data circuit-terminating equipment (DCE) employing serial binary data interchange. It specifies the electrical and functional characteristics of the interface, including voltage levels, timing, and signal definitions. ISND applications should be on separate binder groups to ensure proper signal integrity and minimize interference.

ATM (STS-1) and OC1 have an encoding rate of 51.8 Mb/s.

Speech actually requires a relatively high amount of bandwidth, especially for high-quality audio. This means that it is less tolerant of delays or traffic bottlenecks compared to other forms of communication that require less bandwidth. Therefore, the given statement is false.

Insulation, also known as dielectric, is used to prevent direct contact between conductors and their environment. It acts as a barrier that isolates the flow of current, ensuring that there is no electrical contact between the conductor and its surroundings. This helps to prevent short circuits and electrical shocks, ensuring the safety and proper functioning of electrical systems.

The bandwidth of a multimode system is determined by chromatic dispersion and modal dispersion. Chromatic dispersion occurs when different wavelengths of light travel at different speeds, causing the signal to spread out and degrade over long distances. Modal dispersion, on the other hand, happens when light rays take different paths within a multimode fiber, leading to different arrival times at the receiver and causing signal distortion. Both chromatic dispersion and modal dispersion limit the maximum data rate that can be transmitted over a multimode system.

The rate for ATM (STS-1) is 51.8 Mb/s.

The correct answer suggests that when calculating the "repair margin" for power penalties, the designer should allow for at least 2 repair splices if the cable is located where it could be damaged by accident. Additionally, if the cable is in a high-risk area or reroutings are anticipated, the designer may decide to allow for more than 2 splices.

Quality of Service (QoS) is necessary for data networks to support IP telephony because it ensures that the network can prioritize and deliver voice packets with minimal delay, jitter, and packet loss. QoS allows for the allocation of network resources to prioritize real-time voice traffic over other types of data traffic, ensuring a high-quality and reliable voice communication experience. Without QoS capabilities, IP telephony may suffer from poor call quality, dropped calls, and other issues that can negatively impact communication.

Surface transfer impedance is a measure of the electrical resistance encountered when transferring electrical energy across a surface. It is typically measured in milliohm/meter or ohm/foot. This measurement indicates the resistance per unit length, with milliohm/meter being the metric unit and ohm/foot being the imperial unit. Both units express the same concept of electrical resistance over a given distance, but in different measurement systems.

Insulation is used to isolate the flow of current by preventing direct contact between conductors and their environment. It acts as a barrier between the conductors and any surrounding materials or objects, preventing the current from escaping or coming into contact with anything that could cause a short circuit or electrical shock. Insulation materials have high resistivity, which means they do not conduct electricity easily. This property allows them to effectively contain and control the flow of current within a circuit, ensuring safety and proper functioning.

Solid conductors have several advantages over other types of conductors. Firstly, they are less costly compared to other options, making them more affordable for various applications. Secondly, solid conductors have less complex terminations, meaning they are easier to install and connect in electrical systems. Lastly, solid conductors offer better transmission performance at higher frequencies, ensuring efficient and reliable signal transmission. These advantages make solid conductors a preferred choice in many electrical and electronic applications.

In optical communications, "windows" refer to specific wavelength ranges in the electromagnetic spectrum that are most suitable for transmitting data. These windows are chosen because they have low signal attenuation and minimal interference from other sources. By using these windows, optical signals can travel long distances without significant loss of signal quality. Therefore, "windows" is the correct term to describe the wavelength areas that are most suitable for optical communications.

The center wavelength for a CD laser is 780 nm. This is the specific wavelength at which the laser emits light.

Drain wires are usually applied longitudinally, meaning they are positioned along the length of the cable. This allows for effective grounding and protection against electromagnetic interference. Additionally, drain wires are specified at the time of the cable order, meaning they are determined and included in the cable design based on the specific requirements and applications of the cable.

Fluorinated ethylene propylene (FEP) and Ethylene chlorotrifluoroethylene (ECTFE) are two cable insulations that have been shown to improve both smoke and flame characteristics as well as transmission performance. FEP is a thermoplastic material known for its excellent electrical properties and resistance to chemicals and heat. It has low smoke and flame characteristics, making it suitable for applications where fire safety is important. ECTFE is a high-performance fluoropolymer that offers excellent electrical insulation properties and is highly resistant to chemicals, UV radiation, and extreme temperatures. It also has low smoke and flame characteristics, making it a suitable choice for applications where fire safety is a concern.

The correct answer is that Synchronous digital hierarchy (SDH) is the international standard and Synchronous optical network (SONET) is the North American standard. This means that SDH is used globally, while SONET is specifically used in North America.

The correct answer is Outside cable-- 0.5 dB/km at 1310 nm and 1550 nm, Inside cable-- 1.0 dB/km at 1310 nm and 1550 nm. This answer is correct because it accurately reflects the maximum attenuation values specified for singlemode optical fiber cable. The outside cable has a maximum attenuation of 0.5 dB/km at both 1310 nm and 1550 nm wavelengths, while the inside cable has a maximum attenuation of 1.0 dB/km at both wavelengths. These values are commonly used to measure the loss of signal strength in the fiber optic cable over distance.

The correct answer is 1.5 dB/km @ 1300 nm. This is the maximum cable attenuation coefficient for 62.5/125 um multimode fiber at a wavelength of 1300 nm. The other options provided are not the maximum attenuation coefficients for this type of fiber.

The nature of the signal to be transmitted is important to consider when selecting a cable shield because different signals may have different requirements for shielding. For example, a high-frequency signal may require a more robust shield to prevent interference. The magnitude of the EM fields through which the cable will run is also important because stronger fields may require a more effective shield to provide adequate protection. Additionally, electromagnetic compatibility (EMC) regulations need to be considered to ensure that the selected cable shield meets the required standards for interference prevention.

The outer most part of a fiber is not called the cladding. The cladding is actually the layer surrounding the core of the fiber, which helps to confine the light within the core and prevent signal loss. The outermost part of a fiber is typically referred to as the coating, which provides protection to the fiber and may have additional functions such as enhancing flexibility or resistance to environmental factors.

The correct answer is "Minimum NEXT loss - maximum attenuation." This calculation is used to determine the Attenuation to Crosstalk Ratio (ACR). ACR is a measure of the difference between the minimum NEXT (Near End Crosstalk) loss and the maximum attenuation. NEXT loss refers to the amount of crosstalk between adjacent cables, while attenuation measures the loss of signal strength. By subtracting the maximum attenuation from the minimum NEXT loss, we can determine the ACR, which helps assess the quality and performance of a communication channel.

not-available-via-ai

Companding is a technique used in the digital encoding of speech signals. It involves assigning a greater number of digital levels to weak speech signals and fewer levels to strong speech signals. This nonuniform mapping helps to preserve the quality of weak signals while reducing the quantization error for strong signals. Therefore, companding is the correct term to describe this process.

A sinusoid is a type of waveform that is characterized by three parameters: amplitude, frequency, and phase. The amplitude represents the maximum value or strength of the signal, the frequency determines the number of oscillations per unit of time, and the phase indicates the position of the waveform at a given time. These parameters are essential in fully describing and understanding the behavior of a sinusoidal signal. The size, on the other hand, is not a parameter commonly used to describe a sinusoid.

High-strength alloys have poor corrosion resistance. This means that these alloys are more likely to corrode or deteriorate when exposed to corrosive environments such as moisture, chemicals, or high temperatures. The poor corrosion resistance of high-strength alloys can be attributed to factors such as the presence of impurities, the formation of oxide layers that are less protective, or the susceptibility to stress corrosion cracking. Therefore, it is important to take appropriate measures such as applying protective coatings or using corrosion inhibitors to prevent or minimize corrosion in high-strength alloys.

Visible light is a form of electromagnetic radiation that can be detected by the human eye. The wavelength of visible light determines its color. The range of wavelengths that humans can perceive as visible light is approximately 400-700 nm. This range includes colors from violet (shorter wavelength) to red (longer wavelength).

The common distance between D loading points is 1.37 km (4500 ft). This means that each loading point is located at a distance of 1.37 km from the other loading points.

The correct answer is 0.5 dB/km @ 1310 nm, 0.5 dB/km @ 1550 nm. This means that the maximum cable attenuation coefficient for singlemode outside plant fiber is 0.5 dB/km at both 1310 nm and 1550 nm wavelengths. Attenuation coefficient refers to the amount of signal loss that occurs as light travels through the fiber optic cable. In this case, the cable has a very low attenuation coefficient, indicating that it is capable of transmitting signals over long distances without significant loss of signal strength.

Multimode optical fiber is best suited for premise applications where links are less than 2000 m (6560 ft) for data rates of 155 Mb/s or less, 550 m (1804 ft) for data rates of 1 Gb/s or less, and 300 m (984 ft) for data rates of 10 Gb/s or less. This is because multimode fiber has a larger core size, allowing multiple modes or rays of light to propagate through it. However, as the data rates increase, the distance over which the signal can be transmitted effectively decreases due to modal dispersion and attenuation. Therefore, for higher data rates, the maximum link length is reduced to ensure reliable transmission.

Primary rate ISDN has an encoding rate of 1.544 Mb/s. This is the correct answer because primary rate ISDN is a telecommunications standard that provides 23 B channels and 1 D channel for a total bandwidth of 1.544 Mb/s. The B channels are used for voice or data transmission, while the D channel is used for signaling and control purposes. Therefore, the encoding rate of primary rate ISDN is 1.544 Mb/s.

Geostationary satellites are positioned at a distance of 36,000 km from the Earth's surface. This distance causes a round-trip delay in the satellite signals. Since satellite signals travel at the speed of light, which is approximately 300,000 km/s, the time taken for the signal to travel from the Earth to the satellite and back is calculated by dividing the total distance by the speed of light. In this case, the round-trip delay is approximately 1/4 second, as it takes that amount of time for the signal to travel the 36,000 km distance twice.

Devices that convert electrical energy back into sound energy are typically called receivers. Receivers are commonly used in various electronic devices such as radios, televisions, and audio systems to receive and convert radio waves or electrical signals into audible sound. They play a crucial role in capturing and amplifying the electrical signals, allowing us to hear the desired audio output.

The multiple-layer braid shield is highly effective for radio frequency because it provides multiple layers of protection against electromagnetic interference. This shield is designed to minimize the amount of external radio frequency signals that can penetrate the cable or wire, ensuring excellent signal quality and reducing the risk of interference. The multiple layers of the braid shield create a strong barrier, making it highly effective in blocking out unwanted radio frequency signals.

The loss values for LEDs and lasers when calculating the power penalties for the link loss budget are 2 dB for LEDs and 3 dB for lasers. This means that when considering the power budget for a link, a 2 dB loss is accounted for when using LEDs and a 3 dB loss is accounted for when using lasers.

The correct answer is 3.5 dB/km @ 850 nm. This means that for every kilometer of cable, the signal strength will decrease by 3.5 dB at a wavelength of 850 nm. This attenuation coefficient is specific to 50/125 um multimode fiber, which is commonly used for short-distance data transmission. The other options are incorrect because they either have different attenuation coefficients or are at different wavelengths.

The high temperatures can be routinely encountered in exterior building walls, ceiling spaces (including plenums), and mechanical rooms. This is because these areas are exposed to external heat sources such as sunlight, machinery, or heating systems. The exterior walls can absorb heat from the sun, while ceiling spaces and mechanical rooms may contain equipment or systems that generate heat. Therefore, these locations are more likely to experience high temperatures compared to interior building walls.

The statement is false because the rate at which the digital signal state changes, known as the baud rate, is not necessarily the same as the bit transmission rate. The baud rate refers to the number of signal changes per second, while the bit transmission rate refers to the number of bits transmitted per second. In some cases, multiple bits can be transmitted per signal change, resulting in a higher bit transmission rate than the baud rate. Therefore, the two rates can be different.

Bandwidth and attenuation are two key parameters in optical fiber cabling performance that need to be verified for compatibility with the proposed electronics. Bandwidth refers to the capacity of the fiber to carry data, and it is important to ensure that it meets the requirements of the proposed electronics. Attenuation, on the other hand, refers to the loss of signal strength as it travels through the fiber. It is crucial to verify that the attenuation is within acceptable limits to ensure proper transmission of data.

The correct answer is 155.52 Mb/s and 2016 channels. This is because STS-3/OC-3 is a synchronous transport signal level 3/optical carrier level 3, which has a data rate of 155.52 Mb/s. It can support multiple voice channels, and in this case, it can accommodate 2016 channels.

The E2 digital signals have a data rate of 8.192 Mb/s and can support up to 120 channels.

The given answer "Excellent" suggests that foils are highly effective in shielding audio frequencies. This means that foils are able to block or reduce the interference or electromagnetic radiation that can affect audio signals. Foils are likely to provide a high level of protection against external electromagnetic interference, resulting in a clear and undistorted audio signal.

The correct answer is "Inverting alternate pulses for ones and using a zero level for zeros" and "Using Manchester (or differential Manchester)". These are the two common methods of encoding. In the first method, alternate pulses are inverted to represent ones and a zero level is used to represent zeros. In the second method, Manchester encoding is used where each bit is represented by a transition from high to low or low to high. Differential Manchester encoding is a variation where the transition represents a zero and no transition represents a one. Both methods are commonly used for encoding signals.

An E1 digital signal has a data rate of 2.048 Mb/s and can accommodate 30 channels. This means that it can transmit 30 different voice or data signals simultaneously. The 2.048 Mb/s data rate allows for efficient transmission of these channels, ensuring high-quality communication.

The numerical aperture of a fiber optic cable is a measure of the light-gathering capability of the cable. It is determined by the refractive index of the core and the cladding of the fiber. In this case, the given answer of 0.20 suggests that the numerical aperture of the 50/125 fiber is 0.20.

LF audio refers to low frequency audio. The frequency range for LF audio is typically between 30-300 kHz. This range is considered to be in the lower end of the audio spectrum. Frequencies within this range are often used for various purposes such as audio transmission, communication systems, and scientific research.

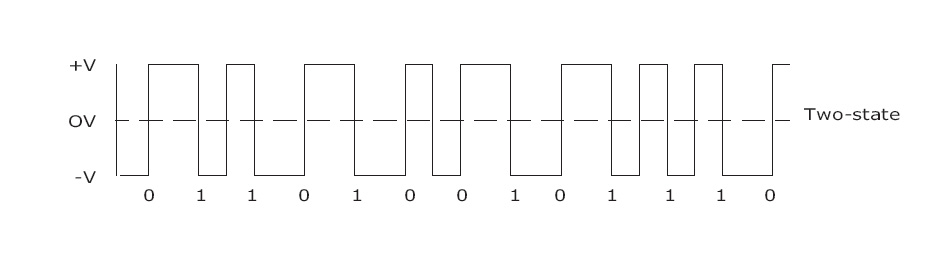

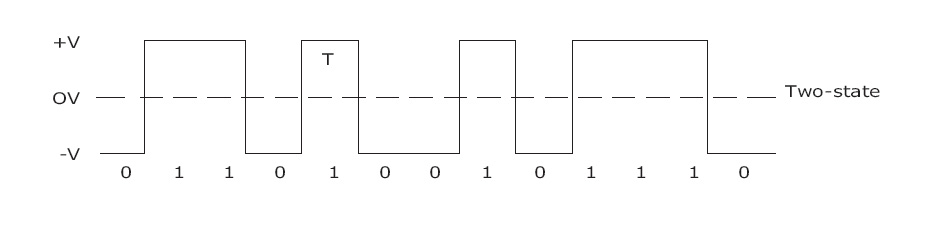

The given signal is identified as Polar nonreturn to zero level. In this encoding scheme, the signal level remains constant during the entire bit duration for a zero bit, and changes polarity for a one bit. This allows for easy detection of bit transitions and synchronization. The signal does not return to zero between consecutive bits, hence the name "nonreturn to zero".

Insulation resistance and cable length do not have a direct relationship. Insulation resistance is a measure of how well the insulation material of a cable can resist the flow of electrical current. It is affected by factors such as the quality and thickness of the insulation material, as well as environmental conditions. Cable length, on the other hand, does not directly impact insulation resistance. The length of a cable may indirectly affect resistance due to the resistance of the conductor material itself, but it does not have a direct relationship with insulation resistance. Therefore, the statement is false.

Thermal shock refers to the loosening of static pressure connectors caused by significant and rapid temperature changes. When materials expand or contract at different rates due to temperature fluctuations, it can create stress and strain on the connectors, leading to their loosening. This phenomenon is commonly observed in situations where there are extreme temperature variations, such as in industrial processes or when hot and cold fluids come into contact.

2B1Q is the correct answer because it is the transmission method used in Basic rate ISDN (Integrated Services Digital Network). 2B1Q stands for 2 Bits per Quadrature, which means that two bits are encoded into each symbol. This encoding method allows for efficient transmission of digital signals over a limited bandwidth. It is commonly used in ISDN systems to transmit voice, data, and video signals.

The DS-2 has a data rate of 6.312 Mb/s and it supports a maximum of 96 channels.

In voice band applications, a typical impedance of 600 ohms is preferred for private line circuits and trunks. This impedance is suitable for long-distance communication and ensures efficient transmission of signals over these circuits. On the other hand, a impedance of 900 ohms is preferred for use in central office switching system line circuits. This higher impedance helps in reducing crosstalk and interference in the switching system, resulting in better overall performance and clarity of voice signals.

Loss variations due to temperature changes can sometimes be as high as 2 dB/km. This means that for every kilometer of distance, the loss can vary by up to 2 decibels due to changes in temperature. This variation is significant and can impact the performance and reliability of the system.

Conductive nonmetallic materials are sometimes used as semiconductive shields at power and low audio frequencies. However, they are not typically used for applications at frequencies above 500 kHz. This suggests that conductive nonmetallic materials may not be effective in providing shielding at higher frequencies, potentially due to their limited conductivity or other properties.

Baluns are actually used to adapt the balanced impedance of twisted-pair to the unbalanced impedance of coaxial cable. This is because twisted-pair cables have two conductors that are twisted together, creating a balanced signal, while coaxial cables have a single conductor surrounded by a shield, creating an unbalanced signal. Therefore, baluns are necessary to convert the impedance from one type to another in order to ensure proper signal transmission.

The delay skew refers to the difference in propagation delay between the fastest and slowest pairs in a cable. In this case, for category 6/class E and category 5e/class D cables, the delay skew should not exceed 45 nanoseconds (ns) at a distance of 100 meters (328 feet). This means that the difference in time it takes for signals to travel through the different pairs of the cable should not exceed 45 ns.
