MRI Of The Human Heart Quiz!
-
Refer to the figure below of a horizontal long axis CT. Which arrow points to the bicuspid vavle
-
A
-
B
-
C
-
D
-
.jpg "Refer to the figure below of a horizontal long axis CT.
Which arrow points to the bicuspid vavle")
Explore the intricate details of the human heart with our MRI Of The Human Heart Quiz! Test your knowledge on identifying key structures like the bicuspid valve, left ventricle, and aorta through various imaging techniques. Perfect for students and professionals in the medical field.
Quiz Preview
- 2.
Refer to the figure below: Which arrow points to the left ventricle
-
A
-
B
-
C
-
D
Correct Answer
A. DExplanation
The left ventricle is the chamber of the heart that receives oxygenated blood from the left atrium and pumps it out to the rest of the body. In the given figure, arrow D points towards the left ventricle.Rate this question:
-
- 3.

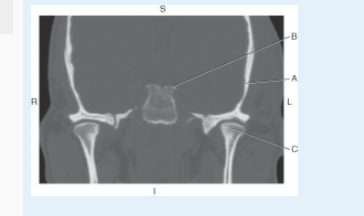

Refer to the figure below of the coronal CT of the dorsum sella. Which arrow points to the condyloid process of the mandible
-
A
-
B
-
C
Correct Answer
A. CExplanation
The condyloid process of the mandible is located at the temporomandibular joint (TMJ), which is the joint that connects the mandible to the temporal bone of the skull. In the given figure, arrow C points to a structure that is in close proximity to the TMJ. Therefore, arrow C is pointing to the condyloid process of the mandible.Rate this question:
-
- 4.

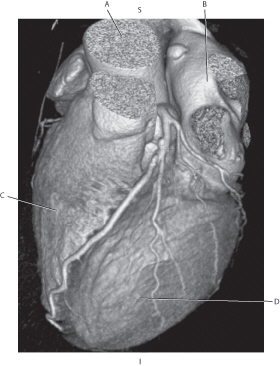

Refer to the figure below: Which arrow points to the aorta
-
A
-
B
-
C
-
D
Correct Answer
A. AExplanation
The arrow labeled "A" points to the aorta. The aorta is the largest artery in the body and carries oxygenated blood from the heart to the rest of the body. In the figure, the arrow labeled "A" is pointing to the main vessel that branches out from the heart, indicating that it is the aorta.Rate this question:
-
- 5.
Refer to the figure below of a sagittal, T1-weighted MRI of the heart with pulmonary trunk. Which arrow points to the right atrium
-
A
-
B
-
C
-
D
Correct Answer
A. CExplanation
The right atrium is the chamber of the heart that receives deoxygenated blood from the body. In the given MRI image, the arrow labeled "C" points to a chamber that is located on the right side of the heart, which is consistent with the location of the right atrium. Therefore, the arrow labeled "C" points to the right atrium.Rate this question:
-
- 6.
Refer tot the figure below of an axial, T1-weighted MRI of the sublingual glands. Which arrow points to the retromandibular with?
-
A
-
B
-
C
-
D
Correct Answer
A. DExplanation
The arrow labeled "d" points to the retromandibular vein. The retromandibular vein is a major vein located in the posterior region of the mandible. It is formed by the union of the superficial temporal vein and the maxillary vein.Rate this question:
-
- 7.
Question 41 through 45 refer to the figure below of a lateral CTA of cenebral arteries.Which arrow points to the basilar artery
-
A
-
B
-
C
-
D
-
E
Correct Answer
A. DExplanation
The correct answer is D. In the figure, the arrow labeled D points to the basilar artery. This can be identified by its location and course, as well as its connection to the other cerebral arteries.Rate this question:
-
- 8.
In the figure below of a short axis MRI of the heart, which arrow points to the left ventricle?
-
A
-
B
-
C
-
D
Correct Answer
A. CExplanation
In the given figure, arrow C points to the left ventricle. The left ventricle is the largest and strongest chamber of the heart, responsible for pumping oxygenated blood to the rest of the body.Rate this question:
-
- 9.
Refer to the figure below: Which arrow points to the right ventricle
-
A
-
B
-
C
-
D
Correct Answer
A. C -
- 10.

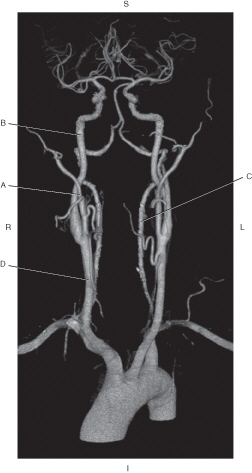

Refer to the figure below of a CTA of intracranial and extracranial arteries. Which arrow points to the internal carotid artery
-
A
-
B
-
C
-
D
Correct Answer
A. B -
- 11.
Refer to the figure below. Which arrow points to the esophagus
-
A
-
B
-
C
-
D
Correct Answer
A. BExplanation
In the figure, arrow B is pointing to a tube-like structure that is located behind the trachea and in front of the spine. This structure is the esophagus, which is responsible for carrying food and liquids from the mouth to the stomach. Therefore, arrow B correctly points to the esophagus in the given figure.Rate this question:
-
- 12.
Refer to the figure below of a CTA of intracranial and extracranial arteries. Which arrow points to the internal carotid artery
-
A
-
B
-
C
-
D
-
E
Correct Answer
A. BExplanation
In the figure, the arrow labeled "B" points to the internal carotid artery. This can be determined by comparing the anatomical structures and their locations in the image. The internal carotid artery is a major blood vessel that supplies blood to the brain and is located in close proximity to the external carotid artery (labeled "A" in the figure). By identifying the external carotid artery, we can determine that the arrow labeled "B" points to the internal carotid artery.Rate this question:
-
- 13.
Which vein drains blood from the lateral region of the face?
-
Retromandibular
-
Internal jugular
-
External jugular
-
Anterior jugular
Correct Answer
A. RetromandibularExplanation
The retromandibular vein drains blood from the lateral region of the face. It is located behind the mandible and is formed by the union of the superficial temporal vein and the maxillary vein. It then joins with the posterior auricular vein to form the external jugular vein, which ultimately drains into the subclavian vein. The internal jugular vein drains blood from the brain and deep structures of the face and neck. The external jugular vein drains blood from the superficial structures of the face and neck. The anterior jugular vein drains blood from the anterior part of the neck.Rate this question:
-
- 14.
The sinoatrial (SA) node is located in the:
-
Interatrial se3ptum near the coronary sinus
-
Interventricular septum near the coronary sinus
-
Superior aspect of the left atrium
-
Superior aspect of the right atrium
Correct Answer
A. Superior aspect of the right atriumExplanation
The SA node is located in the superior aspect of the right atrium. This is where the electrical impulses that initiate the heartbeat originate. The SA node acts as the natural pacemaker of the heart, sending electrical signals to the atria and causing them to contract. From there, the impulses travel through the atrioventricular (AV) node and into the ventricles, causing them to contract as well. The location of the SA node in the right atrium allows for efficient coordination of the heart's pumping action.Rate this question:
-
- 15.
Which vessel is the most posterior vessel arising from the arch of the aorta
-
Brachiocephalic trunk
-
Right common carotid artery
-
Right subclavian artery
-
Left subclavian artery
Correct Answer
A. Left subclavian arteryExplanation
The left subclavian artery is the most posterior vessel arising from the arch of the aorta. It branches off from the aorta and supplies blood to the left arm and some structures in the head and neck. The brachiocephalic trunk, right common carotid artery, and right subclavian artery are also branches of the aorta, but they are not as posterior as the left subclavian artery.Rate this question:
-
- 16.

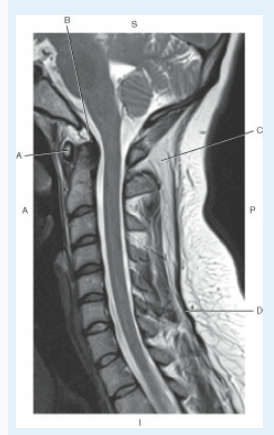

Refer to the figure below of a midsagittal, T2- weighted MRI of the cervical spine with spinal ligaments. Which arrow points to the ligamentum nuchae
-
A
-
B
-
C
-
D
Correct Answer
A. CExplanation
The ligamentum nuchae is a fibrous band that runs along the back of the neck and connects the base of the skull to the spinous processes of the cervical vertebrae. In the given MRI image, arrow C points to a structure that appears to be in the correct location for the ligamentum nuchae. The ligamentum nuchae is a thickening of the supraspinous ligament in the cervical region, and it is visible as a dark band in the midline of the image.Rate this question:
-
- 17.
The term for the anterior fontanel is the:
-
Asterion
-
Pterion
-
Bregma
-
Lamboda
Correct Answer
A. BregmaExplanation
The correct answer is "bregma." The bregma is the anatomical term used to describe the junction between the sagittal and coronal sutures of the skull. It is located at the anterior fontanelle, which is a soft spot in the baby's skull where the bones have not yet fully fused. The anterior fontanelle allows for the growth and expansion of the baby's brain during development.Rate this question:
-
.jpg "Refer to the figure below:
Which arrow points to the left ventricle")
.jpg "Refer to the figure below:
Which arrow points to the aorta")
.jpg "Refer to the figure below of a sagittal, T1-weighted MRI of the heart with pulmonary trunk.
Which arrow points to the right atrium")
.png "Question 41 through 45 refer to the figure below of a lateral CTA of cenebral arteries.Which arrow points to the basilar artery")
.jpg "Refer to the figure below:
Which arrow points to the right ventricle")
.jpg "Refer to the figure below of a CTA of intracranial and extracranial arteries.
Which arrow points to the internal carotid artery")
.jpg "Refer to the figure below.
Which arrow points to the esophagus")
.jpg "Refer to the figure below of a CTA of intracranial and extracranial arteries.
Which arrow points to the internal carotid artery")
.png "Refer to the figure below of a midsagittal, T2- weighted MRI of the cervical spine with spinal ligaments.
Which arrow points to the ligamentum nuchae")
