  • 1.

    The change in the direction of a compass needle when a current-carrying wire is brought near is:

    • A.

      Electromagnetic deflection

    • B.

      Electrostatic force

    • C.

      Magnetic force

    • D.

      Electroscopic force

    Correct Answer
    A. Electromagnetic deflection
    Explanation
    When a current-carrying wire is brought near a compass needle, the needle deflects or changes its direction. This phenomenon is known as electromagnetic deflection. It occurs due to the interaction between the magnetic field produced by the current in the wire and the magnetic field of the compass needle. The magnetic field around the wire exerts a force on the needle, causing it to move and align itself with the magnetic field of the wire. Therefore, the correct answer is electromagnetic deflection.

    Rate this question:

  • 2.

    Suppose a certain current in a galvanometer causes the needle to deflect 20 degrees, and then this current is doubled. The needle deflection:

    • A.

      Will decrease

    • B.

      Will stay the same

    • C.

      Will increase

    • D.

      Will reverse direction

    Correct Answer
    C. Will increase
    Explanation
    When the current in a galvanometer is doubled, it means that there is now a stronger current flowing through the galvanometer. As a result, the magnetic field generated by the current is also stronger. This stronger magnetic field will exert a greater force on the needle of the galvanometer, causing it to deflect further. Therefore, the needle deflection will increase when the current is doubled.

    Rate this question:

  • 3.

    One important advantage of an electrostatic meter is that:

    • A.

      It measures very small currents.

    • B.

      It will handle large currents.

    • C.

      It can detect ac voltages.

    • D.

      It draws a large current from the source.

    Correct Answer
    C. It can detect ac voltages.
    Explanation
    An electrostatic meter can detect AC voltages because it is designed to measure the electric field strength, which can vary in both magnitude and direction in an AC circuit. This makes it a useful tool for detecting and measuring alternating currents.

    Rate this question:

  • 4.

    A thermocouple:

    • A.

      Gets warm when current flows through it

    • B.

      Is a thin, straight, special wire

    • C.

      Generates dc when exposed to light

    • D.

      Generates ac when heated

    Correct Answer
    A. Gets warm when current flows through it
    Explanation
    A thermocouple gets warm when current flows through it because it is made of two different metals that are joined together at two junctions. When a current flows through the thermocouple, a temperature difference is created between the two junctions. This temperature difference generates a voltage, known as the Seebeck voltage, which is proportional to the temperature difference. As a result, the thermocouple gets warm when current flows through it.

    Rate this question:

  • 5.

    One advantage of an electromagnet meter over a permanent-magnet meter is that:

    • A.

      The electromagnet meter costs much less.

    • B.

      The electromagnet meter need not be aligned with the earth’s magnetic field.

    • C.

      The permanent-magnet meter has a more sluggish coil.

    • D.

      The electromagnet meter is more rugged.

    Correct Answer
    D. The electromagnet meter is more rugged.
    Explanation
    The electromagnet meter is more rugged because it is designed to withstand harsh environments and heavy usage. It is built with durable materials and construction to ensure it can withstand physical impacts and resist damage. This makes it more reliable and long-lasting compared to a permanent-magnet meter, which may be more fragile and prone to damage.

    Rate this question:

  • 6.

    An ammeter shunt is useful because:

    • A.

      It increases meter sensitivity.

    • B.

      It makes a meter more physically rugged.

    • C.

      It allows for the measurement of a wide range of currents.

    • D.

      It prevents overheating of the meter.

    Correct Answer
    C. It allows for the measurement of a wide range of currents.
    Explanation
    An ammeter shunt is a device that is connected in parallel with the ammeter to divert a portion of the current away from the meter. This allows the ammeter to measure a wide range of currents by adjusting the shunt resistance. Without the shunt, the ammeter would only be able to measure a limited range of currents. Therefore, the use of an ammeter shunt allows for the measurement of a wide range of currents.

    Rate this question:

  • 7.

    Voltmeters should generally have:

    • A.

      Large internal resistance

    • B.

      Low internal resistance

    • C.

      Maximum possible sensitivity

    • D.

      Ability to withstand large currents

    Correct Answer
    A. Large internal resistance
    Explanation
    Voltmeters should generally have a large internal resistance because they are used to measure voltage in a circuit without affecting the circuit's behavior. A voltmeter with a large internal resistance will draw very little current from the circuit, minimizing the voltage drop across the voltmeter and ensuring accurate measurements. Additionally, a large internal resistance allows the voltmeter to have a high input impedance, which means it will not load the circuit and alter the voltage being measured.

    Rate this question:

  • 8.

    To measure power-supply voltage being used by a circuit, a voltmeter

    • A.

      Is placed in series with the circuit that works from the supply

    • B.

      Is placed between the negative pole of the supply and the circuit working from the supply

    • C.

      Is placed between the positive pole of the supply and the circuit working from the supply

    • D.

      Is placed in parallel with the circuit that works from the supply

    Correct Answer
    D. Is placed in parallel with the circuit that works from the supply
  • 9.

    Which of the following will not cause a major error in an ohmmeter reading?

    • A.

      A small voltage between points under test

    • B.

      A slight change in switchable internal resistance

    • C.

      A small change in the resistance to be measured.

    • D.

      A slight error in range switch selection

    Correct Answer
    C. A small change in the resistance to be measured.
    Explanation
    A small change in the resistance to be measured will not cause a major error in an ohmmeter reading because ohmmeters are designed to measure resistance accurately, regardless of small changes in the resistance being measured. The internal circuitry of an ohmmeter is designed to compensate for variations in resistance values, ensuring that the reading remains accurate. Therefore, even if there is a small change in the resistance being measured, the ohmmeter will still provide a reliable reading.

    Rate this question:

  • 10.

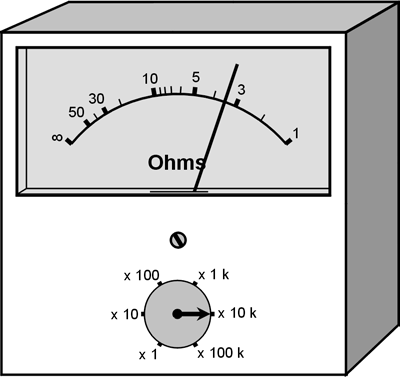

    The ohmmeter in Fig. 3-17 shows a reading of about:

    • A.

      33,000 Ω

    • B.

      3.3 KΩ

    • C.

      330 Ω

    • D.

      33 Ω

    Correct Answer
    A. 33,000 Ω
    Explanation
    The ohmmeter in Fig. 3-17 shows a reading of about 33,000 Ω. This means that the resistance being measured is approximately 33,000 ohms.

    Rate this question:

  • 11.

    The main advantage of a FETVM over a conventional voltmeter is the fact that the FETVM:

    • A.

      Can measure lower voltages

    • B.

      Draws less current from the circuit under test

    • C.

      Can withstand higher voltages safely.

    • D.

      Is sensitive to ac as well as to dc

    Correct Answer
    B. Draws less current from the circuit under test
    Explanation
    A FETVM (Field Effect Transistor Voltmeter) draws less current from the circuit under test compared to a conventional voltmeter. This is advantageous because it minimizes the impact on the circuit being measured, preventing any significant disruption or loading. By drawing less current, the FETVM ensures accurate voltage measurements without affecting the circuit's performance or accuracy.

    Rate this question:

  • 12.

    Which of the following is not a function of a fuse?

    • A.

      To be sure there is enough current available for an appliance to work right.

    • B.

      To make it impossible to use appliances that are too large for a given circuit.

    • C.

      To limit the amount of power that a circuit can deliver.

    • D.

      To make sure the current is within safe limits.

    Correct Answer
    A. To be sure there is enough current available for an appliance to work right.
    Explanation
    A fuse is a safety device that is designed to protect electrical circuits from excessive current. It works by melting and breaking the circuit when the current exceeds a certain limit. The purpose of a fuse is to limit the amount of power that a circuit can deliver and ensure that the current is within safe limits. It also prevents the use of appliances that are too large for a given circuit, as it will blow the fuse if the current exceeds the rated capacity. However, ensuring that there is enough current available for an appliance to work right is not a function of a fuse.

    Rate this question:

  • 13.

    A utility meter’s motor speed works directly from:

    • A.

      The number of ampere-hours being used at the time

    • B.

      The number of watt-hours being used at the time

    • C.

      The number of watts being used at the time

    • D.

      The number of kilowatt-hours being used at the time

    Correct Answer
    C. The number of watts being used at the time
    Explanation
    The motor speed of a utility meter is directly determined by the number of watts being used at the time. This means that as the power consumption increases or decreases, the motor speed will correspondingly increase or decrease. The number of ampere-hours, watt-hours, and kilowatt-hours being used at the time do not directly affect the motor speed of the utility meter.

    Rate this question:

  • 14.

    A utility meter’s readout indicates:

    • A.

      Voltage

    • B.

      Power

    • C.

      Current

    • D.

      Energy

    Correct Answer
    D. Energy
    Explanation
    The readout of a utility meter indicates the amount of energy consumed. This is typically measured in kilowatt-hours (kWh) and is used to calculate the cost of electricity usage. Voltage, power, and current are all related to energy consumption, but they are not the direct measurement of energy. Voltage is the electrical potential difference, power is the rate at which energy is consumed or produced, and current is the flow of electric charge. Therefore, the correct answer is energy.

    Rate this question:

  • 15.

    A typical frequency counter:

    • A.

      Has an analog readout

    • B.

      Is usually accurate to six digits or more

    • C.

      Works by indirectly measuring current

    • D.

      Works by indirectly measuring voltage

    Correct Answer
    B. Is usually accurate to six digits or more
    Explanation
    A typical frequency counter is usually accurate to six digits or more. This means that it can measure and display frequency values with a high level of precision. The accuracy of a frequency counter is important in various applications where precise frequency measurements are required, such as in scientific research, telecommunications, and electronics. The ability to accurately measure frequency with six or more digits allows for more precise analysis and comparison of signals or waveforms.

    Rate this question:

  • 16.

    A VU meter is never used for measurement of:

    • A.

      Sound

    • B.

      Decibels

    • C.

      Power

    • D.

      Energy

    Correct Answer
    D. Energy
    Explanation
    A VU meter is never used for the measurement of energy because it is specifically designed to measure the volume or level of an audio signal. Energy is a different physical quantity that is typically measured using devices such as wattmeters or kilowatt-hour meters.

    Rate this question:

  • 17.

    An oscilloscope cannot be used to indicate:

    • A.

      Frequency

    • B.

      Wave shape

    • C.

      Energy

    • D.

      Peak signal voltage

    Correct Answer
    C. Energy
    Explanation
    An oscilloscope is a device used to measure and display electrical waveforms. It can indicate various parameters such as frequency, wave shape, and peak signal voltage. However, it cannot directly measure or indicate energy. Energy is a measure of the amount of work done or power consumed by a system, and it requires additional equipment or calculations to determine. Therefore, an oscilloscope cannot be used to indicate energy.

    Rate this question:

  • 18.

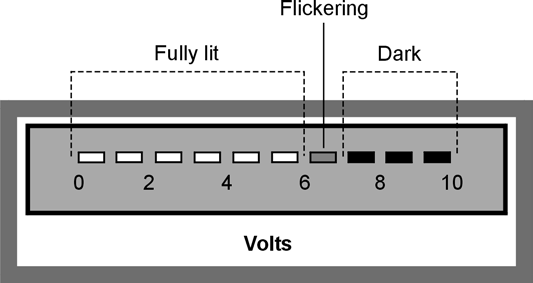

    The display in Fig. 3-18 could be caused by a voltage of:

    • A.

      6.0 V

    • B.

      6.6 V

    • C.

      7. 0V

    • D.

      No way to tell; the meter is malfunctioning.

    Correct Answer
    B. 6.6 V
    Explanation
    The display in Fig. 3-18 could be caused by a voltage of 6.6 V. This is because the meter is showing a specific value on the display, indicating that it is functioning properly. Therefore, the voltage must be 6.6 V and not any of the other given options.

    Rate this question:

  • 19.

    The force between two electrically charged objects is called:

    • A.

      Electromagnetic deflection

    • B.

      Electrostatic force

    • C.

      Magnetic force

    • D.

      Electroscopic force

    Correct Answer
    B. Electrostatic force
    Explanation
    The force between two electrically charged objects is called electrostatic force. This force is exerted between charged particles and is responsible for the attraction or repulsion between them. It is a fundamental force of nature that plays a crucial role in various phenomena, such as the behavior of electric charges, the formation of electric fields, and the movement of electrons in circuits. Electrostatic force is distinct from other forces like electromagnetic deflection, magnetic force, and electroscopic force, which have different properties and origins.

    Rate this question:

  • 20.

    The meter movement in an illumination meter measures:

    • A.

      Current

    • B.

      Voltage

    • C.

      Power

    • D.

      Energy

    Correct Answer
    A. Current
    Explanation
    The meter movement in an illumination meter measures current. This means that it is designed to measure the flow of electric current in a circuit. The meter movement is calibrated to provide a reading of the current passing through the circuit, allowing users to determine the current level and make appropriate adjustments if needed. This measurement is important in illuminance meters as it helps in evaluating the brightness or intensity of the light source being measured.

    Rate this question:
