# G11 T2 Quiz 1 Reflection And Refraction

Approved & Edited by ProProfs Editorial Team
The editorial team at ProProfs Quizzes consists of a select group of subject experts, trivia writers, and quiz masters who have authored over 10,000 quizzes taken by more than 100 million users. This team includes our in-house seasoned quiz moderators and subject matter experts. Our editorial experts, spread across the world, are rigorously trained using our comprehensive guidelines to ensure that you receive the highest quality quizzes.
| By Frank2F
F
Frank2F
Community Contributor
Quizzes Created: 3 | Total Attempts: 5,942
Questions: 10 | Attempts: 3,227

Settings

• 1.

### A girl looks into a bathroom mirror to brush her hair. The figure shows what she sees in the mirror.In which hand is she holding the brush?

• A.

Right hand

• B.

Left hand

A. Right hand
Explanation
Based on the figure shown in the mirror, the girl appears to be holding the brush with her right hand.

Rate this question:

• 2.

### What causes refraction when light travels from air into glass?

• A.

The amplitude of the light waves changes.

• B.

The colour of the light changes.

• C.

The frequency of the light waves changes.

• D.

The speed of the light changes.

D. The speed of the light changes.
Explanation
When light travels from air into glass, it undergoes refraction, which means that the direction of the light waves changes. This change in direction occurs because the speed of light is different in air compared to glass. As light enters the denser medium of glass, its speed decreases, causing it to bend or change direction. Therefore, the correct answer is that the speed of the light changes.

Rate this question:

• 3.

### The diagram shows a ray of light entering a block of glass.Which numbered angles are the angles of incidence and of refraction?

• A.

Incidence:1; refraction: 3

• B.

Incidence:1; refraction: 4

• C.

Incidence:2; refraction: 3

• D.

Incidence:2; refraction: 4

D. Incidence:2; refraction: 4
Explanation
The diagram shows a ray of light entering a block of glass. The angle of incidence is the angle at which the ray of light enters the glass, and it is labeled as angle 2 in the diagram. The angle of refraction is the angle at which the ray of light bends as it passes through the glass, and it is labeled as angle 4 in the diagram. Therefore, the correct answer is "Incidence:2; refraction: 4".

Rate this question:

• 4.

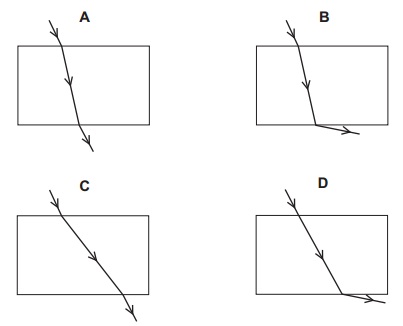

### Which diagram correctly shows a ray of light passing through a rectangular glass block?

• A.

A

• B.

B

• C.

C

• D.

D

A. A
Explanation
Diagram A correctly shows a ray of light passing through a rectangular glass block because the ray enters the block at an angle, bends towards the normal, and then exits the block parallel to its original direction. This is consistent with the principles of refraction, where light bends when it travels from one medium to another with a different refractive index. Diagrams B, C, and D do not accurately depict the bending of light when passing through a rectangular glass block.

Rate this question:

• 5.

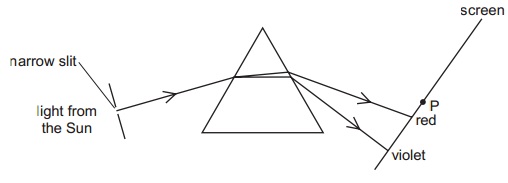

### Light from the Sun passes through a prism and a spectrum is produced on a screen.A thermometer placed at P shows a large temperature rise.Which type of radiation causes this?

• A.

Infra-red

• B.

Microwave

• C.

Ultra-violet

• D.

Visible light

A. Infra-red
Explanation
When light from the Sun passes through a prism, it gets separated into its different wavelengths, forming a spectrum on a screen. The fact that a thermometer placed at P shows a large temperature rise suggests that the type of radiation causing this is infra-red. Infra-red radiation has longer wavelengths and carries more heat energy compared to visible light, ultraviolet, or microwave radiation. Therefore, it is able to cause a significant temperature rise when absorbed by the thermometer.

Rate this question:

• 6.

### The diagram shows a ray of light incident on the edge of a piece of glass. The angle i is biggerthan the critical angle.Which arrow correctly shows the direction of the ray after it leaves the edge of the glass?

• A.

A

• B.

B

• C.

C

• D.

D

D. D
Explanation
When the angle of incidence is greater than the critical angle, total internal reflection occurs. This means that the light ray is reflected back into the glass instead of being refracted out of it. Therefore, the correct arrow to show the direction of the ray after it leaves the edge of the glass is D, which indicates that the ray is reflected back into the glass.

Rate this question:

• 7.

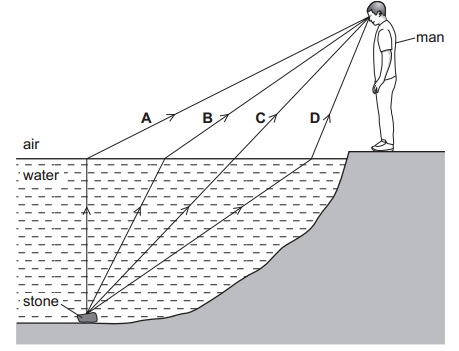

### A man sees a stone at the bottom of a pool of water.Which path could be taken by light from the stone to the man?

• A.

A

• B.

B

• C.

C

• D.

D

B. B
Explanation
Light travels in straight lines, so the only possible path for light from the stone at the bottom of the pool to the man would be path B.

Rate this question:

• 8.

### A ray of light passes from air into a block of glass with index of refraction of 1.5. The angle of incidence is 30 degrees.Calculate the angle of refraction,

• A.

30

• B.

19.5

• C.

0.05

• D.

1

B. 19.5
Explanation
The angle of refraction can be calculated using Snell's Law, which states that the ratio of the sines of the angles of incidence and refraction is equal to the ratio of the indices of refraction of the two media. In this case, the angle of incidence is 30 degrees and the index of refraction of glass is 1.5. By applying Snell's Law, we can find that the angle of refraction is 19.5 degrees.

Rate this question:

• 9.

### The speed of light in air is almost 3x108 m/s. In one piece of glass, light slows down to 2x108 m/s. What is the index of refraction for the glass?

• A.

6

• B.

0.67

• C.

1.5

• D.

5

C. 1.5
Explanation
The index of refraction for a medium is defined as the ratio of the speed of light in a vacuum to the speed of light in that medium. In this case, the speed of light in air is almost 3x10^8 m/s, and in the glass, it slows down to 2x10^8 m/s. By dividing the speed of light in a vacuum by the speed of light in the glass, we get an index of refraction of 1.5.

Rate this question:

• 10.

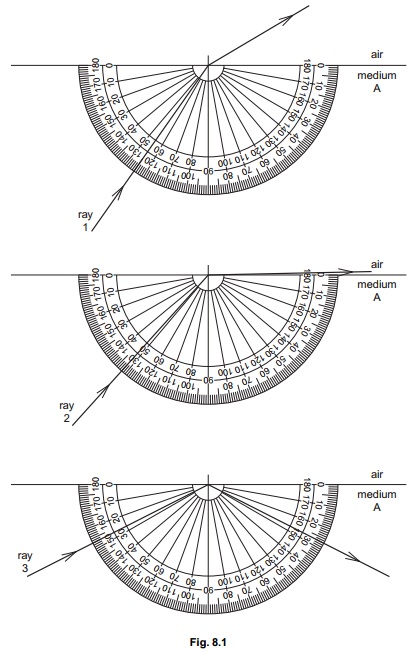

### In an optics lesson, a Physics student traces the paths of three rays of light near the boundarybetween medium A and air. The student uses a protractor to measure the various angles.State the critical angle of medium A

• A.

53

• B.

90

• C.

133

• D.

43

D. 43
Explanation
The critical angle of a medium is the angle of incidence at which the refracted ray is at 90 degrees from the normal. In this case, the correct answer is 43 because it is the only option that is less than 90 degrees.

Rate this question:
