Chapter 1 - Introduction To The Airplane Student Exercise 1A The Airplane

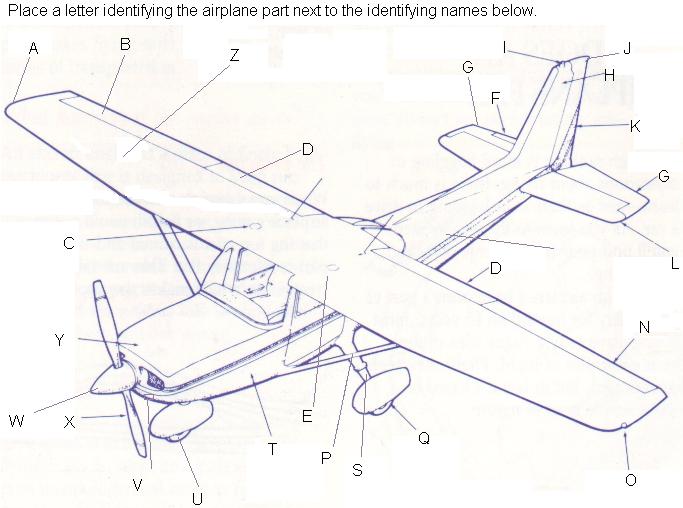

Chapter 1 - Introduction To The Airplane Student Exercise 1A The AirplanInstructions: Complete this exercise using chapter 1, section A, of the text for reference. Place a letter identifying the airplane part next to the identifying names below. 1-26 ARE A-Z27-33 ARE FILL IN THE BLANK
Carburetor air intakeANSWER IS V
Left fuel tank cap
Red position light
Main landing gear
Main landing gear strut
Nose landing gear
Pitot tubeANSWER IS R
Right fuel tank cap
Green position light
Static air ventANSWER IS T
White position light
Wings designed to carry the entire load without using external bracing, or struts, are termed "full ____________" wings.
The wing component which extends from the root to the tip and absorbs the major portion of the wing camber are called ____________.
The wing components which extend from the leading edge to the trailing edge and form the shape of the wing camber is called ____________.
When the fuselage skin carries a major portion of the stresses, this type construction is called ____________.
The tail assembly is sometimes referred to as the ____________.
Trim tabs are used to relieve control pressures on the surfaces to
which they are attached. their movement is in the ____________ (same, opposite)
direction with respect to the control surface.
Landing gears which incorporate a steerable nosewheel are referred to as a ____________ type gear.
Those which utilize a tailwheel are referred to as ____________ type gear.
