    Copy command also creates Multiples copies of an object.

    • True
    • False
Please wait...
About This Quiz


Do you know anything about AutoCAD? AutoCAD is a industrial computer-aided design and drafting software application. It was created and established by Autodesk; AutoCAD was first released in December 1982 as a desktop app running on a microcomputer with internal graphics controllers. Before the introduction of AutoCAD, most commercial CAD programs ran on mainframe computers or minicomputers. Then AutoCAD changed everything. Give this quiz a shot. All the best.

AutoCAD Exam Practice Quiz: Trivia! - Quiz

Quiz Preview

  • 2.

    If you modify a dimension style, all dimensions using that style in the drawing update automatically.

    • True

    • False

    Correct Answer
    A. True
    Explanation
    When you modify a dimension style in a drawing, all dimensions that are using that style will automatically update. This means that any changes made to the dimension style, such as text height, arrow size, or precision, will be reflected in all dimensions throughout the drawing. This can be a time-saving feature as it eliminates the need to manually update each dimension individually.

    Rate this question:

  • 3.

    If you copy and paste text from another drawing or insert a block into a drawing that has the same Text Style name with different properties, the text properties of the host drawing will take precedence.

    • True

    • False

    Correct Answer
    A. True
    Explanation
    When you copy and paste text from another drawing or insert a block into a drawing, if the Text Style name is the same but the properties are different, the text properties of the host drawing will take precedence. This means that the text in the host drawing will maintain its own formatting and properties, rather than adopting the formatting and properties of the copied or inserted text. Therefore, the answer is true.

    Rate this question:

  • 4.

    One of the below options is wrong about the type of Autocad drawing units. Which one is it?

    • Architectural

    • Engineering

    • Millimeter

    • Decimal

    Correct Answer
    A. Millimeter
    Explanation
    The incorrect option about the type of Autocad drawing units is "Millimeter". Autocad offers various unit types for drawing, such as Architectural, Engineering, and Decimal. However, Millimeter is not one of the unit types provided by Autocad.

    Rate this question:

  • 5.

    When using copy with grips, select Copy after you have selected an option, such as Move, Mirror, Rotate, Scale, or Stretch.

    • True

    • False

    Correct Answer
    A. True
    Explanation
    When using copy with grips, it is necessary to select the Copy option after selecting another option such as Move, Mirror, Rotate, Scale, or Stretch. This means that after choosing one of these options, the user must then select the Copy command in order to perform a copy operation. This statement is true as it highlights the correct sequence of steps to be followed when using copy with grips.

    Rate this question:

  • 6.

    When you Explode a block, the geometry returns to its original properties.

    • True

    • False

    Correct Answer
    A. True
    Explanation
    Exploding a block refers to the process of breaking down a block into its individual components, such as lines, arcs, and shapes. When a block is exploded, the geometry that was previously grouped together as a block returns to its original properties. This means that the individual components regain their original properties, such as layer, color, linetype, and other attributes. Therefore, the statement "When you Explode a block, the geometry returns to its original properties" is true.

    Rate this question:

  • 7.

    Using object snaps to select points for Inquiry commands is Critical.

    • True

    • False

    Correct Answer
    A. True
    Explanation
    Using object snaps to select points for Inquiry commands is critical because object snaps allow for precise and accurate selection of points on objects. This is important when performing inquiry commands such as measuring distances, angles, or areas, as it ensures that the selected points are exactly where they need to be. Without object snaps, there is a higher risk of selecting incorrect points and obtaining inaccurate results. Therefore, using object snaps is essential for the proper functioning and reliability of Inquiry commands.

    Rate this question:

  • 8.
    In order to get the below result using Object A, you have to set the number of rows and columns to: - ProProfs

    In order to get the below result using Object A, you have to set the number of rows and columns to:

    • 4,1

    • 4,2

    • 4,3

    • 4,4

    Correct Answer
    A. 4,2
    Explanation
    To achieve the given result using Object A, the number of rows should be set to 4 and the number of columns should be set to 2. This means that Object A will have 4 rows and 2 columns, resulting in a total of 8 elements.

    Rate this question:

  • 9.
    What happens if you fillet these two lines with radius 0? - ProProfs

    What happens if you fillet these two lines with radius 0?

    • Cannot fillet

    • Sharp corner

    • None

    Correct Answer
    A. Sharp corner
    Explanation
    If you fillet two lines with a radius of 0, it means that you are trying to create a rounded corner between the two lines without any curvature. However, since the radius is 0, there is no space for any curvature, resulting in a sharp corner. Therefore, the correct answer is "Sharp corner."

    Rate this question:

  • 10.

    With the Multiline Text editor, you can do all of the following, except:

    • Insert numbered and bulleted lists

    • Insert specific drafting and engineering symbols

    • Insert pictures

    • Create Fields such as date, time and author.

    Correct Answer
    A. Insert pictures
    Explanation
    The Multiline Text editor allows users to perform various tasks like inserting numbered and bulleted lists, inserting specific drafting and engineering symbols, and creating fields such as date, time, and author. However, it does not provide the option to insert pictures.

    Rate this question:

  • 11.

    If you need the text to be reversed, when you mirror the text,then you need to set:

    • MIRRTEXT to 0

    • MIRRTEXT to 1

    • TEXTMIRR to 0

    • TEXTMIRR to 1

    Correct Answer
    A. MIRRTEXT to 1
    Explanation
    By setting MIRRTEXT to 1, the text will be reversed when mirrored. This means that when you mirror the text, it will appear as a mirror image, with the letters flipped horizontally. This setting is useful when you want the text to be readable in a mirror or when you need to create a mirrored effect in your design.

    Rate this question:

  • 12.

    Which Key do you press to cycle through the available snap points?

    • Ctrl

    • Shift

    • Tab

    • Alt

    Correct Answer
    A. Tab
    Explanation
    To cycle through the available snap points, you would press the Tab key. The Tab key is commonly used to move the focus between different elements or sections within a program or interface. In this case, pressing the Tab key would allow you to navigate and select different snap points, which are predetermined positions or alignments that objects can be snapped to for easier alignment and positioning.

    Rate this question:

  • 13.
    What is the angle that you use to rotate the chair from point A to point B? - ProProfs

    What is the angle that you use to rotate the chair from point A to point B?

    • 90

    • -90

    • -270

    • None

    Correct Answer
    A. -90
    Explanation
    To rotate the chair from point A to point B, an angle of -90 degrees is used. A negative angle indicates a clockwise rotation direction. Hence, the chair is rotated 90 degrees in a clockwise direction to reach point B from point A.

    Rate this question:

  • 14.
    What is the command used to draw the above dimension line? - ProProfs

    What is the command used to draw the above dimension line?

    • Dimjogged

    • Dimjogline

    • Joggeddim

    • Joggedline

    Correct Answer
    A. Dimjogline
    Explanation
    The command used to draw the above dimension line is "Dimjogline".

    Rate this question:

  • 15.

    In order to move an object, ________________

    • Select a base point,followed by a point to define where the object is moving to.

    • Use the Displacement option

    • Select object for grips, then move

    • Above all

    Correct Answer
    A. Above all
  • 16.

    You cannot fillet or chamfer the first segment of a polyline with the last segment of the same polyline.

    • True

    • False

    Correct Answer
    A. True
    Explanation
    The statement is true because filleting or chamfering involves creating a rounded or beveled corner between two segments of a polyline. In order to do this, there must be two distinct segments to work with. The first and last segments of a polyline are connected and form a continuous line, so it is not possible to apply filleting or chamfering to them.

    Rate this question:

  • 17.

    Object snap tracking works in combination with object snaps to enable you to temporarily acquire and track up to how many points?

    • One

    • Two

    • Five

    • Seven

    Correct Answer
    A. Seven
    Explanation
    Object snap tracking allows you to temporarily acquire and track up to seven points. This feature is used in combination with object snaps, which help you precisely locate points on objects. With object snap tracking, you can track multiple points in different locations on the screen while maintaining the accuracy provided by object snaps. This allows for more flexibility and efficiency in drafting and designing tasks.

    Rate this question:

  • 18.

    By selecting which one of the following, the objects on the layer are not visible and are not considered when the drawing is regenerated?

    • When you off the layer

    • When you froze the layer

    • When you lock the layer

    • None

    Correct Answer
    A. When you froze the layer
    Explanation
    When you freeze a layer in a drawing, the objects on that layer become invisible and are not considered when the drawing is regenerated. Freezing a layer is a way to temporarily hide objects on that layer without deleting them. This can be useful when you want to focus on other elements of the drawing or when you want to reduce the complexity of the view.

    Rate this question:

  • 19.

    The following are some of the properties and settings that you can save in a layout, except _____________.

    • Plot scale

    • Paper size

    • Line weight

    • Drawing orientation

    Correct Answer
    A. Line weight
    Explanation
    You can save the properties and settings of plot scale, paper size, and drawing orientation in a layout. However, line weight is not one of the properties that can be saved in a layout.

    Rate this question:

  • 20.

    What happens when you set VPROTATEASSOC System Variable to 0?

    • When a viewport is rotated, the view inside is not rotated.

    • When a viewport is rotated, the view inside is rotated to match the rotation of the viewport.

    Correct Answer
    A. When a viewport is rotated, the view inside is not rotated.
    Explanation
    Setting the VPROTATEASSOC System Variable to 0 means that when a viewport is rotated, the view inside will not be rotated. This means that the view inside the viewport will remain in its original orientation regardless of the rotation of the viewport itself.

    Rate this question:

  • 21.

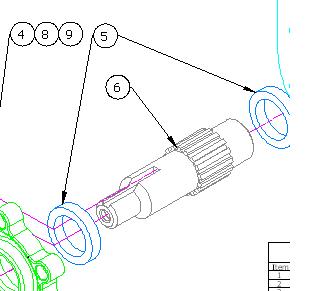

    The multileaders 4,8,9 represent: - ProProfs

    The multileaders 4,8,9 represent:

    • Aligned Multileaders

    • Vertical Multileaders

    • Collected Multileaders

    • Horizontal Multileaders

    Correct Answer
    A. Collected Multileaders
    Explanation
    The multileaders 4, 8, 9 represent collected multileaders. Collected multileaders are a type of annotation in AutoCAD that allow multiple leaders to be grouped together and attached to a single point. This is useful when there are multiple dimensions or annotations that need to be associated with a single object or location. The collected multileaders can be easily moved or edited as a group, simplifying the annotation process and making the drawing more organized and clear.

    Rate this question:

  • 22.

    By default, AutoCAD has the following workspaces.

    • 2D Drafting & Annotation

    • 3D Modeling

    • My workspace

    • AutoCAD Classic

    Correct Answer(s)
    A. 2D Drafting & Annotation
    A. 3D Modeling
    A. AutoCAD Classic
    Explanation
    AutoCAD, a computer-aided design software, comes with default workspaces that users can choose from. The given answer lists the three default workspaces in AutoCAD: 2D Drafting & Annotation, 3D Modeling, and AutoCAD Classic. These workspaces provide different sets of tools and settings tailored to specific design needs. The 2D Drafting & Annotation workspace is suitable for creating 2D drawings, while the 3D Modeling workspace is designed for creating 3D models. The AutoCAD Classic workspace offers a familiar interface similar to previous versions of AutoCAD.

    Rate this question:

  • 23.
    What type of Island detection type is this? - ProProfs

    What type of Island detection type is this?

    • Inner

    • Outer

    • Ignore

    • Normal

    Correct Answer
    A. Normal
    Explanation
    This question is asking about the type of island detection. The given answer "Normal" suggests that this island detection type is the standard or typical method used. It implies that there is no special consideration or modification made for detecting islands in this case.

    Rate this question:

  • 24.

    With a hot grip, which of these editing tasks can you perform?

    • Move

    • Offset

    • Rotate

    • Scale

    Correct Answer(s)
    A. Move
    A. Rotate
    A. Scale
    Explanation
    With a hot grip, you can perform the tasks of moving, rotating, and scaling. A hot grip refers to the ability to select and manipulate an object in a digital editing software by clicking and dragging on specific points or handles. Moving involves changing the position of the object, rotating involves changing its orientation, and scaling involves changing its size or proportions. These tasks are commonly used in editing to adjust the position, angle, and size of objects within a composition.

    Rate this question:

  • 25.

    Which of the following settings can be made for polar tracking?

    • Increment angle

    • Additional angles

    • Track using all polar angles settings

    Correct Answer(s)
    A. Increment angle
    A. Additional angles
    Explanation
    Polar tracking is a feature in computer-aided design (CAD) software that allows users to snap or track along specific angles. The "Increment angle" setting determines the angle at which the tracking occurs, allowing users to specify the desired angle increment. The "Additional angles" setting allows users to add multiple angles for tracking, providing more flexibility and precision in drawing. "Track using all polar angles settings" is not a valid setting for polar tracking.

    Rate this question:

  • 26.

    When you use the Match Properties command, you can select multiple source objects.

    • True

    • False

    Correct Answer
    A. False
    Explanation
    The statement is false because when using the Match Properties command, you can only select one source object at a time. This command allows you to copy the properties of one object and apply them to another object. So, you need to select the source object first and then select the target object to apply the properties.

    Rate this question:

  • 27.
    Which options are used to draw this polyline? - ProProfs

    Which options are used to draw this polyline?

    • Line

    • Arc

    • Tamper

    • Width

    Correct Answer(s)
    A. Line
    A. Arc
    A. Width
    Explanation
    The options "line," "arc," and "width" are used to draw the polyline. A polyline is a series of connected line segments or curves, and the "line" option is used to draw straight line segments. The "arc" option is used to draw curved segments. The "width" option determines the thickness or width of the polyline. Therefore, these three options are essential in creating the polyline shape.

    Rate this question:

  • 28.

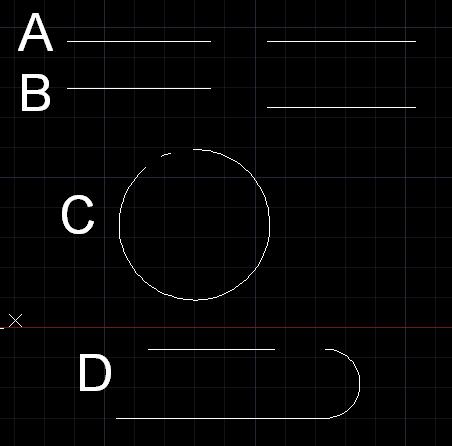

    Which of the following can be joined using Join command? - ProProfs

    Which of the following can be joined using Join command?

    • A

    • B

    • C

    • D

    Correct Answer(s)
    A. A
    A. C
    Explanation
    The Join command can be used to combine or merge two or more tables in a database. Therefore, option A and option C can be joined using the Join command.

    Rate this question:

  • 29.

    You can set viewport scale factor by __________________.

    • Typing vscale

    • Typing vpscale

    • Typing viewportscale

    • None

    Correct Answer
    A. None
    Explanation
    The correct answer is "None" because there is no specific command or action mentioned in the question that allows you to set the viewport scale factor. The options "typing vscale," "typing vpscale," and "typing viewportscale" suggest possible commands, but since the question does not provide any information about how to set the viewport scale factor, the correct answer is "None."

    Rate this question:

  • 30.

    Using Purge command we can purge referenced blocks.

    • True

    • False

    Correct Answer
    A. False
    Explanation
    The statement is incorrect. The Purge command in AutoCAD is used to remove unused objects such as layers, linetypes, and block definitions from the drawing. It does not specifically target referenced blocks. Therefore, the correct answer is False.

    Rate this question:
