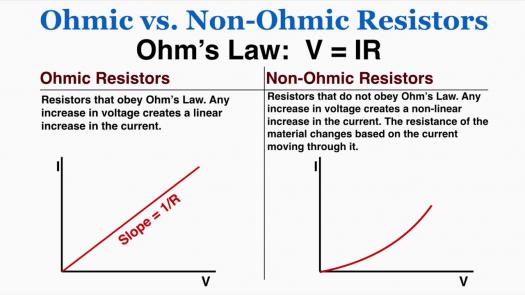

Ohmic And Non Ohmic Devices - Quiz

.


Questions and Answers
  • 1.

    The current flowing in an Ohmic device was measured at 3 Amps. If the supply Voltage was 9 Volts what was the Resistance across the device?

    • A.

      0.33 Ohms

    • B.

      3 Ohms

    • C.

      27 Ohms

    • D.

      Cannot be determined

    Correct Answer
    B. 3 Ohms
    Explanation

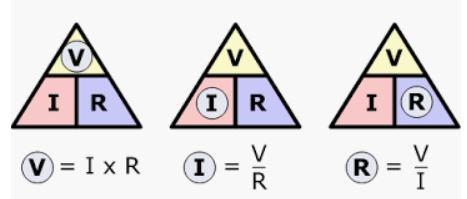

    The resistance across the device can be determined by using Ohm's law, which states that resistance (R) is equal to voltage (V) divided by current (I). In this case, the voltage is given as 9 volts and the current is given as 3 amps. Therefore, the resistance can be calculated as 9 volts divided by 3 amps, which equals 3 ohms.

    Rate this question:

  • 2.

    The Voltage across an Ohmic device is 12 Volts after 4.9 Ohms of Resistance was applied. The current flowing through the device is:

    • A.

      58.8 Amps

    • B.

      0.41 Amps

    • C.

      4 Amps

    • D.

      2.45 Amps

    Correct Answer
    D. 2.45 Amps
    Explanation
    The current flowing through the device can be calculated using Ohm's Law, which states that current (I) is equal to voltage (V) divided by resistance (R). In this case, the voltage across the device is given as 12 Volts and the resistance is given as 4.9 Ohms. Therefore, the current can be calculated as 12V/4.9Ω = 2.45 Amps.

    Rate this question:

  • 3.

    Is this an Ohmic or Non Ohmic device? How can you tell?

    • A.

      An ohmic device. The resistance is constant for all currents and voltage shown by same gradient

    • B.

      An ohmic device. The resistance is not constant for all currents and voltage shown by changing gradient of the graph

    • C.

      A non-ohmic device. The resistance is constant for all currents and voltage shown by same gradient

    • D.

      A non-ohmic device. The resistance is not constant for all currents and voltage shown by changing gradient of graph

    Correct Answer
    D. A non-ohmic device. The resistance is not constant for all currents and voltage shown by changing gradient of graph
    Explanation
    The correct answer is A non-ohmic device. The resistance is not constant for all currents and voltage shown by changing gradient of graph. This is because in an ohmic device, the resistance remains constant regardless of the current or voltage applied. However, in this case, the graph shows a changing gradient, indicating that the resistance is not constant and therefore the device is non-ohmic.

    Rate this question:

  • 4.

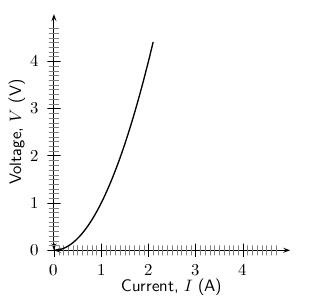

    Looking at the graph: What is the resistance of the device as a current of 2 Amps passes through it?

    • A.

      4 Ohms

    • B.

      2.5 Ohms

    • C.

      3.5 Ohms

    • D.

      1 Ohm

    Correct Answer
    A. 4 Ohms
    Explanation
    Based on the graph, the voltage across the device when the current is 2 Amps is approximately 8 Volts. Using Ohm's Law, we can calculate the resistance as:
    R = V / I = 8 V / 2 A = 4 Ohms
    Therefore, the resistance of the device as a current of 2 Amps passes through it is 4 Ohms.
    The answer is 4 Ohms.

    Rate this question:
