1.  Three basic categorizations of software design patterns are Creational, Structural, and

Explanation

The given correct answer is "Behavioral." In software design patterns, behavioral patterns focus on the interaction between objects and the distribution of responsibilities. These patterns help in achieving flexible communication and coordination among objects by defining how they communicate and interact with each other. They mainly deal with the communication patterns and behavior of objects, allowing for the implementation of complex control flows and algorithms. Examples of behavioral patterns include Observer, Strategy, and Command patterns.

Submit
Please wait...
About This Quiz
Architecture And Design - Quiz

Explore the foundational structures of software in the 'Architecture and Design' quiz. Assess your understanding of models, refinement relationships, and documentation in software architecture. Ideal for learners aiming to grasp essential architectural concepts and documentation standards.

Personalize your quiz and earn a certificate with your name on it!
2. A port is a point of interaction in a component diagram

Explanation

In a component diagram, a port represents a point of interaction between a component and its environment. It allows the component to send and receive messages to and from other components or external systems. Ports are used to model the interfaces of a component and show how it interacts with other components or external entities. Therefore, the statement "A port is a point of interaction in a component diagram" is true.

Submit
3. Component details in UML can be shown as text within a compartment of a component.

Explanation

In UML, component details can be represented as text within a compartment of a component. This means that information about the component, such as its attributes or operations, can be displayed within the component's compartment. This allows for a clear and organized representation of the component's structure and functionality.

Submit
4. An internals model can be used to identify boundary models of others

Explanation

An internals model refers to an individual's understanding or representation of the world, which includes their own thoughts, beliefs, and perceptions. By having an internals model, one can gain insight into the mental processes and perspectives of others, allowing them to identify the boundary models of others. Boundary models refer to the limits or constraints that individuals have in their thinking or understanding. Therefore, it is true that an internals model can be used to identify boundary models of others.

Submit
5. Class diagrams can be generated directly from code

Explanation

Class diagrams can be generated directly from code by using various tools and technologies. These tools analyze the code and extract information about the classes, their attributes, and their relationships. They then generate a visual representation of the classes and their relationships, which is known as a class diagram. This diagram helps in understanding the structure and organization of the code, making it easier to comprehend and maintain. Therefore, the statement "Class diagrams can be generated directly from code" is true.

Submit
6.  The process of creating class diagrams is a valuable activity during design

Explanation

Creating class diagrams is a valuable activity during design because it helps in visualizing the structure and relationships between classes in a system. Class diagrams provide a high-level overview of the system's architecture, allowing designers to identify and organize classes, their attributes, and their associations. This aids in understanding the system's functionality, facilitating communication among stakeholders, and guiding the implementation process. Class diagrams also serve as a blueprint for developers, helping them write code that aligns with the desired design. Overall, creating class diagrams is an essential step in the design phase of software development.

Submit
7. A view is a projection of a model that reveals select details

Explanation

A view is a representation or perspective of a model that allows us to see specific details or aspects of it. It is not a complete representation of the entire model but rather a selected projection that highlights certain elements. Therefore, the statement that a view is a projection of a model that reveals select details is accurate and true.

Submit
8. A context diagram is similar to a snapshot in that the context is likely to change as the system runs

Explanation

A context diagram is a visual representation that shows the interactions between a system and its external entities. It provides a high-level overview of the system and its boundaries. Like a snapshot, the context of a system is likely to change as it runs. This means that the interactions and relationships between the system and its external entities may evolve or vary over time. Therefore, the statement that a context diagram is similar to a snapshot in terms of the context changing as the system runs is true.

Submit
9. In component diagrams, ports __________ optional.

Explanation

In component diagrams, ports are optional. This means that they may or may not be present in a component. Ports are used to provide interfaces for communication between components, but not all components need to have ports. Some components may have ports to allow for interaction with other components, while others may not require any external communication and therefore do not have ports.

Submit
10. Three standard viewtypes for the Design Model are

Explanation

The correct answer is e) Runtime, Allocation, Module. In the Design Model, the three standard viewtypes are Runtime, Allocation, and Module. The Runtime viewtype focuses on the behavior and interactions of components at runtime. The Allocation viewtype focuses on the mapping of software components to hardware resources. The Module viewtype focuses on the organization and structure of the software components. This combination of viewtypes allows for a comprehensive understanding of the design and implementation of a software system.

Submit
11. The primary difference between component diagrams and sequence diagrams is

Explanation

Component diagrams and sequence diagrams serve different purposes in software design. Component diagrams depict the overall structure and relationships among a group of components, showcasing all potential interactions. On the other hand, sequence diagrams focus on illustrating the specific interactions that occur in response to a particular request. In other words, component diagrams provide a high-level view of the system's architecture, while sequence diagrams zoom in on the detailed behavior of the system in response to specific events or requests.

Submit
12. Architecture documents are abstractions of the system.

Explanation

Architecture documents are abstractions of the system because they provide a high-level overview of the system's structure, components, and interactions. These documents focus on capturing the essential elements and relationships, while omitting unnecessary details. By abstracting the system, architecture documents help stakeholders understand the system's design and make informed decisions. They serve as a blueprint for development, communication, and collaboration among team members. Therefore, it is true that architecture documents are abstractions of the system.

Submit

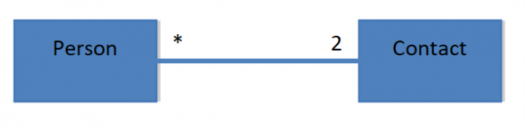

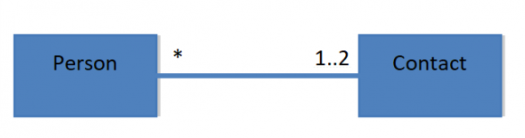

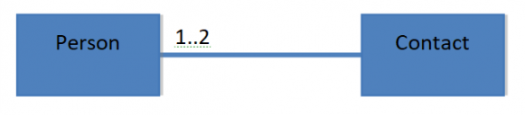

13. Which of the following states that there are 2 persons associated with a contact and there can be any number of contacts?

Explanation

The answer is "2 *". This pattern indicates that there are two persons associated with a contact, represented by the numbers 1 and 2. The asterisk (*) represents any number of contacts, meaning there can be multiple contacts associated with the two persons.

Submit
14. An architectural style is a kind of pattern that occurs at an architectural level and applies to architectural elements like components and modules.

Explanation

An architectural style refers to a specific pattern or design that is used at the architectural level. It applies to various architectural elements such as components and modules. This style helps in organizing and structuring the overall architecture of a system or application. It provides guidelines and principles for designing and implementing the different components and their interactions. By following an architectural style, developers can ensure consistency, reusability, and maintainability in their designs.

Submit
15. Three notations of UML are

Explanation

The correct answer is e) Class diagrams, Sequence diagrams, Use Case diagrams. UML (Unified Modeling Language) is a standardized modeling language used in software engineering to visually represent a system. Class diagrams are used to depict the structure of a system, showing the classes, their attributes, and relationships. Sequence diagrams illustrate the interactions between objects or components in a system, showing the order of messages exchanged. Use Case diagrams depict the functionality of a system from the perspective of its users, showing the different use cases and actors involved. These three notations are commonly used in UML to represent different aspects of a system.

Submit
16. Which of the following is not a UML diagram?

Explanation

not-available-via-ai

Submit
17. Software design patterns provide a ready resource for solving software development problems

Explanation

Software design patterns are proven solutions to recurring problems in software development. They provide a set of guidelines and templates that developers can use to solve common design problems. By following these patterns, developers can save time and effort by reusing established solutions rather than reinventing the wheel. This makes software development more efficient and helps to ensure that the resulting software is robust, maintainable, and scalable. Therefore, the statement "Software design patterns provide a ready resource for solving software development problems" is true.

Submit
18. What are the names of the models in software's canonical model structure?

Explanation

The correct answer is d. Domain, Design, Code. In software's canonical model structure, the names of the models are Domain, Design, and Code. The Domain model represents the real-world concepts and rules, the Design model represents the software architecture and components, and the Code model represents the actual implementation of the software in a programming language. This structure helps in organizing and understanding the different aspects of the software development process.

Submit
19. Match the following
Submit
20. A use case is _________.

Explanation

A use case is a goal for actors the system interacts with. Use cases define the specific actions and interactions that actors (users or other systems) can perform with the system to achieve a desired outcome. They describe the functionality and behavior of the system from the perspective of the actors involved. Use cases help in understanding the requirements and designing the system to meet the needs of the actors. They are often represented in the form of diagrams that show the flow of events and the interactions between the actors and the system.

Submit
21. All models in software design should be captured using UML diagrams

Explanation

The statement "All models in software design should be captured using UML diagrams" is incorrect. While UML diagrams are commonly used in software design, they are not the only way to capture models. Other modeling techniques such as flowcharts, data flow diagrams, and entity-relationship diagrams can also be used to represent different aspects of software design. Therefore, the answer is false.

Submit
22. All design decisions should be made before coding begins

Explanation

This statement is false because design decisions can and often should be made throughout the coding process. As developers gain a better understanding of the requirements and constraints of the project, they may need to adjust their design decisions accordingly. Additionally, new ideas or technologies may emerge during the coding process that could warrant changes to the initial design. Therefore, design decisions are not fixed and can be made and modified as needed throughout the coding process.

Submit
23. Every project should document its architecture.

Explanation

While it is generally recommended to document the architecture of a project, it is not an absolute requirement for every project. The decision to document the architecture depends on various factors such as the complexity of the project, the size of the team, the need for future maintenance or scalability, and the project's specific requirements. Some smaller or simpler projects may not require extensive documentation of their architecture, whereas larger or more complex projects may benefit from having detailed documentation to aid in understanding, communication, and future development.

Submit
24. What are two ways Fairbanks says you can improve the quality of diagrams?

Explanation

Including a legend in diagrams is one way to improve their quality. A legend provides a key or explanation for symbols, colors, or other elements used in the diagram, making it easier for viewers to understand the information being presented. By including a legend, the diagram becomes more clear and concise, enhancing its overall quality. Avoiding arrowheads, as mentioned in option b, is not mentioned as a way to improve the quality of diagrams in the given question.

Submit
25. Which of the following is the best choice for creating code views? _______

Explanation

A class diagram is the best choice for creating code views because it provides a visual representation of the structure and relationships between classes in a system. It allows developers to understand the organization of code, the properties and methods of each class, and how classes interact with each other. This diagram helps in designing, documenting, and communicating the structure of code, making it easier to analyze and modify the codebase. Additionally, a class diagram can be used as a blueprint for implementing the code, ensuring that the system is built according to the desired architecture.

Submit
26. Which of the following statements is the most correct?

Explanation

The correct answer is c) Unified Modeling Language. Unified Modeling Language (UML) is a standardized modeling language used in software engineering to visually represent software systems. It provides a set of notations and diagrams to describe the structure, behavior, and interactions of the system. UML is widely used in the software development industry to communicate and document system designs.

Submit
27. Of the following, which is the best reason to avoid domain analysis?

Explanation

Domain modeling is open-ended and is a never-ending analysis task. This means that domain analysis is a continuous process that requires ongoing effort and resources. It involves understanding and documenting the complexities and intricacies of a specific domain, which can be time-consuming and challenging. Therefore, avoiding domain analysis may be the best option to prevent getting stuck in an endless analysis loop and allocate resources more efficiently to other tasks.

Submit
28. Match
Submit
29. In sequence diagrams, lifelines represent the activity of ________

Explanation

In sequence diagrams, lifelines represent the activity of objects. Lifelines are vertical dashed lines that depict the lifespan of an object during the execution of a sequence diagram. They show the flow of messages between objects and represent the objects' involvement in the sequence of events. Each object involved in the sequence diagram is represented by a lifeline, allowing for a clear visualization of the interactions and behavior of objects in a system.

Submit
30. In component diagrams, the lollipop symbol is used to _______ an interface.

Explanation

In component diagrams, the lollipop symbol is used to provide an interface. This means that the component represented by the lollipop symbol offers a set of operations or services that other components can use. The lollipop symbol acts as a connection point between the component and the interface it provides, allowing other components to interact with it and access its functionalities.

Submit
31. Modeling a system using multiple views requires that all views be ________ .

Explanation

When modeling a system using multiple views, it is important that the views are chosen carefully to reflect the concerns of users. This means that the different views should be selected in a way that accurately represents the different perspectives and requirements of the stakeholders involved in the system. By doing so, the modeling process becomes more effective in addressing the needs and expectations of the users, leading to a more comprehensive and accurate representation of the system.

Submit
32. A context diagram should include details related to quality concerns.

Explanation

A context diagram should include details related to quality concerns because it provides a high-level overview of a system or process and its interactions with external entities. Quality concerns, such as performance, reliability, and security, are important factors to consider when designing and analyzing a system. Including these details in a context diagram helps to ensure that the system meets the desired quality standards and can identify potential risks or issues that may impact the overall quality of the system.

Submit
33. Which of the following is NOT one of the traits of good models? _______

Explanation

Good models should be able to allow one to predict potential issues, be realistic, and refer to all elements that are in the model. However, being small is not necessarily a trait of good models. The size of a model does not determine its effectiveness or accuracy. A good model can be of any size as long as it accurately represents the system or concept it is modeling.

Submit
34. Which of the following clearly describes the scope of a software project?

Explanation

A context diagram clearly describes the scope of a software project by illustrating the system being developed and its interactions with external entities. It shows the boundaries of the system and the relationships between the system and its environment. This diagram helps stakeholders understand the context in which the software will operate and allows for better communication and understanding of the project scope.

Submit
35. The risk-driven approach is most difficult to apply to the ____________ software development process.

Explanation

The risk-driven approach is most difficult to apply to the XP (Extreme Programming) software development process. This is because XP emphasizes frequent iterations and continuous feedback, which may not allow for a comprehensive risk assessment and mitigation strategy to be implemented. XP focuses on delivering working software quickly and responding to changing requirements, which may not align well with a risk-driven approach that requires more upfront planning and analysis.

Submit
36. In the Pipe and Filter style, which of the following is not allowed? _______

Explanation

In the Pipe and Filter style, a pipe is used to transfer data from one filter to another. It acts as a conduit for data flow between filters. However, a pipe cannot directly feed data into another pipe. Pipes are used to connect filters, not to connect pipes themselves. Therefore, option c) is not allowed in the Pipe and Filter style.

Submit
37. The Interface Segregation Principle _________.

Explanation

The Interface Segregation Principle states that object interfaces should only include methods that will be needed by most implementers. This principle helps in avoiding the creation of large and bloated interfaces that force implementers to implement methods that are not relevant to their specific needs. By adhering to this principle, interfaces become more focused and specific, promoting better code organization and making it easier for implementers to understand and use them. This ultimately leads to increased reusability and maintainability of objects.

Submit
38. Identify the Structural pattern represented by following Diagram

Explanation

The diagram represents the Adapter pattern. This pattern allows objects with incompatible interfaces to work together by creating a bridge between them. It converts the interface of one class into another interface that the client expects. In the diagram, there is an adapter class that adapts the interface of an existing class to match the expected interface of the client. This allows the client to interact with the adapted class seamlessly.

Submit
39. Which of the following DOES NOT describe risk in software development?

Explanation

Risk in software development is not necessarily a cause of failure, as it can also present opportunities for growth and improvement. While risk does involve the chance of failure, it is not solely responsible for causing failure. Risk can also be managed and mitigated through proper planning and decision-making. Additionally, risk is not always the primary driver of architecture, as other factors such as functionality and user requirements also play a significant role.

Submit
40. UML has many great features but its use describing domain models should be restricted because

Explanation

not-available-via-ai

Submit
41. Which of the following is best describes UML?

Explanation

UML, which stands for Unified Modeling Language, is best described as a combination of notations. It supports modeling multiple views of software and has evolved over time. Additionally, UML was created by the OMG (Object Management Group). Therefore, the correct answer is e) All of a-d.

Submit
42. The layered style of software design is a style in the ________ view.

Explanation

The layered style of software design is a style in the module view. This means that the software is organized into layers, with each layer providing a specific set of functionality. The layers are designed to be modular and independent, allowing for easier maintenance and scalability of the software. This style helps to separate concerns and promotes code reusability.

Submit
43. Which of the following is true of a Context Diagram?

Explanation

A context diagram is a high-level diagram that shows how the software being created interacts with elements in its environment. It describes the boundaries of the system and its interactions with external entities. It can be based on a use case diagram, which represents the interactions between actors (users, external systems) and the system. It might also show the Internet as an external entity. Additionally, a context diagram helps in defining what is included and what is excluded from the scope of the software project. Therefore, all options a-d are true statements about a context diagram.

Submit
44. Software design patterns are created for unusual problems in development.

Explanation

Software design patterns are not created for unusual problems in development. Instead, they are created to provide proven solutions to common recurring problems in software design. Design patterns are reusable templates that help developers solve design problems and improve the efficiency, maintainability, and flexibility of their software. Therefore, the correct answer is False.

Submit
45. Which of the following is NOT a desirable trait of a software model? ______

Explanation

A desirable trait of a software model is consistency in its use of arrows. This means that the model should have a standardized and uniform representation of relationships and dependencies between different components or entities. However, the given answer states that "Consistent use of arrows" is NOT a desirable trait. This implies that the model should not have a consistent representation of relationships, which would make it difficult to understand and interpret.

Submit
46. Which of the following is not a software engineering risk? ______

Explanation

not-available-via-ai

Submit
47. What is architectural style?

Explanation

The correct answer is "All of the mentioned". Architectural style refers to a description of component types, a pattern of run-time control, and a set of constraints on architecture. This means that all of these options are valid explanations for what architectural style is.

Submit
48. When modeling the domain we model its

Explanation

When modeling the domain, we need to consider both the structure and behavior of the system. The structure refers to the components, relationships, and organization of the system, while the behavior refers to the functionality and actions performed by the system. By modeling both aspects, we can create a comprehensive representation of the domain and ensure that the system meets the requirements and expectations. Additionally, considering the way people will use the system is also important to ensure that the system is user-friendly and meets the needs of the users. Therefore, the correct answer is d. Both a and b.

Submit
49. How should a designer decide which views to create? _______

Explanation

A designer should decide which views to create based on the major concerns of the system. By building one view for each major concern, the designer can ensure that all important aspects of the system are represented. This approach allows for a comprehensive understanding of the system and helps to address potential issues or conflicts between different concerns. Building views based on major concerns also promotes modularity and maintainability in the design process.

Submit
50. An anti-pattern is _______ .

Explanation

An anti-pattern is a way to avoid known bad coding practice. It refers to a common solution that appears beneficial but is actually counterproductive and can lead to negative consequences. It helps developers recognize and avoid these pitfalls in order to write better and more efficient code.

Submit
51. The Refinement relationship enables the architect to:

Explanation

The refinement relationship enables the architect to establish a connection between two models, where a type that appears in one model also appears in another. This relationship ensures consistency and allows for the transfer of constraints from one model to another. Therefore, the correct answer is a.

Submit
52. A master model is the one used by the architect to include information from all three viewtypes

Explanation

A master model is not used by the architect to include information from all three view types. The master model is a term used in software engineering to refer to a central model that is used as a reference or a template for creating other models. In the context of architecture, the master model may refer to a comprehensive model that includes information from different disciplines or viewpoints, but it does not specifically refer to the three view types. Therefore, the statement is false.

Submit
53. The Mirrored, Farm, and Rack style of design is a style in the _______ view.

Explanation

The Mirrored, Farm, and Rack style of design is a style in the Allocation view. This suggests that these design styles are specifically related to the allocation of resources, such as servers or hardware components, within a system. The Allocation view focuses on how the system's components are allocated and distributed across different physical or virtual resources. This view helps in understanding the deployment and distribution of system elements and how they interact with each other in terms of resource allocation.

Submit
54. The Model-Centered style of software design is a style in the ________ view.

Explanation

The Model-Centered style of software design focuses on the runtime view of the software. This means that it emphasizes the behavior and interactions of the software components during execution. This style is concerned with how the software functions and operates in real-time, rather than just its structure or organization. Therefore, the correct answer is a) Runtime.

Submit
55. A good set of architectural documents will completely describe the system

Explanation

A good set of architectural documents may provide a comprehensive overview of the system, but it is unlikely to completely describe the system. Architecture documents typically focus on high-level design decisions, key components, and their interactions. However, they may not cover every single detail, implementation specifics, or changes that occur over time. Therefore, while architectural documents are valuable for understanding the system's structure and design principles, they are not expected to provide an exhaustive and complete description of the entire system.

Submit
56. A pattern language

Explanation

A pattern language refers to a system or framework that includes a collection of patterns. These patterns are commonly used to solve design problems or address specific issues in various fields such as architecture, urban planning, or software development. The patterns within a pattern language are interconnected and can be applied in different contexts to create effective solutions. Therefore, option a) is the correct answer as it accurately describes the nature of a pattern language.

Submit
57. The Open-Close Principle _________.

Explanation

The Open-Close Principle helps ensure that objects are easy to extend without requiring change to the original object. This principle states that software entities (classes, modules, functions, etc.) should be open for extension but closed for modification. This means that new functionality should be added through the creation of new classes or modules, rather than modifying existing ones. By following this principle, the original object remains unchanged, reducing the risk of introducing bugs or breaking existing functionality. This also promotes code reusability and maintainability, as new features can be added without affecting the existing codebase.

Submit
58. All class diagrams created during design of a system should be maintained as part of the project documentation.

Explanation

The statement suggests that all class diagrams created during the design of a system should be maintained as part of the project documentation. However, this is not necessarily true. While class diagrams are useful for understanding the structure of a system and can be helpful during the design phase, they may not always be necessary to include in the project documentation. The decision to include class diagrams in the documentation should be based on the specific requirements and needs of the project.

Submit
59. Which of the following statements is the most correct? ____________ .

Explanation

A class diagram is a visual representation of the structure and relationships of classes in a system. It is used to depict the static structure of a system, showing the classes, their attributes, methods, and relationships. One of the key features of a class diagram is its ability to show relationships between different classes, including relationships between Java interfaces and other classes. Therefore, option c) is the most correct statement as it accurately describes the capability of a class diagram.

Submit
60. Abstractions are:

Explanation

Abstractions are different perspectives because they allow us to view a system or design from various angles or levels of detail. They provide a simplified representation of complex systems, allowing us to focus on specific aspects or features. Abstractions help in understanding and analyzing the system by breaking it down into manageable parts and providing different viewpoints. Therefore, the correct answer is b. Different perspectives.

Submit
61. The Peer to Peer style of software design is a style in the ________ view.

Explanation

The Peer to Peer style of software design is a style in the Runtime view because it focuses on the interactions and behaviors of the software components during the execution or runtime of the system. This style emphasizes the decentralized nature of the system, where multiple peers or nodes interact with each other without a central server. It enables direct communication and resource sharing between peers, making it suitable for distributed systems and applications.

Submit
62. Which of the following help increase the quality of your view? _______

Explanation

All of the options (a, b, and c) help increase the quality of your view. Using functionality scenarios to tie views together helps ensure that the views are cohesive and interconnected. Animating functional scenarios can provide a more dynamic and engaging experience for viewers. Writing action specifications helps document the expected behavior and functionality of the view. By incorporating all of these practices, the quality of the view can be enhanced.

Submit
63. Match the following
Submit
64. Which of the following is(are) NOT well supported by the class diagram notation? ___________.

Explanation

not-available-via-ai

Submit
65. Which of the following is incorrect?

Explanation

This statement is incorrect because a pattern is not a projection of a model that reveals selected details. Instead, a pattern is a reusable solution to a recurring problem.

Submit
66. Which of the following is NOT on the list of ways Fairbanks suggests you write good functional scenarios? _____

Explanation

The question asks for the option that is not on the list of ways Fairbanks suggests to write good functional scenarios. The given options include Actor, Action, Reference, Target Model, Overall, and Pattern. The correct answer is f) Pattern, as it is not mentioned as one of the ways to write good functional scenarios according to Fairbanks.

Submit
67. Which of the following statements is the most correct?

Explanation

A sequence diagram is a type of UML diagram that is used to model the interactions and messages exchanged among objects in a system. It shows the sequence of events and the order in which messages are sent and received between objects. This diagram is commonly used to visualize the behavior of a system and to understand the flow of interactions between different objects. Therefore, option b) is the most correct statement as it accurately describes the purpose and functionality of a sequence diagram.

Submit
68. Which of the following statements is NOT true for creating and using models? ________

Explanation

A legend is necessary when creating a diagram using a known notation because it provides a key or explanation of the symbols and notations used in the diagram. This helps the readers understand the meaning of the different elements in the diagram.

Submit
69. We need comprehensive documentation for the software architect

Explanation

The statement suggests that comprehensive documentation is needed for the software architect, but the correct answer is false. This implies that comprehensive documentation may not be necessary for the software architect, as they may rely on other sources of information or have different ways of organizing and managing their work.

Submit
70. Which of the following statements is the most correct?

Explanation

Components are units of code that encapsulate a set of related functions and data. They are self-contained and can be reused in different contexts. This statement is the most correct because it accurately describes the purpose and nature of components in software development.

Submit
71. A specific architectural style is chosen for a project because ______ .

Explanation

The correct answer is c. it is known to ensure quality attributes of concern. This means that a specific architectural style is chosen for a project because it is known to provide the necessary qualities and attributes that are important for the project's success. This could include factors such as performance, scalability, security, maintainability, and other relevant considerations. By selecting an architectural style that is known to ensure these quality attributes, the project is more likely to meet its goals and requirements.

Submit
72. Which of the following statements is the most correct?

Explanation

The correct answer is e) Socket symbol is used to represent provides interfaces. This statement is the most correct because in component-based development, a socket symbol is used to represent a required interface, while a lollipop symbol is used to represent a provided interface. Therefore, the statement correctly identifies the symbol used to represent provides interfaces.

Submit
73. A design pattern ______ .

Explanation

A design pattern can be useful for describing how a software problem was solved by a developer, as well as containing a description of other related patterns. It is a general reusable solution to a commonly occurring problem within a given context in software design. Additionally, design patterns can provide examples of code that used the pattern. Therefore, the correct answer is f) All of a-d.

Submit
74. Which of the following is not true about the Apache server?

Explanation

The correct answer is c) Was designed with few constraints to support the system’s performance goals. This statement is not true because the Apache server was actually designed with numerous constraints to support its performance goals. These constraints include efficiency, scalability, and reliability. Apache's design focuses on maximizing performance and handling a large number of simultaneous connections efficiently. The server's architecture and features are optimized for performance and responsiveness.

Submit
75. _______ are approaches to decomposing a system.

Explanation

The correct answer is e. Both a and d.

This answer is correct because both options a and d mention different approaches to decomposing a system. Option a includes functionality, archetypes, and jigsaw puzzle as approaches to decomposing a system, while option d includes architectural style, ports, and archetypes as approaches to decomposing a system. Since both options mention valid approaches to decomposing a system, the correct answer is e.

Submit
76. Identify the Creational pattern represented by following Diagram https://www.proprofs.com/quiz-school/upload/yuiupload/330902924.jpg

Explanation

The correct answer is Prototype. The Prototype pattern is represented by the diagram. This pattern is used to create new objects by cloning existing ones, without relying on subclassing. It allows for the creation of new objects that are similar to existing ones, reducing the need for creating objects from scratch.

Submit
77. Liskov's Substitution Principle _________.

Explanation

Liskov's Substitution Principle requires that methods that are present in base classes must also be present in the derived classes. This principle ensures that objects can be used interchangeably without affecting the correctness of the program. It helps maintain the behavior and functionality of the base class in the derived classes, promoting code reusability and reducing the chances of introducing errors or breaking the code when substituting objects.

Submit
78. Identify the Creational pattern represented by following Diagram https://www.proprofs.com/quiz-school/upload/yuiupload/1955785388.jpg

Explanation

The diagram represents the Observer creational pattern. This pattern is used when there is a one-to-many relationship between objects, where the change in one object triggers the update in the other dependent objects. In the diagram, there is a subject object that maintains a list of observer objects. When the subject object changes, it notifies all the observer objects, and they update themselves accordingly. This pattern helps in achieving loose coupling between the objects and allows for easy addition or removal of observers without affecting the subject object.

Submit
79. Which of the following software development process models does not include up-front design?

Explanation

The spiral software development process model does not include up-front design. This model is characterized by a series of iterations where each iteration goes through four phases: planning, risk analysis, engineering, and evaluation. The model emphasizes risk management and allows for flexibility and adaptation throughout the development process. Unlike other models such as waterfall and iterative, the spiral model does not require a comprehensive up-front design before starting the development process. Instead, it allows for incremental development and refinement based on the identified risks and requirements.

Submit
80. Three styles of design are _______ .

Explanation

The correct answer is b. planned, evolutionary, and minimal planned. This answer suggests that there are three styles of design: planned, evolutionary, and minimal planned. These styles likely refer to different approaches or methodologies in the design process, with planned design involving careful planning and documentation, evolutionary design involving iterative and adaptive development, and minimal planned design focusing on simplicity and efficiency.

Submit
81. Which of the following statements is the most correct?

Explanation

A deployment view shows where process will run and how they will interact. This means that it provides information on the physical locations where different processes or components of a system will be deployed and how they will communicate with each other. It focuses on the distribution and communication aspects of the system rather than the installation or interaction with the environment. Therefore, option c) is the most correct statement.

Submit
82. Identify the Creational pattern represented by following Diagram

Explanation

The diagram represents the Proxy creational pattern. The Proxy pattern provides a surrogate or placeholder for another object to control access to it. It allows for the creation of a representative object that controls the access to the real object, acting as an intermediary between the client and the real object. This pattern is useful when we want to add an extra layer of functionality to the real object without modifying its code directly.

Submit
83. The Single Responsibility Principle ________.

Explanation

The Single Responsibility Principle states that a class should have only one reason to change. This means that a class should have only one responsibility or should be responsible for only one aspect of the system. By adhering to this principle, it becomes easier to make changes to an object because each object is focused on a single responsibility. This reduces the risk of unintended consequences and makes the code more maintainable and flexible. Therefore, the correct answer is e) Helps make changing an object easier.

Submit
84. Which of the following is/are NOT a benefit of including class diagrams in project documentation? _______

Explanation

Class diagrams are a visual representation of the structure and relationships of the classes in a system. They help programmers understand the context of the code they are creating by providing an overview of the system's architecture. They also help the project manager identify responsible people for coding tasks by showing the relationships between classes and modules. Additionally, class diagrams help maintainers identify the source of bugs by providing a clear depiction of the system's structure. Therefore, the correct answer is b) Help the project sponsors understand how the system will work.

Submit
85. UML provides special notation for a subsystem element because

Explanation

not-available-via-ai

Submit
86. OCL (Object Constraint Language)

Explanation

OCL (Object Constraint Language) is a language that is good for describing invariants in a model. Invariants are conditions or rules that must always hold true in a system. OCL allows developers to express these invariants in a precise and formal way, making it easier to validate and enforce them. It is not used to model the structure of a system or the relationships in the domain, and it is not similar to natural language or understood by non-technical people.

Submit
87. Different types of models are required in order to serve the needs of various stakeholders.

Explanation

This statement is incorrect. Different types of models are not required to serve the needs of various stakeholders. Models are tools used to represent and understand complex systems or concepts. While different stakeholders may have different needs and perspectives, it is not necessary to have different types of models to serve those needs. A single model can be used to address the requirements of multiple stakeholders by incorporating their perspectives and requirements into the model. Therefore, the correct answer is False.

Submit
88. The Dependency Inversion Principle ______.

Explanation

The Dependency Inversion Principle helps ensure that objects are highly reusable by promoting loose coupling between modules or classes. It states that high-level modules should not depend on low-level modules, but both should depend on abstractions. This allows for easier substitution of implementations and reduces the impact of changes in one module on other modules. By depending on abstractions rather than concrete implementations, objects can be easily reused in different contexts without requiring extensive modifications.

Submit
89. Which of the following is NOT true of a dependency matrix? ___________

Explanation

A dependency matrix can be used to check dependencies among modules, can easily be converted to a graphical representation, can be built automatically from code by some tools, and can be used to help maintain a system. However, it is not true that a dependency matrix becomes more difficult to use as the model grows larger. In fact, a dependency matrix can be a useful tool for managing dependencies in large models as it provides a clear overview of the relationships between modules.

Submit
90. Which of the following are the best question(s) the risk-driven model helps developers answer? ______

Explanation

The risk-driven model helps developers answer questions related to how much software architecture should be done and which techniques should be used in developing the project. This model focuses on identifying and managing risks throughout the development process, and these questions are crucial in determining the appropriate level of architectural planning and selecting the most suitable techniques to mitigate potential risks.

Submit
91. Which of the following is a legal exception to pure layered style?

Explanation

The use of callbacks is a legal exception to pure layered style because it allows communication between different layers in a system. In a pure layered style, each layer can only communicate with the layer directly above or below it, but callbacks allow a layer to pass a reference to a function in another layer, enabling communication across multiple layers. This breaks the strict separation of concerns in a layered architecture but can be necessary in certain scenarios where direct communication between layers is required.

Submit
92. Identify the Creational pattern represented by following Diagram

Explanation

The diagram represents the Factory Method creational pattern. This pattern defines an interface for creating objects, but allows subclasses to decide which class to instantiate. In the diagram, there is an abstract class or interface that declares the factory method, and multiple concrete classes that implement this method to create different types of objects. Therefore, the Factory Method pattern is the most appropriate explanation for the given diagram.

Submit
93. The list on the left is pairs of models created for the Yinzer System. On the right is a list of relationship types. Match the relationship type to the pair of models that are related in that way by placing the letter for the relationship type in the blank in front of the pair.
Submit
94. Which of the following is/are not well supported by the component diagram notation? ___________.

Explanation

The component diagram notation is not well supported for representing complex connectors. Component diagrams are used to represent the structure of a system, including its components and their relationships, but they do not provide a detailed representation of the connectors between components. Instead, connectors are typically represented using simple lines or arrows, which may not adequately capture the complexity of the connections between components. Therefore, complex connectors are not well supported by the component diagram notation.

Submit
95. Formal analysis techniques _________.

Explanation

Formal analysis techniques require the model to be expressed in the language of the tool. This means that in order to apply formal analysis techniques, the model needs to be translated or represented in a specific language that the tool understands. The analysis is performed based on the formal rules and logic defined in the tool's language. This requirement ensures that the analysis is accurate and consistent, as it relies on the specific syntax and semantics of the tool's language.

Submit
96. Using consistent level of detail across a model helps _______ .

Explanation

Using consistent level of detail across a model helps make the view more comprehensible. When the level of detail is consistent, it becomes easier for viewers to understand and interpret the information presented in the model. This consistency ensures that all elements in the model are presented in a clear and coherent manner, enhancing the overall comprehensibility of the view.

Submit
97. Which of the following is not one of the elements of a design pattern?

Explanation

A design pattern consists of four elements: context, problem, solution, and consequences. The context describes the situation in which the design pattern is applicable. The problem identifies the specific issue or challenge that the design pattern aims to address. The solution provides the general approach or strategy to solve the problem. The consequences describe the trade-offs and implications of applying the design pattern. Therefore, "solution" is not one of the elements of a design pattern.

Submit
98. Which of the following is NOT an advantage of using architectural styles during design? __________

Explanation

Architectural styles do not define a set of names to use in the design. They provide a framework and guidelines for designing software systems, supporting design reuse, providing a vocabulary for communication, and setting guard rails to guide the design process. Additionally, they help ensure that quality goals are met. However, naming conventions and standards are typically defined separately from architectural styles.

Submit
99. Architecture checklists _______.

Explanation

Architecture checklists can be used to ensure that known risks have been considered. This means that by referring to a checklist, architects can ensure that they have taken into account all the potential risks associated with a particular architectural design or project. It allows them to systematically review and evaluate their work, making sure that no significant risks have been overlooked. By using a checklist, architects can enhance the quality and reliability of their designs, reducing the chances of any potential issues or failures in the future.

Submit
100. Which of the following statements is the most correct? _________.

Explanation

A class diagram is a visual representation of the structure and relationships of classes in a system. It is commonly used in object-oriented programming to model the behavior and interactions between different classes. While options a) and b) are partially correct, they do not capture the full purpose of a class diagram. Option c) is the most correct because analyzing the behavior of complex protocols is one of the main uses of a class diagram. Options d) and e) are incorrect as the lollipop symbol represents an interface and the socket symbol represents a connection or communication between components, not specifically providing interfaces.

Submit
101. Which of the following statements is the most correct?

Explanation

A component diagram is a type of UML diagram that shows the organization and relationships between components in a system. Option b) states that a component diagram shows all potential interactions among components in a view, which is correct as it represents the connections and dependencies between components. Option c) states that a component diagram can show instances of classes, which is also correct as it can depict the specific instances of components in the system. Therefore, the most correct statement is e) Both b and c.

Submit
102. We need to document the software architect? (Check 4 right ans)

Explanation

The software architect needs to be documented to ensure that quality concerns have been addressed and that there are sufficient perceived risks. This documentation also ensures that architecture documents are comprehensive and that design always precedes coding.

Submit
View My Results

Quiz Review Timeline (Updated): Mar 22, 2023 +

Our quizzes are rigorously reviewed, monitored and continuously updated by our expert board to maintain accuracy, relevance, and timeliness.

  • Current Version
  • Mar 22, 2023
    Quiz Edited by
    ProProfs Editorial Team
  • May 11, 2018
    Quiz Created by
    Myrzabeck
Cancel
  • All
    All (102)
  • Unanswered
    Unanswered ()
  • Answered
    Answered ()
 Three basic categorizations of software design patterns are...
A port is a point of interaction in a component diagram
Component details in UML can be shown as text within a compartment of...
An internals model can be used to identify boundary models of others
Class diagrams can be generated directly from code
 The process of creating class diagrams is a valuable activity...
A view is a projection of a model that reveals select details
A context diagram is similar to a snapshot in that the context is...
In component diagrams, ports __________ optional.
Three standard viewtypes for the Design Model are
The primary difference between component diagrams and sequence...
Architecture documents are abstractions of the system.
Which of the following states that there are 2 persons associated with...
An architectural style is a kind of pattern that occurs at an...
Three notations of UML are
Which of the following is not a UML diagram?
Software design patterns provide a ready resource for solving software...
What are the names of the models in software's canonical model...
Match the following
A use case is _________.
All models in software design should be captured using UML diagrams
All design decisions should be made before coding begins
Every project should document its architecture.
What are two ways Fairbanks says you can improve the quality of...
Which of the following is the best choice for creating code views?...
Which of the following statements is the most correct?
Of the following, which is the best reason to avoid domain analysis?
Match
In sequence diagrams, lifelines represent the activity of ________
In component diagrams, the lollipop symbol is used to _______ an...
Modeling a system using multiple views requires that all views be...
A context diagram should include details related to quality...
Which of the following is NOT one of the traits of good models?...
Which of the following clearly describes the scope of a software...
The risk-driven approach is most difficult to apply to the...
In the Pipe and Filter style, which of the following is not allowed?...
The Interface Segregation Principle _________.
Identify the Structural pattern represented by following Diagram
Which of the following DOES NOT describe risk in software development?
UML has many great features but its use describing domain models...
Which of the following is best describes UML?
The layered style of software design is a style in the ________ view.
Which of the following is true of a Context Diagram?
Software design patterns are created for unusual problems in...
Which of the following is NOT a desirable trait of a software model?...
Which of the following is not a software engineering risk? ______
What is architectural style?
When modeling the domain we model its
How should a designer decide which views to create? _______
An anti-pattern is _______ .
The Refinement relationship enables the architect to:
A master model is the one used by the architect to include information...
The Mirrored, Farm, and Rack style of design is a style in the _______...
The Model-Centered style of software design is a style in the ________...
A good set of architectural documents will completely describe the...
A pattern language
The Open-Close Principle _________.
All class diagrams created during design of a system should be...
Which of the following statements is the most correct? ____________ .
Abstractions are:
The Peer to Peer style of software design is a style in the ________...
Which of the following help increase the quality of your view? _______
Match the following
Which of the following is(are) NOT well supported by the class diagram...
Which of the following is incorrect?
Which of the following is NOT on the list of ways Fairbanks suggests...
Which of the following statements is the most correct?
Which of the following statements is NOT true for creating and using...
We need comprehensive documentation for the software architect
Which of the following statements is the most correct?
A specific architectural style is chosen for a project because ______...
Which of the following statements is the most correct?
A design pattern ______ .
Which of the following is not true about the Apache server?
_______ are approaches to decomposing a system.
Identify the Creational pattern represented by following Diagram
Liskov's Substitution Principle _________.
Identify the Creational pattern represented by following Diagram
Which of the following software development process models does not...
Three styles of design are _______ .
Which of the following statements is the most correct?
Identify the Creational pattern represented by following Diagram
The Single Responsibility Principle ________.
Which of the following is/are NOT a benefit of including class...
UML provides special notation for a subsystem element because
OCL (Object Constraint Language)
Different types of models are required in order to serve the needs of...
The Dependency Inversion Principle ______.
Which of the following is NOT true of a dependency matrix? ___________
Which of the following are the best question(s) the risk-driven model...
Which of the following is a legal exception to pure layered style?
Identify the Creational pattern represented by following Diagram
The list on the left is pairs of models created for the Yinzer System....
Which of the following is/are not well supported by the component...
Formal analysis techniques _________.
Using consistent level of detail across a model helps _______ .
Which of the following is not one of the elements of a design pattern?
Which of the following is NOT an advantage of using architectural...
Architecture checklists _______.
Which of the following statements is the most correct? _________.
Which of the following statements is the most correct?
We need to document the software architect? (Check 4 right ans)
Alert!

Advertisement
