Lintels & Arches Test
-

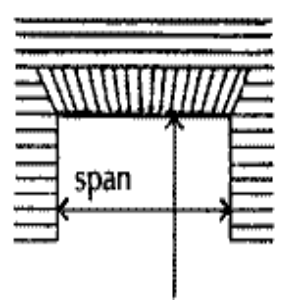

________ is the clean horizontal distance between the supports
-
Span
-
Spandrel
-
Crown
-
About This Quiz
This test covers key concepts related to lintels and arches, focusing on their design, types, and structural importance in architecture.
Quiz Preview
- 2.
_________ is a highest central wedge-shaped block of an arch
-
Span
-
Rise
-
Key stone
Correct Answer
A. Key stoneExplanation
The keystone is the highest central wedge-shaped block of an arch. It is placed at the top center of the arch, and its unique shape allows it to distribute the weight of the arch evenly, providing stability and support. Without the keystone, the arch would collapse.Rate this question:
-
- 3.
Lintel is a horizontal structure supporting member which is provided over opening to support the weight of the _______ masonry.
-
Subjacent
-
Underneath
-
Superimposed
Correct Answer
A. SuperimposedExplanation
A lintel is a horizontal structure that is placed over an opening to support the weight of the superimposed masonry. This means that the masonry is placed on top of the lintel, making the lintel bear the load of the masonry. Therefore, the correct answer is "Superimposed".Rate this question:
-
- 4.
The lintel is projected by minimum _________ on either side of the opening into the wall so as to transfer the imposed loads on to the jambs of the openings.
-
50mm
-
300mm
-
150mm
Correct Answer
A. 150mmExplanation
The lintel is projected by a minimum of 150mm on either side of the opening into the wall so as to transfer the imposed loads on to the jambs of the openings. This projection ensures that the weight and pressure from the loads are evenly distributed and supported by the jambs, preventing any structural damage or failure. A smaller projection could result in inadequate support, while a larger projection may not be necessary and could lead to unnecessary material and construction costs.Rate this question:
-
- 5.

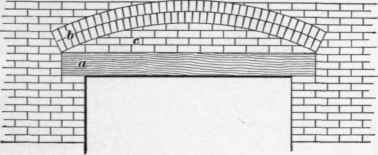

__________ is a construction above a wooden lintel to reduce the intensity of load on it.
-
Relieving arch
-
Beam
-
Sunshade
Correct Answer
A. Relieving archExplanation
A relieving arch is a construction above a wooden lintel that helps to distribute the load and reduce the intensity of the load on it. It is typically used in buildings with heavy loads or where there is a need to support a large span. The relieving arch helps to transfer the weight of the structure above it to the surrounding walls or supports, preventing excessive stress on the wooden lintel and ensuring its stability and longevity.Rate this question:
-
- 6.
__________lintel is common where a large opening carrying heavy wall load and the depth of the lintel is to be restricted.
-
Brick
-
Steel
-
Wooden
Correct Answer
A. SteelExplanation
A steel lintel is commonly used in situations where there is a large opening that needs to support a heavy wall load, but the depth of the lintel needs to be restricted. Steel is a strong and durable material that can bear heavy loads without requiring a large depth, making it an ideal choice for such scenarios. Brick and wooden lintels may not have the same load-bearing capacity or the ability to be restricted in depth, which is why steel is often preferred in these cases.Rate this question:
-
- 7.

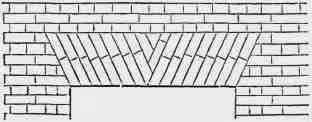

Identify Dutch arch
-
A
-
B
-
C
Correct Answer
A. AExplanation
The correct answer is "a" because "a" is the only option that is a complete sentence and makes sense on its own. Options "b" and "c" are incomplete and do not provide any meaningful information. Therefore, "a" is the most appropriate answer.Rate this question:
-
- 8.
______brick arches, the bricks are cut to wedge shape for the construction.
-
Axed
-
Gauged
-
Rough
Correct Answer
A. AxedExplanation
In order to construct ______ brick arches, the bricks are cut to a wedge shape. This means that the bricks are shaped with one end wider than the other, allowing them to fit together tightly and form a strong arch structure. The term "axed" refers to the process of cutting the bricks in this wedge shape.Rate this question:
-
- 9.
Arch acts similar to a lintel and laid with its bed joints radiating to centre.
-
Straight
-
Gauged brick
-
Relieving
Correct Answer
A. StraightExplanation
The given statement suggests that the arch is laid with its bed joints radiating to the center, which means that the bricks are arranged in a straight pattern. This indicates that the arch is built using straight bricks, rather than gauged bricks or relieving arches.Rate this question:
-
- 10.
Camber arch is also known as____
-
Relieving
-
Flat
-
Dutch
Correct Answer
A. FlatExplanation
Camber arch is also known as "Flat" because it refers to an arch shape that is level or straight, without any curve or rise. This term is used to describe an architectural design where the arch is not curved but instead has a flat or horizontal profile. The term "Flat" is commonly used to differentiate this type of arch from other arch designs that have a curved or arched shape.Rate this question:
-
