IT Essentials Chapter 6

The correct order of steps to remove a laptop battery is 2, 3, 4, 1. First, the laptop should be turned off and unplugged (step 2). Then, the battery release latch should be located and slid to the unlock position (step 3). After that, the battery should be gently pulled out from the laptop (step 4). Finally, the laptop can be turned back on or plugged back in if needed (step 1).

The user should try pressing the function key that will redirect the video output to the external monitor. This is because the laptop may be set to display the video output on the laptop screen instead of the external monitor. By pressing the function key, the user can toggle between different display options and redirect the video output to the external monitor, allowing the projector to receive the RGB signal.

A laptop device being hot-swappable means that it can be installed or removed from the laptop without the need to power off the laptop. This allows for convenient and seamless installation or removal of the device while the laptop is still running, without causing any interruptions or downtime.

USB and FireWire ports are commonly used to connect various devices to a computer. Cameras, printers, and scanners are three examples of devices that commonly connect to these ports. These devices require a fast and reliable connection to transfer data and communicate with the computer. AC adapters, PC Cards, and graphics adapters are not typically connected to USB or FireWire ports.

Ethernet and modem are the two laptop ports primarily used for communication and network connectivity. Ethernet port is used for connecting to a wired network, allowing for high-speed internet access and local area network (LAN) communication. Modem port is used for connecting to a modem, which enables access to the internet through a telephone line or cable connection. Both ports are essential for establishing network connections and facilitating communication between devices.

LCD (Liquid Crystal Display) is the most commonly found display technology in modern laptop computers. LCD screens use liquid crystals to create images and have become popular due to their thin and lightweight design, low power consumption, and high image quality. Unlike CRT (Cathode Ray Tube) displays, which are bulky and outdated, LCD screens are compact and offer better resolution. LED (Light Emitting Diode) and plasma displays are also used in some devices, but LCD remains the most prevalent technology in laptops.

CPU throttling is a technique used in laptops to reduce the power consumption and heat production of the CPU. By decreasing the clock speed of the processor, it limits the amount of power consumed and the amount of heat generated. This helps in improving the battery life of the laptop and preventing overheating, which can lead to performance issues and hardware damage. Additionally, CPU throttling allows the laptop to operate more quietly as the fans don't need to work as hard to cool down the CPU.

Desktop motherboards typically have a standard form factor and are interchangeable, meaning they can be easily replaced or upgraded with other standard-sized motherboards. On the other hand, laptop motherboards are proprietary, which means they are specifically designed for a particular laptop model and cannot be easily replaced or upgraded with other motherboards. This is a major difference between desktop and laptop motherboards, as it affects the flexibility and customization options available for each type of computer.

The third generation of cell-phone standards was the first to deal with how to send and receive text, photographs, and video. This generation introduced technologies such as Enhanced Data rates for GSM Evolution (EDGE) and Universal Mobile Telecommunications System (UMTS), which allowed for faster data transmission and improved multimedia capabilities. These advancements enabled users to send and receive not just voice calls, but also text messages, images, and videos, revolutionizing the way people communicate using cell phones.

Laptops are a better choice than desktop computers because of their mobility. Laptops are portable and can be easily carried around, allowing users to work or access information from anywhere. Additionally, laptops are smaller in size compared to desktop computers, making them more space-efficient and convenient for users with limited desk space or those who frequently move their devices.

A technician can change the power schemes on a laptop running Windows XP by selecting Power Options from within the Control Panel. The Control Panel is a centralized location where users can access various settings and configurations on their computer. Within the Power Options section, users can customize power settings such as screen brightness, sleep mode, and power button behavior to optimize the laptop's power usage and performance.

The proper way to clean optical drives is by using a cleaning disc specifically designed for optical drives. These cleaning discs have small brushes or microfiber cloths that can effectively remove dust and debris from the laser lens of the drive. Spraying ionized solution inside the drive or using an electrostatic vacuum cleaner can potentially damage the delicate components of the drive. Blowing dust with compressed air may also cause the dust to spread and settle on other parts of the drive. Therefore, using a cleaning disc is the safest and most effective method for cleaning optical drives.

PC ExpressCard is the correct answer because it is the type of interface that current laptops use to achieve similar expansion capabilities as desktops. PC ExpressCard allows users to add various devices, such as graphics cards, network adapters, and storage devices, to their laptops. It provides a high-speed connection and is designed to be hot-swappable, making it convenient for users to add or remove expansion cards without needing to restart their laptops.

A technician would initially ask open-ended questions to gather information to help solve the problem. Open-ended questions allow the person being questioned to provide detailed and descriptive answers, which can help the technician understand the issue more comprehensively. By asking open-ended questions, the technician can gather relevant information, identify potential causes, and determine the best course of action to resolve the problem effectively.

In order for a technician to configure power management states using Windows XP, the ACPI power management mode must first be enabled in the BIOS. ACPI (Advanced Configuration and Power Interface) is a standard that allows the operating system to control power management settings. By enabling ACPI in the BIOS, Windows XP will be able to access and configure power management options.

The three components that are interchangeable between desktop and laptop computers are printer, scanner, and USB flash drive. These components can be easily connected and used with both desktop and laptop computers without any compatibility issues. The PC ExpressCard, hard disk, and PCI sound card are not interchangeable between desktop and laptop computers as they have different form factors and interfaces.

An optical drive is the correct answer because it is a component that can be easily removed and replaced while the laptop is still running, without the need to restart or shut down the system. This feature allows users to quickly swap out different optical discs, such as CDs or DVDs, without interrupting their work or entertainment. In contrast, the CPU, LCD screen, RAM, and touchpad are all integral components that cannot be easily removed or replaced while the laptop is in use.

To clean the surface of CDs and DVDs, two actions should be performed. Firstly, it is recommended to use a lint-free cotton cloth as this material will not scratch or damage the disc. Secondly, the disc should be wiped from the center outward to prevent any potential damage to the data on the disc.

Power schemes refer to the collection of settings that control the power settings of a laptop. These settings include options such as when the display should turn off, when the computer should go into sleep mode, and how much power should be allocated to different components. Power schemes allow users to customize and optimize power usage according to their preferences and needs, helping to extend battery life and manage power consumption effectively.

A docking station may have PCI slots for expansion cards and speakers, which allows for additional functionality and customization. This feature is not present in a port replicator, which typically only replicates the ports of a laptop without providing any additional slots or speakers. Therefore, the presence of PCI slots and speakers is a key difference between a docking station and a port replicator.

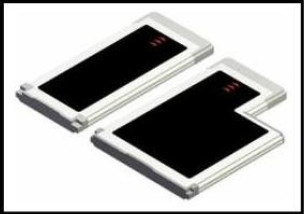

The devices shown in the exhibit support two form factors: 34mm wide and 54mm wide. This means that these devices are designed to accommodate cards or components that have a width of either 34mm or 54mm. The other form factors mentioned (30mm wide, 43mm wide, and 45mm wide) are not supported by the devices shown in the graphic.

In Windows XP, both the disk drive and the monitor can be individually configured to power off after a certain period of inactivity. This feature is useful for saving power and extending the battery life of a laptop. By setting the disk drive to power off, it can reduce unnecessary spinning and conserve energy. Similarly, by setting the monitor to power off, it can save power when the laptop is not in use. This allows the user to customize power settings according to their preferences and optimize energy usage.

The CPU chip and USB drive are commonly hot-swappable on laptops. This means that they can be inserted or removed from the laptop while it is still powered on without causing any damage or requiring a restart. The CPU chip is the central processing unit of the laptop and can be upgraded or replaced easily. USB drives are external storage devices that can be connected and disconnected without needing to shut down the laptop.
