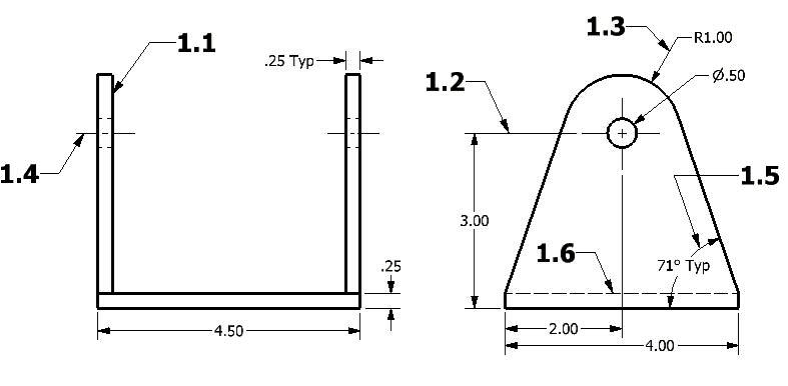

    Identify line 1.4 - ProProfs

    Identify line 1.4

Please wait...
About This Quiz

Can You Identify Correct Lines And Drawing? A person that can draw has a different view from those that don’t, and this is because they can see the detail in images that most people cant. How good is your eyesight as an artist? Take up this exciting quiz and get to find out if you might need to visit some few art shows to sharpen your skills.

Can You Identify Correct Lines And Drawing? Trivia Quiz - Quiz

Quiz Preview

  • 2.
    Identify line 1.6 - ProProfs

    Identify line 1.6

  • 3.

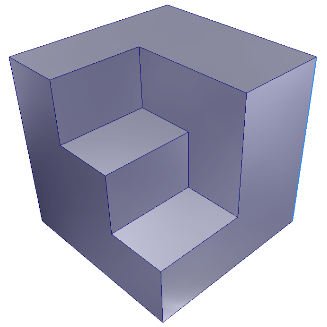

    The image is an example of what type of pictorial drawing? - ProProfs

    The image is an example of what type of pictorial drawing?

    • Isometric

    • Oblique

    • 1 point

    • 2 point

    Correct Answer
    A. Isometric
    Explanation
    The image provided depicts a pictorial drawing that represents an object in three dimensions, with all three axes (x, y, and z) equally foreshortened. This type of drawing is called an isometric drawing. In an isometric drawing, the object is shown from a specific angle and all lines parallel to the three principal axes are drawn at the same angle. This results in a realistic representation of the object, allowing for easy visualization of its shape and dimensions.

    Rate this question:

  • 4.
    Identify line 1.1 - ProProfs

    Identify line 1.1

    Correct Answer
    Object line
    Explanation
    The correct answer is "Object line" because it is asking to identify line 1.1, which refers to the line that contains the object. The object line typically describes the item or concept that is being discussed or represented in the given context.

    Rate this question:

  • 5.
    What type of drawing/view best describes the image to the right?   - ProProfs

    What type of drawing/view best describes the image to the right?

    • Section view

    • Oblique

    • Multi View

    • 3 point

    Correct Answer
    A. Multi View
    Explanation
    The image to the right is best described as a multi-view drawing/view because it shows multiple views of an object from different angles.

    Rate this question:

  • 6.

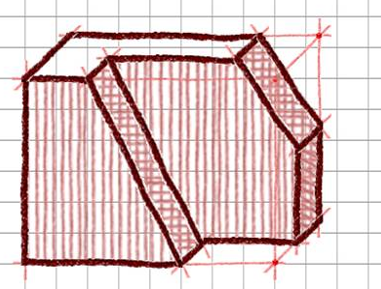

    What type of pictorial drawing is pictured to the right? - ProProfs

    What type of pictorial drawing is pictured to the right?

    • Isometric

    • Oblique

    • 1 point

    • Multi view

    Correct Answer
    A. Oblique
    Explanation
    The correct answer for this question is "Oblique." Oblique is a type of pictorial drawing where the object is represented with parallel lines, but one face of the object is shown in true shape and size while the other faces are shown in a distorted manner. In this type of drawing, the object is typically shown at a 45-degree angle from the viewer's perspective.

    Rate this question:

  • 7.
    The image at the right is an example of ________________. - ProProfs

    The image at the right is an example of ________________.

    • Airbrushing

    • Highlights and Shadows

    • Tonal Shading

    • Coloring

    Correct Answer
    A. Tonal Shading
    Explanation
    The image at the right demonstrates tonal shading. Tonal shading is a technique used to create the illusion of depth and three-dimensionality in an artwork by using different shades of the same color or different colors to create highlights and shadows. In this image, there are clearly defined areas of light and dark, indicating the use of tonal shading.

    Rate this question:

  • 8.

    A(n) _______________________ is the most common method of communicating the shape and size of an object that is intended for manufacture.

    • Multi view projection

    • Exploded view

    • Auxiliary view

    • Pictorial view

    Correct Answer
    A. Multi view projection
    Explanation
    Multi view projection is the most common method of communicating the shape and size of an object that is intended for manufacture. This technique involves creating multiple views of the object from different angles, such as front, top, and side views. These views provide a comprehensive understanding of the object's dimensions and features, allowing manufacturers to accurately produce it. Unlike other methods like exploded view, auxiliary view, and pictorial view, multi view projection provides a more detailed and precise representation of the object, making it ideal for manufacturing purposes.

    Rate this question:

  • 9.
    Identify line 1.2 - ProProfs

    Identify line 1.2

    Correct Answer
    Extension line
    Explanation
    The correct answer is "Extension line". In technical drawing, an extension line is a line that extends from the outline of an object to indicate the dimension or measurement of a feature. It is used to show the length or size of a specific part of the object being drawn.

    Rate this question:

  • 10.

    What are the line angles for an oblique drawing

    • 30, 90

    • 90, 45

    • 45, 120

    • None above

    Correct Answer
    A. 90, 45
    Explanation
    The line angles for an oblique drawing are 90 degrees and 45 degrees. In an oblique drawing, the object is represented with one face parallel to the picture plane, while the other faces are shown at an angle. The 90-degree angle represents the vertical lines or edges of the object, while the 45-degree angle represents the lines or edges that are receding into the distance. These angles are commonly used in oblique drawings to create a sense of depth and perspective.

    Rate this question:

  • 11.

    What are the specified angles for isometric

    Correct Answer
    30, 60, 90
    Explanation
    The specified angles for isometric projection are 30, 60, and 90 degrees. These angles are commonly used in engineering and technical drawings to represent three-dimensional objects on a two-dimensional plane. In isometric projection, the object is viewed from a specific angle that maintains equal proportions between the three axes (x, y, and z). The angles 30, 60, and 90 degrees create a visually appealing and balanced representation of the object, allowing for clear understanding of its shape and dimensions.

    Rate this question:

  • 12.
    What type of pictorial drawing is pictured to the right? - ProProfs

    What type of pictorial drawing is pictured to the right?

    • Isometric

    • Oblique

    • 3 point Perspective

    • Orthographic

    Correct Answer
    A. 3 point Perspective
    Explanation
    The correct answer is 3 point Perspective. This type of pictorial drawing is characterized by the use of three vanishing points, which create a sense of depth and dimensionality in the image. It is often used in architectural and interior design drawings to accurately represent three-dimensional space on a two-dimensional surface.

    Rate this question:

  • 13.
    Identify line 1.3 - ProProfs

    Identify line 1.3

    Correct Answer
    Extension Line
  • 14.

    A _____ is a point in space, usually located on the horizon, where parallel edges of an object appear to converge.

    • Visualize

    • Vanishing point

    • Projection Plane

    • Construction Line

    Correct Answer
    A. Projection Plane
    Explanation
    A projection plane is a flat surface onto which an object is projected, creating a visual representation. In this context, a projection plane is used to create a perspective drawing, where parallel edges of an object appear to converge at a specific point in space called the vanishing point. The vanishing point is located on the horizon, and it is where the parallel edges of the object seem to meet or converge. Therefore, the correct answer is "Projection Plane."

    Rate this question:

  • 15.

    What are the three main views of a multi view drawing that are required to depict an object?

    Correct Answer
    front, top, right
    Explanation
    The three main views of a multi-view drawing that are required to depict an object are the front view, top view, and right view. These views provide a comprehensive representation of the object from different angles and orientations. The front view shows the object as it would be seen from the front, the top view shows the object as it would be seen from the top, and the right view shows the object as it would be seen from the right side. Together, these views give a complete understanding of the object's shape, dimensions, and features.

    Rate this question:
