CISCO CCNA - Book 1, Chapter 2

A router is a device that moves data between networks by determining the best path for data packets to travel. It examines the destination IP address of each packet and forwards it to the appropriate network. Routers are essential for connecting multiple networks together and directing traffic efficiently. They also provide network security by implementing firewall rules and network address translation. Overall, routers play a crucial role in ensuring that data is transmitted accurately and efficiently across networks.

The elements of communication include a message source, a message destination, and a channel. The channel refers to the medium through which the message is transmitted from the source to the destination. It can be a physical channel like a telephone line or a digital channel like email or social media. The choice of channel depends on factors such as the nature of the message, the audience, and the desired level of interactivity.

When a protocol is owned by a company and has limited use, it is considered to be proprietary.

The network shown in the exhibit is a Local Area Network (LAN). A LAN is a network that connects devices within a limited geographic area, such as a home, office, or building. LANs are typically used to facilitate communication and data sharing between devices in close proximity to each other.

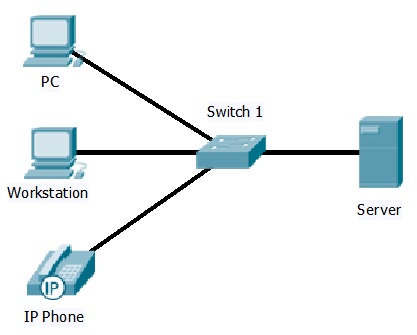

A switch is considered an intermediary device because it acts as a central point for connecting multiple devices within a network. It receives data packets from one device and forwards them to the appropriate destination device based on the MAC addresses. It helps in creating a network infrastructure by providing multiple ports to connect devices and facilitating communication between them. Unlike other devices listed, such as a file server, IP phone, laptop, or printer, a switch's primary function is to manage network traffic and enable efficient data transmission.

The OSI model is a conceptual framework that standardizes the functions of a communication system. It consists of seven layers, each responsible for specific tasks. The proper order of the layers from highest to lowest is application, presentation, session, transport, network, data link, and physical. This order reflects the flow of data from the user's application down to the physical transmission of the data. The application layer is responsible for user interfaces and data exchange, followed by the presentation layer that handles data formatting and encryption. The session layer manages communication sessions, while the transport layer ensures reliable data transfer. The network layer handles routing and addressing, and the data link layer manages data framing and error detection. Finally, the physical layer deals with the actual transmission of data through physical media.

A NIC, or network interface card, is the device that connects a device to the media. It is responsible for providing a physical connection between the device and the network, allowing data to be transmitted and received. The NIC acts as an intermediary between the device and the network, converting data into a format that can be transmitted over the media, such as Ethernet cables. It is an essential component for connecting devices to a network and enabling communication between them.

Segmentation is the process of dividing data streams into smaller pieces suitable for transmission. This is commonly used in computer networks to break down large data packets into smaller segments that can be easily transmitted over the network. By segmenting the data, it becomes more efficient for transmission and reduces the chances of errors or data loss. Multiplexing refers to combining multiple data streams into a single transmission channel, while encapsulation involves adding headers and trailers to data packets for transmission. Protocol refers to a set of rules and procedures for communication between devices.

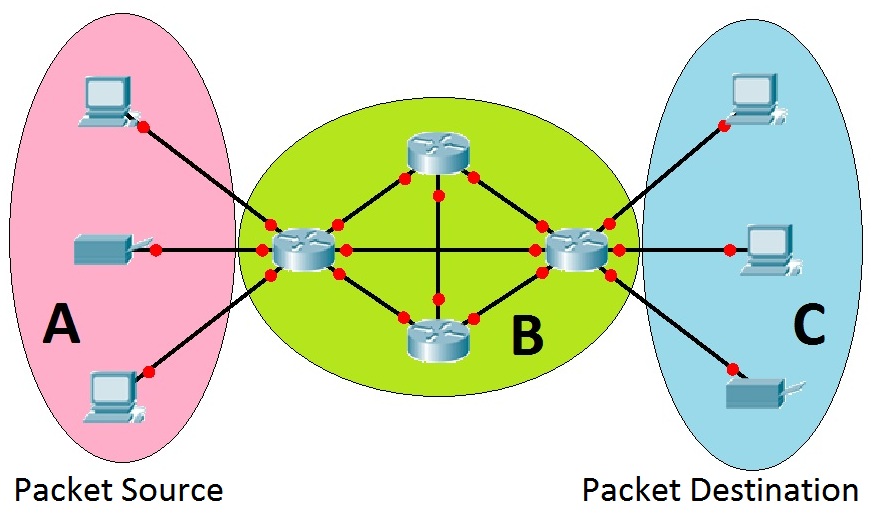

The term "intermediary" correctly identifies the device type that is included in area B. An intermediary device is a networking device that sits between source and destination devices, facilitating communication between them. In this case, the device in area B acts as a bridge or a switch, connecting the source and end devices and forwarding data packets between them.

A protocol is a specific set of rules that determine the formatting of messages and the process of encapsulation used to forward data. It provides a standardized way for devices to communicate and ensures that data is transmitted correctly and efficiently. Protocols define the structure and order of messages, as well as the actions that devices should take in response to different situations. By following a protocol, devices can establish a common understanding of how data should be exchanged, allowing for successful communication between them.

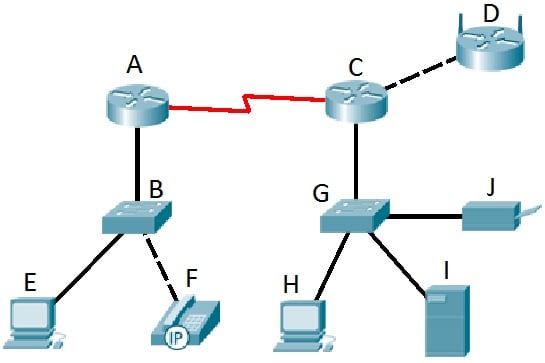

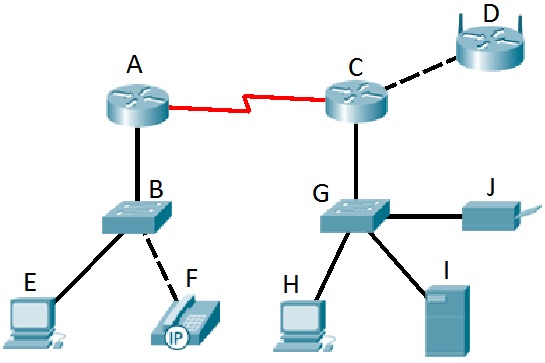

The devices E, F, H, I, and J are the only end devices in the exhibit. End devices are devices that are the source or destination of data in a network, such as computers, smartphones, or printers. The other devices (A, B, C, D, and G) are likely switches or routers, which are intermediate devices used to connect and manage network traffic. Therefore, the set of devices E, F, H, I, and J contains only end devices.

Layer 3 of the OSI model, also known as the Network layer, is associated with IP addressing. This layer is responsible for logical addressing, routing, and forwarding of data packets. IP addressing is used to uniquely identify devices on a network and enable communication between them. Therefore, it is correct to say that Layer 3 is associated with IP addressing.

The network layer is responsible for the logical addressing of devices in a network. The IP address is a unique identifier assigned to each device connected to a network. It is used by the network layer to route data packets across different networks. Frames and MAC addresses are associated with the data link layer, which is responsible for the physical transmission of data within a network. Physical addressing refers to the process of assigning physical addresses to devices, which is also a function of the data link layer.

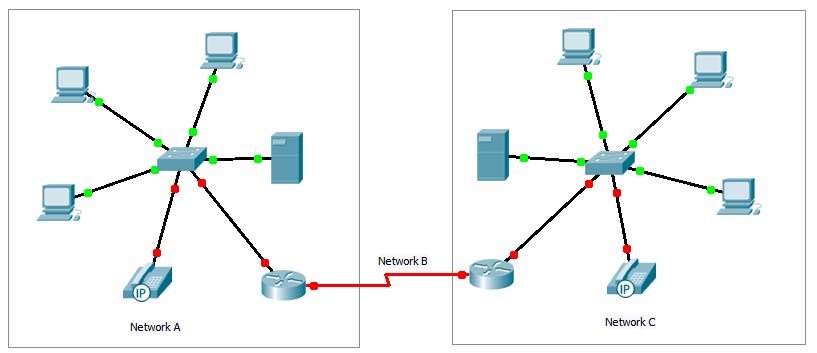

The exhibit shows three network segments labeled as Network A, Network B, and Network C. The correct labels for these network segments are as follows: Network A is a LAN (Local Area Network) because it is a small network that covers a limited area, typically within a single building or campus. Network B is a WAN (Wide Area Network) because it connects multiple LANs over a large geographical area, such as different cities or countries. Network C is also a LAN because it is a small network confined to a limited area.

Multiplexing is the process of combining multiple data streams into one shared communication channel or network medium. It allows for the efficient utilization of the available bandwidth by dividing it into smaller channels or time slots. This enables multiple signals to be transmitted simultaneously, increasing the overall capacity and efficiency of the communication system. Multicasting refers to the transmission of data to a group of recipients, encapsulation involves wrapping data in a protocol header, and multidirecting is not a recognized term in the context of networking.

The given graphic shows that "Cell A" has established an IP session with "IP Phone 1". This indicates that "Cell A" is a device that initiates and terminates communication sessions, making it an end device.

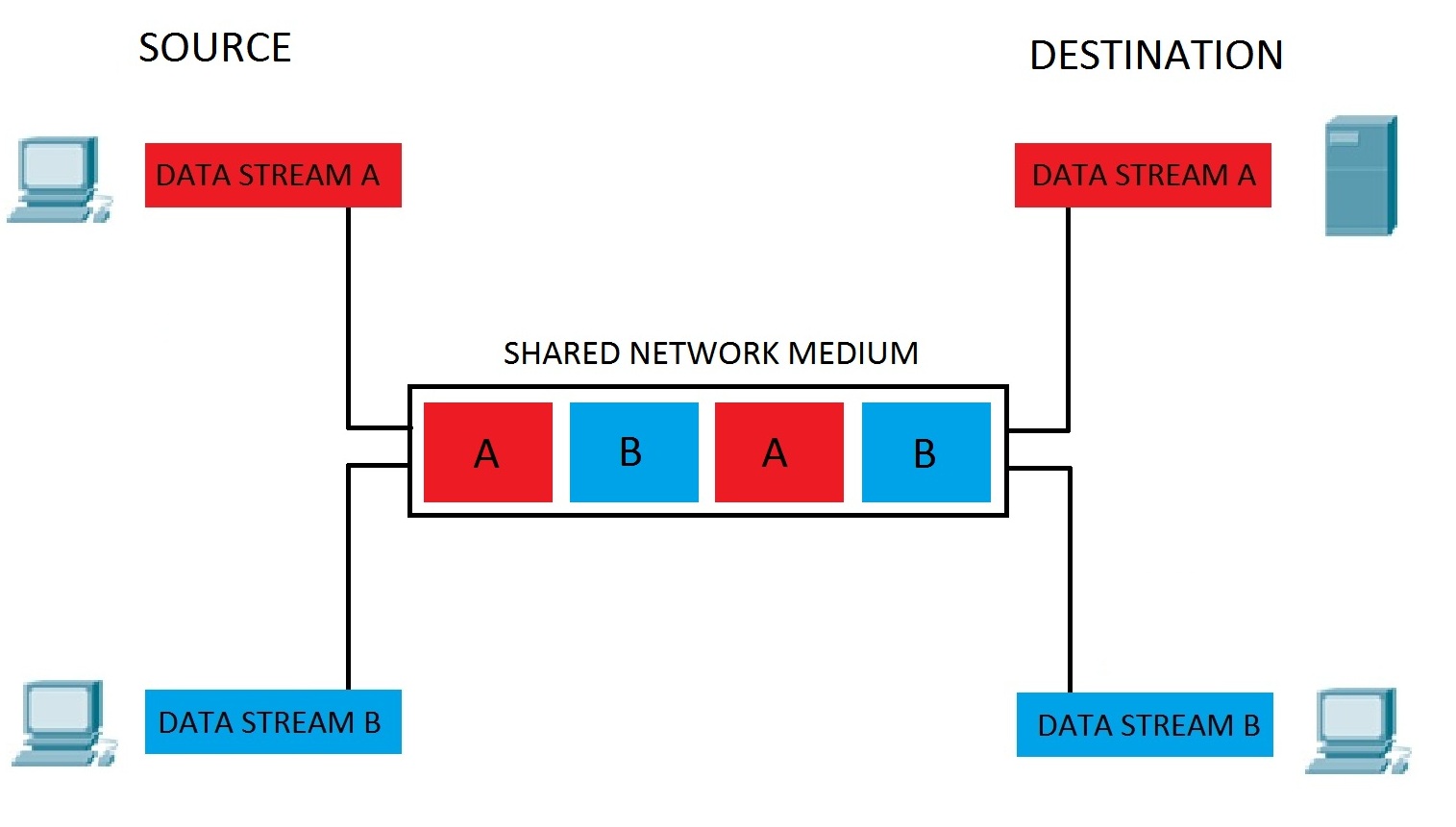

The given graphic represents the process of multiplexing. Multiplexing is a networking term that refers to the combining of multiple signals or data streams into a single transmission medium. In this process, multiple data streams are interleaved and transmitted together, allowing for more efficient use of the network bandwidth. This helps to optimize the utilization of the network resources and enables multiple users or applications to share the same network infrastructure simultaneously.

Layer 4 of the OSI model is the Transport layer, which is responsible for end-to-end communication between hosts. TCP (Transmission Control Protocol) is a protocol that operates at this layer and provides reliable, connection-oriented communication. It ensures that data is delivered in the correct order and without errors. IP (Internet Protocol) operates at layer 3, FTP (File Transfer Protocol) operates at layer 7, and TFTP (Trivial File Transfer Protocol) operates at layer 7 as well. Therefore, TCP is the correct answer associated with layer 4 of the OSI model.

A PDU, or Protocol Data Unit, is a layer specific encapsulation. This means that it is a unit of data that is created at a specific layer of the network protocol stack. Each layer in the protocol stack adds its own header and possibly footer to the data, creating a PDU. These PDUs are then passed down or up the protocol stack as needed for transmission or reception of data. This encapsulation allows for the data to be properly processed and understood by the different layers of the network protocol stack.

During the encapsulation process at the data link layer, the physical address is added. The data link layer is responsible for the transmission of data over a physical link. It adds a header to the data packet, which includes the physical address or MAC address of the source and destination devices. This allows the data to be properly routed and delivered to the intended recipient at the physical layer.

By examining the network layer header, one can identify the destination host address. The network layer header contains information about the source and destination IP addresses, among other details. The destination host address is crucial in determining where the data packets should be sent within the network.

End devices in a network refer to devices that generate and send data. They are the source of data flow in a network, initiating the transmission of information. These devices include computers, smartphones, tablets, and other devices that can originate and send data packets. They play a crucial role in the network by starting the flow of data, which is then transmitted and managed by other devices such as routers and switches.

After the web page data is formatted and separated into TCP segments, the next step in the encapsulation process is for the server to add the source and destination address to each segment header. This is done to ensure that the packets are delivered to the correct destination.

A LAN is usually in a single geographical area, meaning it covers a small geographic area such as a building or campus. The network is administered by a single organization, indicating that one organization is responsible for managing and controlling the LAN. A LAN provides network services and access to applications for users within a common organization, suggesting that it offers connectivity and resources to users within the same organization.

The layer of the OSI model that is concerned with end-to-end message delivery over the network is the Transport layer. This layer is responsible for ensuring reliable and efficient transmission of data between devices. It breaks down large messages into smaller packets, adds necessary information for addressing and error checking, and reassembles them at the receiving end. It also handles flow control and error recovery, ensuring that data is delivered accurately and in the correct order.

Encapsulation allows data to be grouped together and treated as a single unit, which helps in identifying pieces of data as part of the same communication. It also ensures that the data pieces can be directed to the correct receiving end device by adding necessary addressing information.

The Network Access Layer in the TCP/IP model is responsible for the physical transmission of data and the addressing of devices on the network. The Physical layer of the OSI model also deals with the physical transmission of data, including the electrical, mechanical, and functional specifications for the physical connection between devices. The Data Link layer in the OSI model is responsible for the reliable transfer of data between network nodes, including error detection and correction. This layer performs similar functions to the Network Access Layer in the TCP/IP model. Therefore, the correct answer is Physical and Data Link.

The primary function of the trailer information added by the data link layer encapsulation is to support error detection. This trailer contains a checksum or a cyclic redundancy check (CRC) value that allows the receiving device to verify if the data has been transmitted correctly. By comparing the checksum or CRC value with the received data, errors can be detected and appropriate actions can be taken to ensure data integrity.

The Network layer is responsible for encapsulating the segment into packets. This layer adds a header to the segment, which includes the source and destination IP addresses. The packets are then sent across the network to their destination. The Network layer also handles routing, ensuring that the packets take the most efficient path to reach their destination.

At the OSI layer 2, the addressing is done at the physical and MAC level. Physical addressing refers to the hardware address assigned to each network interface card (NIC) in a network. MAC (Media Access Control) addressing is a unique identifier assigned to each NIC, allowing devices to communicate with each other on a local network. IP addressing, on the other hand, is found at the OSI layer 3, and port addressing is found at the OSI layer 4.

The primary purpose of Layer 4 port assignment is to identify the processes or services that are communicating within the end devices. Layer 4 of the OSI model is responsible for end-to-end communication between hosts. Port numbers are used to differentiate between different processes or services running on the same device. By assigning a unique port number to each process or service, the receiving device can determine which application or service the incoming data is intended for. This allows for proper delivery and handling of network traffic.

Intermediary devices in a network play several important roles. Firstly, they determine pathways for data, meaning they decide the most efficient route for data to travel from the source to the destination. Secondly, they retime and retransmit data signals, ensuring that data is sent accurately and without errors. Finally, they manage data flows, controlling the rate at which data is transmitted and ensuring that it is delivered to the correct devices. These three roles are crucial for the smooth operation and efficient functioning of a network.

The purpose of the TCP/IP Network Access layer is to control and manage the network media. This includes tasks such as specifying the physical means of transmitting data, addressing devices on the network, and managing the flow of data between devices. The Network Access layer ensures that data can be transmitted reliably and efficiently over the network media.

Network protocols define the structure of layer-specific PDU's, outlining how data should be formatted and organized at each layer. They also outline the functions necessary for communication between layers, specifying how data should be passed between them. Additionally, network protocols require layer-dependent encapsulations, meaning that each layer must encapsulate its data in a specific format before passing it to the next layer. These protocols do not eliminate standardization among vendors, nor do they limit the need for hardware compatibility.

LANs (Local Area Networks) are networks that connect devices within a limited geographical area, such as a home, office, or building. Hosts on a LAN use physical addressing (MAC addresses) to communicate with each other.

WANs (Wide Area Networks), on the other hand, connect multiple LANs or other networks over a larger geographical area, such as cities, countries, or even continents. WANs use TSPs (Telecommunications Service Providers) to connect these groups of networks together.

Therefore, the two true statements about LANs and WANs are: Hosts on a LAN use physical addressing to communicate, and WANs connect groups of networks using TSPs.

The layers of the OSI model that are combined into other layers of the TCP/IP model are Presentation, Data Link, Physical, and Session. In the TCP/IP model, the Presentation layer is combined with the Application layer, the Data Link layer is combined with the Network Access layer, the Physical layer remains the same, and the Session layer is not included in the TCP/IP model.
