Architecture Assessment Trivia Quiz

IPS policies can indeed be applied to both User/Network rules and Business Application rules. Intrusion Prevention System (IPS) policies are designed to protect networks and systems from potential threats and attacks. These policies can include rules that define the behavior and actions allowed or blocked for users and network traffic, as well as rules specific to business applications. By applying IPS policies to both types of rules, organizations can enhance their overall security posture and mitigate risks from various sources.

WPA2 can be used to support Fast BSS. WPA2 is the most secure security mode among the options given. It provides stronger encryption and authentication compared to WEP and WPA, making it the ideal choice for ensuring the security of the network while also allowing for a seamless roaming experience for users in the large office space.

not-available-via-ai

Check the image on page 40

The correct command to SNAT the traffic from the XG firewall to the Internet to 10.1.1.45 is "set advanced-firewall sys-traffic-nat add destination 0.0.0.0 netmask 0.0.0.0 snatip 10.1.1.45". This command sets up a NAT policy that specifies a destination of 0.0.0.0 netmask 0.0.0.0, which represents all traffic, and SNATs it to the IP address 10.1.1.45.

The computers were not able to ping each other because there was no firewall rule in place to allow traffic from the LAN zone to another port in the LAN zone. Without this rule, the firewall was blocking the communication between the computers even though they were in the same zone.

The XG Firewall identifies computers that are missing the Security Heartbeat based on their MAC Address.

Adding 1.2.3.4 to the remote network list will allow the Sophos access point to be recognized by the XG Firewall.

If you lose the unlock code for the RED device, it cannot be connected to another Sophos XG Firewall. This means that the device will be permanently locked and unable to establish a connection with any other firewall. Therefore, it is important to keep the unlock code safe and secure to ensure the proper functioning of the RED device.

When configuring Web Server Protection, reviewing the reverseproxy.log is the most effective way to identify which rules and paths need to be created exceptions for. The reverseproxy.log contains detailed information about the requests and responses that the web server receives and sends. By analyzing this log, you can identify any patterns or specific requests that need to be exempted from the standard rules and paths. This allows you to fine-tune the Web Server Protection configuration and ensure that legitimate traffic is not blocked or affected by the security measures in place.

The correct answer is "system dos-config show dos-rules". This command is used to view the existing DoS rules in Lab 3.

The command "service -S" lists all of the services and their current state. This command provides an overview of the status of all services running on the system, allowing the user to see which services are currently active or inactive. It is a useful command for system administrators or users who need to monitor the status of various services on their system.

When you enable RED services on the XG Firewall, it is important to use a valid email address because the unlock codes for REDs will be sent to this email address. These unlock codes are necessary to complete the setup process and activate the RED devices. Using a valid email address ensures that you receive the unlock codes and can successfully complete the configuration of the RED services on the XG Firewall.

Yes, the customer can create a gateway on a VLAN interface in their Intranet zone to use in a policy routing rule. This means they can set up a specific route for traffic coming from that VLAN interface, allowing them to control how the traffic is routed within their network.

To retrieve a log file from an XG Firewall, the logs need to be uploaded to an FTP server from the XG Firewall. This means that the log file is transferred from the firewall to an FTP server for further analysis or storage. The other options mentioned, such as using SCP, sending logs via email, or downloading them from the WebAdmin, are not the correct methods for retrieving log files from an XG Firewall.

A policy routing rule needs to be created in order to ensure that only traffic from secure servers in the network uses the second Internet connection (WAN 2). This rule will allow for the specific routing of traffic based on certain policies or criteria, in this case, the security level of the server. By implementing a policy routing rule, the network administrator can effectively direct traffic from secure servers to the desired Internet connection, while other traffic can continue to use the default connection.

not-available-via-ai

When sizing for a virtual XG Firewall, it is important to consider the performance decrease caused by the hypervisor. The correct answer is 10%. This means that when determining the required resources for the virtual firewall, you should account for a 10% decrease in performance due to the hypervisor overhead. This ensures that the virtual firewall has enough resources to handle the expected workload efficiently and effectively.

The customer can identify who logged in to make the changes by finding the SSH key in the dropbear.log. This log file records all SSH key-based authentication attempts and provides information about the user who logged in using the SSH key. By examining the dropbear.log, the customer can determine which IT department member accessed the XG Firewall and made the changes.

Check the image on page 55

Check the image on page no 76

Connecting another XG Firewall Port to the switch and configuring 802.3ad LAG would be recommended to Sophos Store. This would allow for the aggregation of multiple ports, increasing the internal bandwidth for each server. LAG (Link Aggregation Group) combines multiple physical connections into a single logical connection, providing higher throughput and redundancy. 802.3ad is a standard for link aggregation that ensures load balancing and fault tolerance across the aggregated links. This solution would effectively enhance the internal bandwidth for the servers at the Sophos Store.

Check on the page no 219 At the remote location, the RED requires:

• A power connection

• A network connection

• A DHCP server to provide an IP address, DNS server and default gateway

• Port 3400 TCP (COMMON FOR ALL RED DEVICE)

• Port 3400 UDP (RED 10)

• Port 3410 UDP (RED 50 and RED 15)

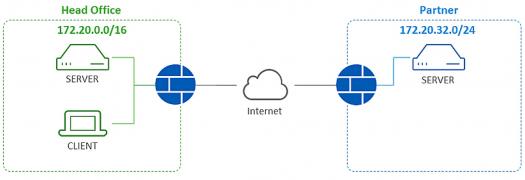

NAT Overlap can be used in the IPsec site-to-site VPN on an XG Firewall to allow communication between these networks. NAT Overlap is a feature that allows multiple devices on a private network to share a single public IP address. In this scenario, the two networks have overlapping IP address ranges, which means that without NAT Overlap, there would be conflicts and communication between the networks would not be possible. By enabling NAT Overlap, the XG Firewall can translate the overlapping IP addresses to unique addresses, ensuring that communication between the networks is successful.

To convert an Active-Active cluster into an Active-Passive cluster, the HA (High Availability) needs to be disabled and a new cluster needs to be created. This involves configuring one device as the active device and the other device as the passive device. The active device will handle all the traffic and the passive device will remain idle until the active device fails, at which point it will take over the traffic handling responsibilities.

not-available-via-ai

The country selected when the access point was accepted on the XG Firewall is used to determine which channels the access point can broadcast on. Different countries have different regulations and restrictions regarding wireless frequencies and channels. The access point needs to comply with these regulations and can only broadcast on channels that are allowed in the selected country.

You can use ECDSA, DSA, and RSA algorithms to generate the key for enabling SSH access to an XG Firewall. These algorithms are commonly used for generating cryptographic keys and ensuring secure communication. ECDSA (Elliptic Curve Digital Signature Algorithm), DSA (Digital Signature Algorithm), and RSA (Rivest-Shamir-Adleman) are all widely accepted and secure algorithms for key generation in SSH.

The correct answer is 414 UDP, 2712 TCP, and 415 UDP. These ports need to be open to allow for proper wireless communication between the access points and the XG Firewall. The UDP protocol is used for port 414 and 415, while the TCP protocol is used for port 2712. By opening these ports, the access points will be able to communicate with the XG Firewall effectively, resolving the communication issues.

Possible causes of a computer with a YELLOW heartbeat could be that inactive malware has been detected or a PUA (Potentially Unwanted Application) has been detected.

The correct answer is "tcpdump "host 172.16.16.16 and port 6060". This command will capture network traffic on the XG Firewall with the IP address 172.16.16.16 and the port number 6060. By using this command, you can check if logins are being reported to the XG Firewall by STAS.

The given scenario suggests that the slow file access issue is due to the IPS scanning of traffic between the LAN and SERVERS zone. To improve performance, it is recommended to configure a more appropriate IPS policy for the LAN zone to the SERVERS zone. This means adjusting the IPS settings to better suit the traffic between these zones, potentially reducing the scanning overhead and improving file transfer speeds.

The customer should configure the heartbeat IP address as a permitted network resource in the VPN profile. This will allow the computers connecting through the SSL remote access VPN to access the intranet servers by recognizing their GREEN heartbeat status.

If the New York Gateway had 2 WAN connections, then there would be a total of 4 IPsec connections created on the New York Gateway in order to take advantage of the maximum number of possible VPN failover routes. Each WAN connection would require 2 IPsec connections, resulting in a total of 4 IPsec connections.

To specify the IP address that should be used for traffic originating from the XG Firewall, you would configure a Local NAT policy. This allows you to define a specific IP address to be used as the source address for outbound traffic from the firewall. By configuring a Local NAT policy, you can ensure that traffic originating from the XG Firewall is sent out with the desired IP address, which is useful when publishing various services using multiple IP addresses on the WAN interface.

When configuring Web Server Protection for Microsoft Exchange, you need to create 3 Business Application Rules. These rules are used to define the specific behavior and security settings for the web server. Each rule will specify the conditions and actions to be taken in order to protect the server and its resources.

In the Standard/Split deployment mode, the following configurations need to be made on the Sophos XG Firewall: IP address of the RED interface, Zone of the RED interface, DHCP Server, and a list of split networks. This mode allows the RED device to be connected to a separate network segment, and the traffic from the RED device is split between the local and remote networks.

You can disable HA on the Primary device and the Standalone device. This means that you have the option to turn off High Availability on these devices.

To create a VPN to multiple remote networks at a single location, you do not need to create a VPN for each network. Instead, you can use a single VPN connection to connect to multiple remote networks simultaneously. This allows for more efficient and streamlined network management, as all the networks can be accessed through a single VPN connection.

The problem could be that the collector is not configured with the IP address of the branch office XG Firewall and vice versa. This means that the collector is not able to communicate with the XG Firewall at the branch office, causing the authentication process to fail. Additionally, the XG Firewall in the branch office may not be configured to allow the collector in the VPN zone, further preventing authentication from taking place.

If NATing had been enabled in this scenario, the source address of the traffic would have been rewritten. This means that the firewall rule on the REMOTE XG Firewall, which was configured to allow traffic to the remote network, would not have matched the rewritten source address. Therefore, the traffic would not have matched a firewall rule on the REMOTE XG Firewall, resulting in the routing not working correctly.

In order to add another group to authenticate for the protected web service, the customer should be directed to add this group in the Authentication Template.

The customer wants to confirm which connections would be actively used assuming no links have failed. The configuration states that the second IP/hostname for Sophos XG Firewall is configured for load balancing, and the second uplink on a RED 50 is configured for failover. This means that Uplink 1 will be actively used for both XG Firewall Hostname 2 and XG Firewall Hostname 1, while Uplink 2 will not be actively used for either hostname. Thus, the correct connections that would be actively used are RED 50 Uplink 1 to XG Firewall Hostname 2 and RED 50 Uplink 1 to XG Firewall Hostname 1.

To remove computers from the authentication cache, you can use the command "ipset -D lusers" and restart the Authentication service in the WebAdmin. These actions will clear the cached authentication status and remove the computers from the cache.

The error in the log file suggests that there is a filter rule blocking the login process. By adding ID 981003 and ID 981200 to the filter rule skip list, the web server will bypass these specific filter rules and allow the login to proceed successfully. This will resolve the error and allow the customer to log in to their webmail.

In an Active-Active cluster, the types of traffic that are load balanced include SNAT TCP traffic, TCP traffic, and VLAN traffic. Load balancing ensures that these types of traffic are evenly distributed across multiple devices, improving performance and preventing overload on a single device. Other types of traffic such as VPN traffic, ICMP traffic, and UDP traffic may not be load balanced in an Active-Active cluster, meaning they may not be evenly distributed and may still rely on a single device for processing.

To gather information and plan out the wireless deployment, it is recommended to determine if any of the walls or ceilings are made of materials that will significantly impede the signal. This is important to ensure that the wireless access points can provide adequate coverage in all areas. Additionally, obtaining the floor plan of the offices will help in identifying the optimal locations for installing the access points. Performing a site survey at the various locations will further assess the signal strength and potential interference sources. Scanning the channels used by other wireless networks will help in selecting the least congested channels for deployment. Lastly, estimating the number of devices that will be connecting at each location is necessary to determine the capacity requirements for the wireless network.

The configuration for a RED can be created directly on the Sophos XG Firewall. Additionally, the RED can load the configuration from a USB drive or download it from the provisioning servers. This allows for flexibility in how the RED is configured and allows for easy deployment and management of multiple RED devices.
