Exploring Microphone Technology: A Detailed Quiz on Types and Applications

The correct answer provides accurate specifications of the AKG C414B-ULS microphone, which is a large dual diaphragm condenser with various polar patterns and frequency responses, suitable for vocal and instrument recordings.

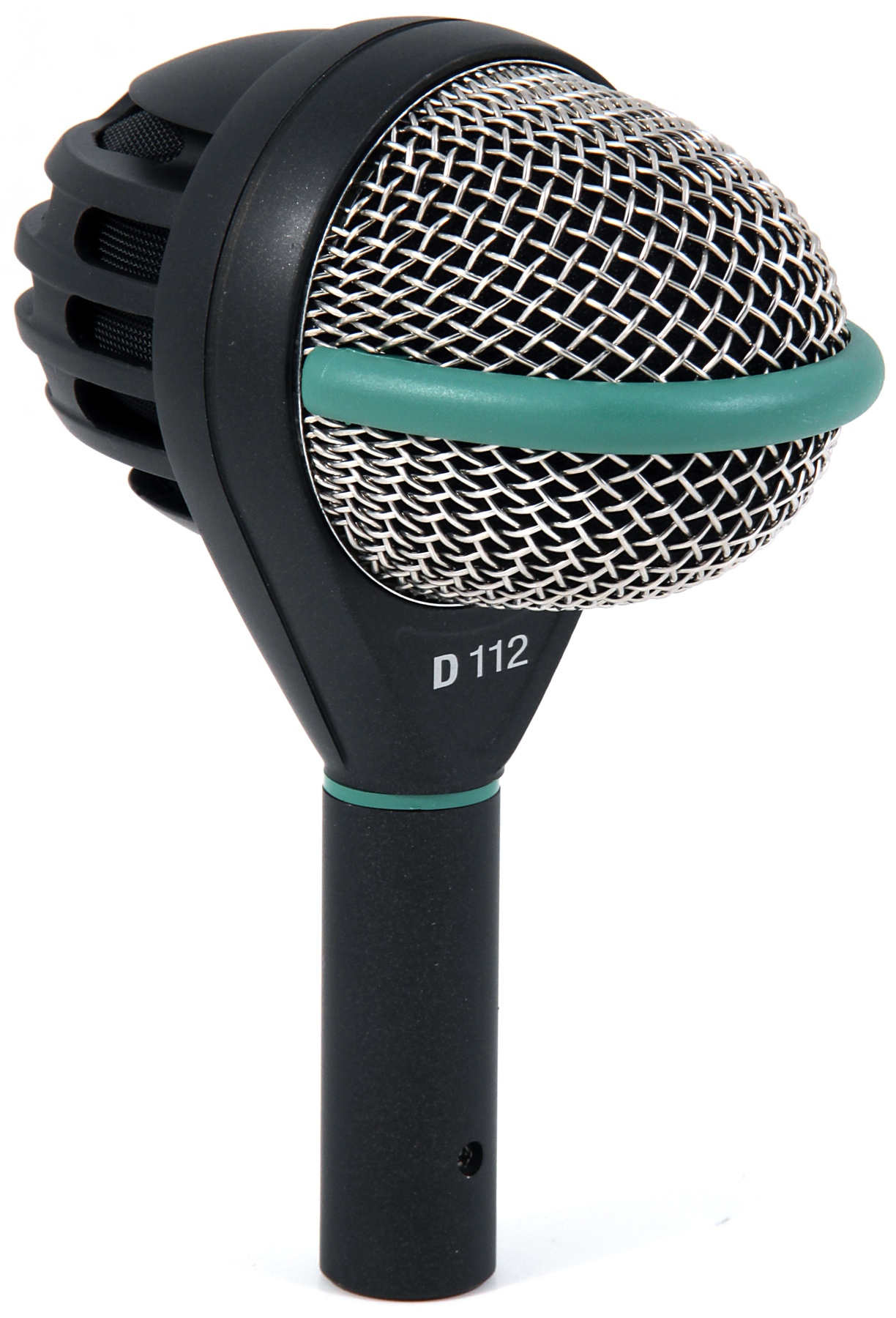

The AKG D112 is specifically designed for capturing low-frequency instruments such as kick drums, basses, bass cabs, and floor toms, making it ideal for applications where a low-frequency boost is desirable.

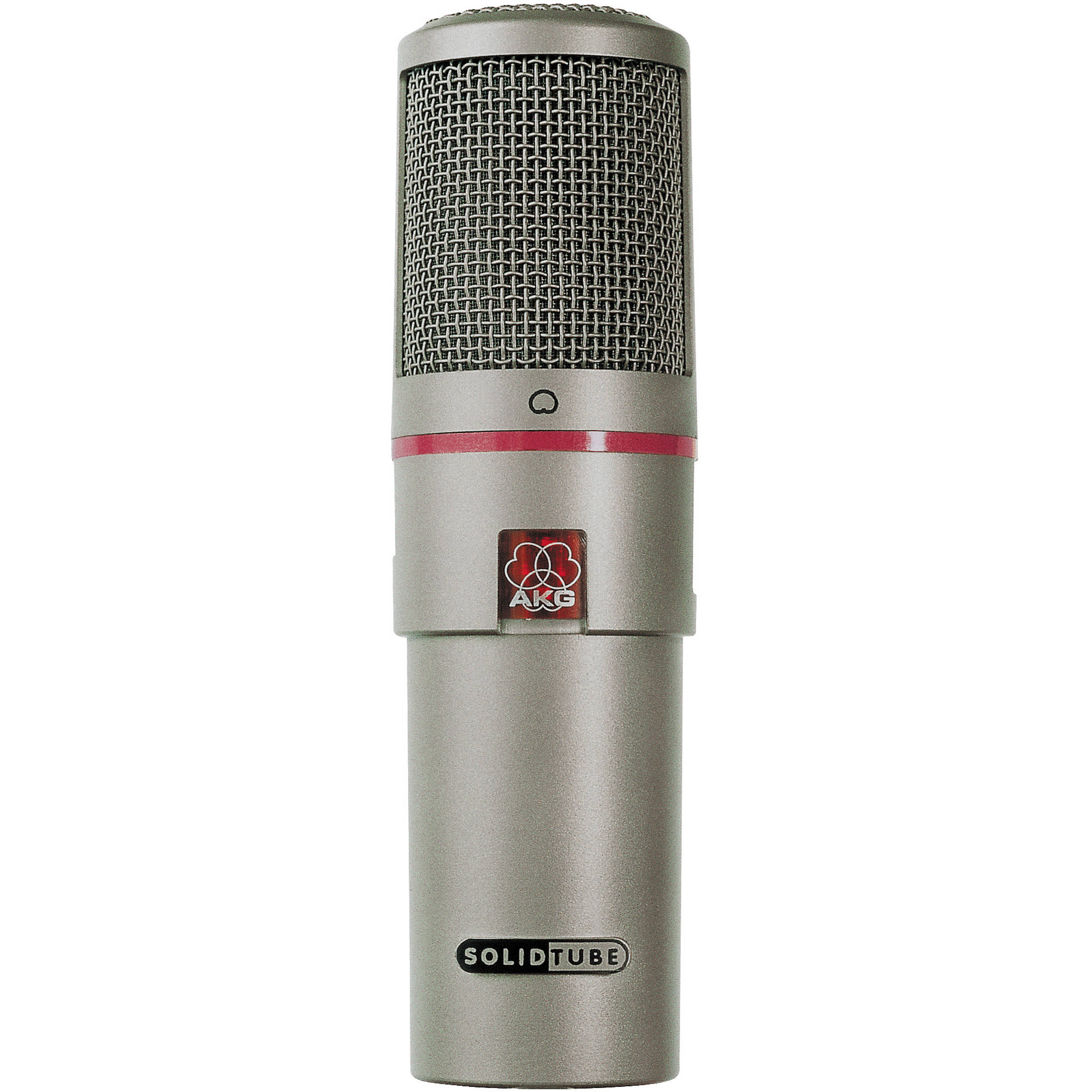

The AKG SolidTube is a large diaphragm condenser tube microphone with a side-address cardioid pattern, suitable for general purpose vocal and instrument recording. It features a low cut filter at 100 Hz and a -20dB pad, and the low cut is located on the power supply.

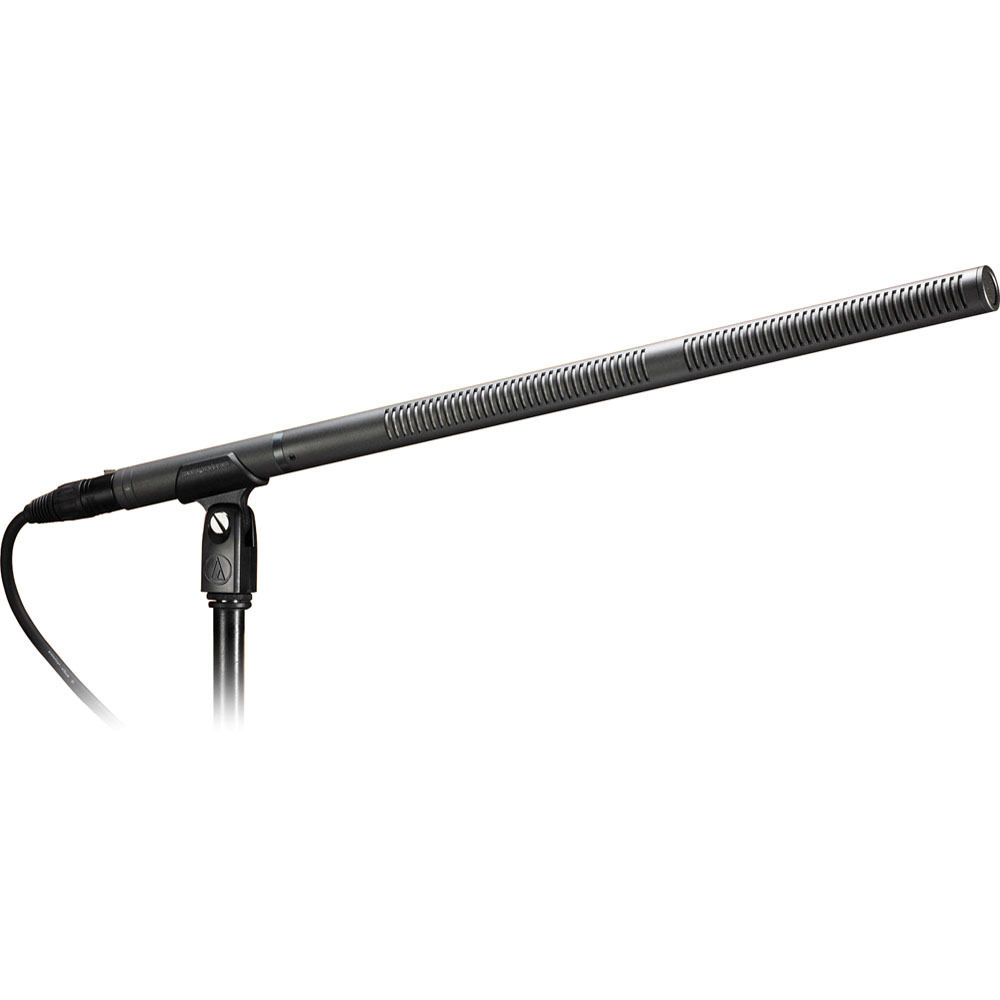

The correct answer describes the Audio Technica AT815R as a small diaphragm electret-condenser shotgun microphone with a front address design, ultracardioid polar pattern, frequency response of 40Hz-20kHz, primarily used for film and tv applications.

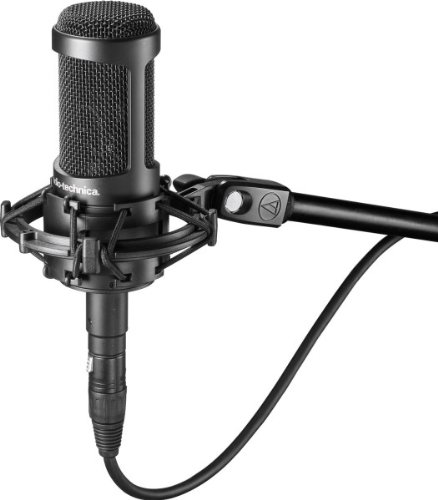

The Audio Technica AT2020 is a large diaphragm condenser microphone designed for general purpose use with vocals and instruments. It has a cardioid pickup pattern and operates within a frequency range of 20Hz to 20kHz.

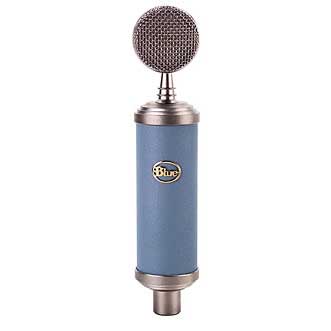

The correct answer details the specifications and features of the Bluebird microphone model, including its diaphragm type, polar pattern, frequency range, and intended use.

The correct answer refers to the specifications of a microphone called B.L.U.E Reactor, known for its condenser type and polar pattern for various vocal and instrumental uses.

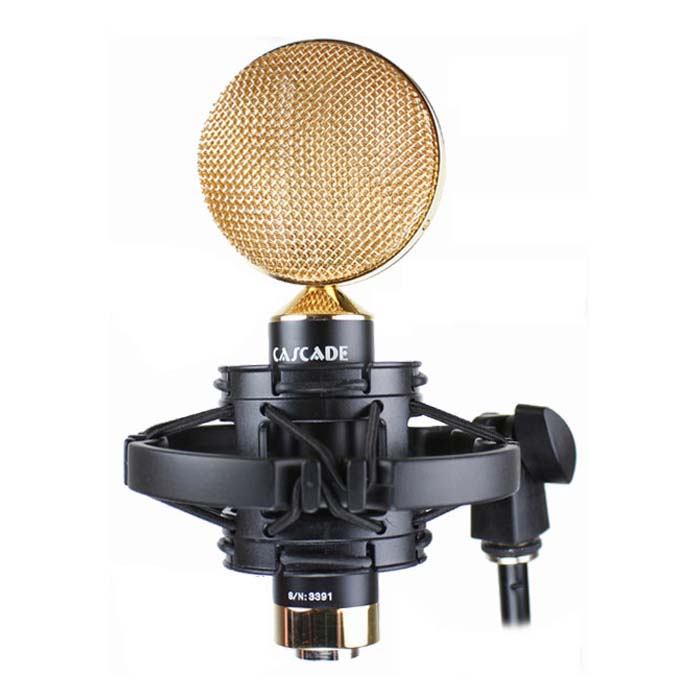

The Cascade Fathead II microphone is a ribbon microphone with a bidirectional polar pattern, covering a frequency range of 100Hz to 8kHz. It is designed for general purpose use with vocals and acoustic instruments.

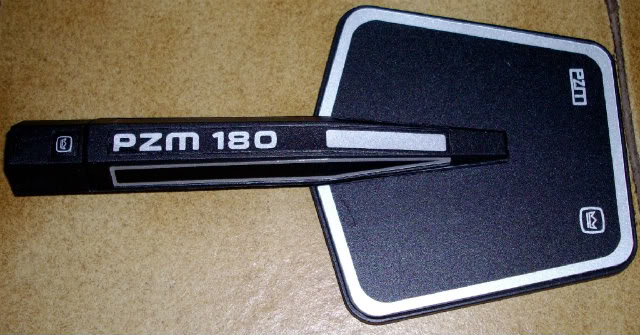

The correct features of the Crown PZM 180 microphone include being a small diaphragm electret-condenser boundary mic with side address, hemispherical pattern, and frequency response of 50Hz-18kHz. It is commonly used in conferences, film and TV productions, theatrical productions, and ambient room recordings.

The Earthworks M30 is specifically designed as a small diaphragm condenser microphone with a wide frequency range, making it suitable for room reference mic loudspeaker testing.

The Electro Voice RE-20 is a Large Diaphragm Moving Coil microphone designed for general purpose vocal and instruments, featuring a cardioid polar pattern with a frequency response range of 5Hz-18kHz and a low cut filter at 100Hz.

The correct answer provides a detailed description of the M-Audio Sputnik microphone, including its type, diaphragm, polar patterns, frequency response, and intended use. The incorrect answers differ in terms of microphone type, specifications, and applications, highlighting the unique features of the M-Audio Sputnik in comparison.

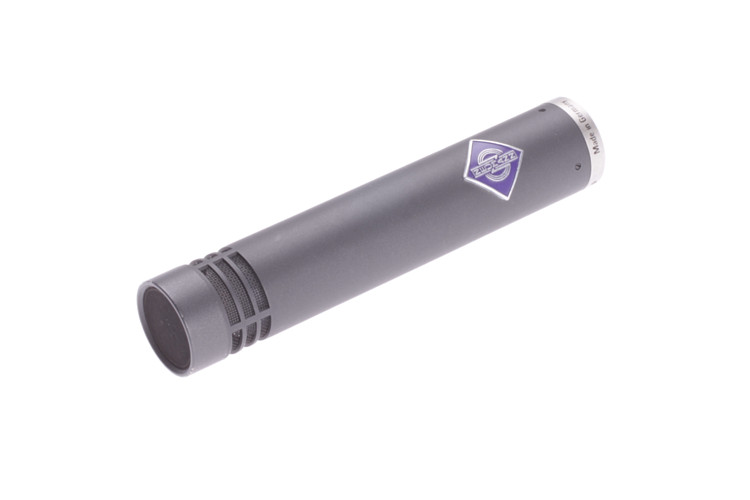

The Neumann KM84 is a small diaphragm condenser microphone with a front address design, cardioid polar pattern, frequency response ranging from 20Hz to 20kHz, a pad of -10dB, and is suitable for recording general purpose instruments.

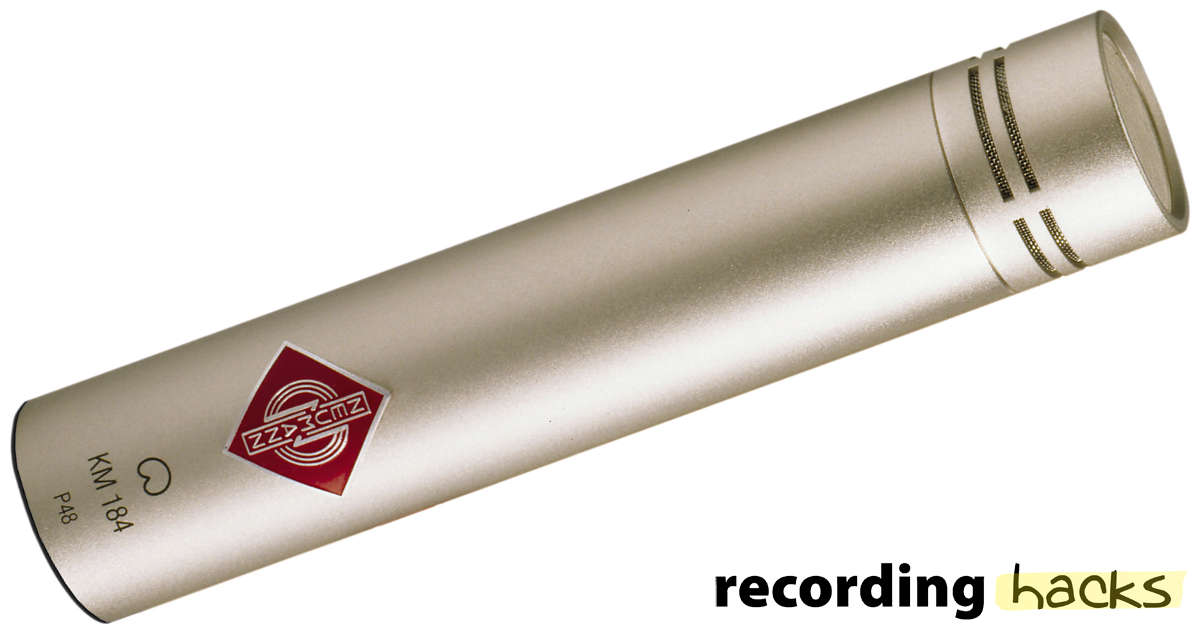

The Neumann KM184 is a small diaphragm condenser microphone designed for front address, cardioid pickup pattern with a frequency response ranging from 20Hz to 20kHz, making it suitable for general purpose instrument recording.

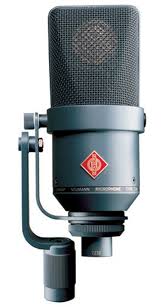

The Neumann TLM-170-R is a Large Dual Diaphragm Condenser microphone with various polar patterns and frequency range, perfect for capturing a wide range of instruments and vocals.

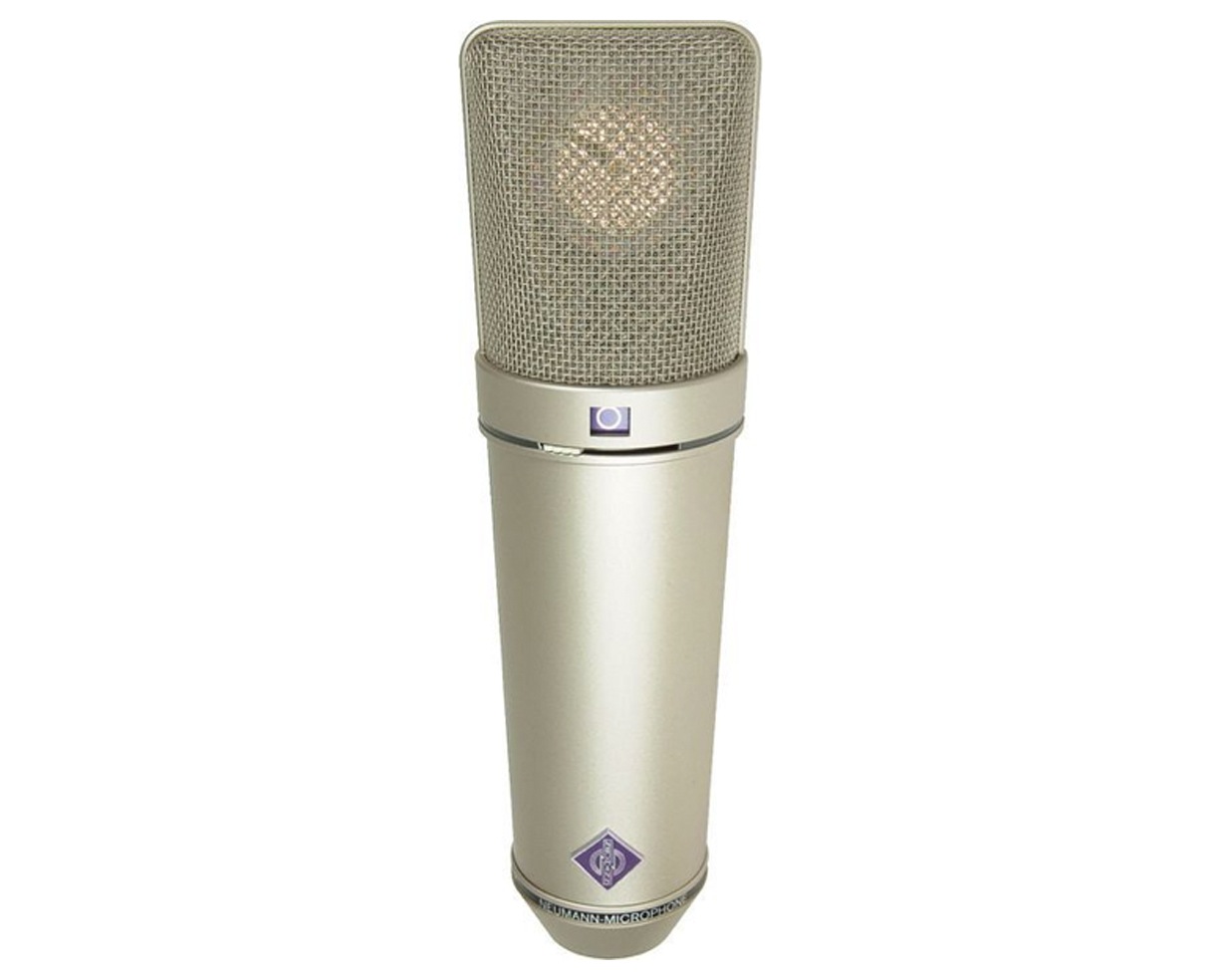

The Neumann U87 Ai microphone is a large dual diaphragm condenser microphone with side address, offering omni, bidirectional, and cardioid polar patterns. It has a frequency response range of 20hz-20kHz, polar pattern pad of -10db, and a low cut filter at 150 Hz with 6dB/octave roll-off.

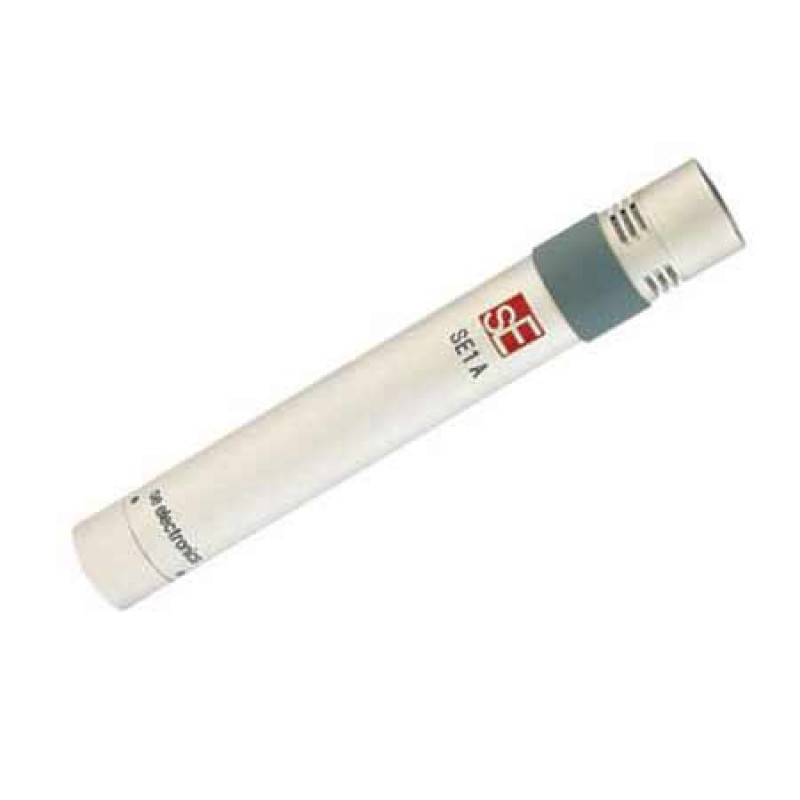

The correct answer provides specific details about the Se Electronics SE1A microphone, including its type, address, polar pattern, frequency response range, and intended use for general purpose instruments. The incorrect options provide alternative specifications that do not match the actual features of the Se Electronics SE1A microphone.

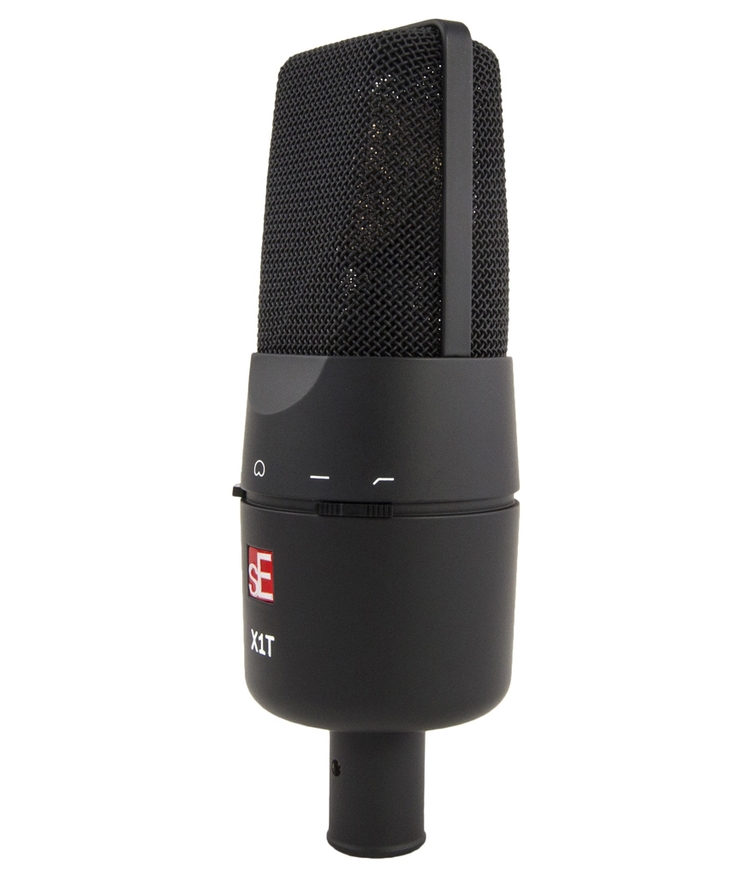

The Se Electronics SE X-1 microphone is a Large Diaphragm Condenser microphone with a Side Address design, operating in Cardioid pattern across a frequency range of 20hz-20kHz. It includes a pad with -10dB attenuation, a low cut filter without a specified frequency, and is generally used for recording vocals and instruments.

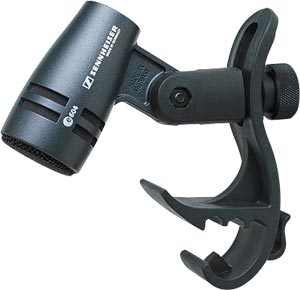

The correct answer describes the specifications and best use scenarios for the Sennheiser e604 microphone, which is commonly used for capturing sound from drums and percussion instruments due to its small diaphragm moving coil design and cardioid polar pattern.

The Sennheiser e901 is a Large Diaphragm Condenser Boundary Mic specifically designed for kick drums, with a front address and half hemispherical (PCC) polar pattern covering a frequency range of 20hz-20kHz.

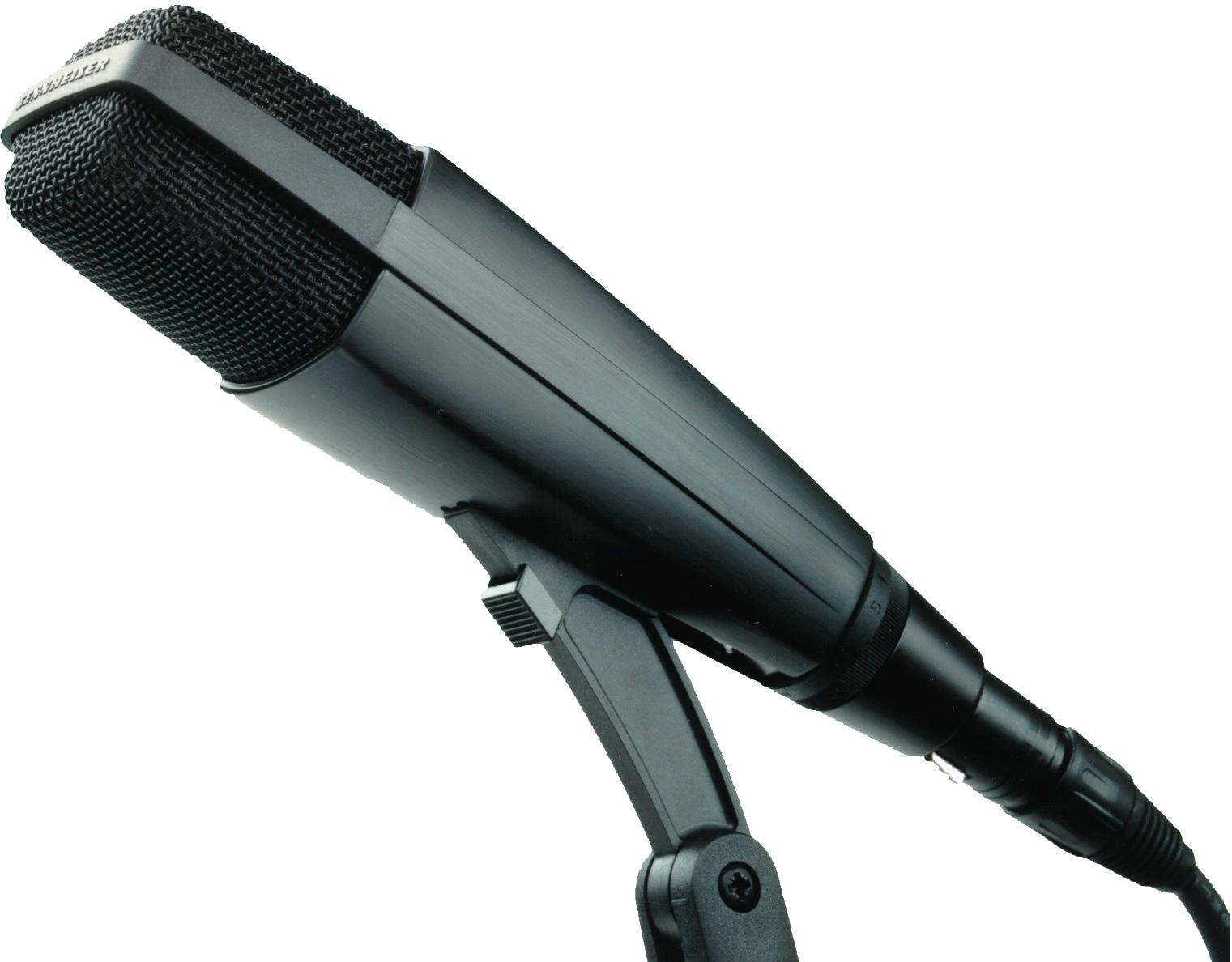

The Sennheiser MD521 Blackfire microphone is a large diaphragm moving coil microphone specifically designed for general purpose vocal and instrument applications, featuring a cardioid pickup pattern and frequency response ranging from 30Hz to 17kHz.

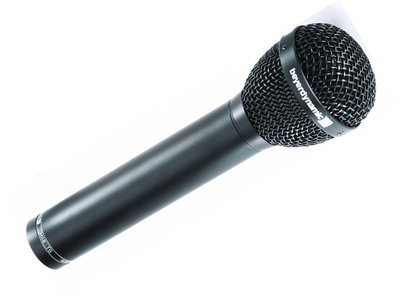

The correct answer describes the Beyerdynamic M88 microphone as having a small diaphragm, moving coil, front address, hypercardioid polar pattern, frequency response of 30Hz to 20kHz, suitable for vocals, kick drum, brass, acoustic guitar, and guitar cabs.

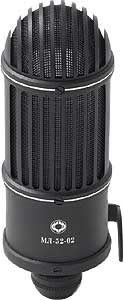

The Octava ML-52-02 microphone is a ribbon microphone with side address pickup pattern, bidirectional polar pattern, frequency response ranging from 55hz to 12kHz, and is designed for general purpose use with vocals and a variety of instruments.
