Unit 4c - Crane Rigging Exercise - Quiz

This quiz is based on the Kiewit Rigging Triangle training module. This should provide a little challenge to your rigging capabilities. Grab a calculator and some scrap paper, best of luck!

The Safety Dept.


Questions and Answers
  • 1.

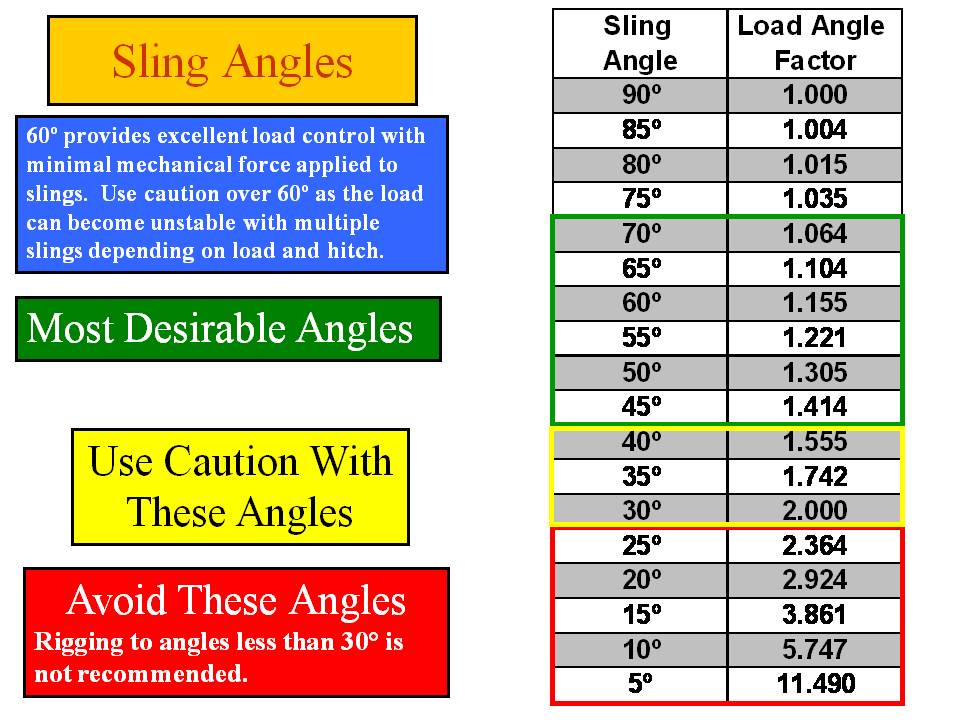

    What would be the most preferred sling angle?

    • A.

      65 degrees

    • B.

      5 degrees

    • C.

      45 degrees

    • D.

      30 degrees

    Correct Answer
    A. 65 degrees
    Explanation
    The most preferred sling angle would be 65 degrees because it provides the optimal balance between load stability and load capacity. A sling angle of 65 degrees ensures that the load is evenly distributed across the sling legs, reducing the risk of slippage or failure. This angle also maximizes the load capacity of the sling, allowing for efficient and safe lifting operations.

    Rate this question:

  • 2.

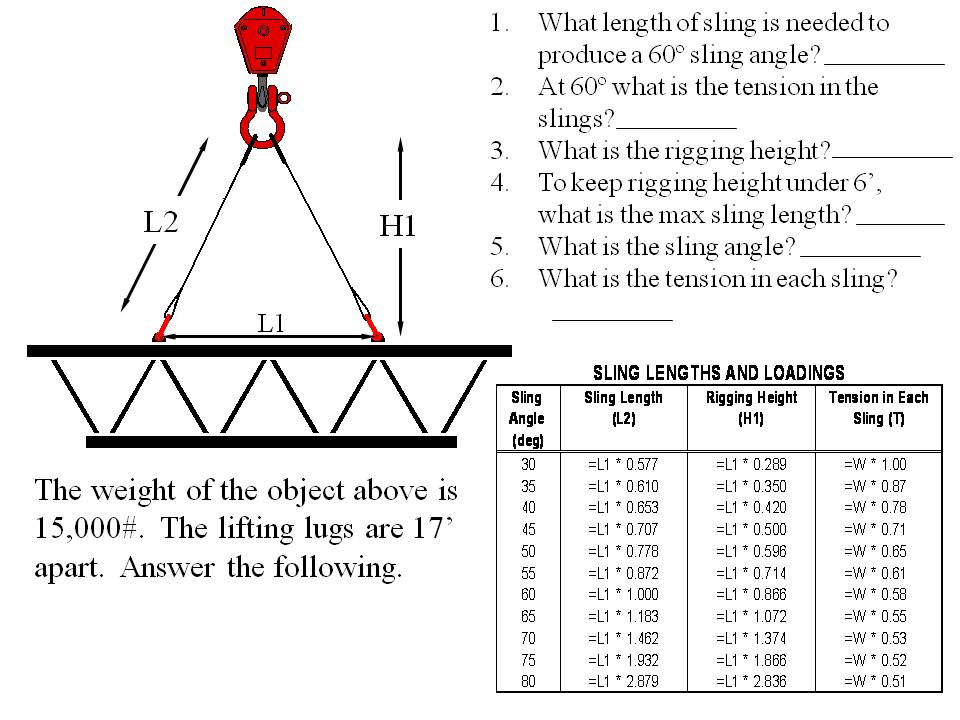

    • A.

      "17 feet; 8,460Pounds; 172-5/8 inches; 133inches; 30 degree; 13,050 pounds"

    • B.

      "17 feet; 8,700 Pounds; 176-5/8 inches; 124 inches; 35 degree; 13,050 pounds"

    • C.

      "16 feet; 8,700 Pounds; 176-5/8 inches; 124 inches; 35 degree; 13,050 pounds"

    Correct Answer
    B. "17 feet; 8,700 Pounds; 176-5/8 inches; 124 inches; 35 degree; 13,050 pounds"
  • 3.

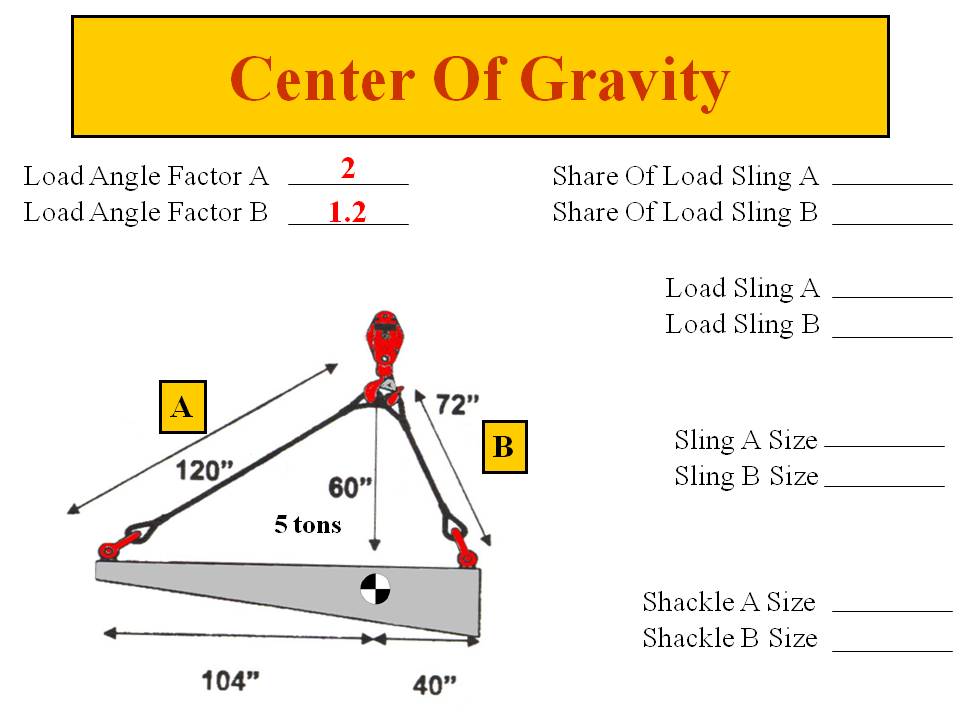

      Calculate the share of the load, sling size, and shackle size for A and B. (Select the 2 correct answers.)

    • A.

      "Side A = 2,800; 5,600; 5/8 sling; 3/4 shackle"

    • B.

      "Side A= 7,200; 8,640; 3/4 sling; 7/8 shackle"

    • C.

      "Side B = 7,200; 8,640; 3/4 sling; 7/8 shackle"

    • D.

      "Side B= 2,800; 5,600; 5/8 sling; 3/4 shackle"

    Correct Answer(s)
    A. "Side A = 2,800; 5,600; 5/8 sling; 3/4 shackle"
    C. "Side B = 7,200; 8,640; 3/4 sling; 7/8 shackle"
    Explanation
    The correct answers for this question are "Side A = 2,800; 5,600; 5/8 sling; 3/4 shackle" and "Side B = 7,200; 8,640; 3/4 sling; 7/8 shackle". These answers provide the correct values for the share of the load, sling size, and shackle size for both sides A and B. The given information in the question provides the values for each parameter, and by comparing them, we can determine the correct answers.

    Rate this question:

  • 4.

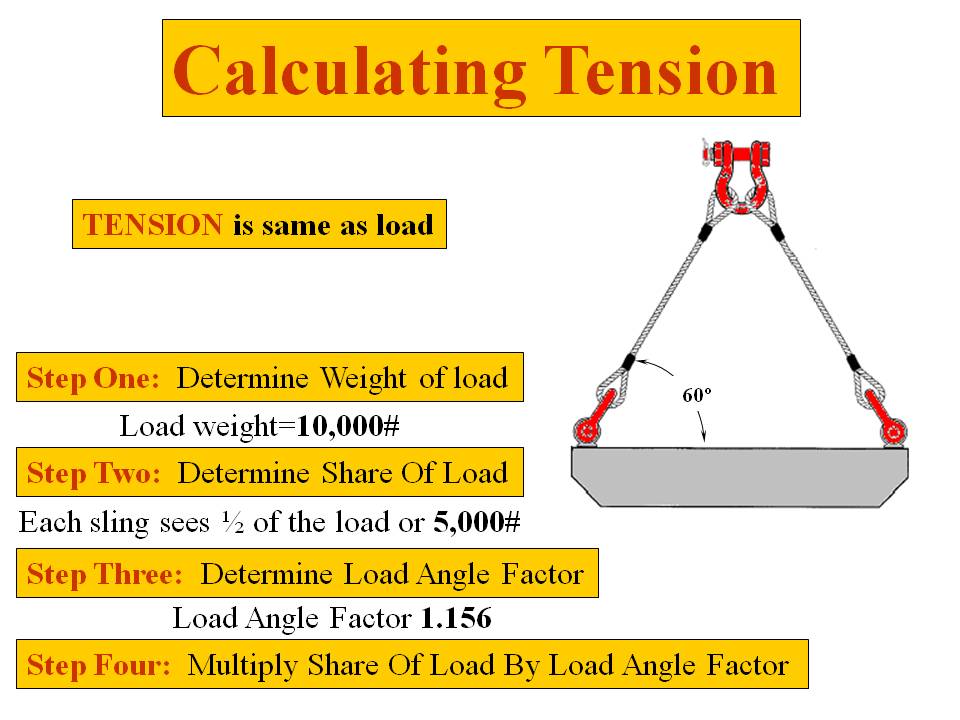

    What is the tension or load going into the slings?

    • A.

      "5,780 pounds"

    • B.

      "5,000 Pounds"

    • C.

      "5,465 Pounds"

    • D.

      "5,825 Pounds"

    Correct Answer
    A. "5,780 pounds"
    Explanation
    The tension or load going into the slings is 5,780 pounds.

    Rate this question:

  • 5.

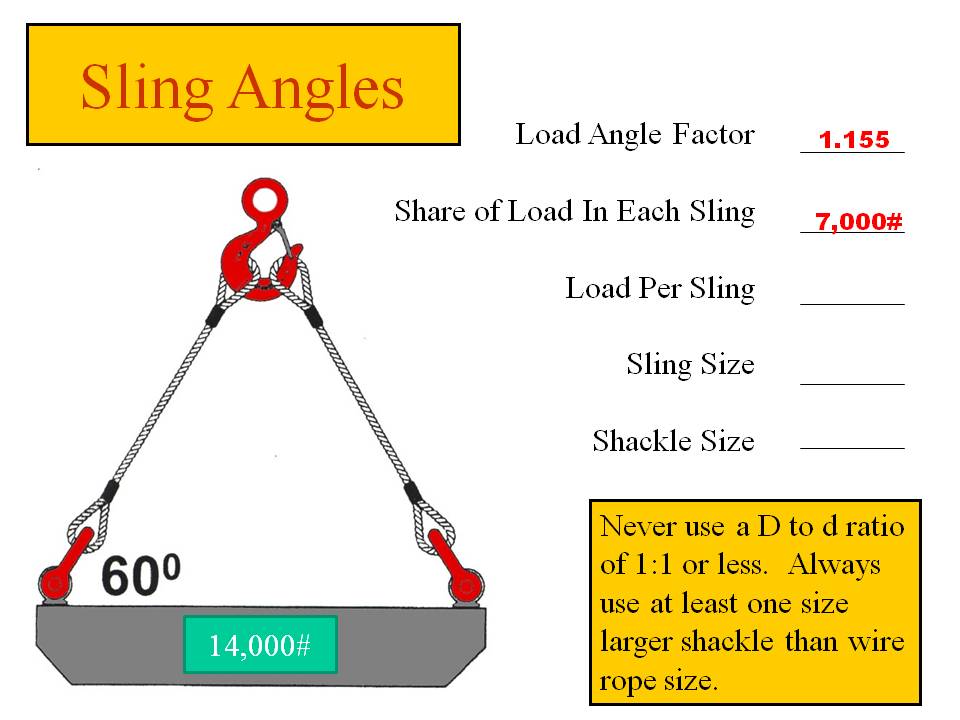

    Calculate the load per sling, sling size and shackle size.

    • A.

      "7000, 5/8, 3/4"

    • B.

      "8085, 5/8, 3/4"

    • C.

      "14000, 5/8, 3/4"

    • D.

      "7000, 3/4, 7/8"

    • E.

      "8085, 3/4, 7/8"

    Correct Answer
    E. "8085, 3/4, 7/8"
  • 6.

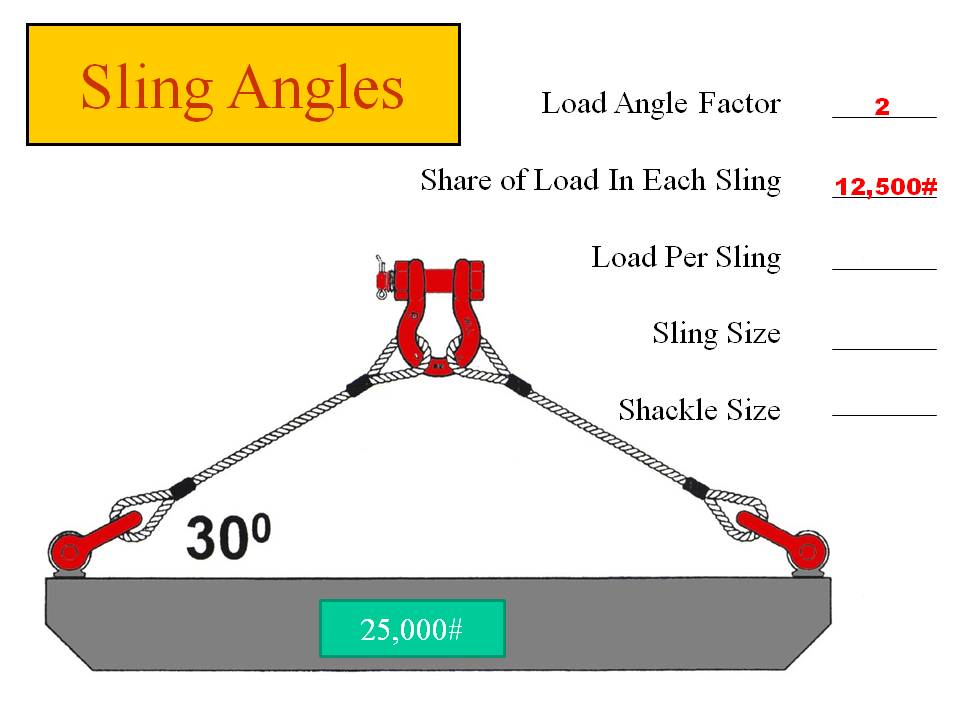

    Calculate the load per sling, sling size, and shackle size.

    • A.

      "25,000 pounds; 1-1/4"" sling; 1-3/8"" shackle"

    • B.

      "25,000 pounds; 1-3/8"" sling; 1-1/2"" shackle"

    • C.

      "12,500 pounds; 1"" sling; 1-1/8"" shackle"

    • D.

      "12,500 pounds 7/8"" sling; 1"" shackle"

    Correct Answer
    A. "25,000 pounds; 1-1/4"" sling; 1-3/8"" shackle"
    Explanation
    The correct answer is "25,000 pounds; 1-1/4" sling; 1-3/8" shackle". This answer is determined by considering the load per sling, sling size, and shackle size. The load per sling is 25,000 pounds, which means that each sling will bear this weight. The sling size is 1-1/4", indicating the diameter of the sling. The shackle size is 1-3/8", referring to the diameter of the shackle. These measurements are important in determining the appropriate equipment for lifting the given load safely and efficiently.

    Rate this question:

  • 7.

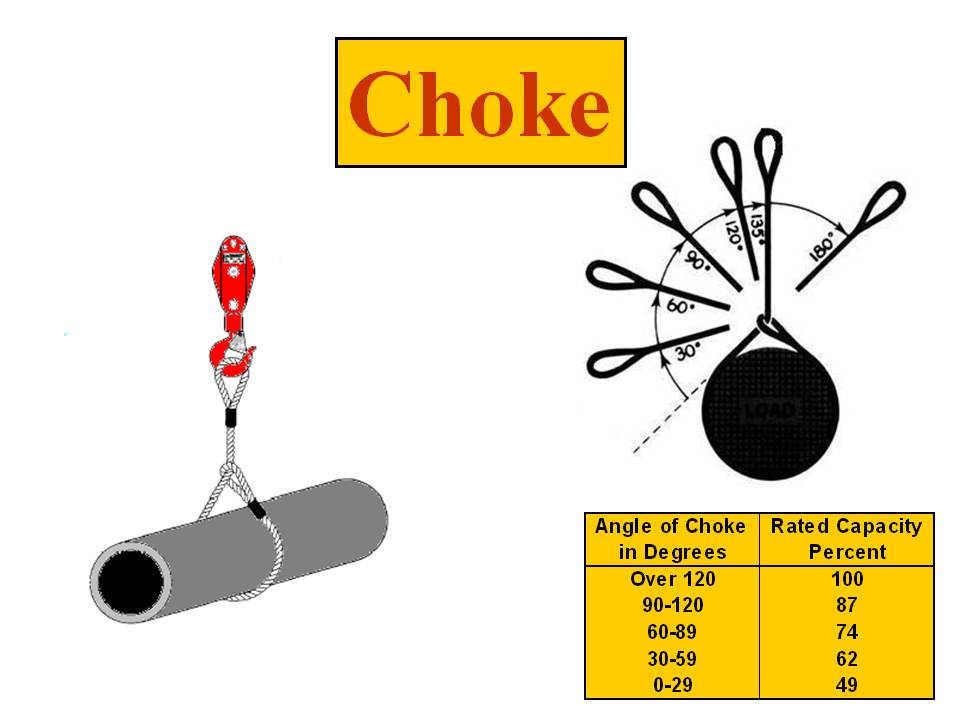

    If you are picking something that would result in a choker angle of 40 degrees, how much of the rated capacity can you use?

    • A.

      49%

    • B.

      62%

    • C.

      74%

    • D.

      87%

    Correct Answer
    B. 62%
    Explanation
    If the choker angle is 40 degrees, the maximum rated capacity that can be used is 62%. The choker angle refers to the angle formed between the sling leg and the horizontal plane. As the choker angle decreases, the tension on the sling increases, reducing its capacity. At a choker angle of 40 degrees, the rated capacity can be used up to 62% without exceeding the safe working load.

    Rate this question:

  • 8.

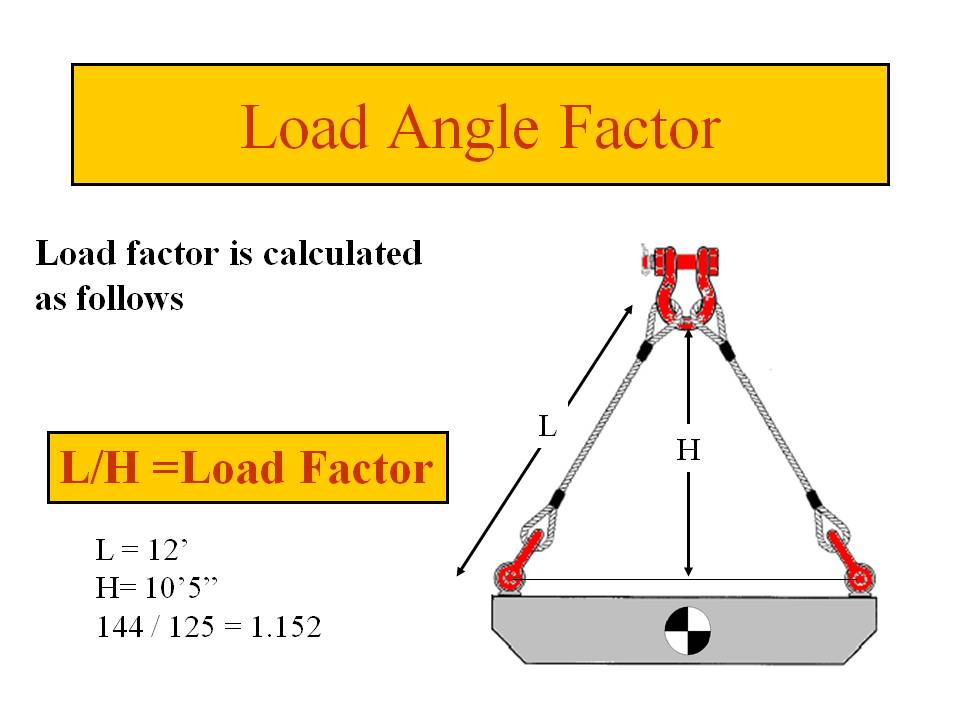

    If your L is 10 feet and your H is 8 feet what is your Load Factor?

    • A.

      0.8

    • B.

      1.25

    • C.

      1.67

    • D.

      1.22

    Correct Answer
    B. 1.25
    Explanation
    10 feet x 12 inches = 120 inches divided by 8 feet x 12 inches = 96 inches.
    120/96= 1.25

    Rate this question:

  • 9.

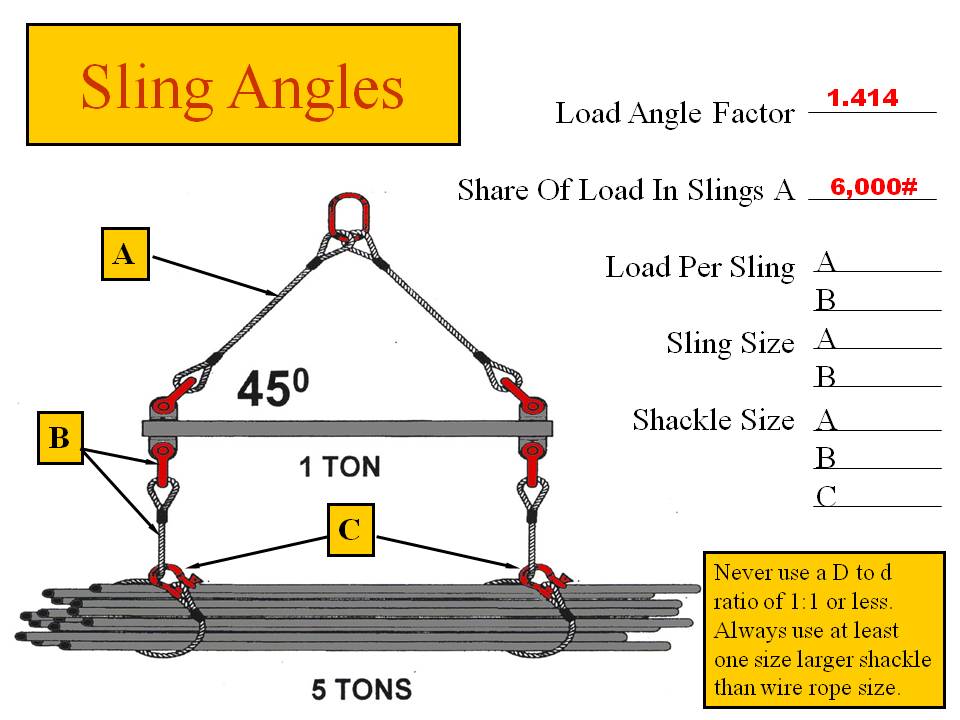

     Calculate the load per sling, sling size and shackle size for A B and C. (Choose the two correct answers.)

    • A.

      "Side A = 8,484 pounds; 7/8 sling; 1 shackle C = 7/8 shackle"

    • B.

      "Side B = 5,000 pounds; 7/8 sling; 1 shackle C = 7/8 shackle"

    • C.

      "Side A = 8,484 pounds; 3/4 sling; 7/8 shackle C = 7/8 shackle"

    • D.

      "Side B = 5,000 pounds; 3/4 sling; 7/8 shackle C = 7/8 shackle"

    Correct Answer(s)
    C. "Side A = 8,484 pounds; 3/4 sling; 7/8 shackle C = 7/8 shackle"
    D. "Side B = 5,000 pounds; 3/4 sling; 7/8 shackle C = 7/8 shackle"
    Explanation
    The correct answer is "Side A = 8,484 pounds; 3/4 sling; 7/8 shackle C = 7/8 shackle","Side B = 5,000 pounds; 3/4 sling; 7/8 shackle C = 7/8 shackle". This answer is correct because it provides the load per sling, sling size, and shackle size for both Side A and Side B. It states that Side A has a load of 8,484 pounds, a 3/4 sling, and a 7/8 shackle C. Similarly, Side B has a load of 5,000 pounds, a 3/4 sling, and a 7/8 shackle C.

    Rate this question:
