# Q-sys Level One Training: Basic Test And Measurement

Approved & Edited by ProProfs Editorial Team
The editorial team at ProProfs Quizzes consists of a select group of subject experts, trivia writers, and quiz masters who have authored over 10,000 quizzes taken by more than 100 million users. This team includes our in-house seasoned quiz moderators and subject matter experts. Our editorial experts, spread across the world, are rigorously trained using our comprehensive guidelines to ensure that you receive the highest quality quizzes.
Learn about Our Editorial Process
| By Patrick Heyn
P
Patrick Heyn
Community Contributor
Quizzes Created: 30 | Total Attempts: 130,619
Questions: 16 | Attempts: 10,849

Settings

Welcome to the Q-SYS™ Basic Test and Measurement Training Assessment. You are about to take the assessment for the Basic Test and Measurements Training Module. Please watch both Basic Test and Measurements videos before attempting this assessment. You must correctly answer 80% of the questions to successfully pass this assessment.

• 1.

### Multiple Choice : Where will you find the Test and Measurement tools?

• A.

In the Audio Components section of the Schematic Library

• B.

In the Control Components section of the Schematic Library

• C.

In the Inventory in the Left-Side Pane

• D.

A. In the Audio Components section of the Schematic Library
• 2.

### Multiple Choice :  Which component will create a variable sine wave?

• A.

Sine Generator

• B.

Pink Noise Generator

• C.

Cosine Generator

• D.

Variable Frequency Generator

A. Sine Generator
Explanation
The Sine Generator is the component that will create a variable sine wave. The other options mentioned, Pink Noise Generator, Cosine Generator, and Variable Frequency Generator, do not specifically generate a sine wave.

Rate this question:

• 3.

### Multiple Choice :  What does the Sine Generator component do?

• A.

Creates a sine wave of variable frequency

• B.

Translates an audio signal into a visual frequency graph

• C.

Normalizes the peaks of an audio signal to a customizable level

• D.

Propagates the gain of an audio signal to a customizable sine wave

A. Creates a sine wave of variable frequency
Explanation
The Sine Generator component is designed to create a sine wave with a variable frequency. This means that it can generate a sine wave at different frequencies, allowing for flexibility in producing different tones or signals. This explanation is supported by the fact that the other options do not mention frequency generation, but instead focus on translating audio signals, normalizing peaks, or propagating gain.

Rate this question:

• 4.

### Multiple Choice :  What does RTA stand for?

• A.

Real-Time Analyzer

• B.

Range/Transition Analyzer

• C.

Rapid Tuning Assistant

• D.

Realistic Time Alternator

A. Real-Time Analyzer
Explanation
RTA stands for Real-Time Analyzer. This term refers to a device or software that is used to analyze and measure audio signals in real-time. It is commonly used in audio engineering and music production to monitor and adjust the frequency and amplitude of audio signals. The other options provided, Range/Transition Analyzer, Rapid Tuning Assistant, and Realistic Time Alternator, are not commonly used terms in the field of audio analysis and do not accurately represent the meaning of RTA.

Rate this question:

• 5.

### Multiple Choice : In the RTA Control Panel, what does the Max Hold Time knob adjust?

• A.

The length of time that a maximum magnitude is displayed before refreshing

• B.

The frequency of a signal required to be kept on Infinite Hold

• C.

The maximum length of a signal to be considered as an invalid audio source

• D.

The longest allowable portion of an audio signal to be analyzed

A. The length of time that a maximum magnitude is displayed before refreshing
Explanation
The Max Hold Time knob in the RTA Control Panel adjusts the length of time that a maximum magnitude is displayed before refreshing. This means that it determines how long the highest level of a signal will be shown on the display before it is updated with new data.

Rate this question:

• 6.

### Multiple Choice :  In the RTA Control Panel, which button should you push if you wish to keep the highest detected signal magnitude to remain displayed until a higher signal is detected?

• A.

Infinite Hold

• B.

Indefinite Hold

• C.

Max RMS

• D.

Magnitude Hold

A. Infinite Hold
Explanation
In the RTA Control Panel, pushing the "Infinite Hold" button will keep the highest detected signal magnitude displayed until a higher signal is detected. This means that even if a higher signal is detected, the display will not update and continue to show the highest magnitude. This feature is useful when you want to monitor and track the highest signal level over a period of time without it being overwritten by lower signals.

Rate this question:

• 7.

### Multiple Choice :  Which tools should you use to “hack” into your signal path to test its integrity?

• A.

Signal Injector and Signal Probe

• B.

Signal Insertion and Signal Analyzer

• C.

Signal Input and Signal Output

• D.

RTA and Responsalyzer

A. Signal Injector and Signal Probe
Explanation
Signal Injector and Signal Probe are the correct tools to use to "hack" into your signal path to test its integrity. A signal injector is used to inject a signal into the path, while a signal probe is used to measure the signal at various points in the path. By using these tools together, you can analyze the signal and identify any issues or anomalies in the path, ensuring its integrity.

Rate this question:

• 8.

### Multiple Choice :  How do you connect a Signal Injector or Signal Probe to your audio path?

• A.

Drag the diagonal Injector or Probe tool onto any input or output pin

• B.

Unwire the target component from your design and wire it to the Injector or Probe component

• C.

Drag the diagonal Injector or Probe tool into the control panel of the target component

• D.

Drag the target component from your design and drop it onto the Injector or Probe component

A. Drag the diagonal Injector or Probe tool onto any input or output pin
Explanation
To connect a Signal Injector or Signal Probe to your audio path, you need to drag the diagonal Injector or Probe tool onto any input or output pin. This action establishes a connection between the tool and the audio path, allowing you to inject or probe signals.

Rate this question:

• 9.

### Check ALL that apply : Which of the following statements are true about the Signal Injector?

• A.

The Signal Injector overrides any other audio signal at the point of insertion.

• B.

The Signal Injector only works properly with a White Noise Generator.

• C.

The Signal Injector must be wired to some audio source in order for it to inject an audio signal.

• D.

The Signal Injector must be running on a Core in order to operate properly.

A. The Signal Injector overrides any other audio signal at the point of insertion.
C. The Signal Injector must be wired to some audio source in order for it to inject an audio signal.
D. The Signal Injector must be running on a Core in order to operate properly.
Explanation
The Signal Injector overrides any other audio signal at the point of insertion because it is designed to take precedence over other audio signals. It must be wired to an audio source in order to inject an audio signal, as it needs an input source to work with. Additionally, the Signal Injector must be running on a Core to operate properly, indicating that it requires a specific platform or system to function correctly.

Rate this question:

• 10.

### Multiple Choice :  What is the Hover Monitor?

• A.

A miniature RMS meter found by hovering the mouse over any audio input or output pin

• B.

A measurement component that you can dock to the top of the Schematic

• C.

A component that you can hold over an audio signal to detect the signal strength

• D.

A miniature clone of your computer screen that you can export to the UCI

A. A miniature RMS meter found by hovering the mouse over any audio input or output pin
Explanation
The Hover Monitor is a miniature RMS meter that can be found by hovering the mouse over any audio input or output pin. It allows users to quickly and easily monitor the signal strength of audio inputs or outputs without the need for additional tools or components.

Rate this question:

• 11.

### Multiple Choice : How can you hear the output of your Schematic design without using the sound system you are connected to?

• A.

Unmute any Hover Monitor to broadcast the signal over your computer speakers

• B.

Wire a Signal Broadcast component into your Schematic and select “Onboard” as the output

• C.

Simply turn on your speakers – the Q-Sys Designer automatically plays all signals it is processing

• D.

There is no way to listen to the audio design without connecting to an amplifier

A. Unmute any Hover Monitor to broadcast the signal over your computer speakers
Explanation
By unmuting any Hover Monitor, the signal from the Schematic design will be broadcasted over the computer speakers. This allows the user to hear the output without using the sound system they are connected to.

Rate this question:

• 12.

### Multiple Choice : How can you prevent a Hover Monitor from disappearing when you move your mouse away from it?

• A.

Click on the Pin icon to pin it open

• B.

Click on the Staple icon to staple it open

• C.

Double-click the target pin to keep it open

• D.

Drag the Hover Monitor away from the component to create a permanent window

A. Click on the Pin icon to pin it open
Explanation
Clicking on the Pin icon will prevent the Hover Monitor from disappearing when you move your mouse away from it. This action will keep the Hover Monitor open and visible even when the mouse is not hovering over it.

Rate this question:

• 13.

### Check ALL that apply: Which of the following statements are true about the Signal Probe?

• A.

The Signal Probe overrides the signal at the point of insertion

• B.

The Signal Probe can only be attached to audio output pins

• C.

The Signal Probe is used to monitor the signal at a specific point in the path

• D.

The Signal Probe sends a pulse through the signal path to search for any broken connections

C. The Signal Probe is used to monitor the signal at a specific point in the path
Explanation
The Signal Probe is used to monitor the signal at a specific point in the path.

Rate this question:

• 14.

### Check ALL that apply : Which of the following components will you find in the Test and Measurement section of the Schematic Library?

• A.

Pink Noise Generator

• B.

White Noise Generator

• C.

Sine Generator

• D.

RTA

• E.

Responsalyzer

• F.

Signal Injector

• G.

Signal Probe

• H.

Hover Monitor

• I.

RMS Meter

A. Pink Noise Generator
B. White Noise Generator
C. Sine Generator
D. RTA
E. Responsalyzer
F. Signal Injector
G. Signal Probe
Explanation
The Test and Measurement section of the Schematic Library includes components such as the Pink Noise Generator, White Noise Generator, Sine Generator, RTA (Real-Time Analyzer), Responsalyzer, Signal Injector, and Signal Probe. These components are used for various testing and measurement purposes in electronic circuits and systems. The Hover Monitor and RMS Meter are not typically found in the Test and Measurement section and therefore are not included in the answer.

Rate this question:

• 15.

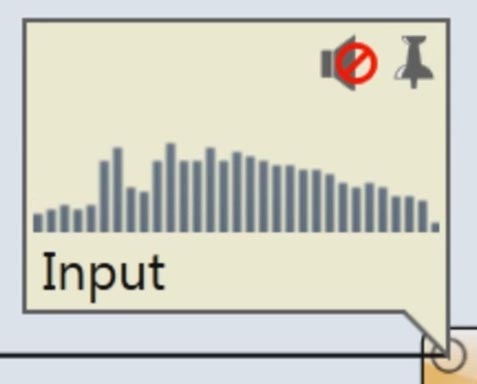

### Multiple Choice : What is being shown in this image?

• A.

Hover Monitor

• B.

Responsalyzer

• C.

Real-Time Analyzer

• D.

Signal Probe

A. Hover Monitor
• 16.

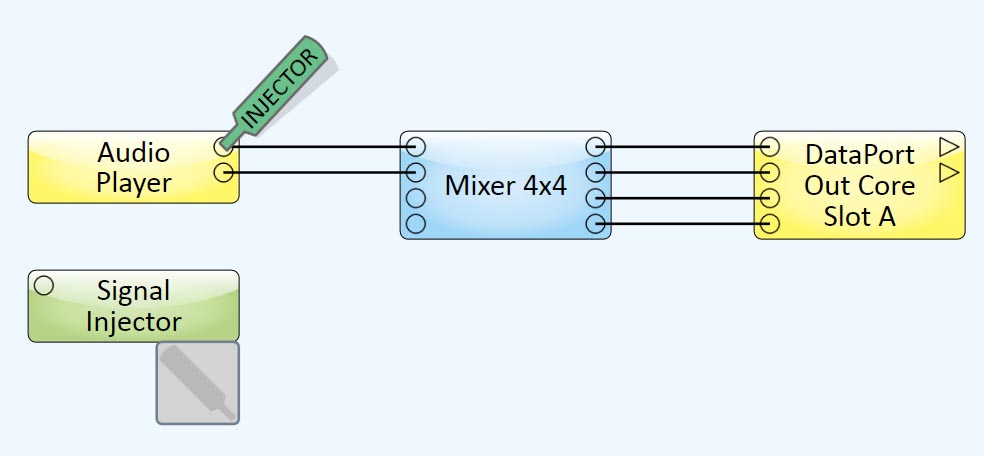

### Check ALL that apply :Which of the following statements is true about the following image?

• A.

The Signal Injector is overriding all audio leaving the Audio Player.

• B.

The Signal Injector shown proves that there is a problem with the Audio Player.

• C.

The Signal Injector is not injecting any audio into the signal path.

• D.

The Signal Injector can currently be heard over the computer monitors.

C. The Signal Injector is not injecting any audio into the signal path.
Explanation
The correct answer is "The Signal Injector is not injecting any audio into the signal path." This can be inferred from the image, as there are no audio lines connecting the Signal Injector to the Audio Player or any other device in the signal path.

Rate this question:
