Hybrid Q-sys Level One Training: Software Overview

The shape of a pin that represents an audio signal is a circle. This is because a circle is a commonly used symbol to represent an audio input or output in various audio devices and connectors. It is a universally recognized symbol for audio signals and is often used to denote audio jacks or ports on devices such as headphones, speakers, or microphones.

In the Schematic, it is possible to apply the functionality of certain controls such as a button or LED to a polygon that has been created. This means that the polygon can be used as a container for these controls, allowing them to be placed and interacted with within the polygon. Therefore, the statement "You can apply the functionality of certain controls such as a button or LED to a polygon that you have created in the Schematic" is true.

This statement is false. In most cases, pins on the left side of a component represent audio/data input, while pins on the right side represent audio/data output.

The correct answer is Left-Side Pane, Schematic, Right-Side Pane. These three sections are commonly found in software or applications that have a graphical user interface. The left-side pane typically contains a menu or navigation options, the schematic section displays the main content or workspace, and the right-side pane often contains additional information, tools, or settings. This arrangement allows for easy access to different functions and provides a clear layout for users to interact with the software.

UCI stands for User Control Interface in the Designer software. This term refers to the graphical user interface (GUI) that allows users to interact with and control the software. It includes various controls, buttons, menus, and other elements that enable users to navigate through the software and perform different tasks. The User Control Interface is designed to be user-friendly and intuitive, making it easier for users to access and utilize the features and functions of the software.

The correct answer is F6. Pressing the F6 key on the keyboard activates the Emulation Mode.

Pins are the connection points used to wire components together. They are small, metal protrusions that fit into corresponding sockets or holes, providing a secure electrical connection. Pins are commonly found on electronic components such as integrated circuits, connectors, and switches, allowing for the transfer of signals or power between different parts of a circuit.

When you select a component and hit the Space Bar, you are given the option to rename the component. This shortcut allows you to quickly access the renaming feature without having to navigate through menus or right-clicking on the component. It provides a convenient way to edit the name of a component and make it more descriptive or meaningful.

The Designer software restricts the connection of two pins that have different shapes. This limitation ensures that the connections are made correctly and prevents any potential errors or malfunctions in the design. By enforcing this rule, the software guarantees that the connections between pins are compatible and maintain the integrity of the design.

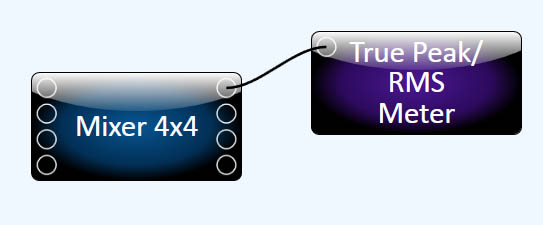

The two components have been wired together using traditional wiring.

Clicking the "ID" button in the Core Status Component's Control Panel will cause the LED screen on the actual Core to begin flashing.

The Designer software provides three options for wiring methods: Traditional Wiring, Signal Names, and Signal Snakes. These options allow users to choose the most suitable method for their specific wiring needs. Traditional Wiring refers to the conventional way of wiring, while Signal Names and Signal Snakes are alternative methods that may offer different advantages or features. By selecting all three options, users can access and utilize any of these wiring methods within the Designer software.

Signal Snake pins can only be connected to other Signal Snake pins because they are specifically designed to transmit signals between compatible devices. These pins are not compatible with other types of connectors or pins, so they cannot be connected to them. Connecting Signal Snake pins to non-compatible pins could result in signal loss or damage to the devices. Therefore, it is true that Signal Snake pins can only be connected to other Signal Snake pins.

The Control Script component uses the scripting language Lua.

False. You can add jpg images from outside the Designer software to your UCI page.

The correct answer is to convert the Q number to an octave-width number using a Q-conversion tool. This is because the Custom Voicing component in Q-Sys requires the filter bandwidth to be input in terms of octave-width, not Q. By using a Q-conversion tool, you can convert the Q number to the corresponding octave-width number and input it into the Custom Voicing component correctly.

The statement is true because UCI (Universal Control Interface) can be customized to be compatible with non-QSC peripherals such as an iPhone or an iPad. This means that users can adjust the size of the UCI to fit the screen dimensions of their iPhone or iPad, allowing them to use these devices as control interfaces for the system.

The large white space in the center of the screen is referred to as "The Schematic."

A Core is not limited to playing only 8 simultaneous audio tracks by default.

When a Signal Name is terminated, it means that the pathway that the Signal Name represents is complete and functional. This indicates that the signal can travel along the designated path without any interruptions or issues. It does not imply that the Signal Name needs to be connected to another pin or that it has been deleted by the Design Inspector.

The statement is false because the Designer software does allow you to intersect or overlap components. This means that you can place components on top of each other or have them intersect with each other in the software.

To add an amplifier to your design, you would look in the inventory. The inventory typically contains a list of all available components and parts that can be used in the design process. By searching the inventory, you can find the specific amplifier you need and incorporate it into your design. The schematic library may contain various circuit symbols and diagrams, while snapshots are usually saved versions of a design at a specific point in time, neither of which would directly provide access to an amplifier.

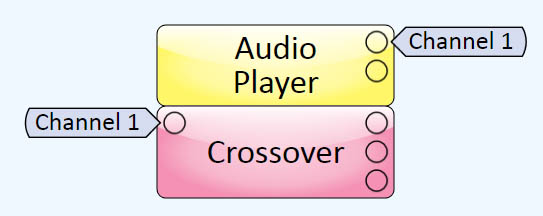

The two components have been wired together using signal names. This means that instead of physically connecting the components, they are connected through a system of assigning specific names or labels to the signals that need to be transmitted between them. This allows for easier identification and organization of the signals, making it simpler to troubleshoot and modify the wiring if needed.

To add tuning data to a Generic Speaker component, you need to populate a Custom Voicing component's control panel with your loudspeaker's tuning data and then direct your Generic Speaker component to use this Custom Voicing. This allows you to customize the sound output of the Generic Speaker according to the specific characteristics of your loudspeaker.

To open a component's control panel, you need to double-click on the component.

To add a new item to your Inventory, you need to select the "Plus" button in the Inventory panel. This action will allow you to add a new item to your existing inventory. The other options mentioned, such as selecting "File > Add Item to Inventory" or right-clicking in the Schematic and selecting a new Inventory item, are not the correct methods for adding a new item to the Inventory.

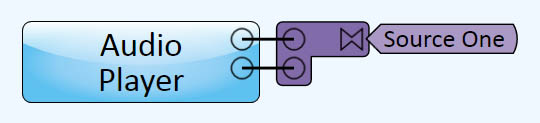

The correct answer provides a clear and concise description of the image. It states that the outputs of an Audio Player component are connected in a traditional manner to a Signal Snake, which is terminated elsewhere with the Signal Name "Source One." This suggests that the audio signals from the Audio Player are being routed through the Signal Snake and labeled as "Source One" at the termination point.

The correct answer is Signal Snake. Signal Snake is a wiring method that allows collapsing multiple inputs into a single graphical wire in a schematic. This wire can then be expanded elsewhere in the schematic, making it easier to manage and understand complex wiring connections. This method helps to simplify the schematic and improve readability.

To access a closed Schematic Page again, you can go to the Schematic Pages section of the Left-Hand Pane and select the page you want.

In the Core's Properties panel, the field that would indicate that it will have a Backup Core is "Is Redundant". This field would be selected to indicate that the Core has a backup system in place, ensuring redundancy and backup capabilities in case of failure.

The Designer software does not restrict the user to create only one wire at a time when using the Traditional Wiring method. Therefore, the given statement is false.

When renaming the Core, a hyphen cannot start or end its new name. A hyphen is a special character used to separate words or parts of words, so it is not allowed to be the first or last character in a name.

The "Audio File Sync" indicator light represents that the backup Core audio files are fully in sync with the primary Core. This means that the backup files are updated and matched with the primary files, ensuring that both cores have the same audio data. This synchronization is important for seamless audio playback and continuity in case of a failure or switch between the primary and backup cores.

Clicking on the X on the tab of a page in the Schematic does not delete the Schematic Page forever. It simply closes the page or removes it from the current view, but the page can be reopened or restored later.

When you hover your mouse over the pin, a pop-up tooltip will appear and provide information about the pin's purpose. This allows you to quickly understand what the pin represents without having to perform any additional actions.

The Design Inspector is always active, meaning that it does not require any specific action to activate it. It is a feature that is constantly available for use without the need for any additional steps.

When you drag a control out of a component's control panel, it will still retain its functionality to that component. This means that the control can still be used and interact with the component even after it has been dragged out. Therefore, the correct answer is False.

The Design Inspector can be found in the Left-Side Pane. This means that when you open the Design Inspector, it will appear on the left side of the screen.

When you highlight multiple pins and begin to enter a Signal Name, the pins will be assigned Signal Names with an incremental number added to the end. This means that each pin will have a unique Signal Name, but with a number added to differentiate them. For example, if you enter "Signal" as the name, the pins will be assigned names like "Signal1," "Signal2," "Signal3," and so on. This allows for easy identification and organization of the pins.

In the video, the presenter decides to rename the Location field for his Core as "Front of House".

Changing the "Verbose" field to "Yes" in the Core Properties panel will grant access to advanced clocking controls in the Core's Control Panel.

To create a Signal Snake, you can drag a Signal Snake component from the Layout section of the Schematic Library. Additionally, you can click a pin or pins, drag a wire away, but press the Spacebar before releasing the mouse button. Double-clicking on a pin is not a method to create a Signal Snake.

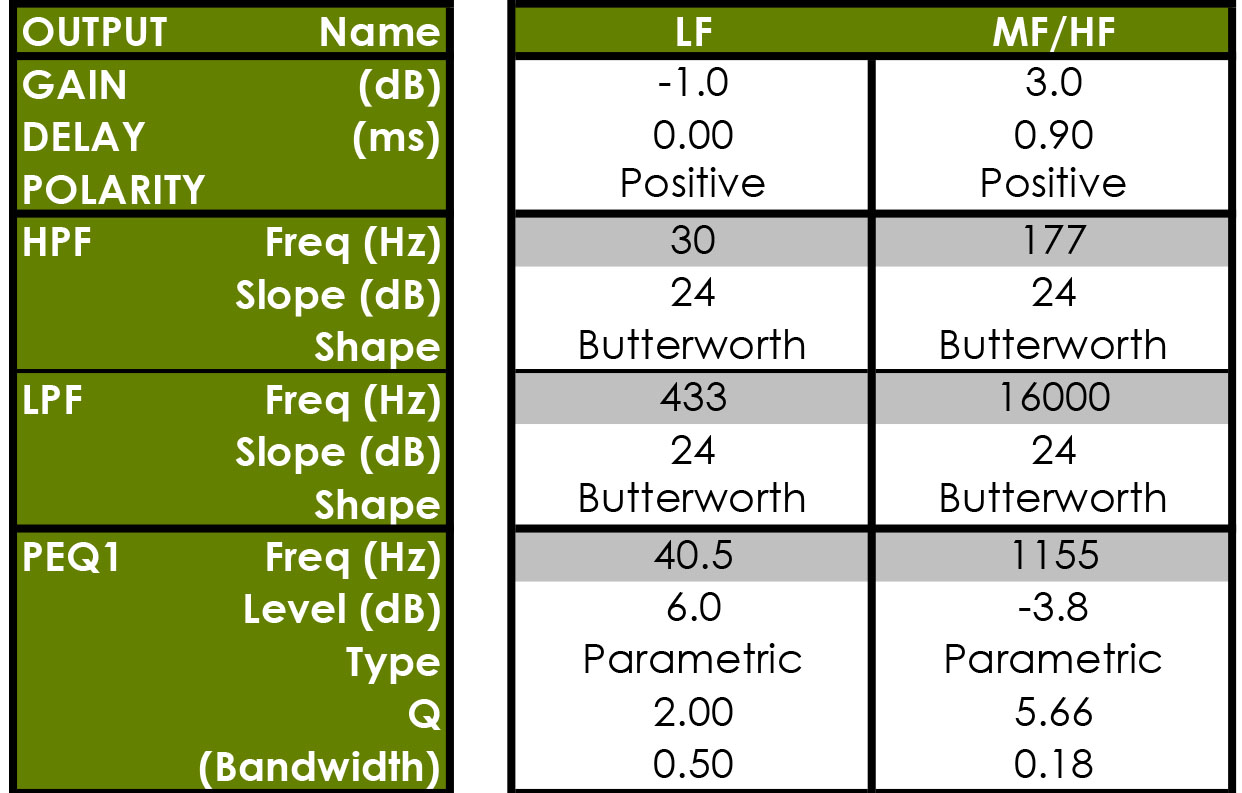

Based on the given speaker tuning data, the value that should be input in the box marked with an X in the Custom Voicing component's control panel is 433.

The core is automatically a part of every design's Inventory panel.

If you have an unterminated Signal Name, you will know because the Design Inspector will reveal a warning icon and list your signal under "Unterminated Signals."

To change the color of a component, you can use the Fill field in the component's Properties in the Right-Side Pane. This option allows you to select a different color for the component, giving you the ability to customize its appearance. Right-clicking the component and selecting the Color Guide in the Order Menu is not a valid method to change the color.

Clicking the "ID" button on the front of your physical Core will cause the "ID" button on that Core Status component's Control Panel to begin flashing.

The correct answer is that you do not need to input any tuning data because Intrinsic Correction will automatically voice the loudspeaker properly. This means that the QSC loudspeaker and QSC DataPort amplifier are designed to work together seamlessly, and the amplifier will automatically adjust the audio output to optimize the performance of the loudspeaker without the need for manual tuning.

To switch from a Primary Core to a Backup Core, the correct option is to select the "Go Active" button in the Core Status Component. This action will activate the Backup Core and make it the active core. The other options of right-clicking the Core in the Inventory and selecting "Backup Core" or pressing F8 to toggle the active Core are not the correct methods to switch from the Primary to the Backup Core.

To add an additional page to your Schematic, you can click the Plus symbol at the top right side of the Schematic or click the Plus symbol next to the Schematic Pages title in the Left-Side Pane. These options allow you to easily add a new page to your Schematic. Clicking anywhere in the Schematic and pressing Ctrl+A does not add an additional page, so it is not a correct option.
