In all questions, identify the picture shown. Which Part/Assembly/Component it is of an automobile/ATV.


Questions and Answers
  • 1.

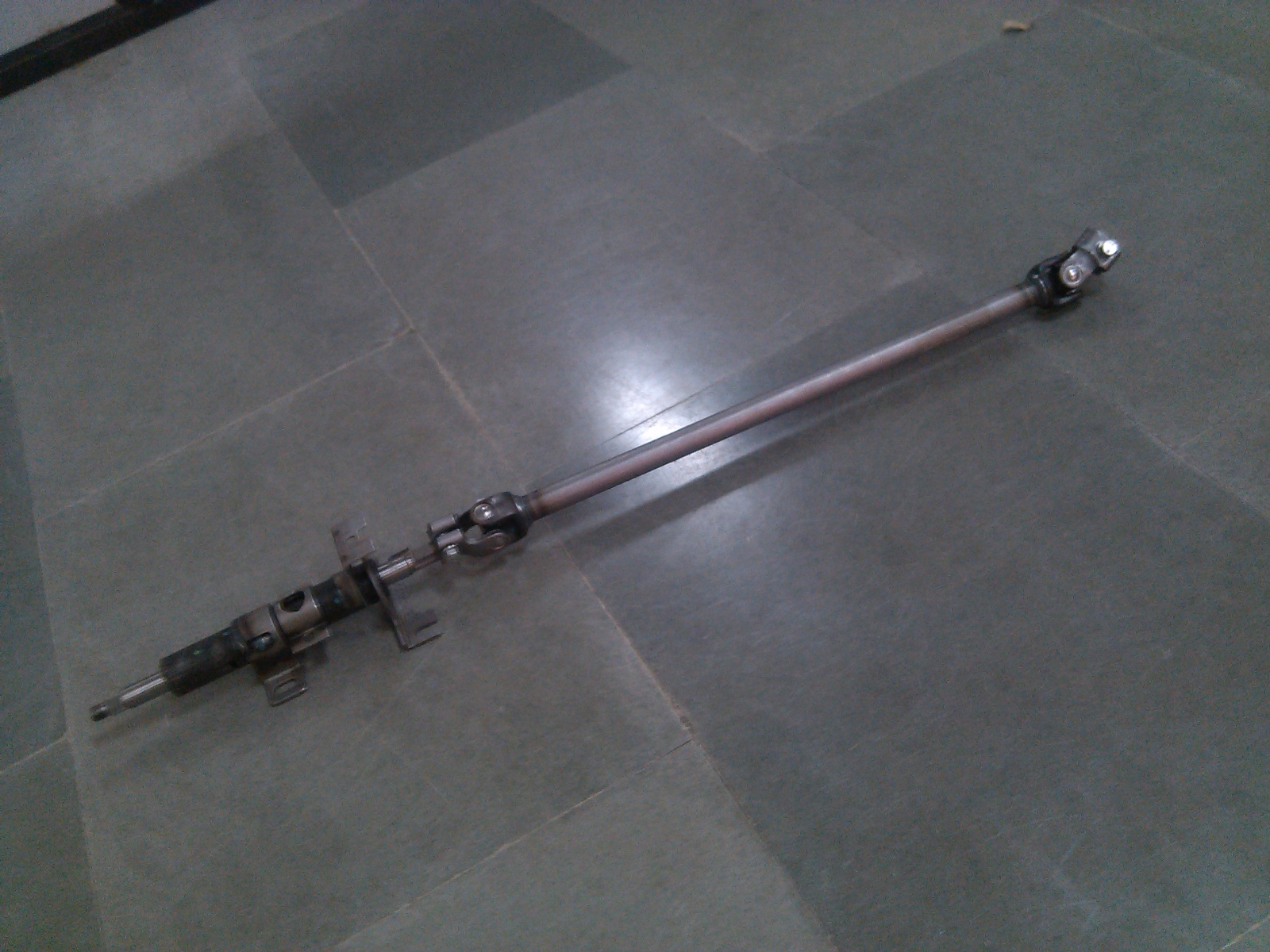

    Identify the component shown in figure.

    • A.

      Connecting rod

    • B.

      Steering Column

    • C.

      Universal Joint

    • D.

      Steering Arm

    • E.

      None of these

    Correct Answer
    B. Steering Column
    Explanation
    The component shown in the figure is the steering column. The steering column is a vertical shaft that connects the steering wheel to the steering gearbox or rack and pinion. It allows the driver to control the direction of the vehicle by turning the steering wheel, which in turn rotates the steering column. The steering column also houses various electrical components such as the ignition switch and turn signal switch.

    Rate this question:

  • 2.

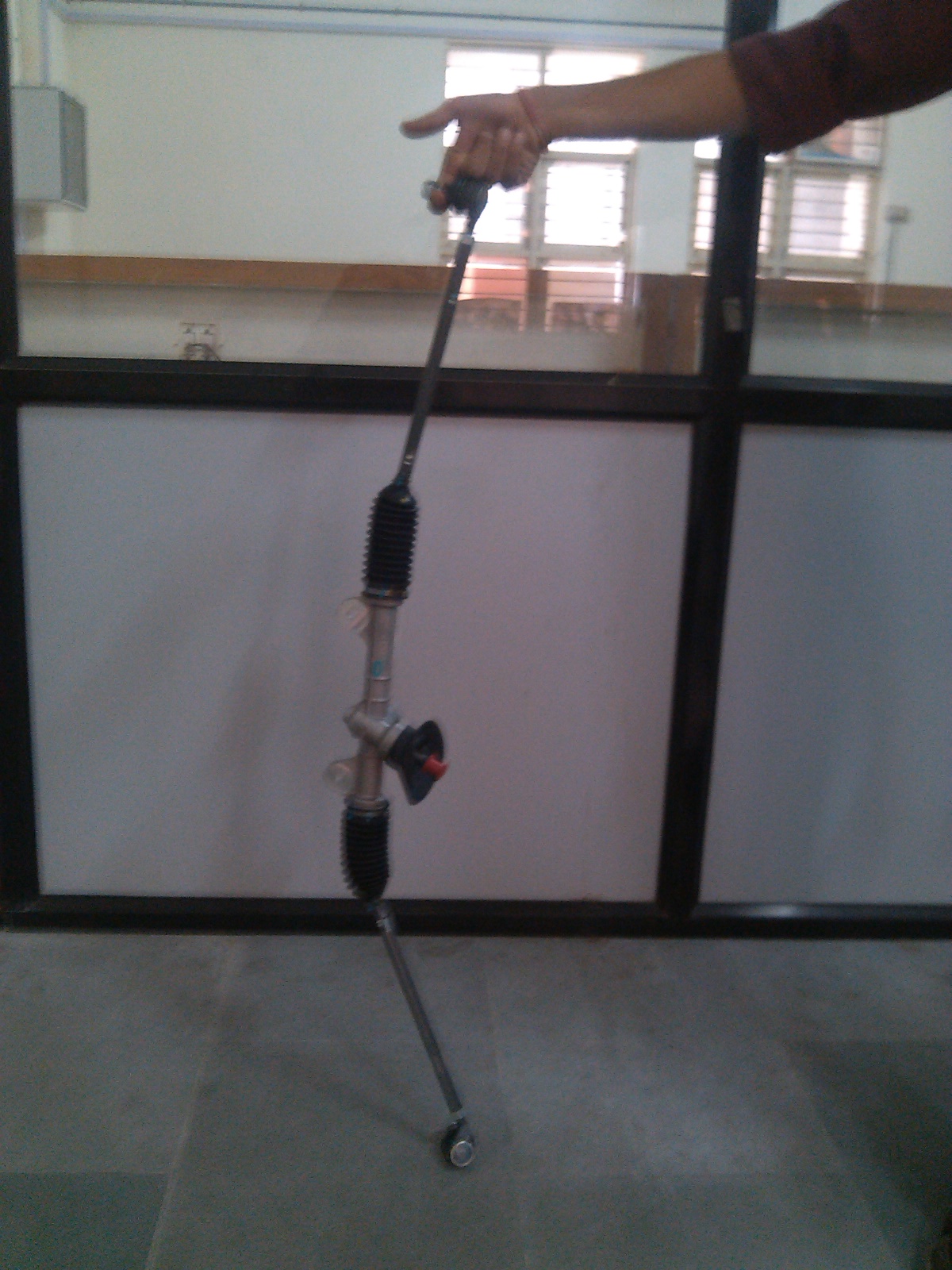

    The function of the component shown in figure is ___________

    • A.

      As Steering Rack and Pinion

    • B.

      As Stabilizer Bar

    • C.

      As Steering Arms

    • D.

      As Steering Column

    • E.

      None of above

    Correct Answer(s)
    A. As Steering Rack and Pinion
    B. As Stabilizer Bar
    Explanation
    The component shown in the figure is most likely a combination of a steering rack and pinion and a stabilizer bar. The steering rack and pinion is responsible for converting the rotational motion of the steering wheel into linear motion, which allows the wheels to turn. The stabilizer bar, also known as a sway bar, helps to reduce body roll and increase stability during cornering. Therefore, the component shown in the figure likely functions as both a steering mechanism and a stabilizer for the vehicle.

    Rate this question:

  • 3.

    Identify the component shown in figure.

    • A.

      Transmission Shaft

    • B.

      Transmission Rod

    • C.

      Connecting Shaft

    • D.

      Axle

    Correct Answer
    D. Axle
    Explanation
    The component shown in the figure is an axle. An axle is a central shaft for a rotating wheel or gear. It is used to support and transmit the weight and rotational forces of the vehicle to the wheels. Axles are typically found in vehicles with wheels, such as cars, trucks, and motorcycles. They play a crucial role in the proper functioning and movement of the vehicle.

    Rate this question:

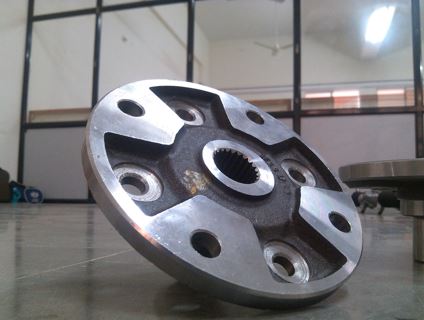

  • 4.

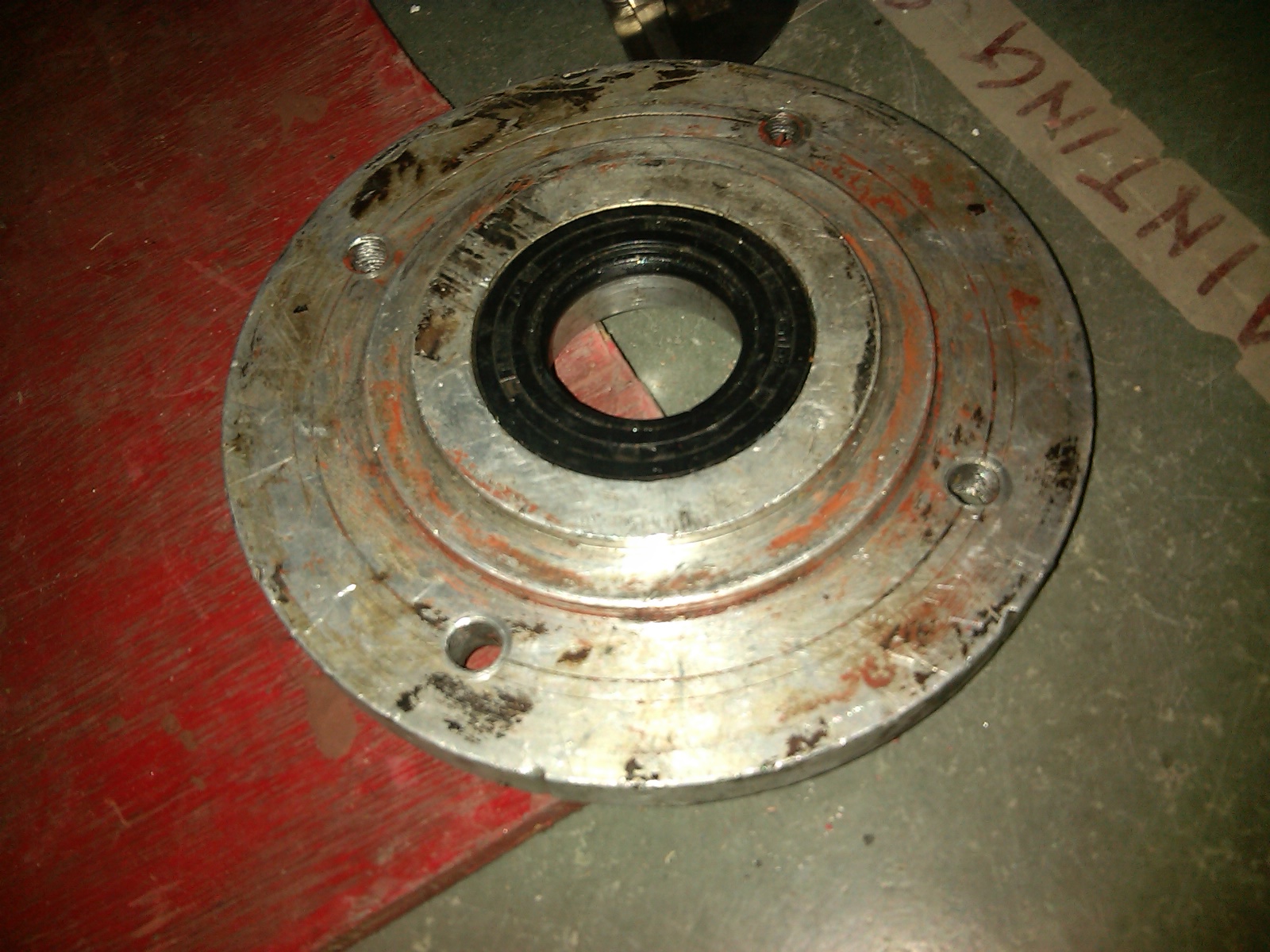

    This part is mounted in ______________ in our ATV

    • A.

      Between tyre and wheel hub

    • B.

      Between spacer and knuckle

    • C.

      Between caliper and knuckle

    • D.

      Between wheel hub and knuckle

    Correct Answer
    A. Between tyre and wheel hub
    Explanation
    The correct answer is "between wheel hub and knuckle". This means that the part mentioned in the question is mounted between the wheel hub and the knuckle in our ATV. It is not mounted between the tyre and wheel hub, between the spacer and knuckle, or between the caliper and knuckle.

    Rate this question:

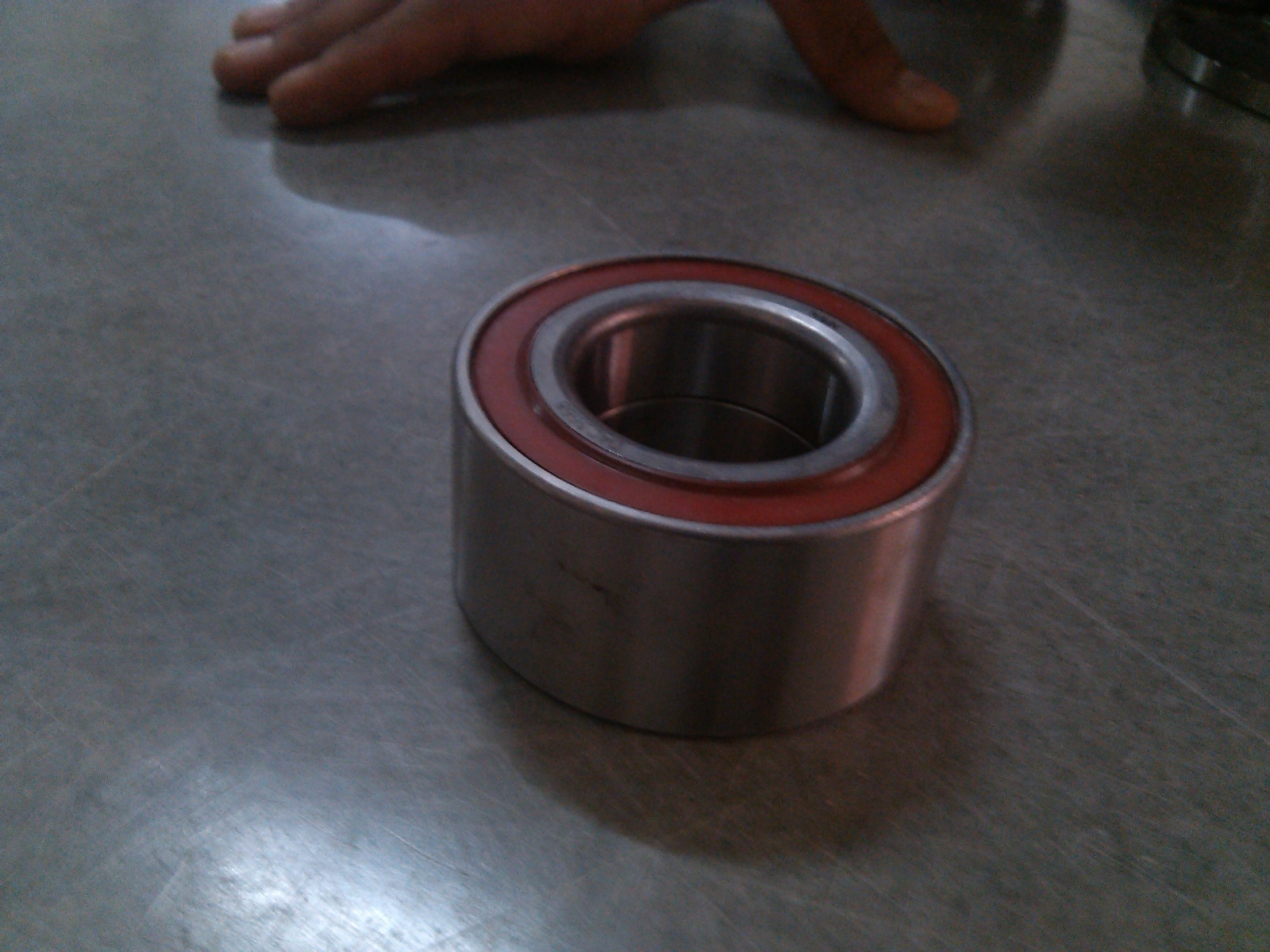

  • 5.

    What is this?

    • A.

      Bearing of type 1

    • B.

      Bearing of type 3

    • C.

      Bearing of type 1.1

    • D.

      Bearing of type 2

    • E.

      Bearing Of type 2.2

    • F.

      Bearing Of type 3.2

    Correct Answer
    D. Bearing of type 2

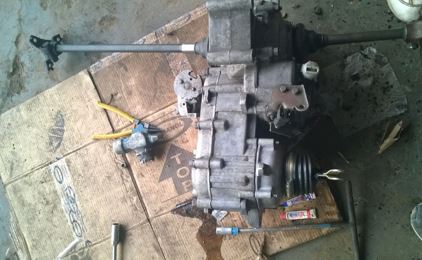

  • 6.

    We use this part __________________1. for better gear shifting.2. as spacer for engine and gear box.3. for better performance of clutch.4. to create space between hub and rim.

    • A.

      Statements 1 & 2 are correct

    • B.

      Statements 2 & 3 are correct

    • C.

      Statements 1 & 2 & 3 are correct

    • D.

      Statements 1 & 4 & 3 are correct

    • E.

      Statements 4 & 2 are correct

    • F.

      Statements 2 & 4 & 3 are correct

    Correct Answer
    C. Statements 1 & 2 & 3 are correct
    Explanation
    The part mentioned in the question is used for multiple purposes. Statement 1 states that it is used for better gear shifting, which implies that the part helps in improving the efficiency and smoothness of the gear shifting process. Statement 2 mentions that it acts as a spacer for the engine and gear box, indicating that it provides a necessary gap or distance between these two components. Statement 3 states that it contributes to the better performance of the clutch, suggesting that the part plays a role in enhancing the functionality and effectiveness of the clutch system. Therefore, all three statements are correct, indicating that the part serves multiple purposes.

    Rate this question:

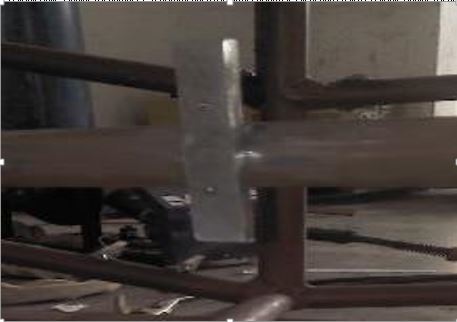

  • 7.

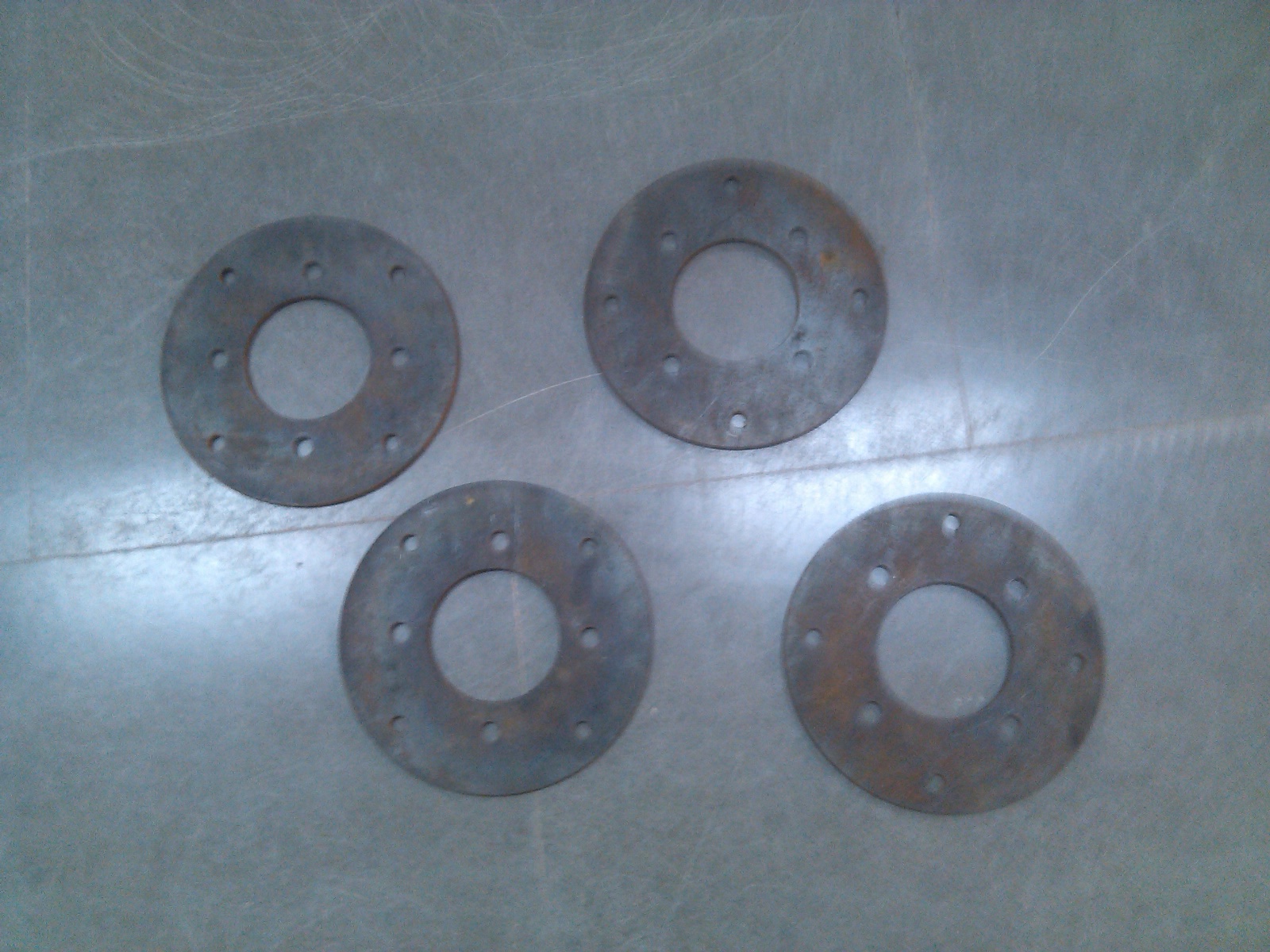

    The mounting plate shown in the figure can be used for ____________1. Front Suspension Spring Mounting2. Rear Suspension Spring Mounting3. Front A-Arm Mounting4. Front Caliper Mounting5. Fire Extingusher Mounting

    • A.

      Statements 4 & 2 & 3 are correct

    • B.

      Statements 4 & 1 & 3 are correct

    • C.

      Statements 4 & 1 & 2 are correct

    • D.

      Statements 1 & 2 & 3 are correct

    • E.

      Statements 4 & 3 & 5 are correct

    • F.

      Statements 2 & 3 & 5 are correct

    Correct Answer
    D. Statements 1 & 2 & 3 are correct
    Explanation
    The mounting plate shown in the figure can be used for front suspension spring mounting, rear suspension spring mounting, and front A-arm mounting. This means that statements 1, 2, and 3 are correct.

    Rate this question:

  • 8.

    The one shown in picture is used for ______________

    • A.

      Brake Lights

    • B.

      Reverse Lights

    • C.

      Reverse Alarm

    • D.

      None of these

    Correct Answer
    D. None of these
    Explanation
    Since the question does not provide any information or context about the picture shown, it is impossible to determine the purpose or use of the item in the picture. Therefore, the correct answer is "None of these" as none of the given options can be confirmed based on the incomplete question.

    Rate this question:

  • 9.

    What is this?

    • A.

      Mounting Of Kill Switch

    • B.

      Mounting Of Speedometer

    • C.

      Mounting Of Transponder

    • D.

      Mounting Of Master Switch

    Correct Answer
    C. Mounting Of Transponder

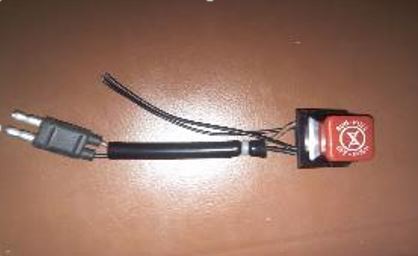

  • 10.

    The name of the part shown in figure is ___________________

    • A.

      Master Switch

    • B.

      Regulator Switch

    • C.

      Kill Switch

    • D.

      Battery Switch

    • E.

      Paddle Switch

    Correct Answer
    C. Kill Switch
    Explanation
    The correct answer is Kill Switch. A kill switch is a safety device used to shut off the engine in an emergency situation. It is typically a toggle switch that cuts off the electrical power supply to the ignition system, effectively stopping the engine from running. This switch is commonly used in vehicles, boats, and other machinery to quickly and easily disable the engine in case of an accident or other dangerous situations.

    Rate this question:

  • 11.

    This part is __________________1. hydraulic pressure switch2. used for brake light3. used for reverse alarm4. used for reverse light

    • A.

      Statements 1 & 2 are correct

    • B.

      Statements 3 & 4 & 2 are correct

    • C.

      Statements 3 & 1 are correct

    • D.

      Statements 3 & 4 & 1 are correct

    Correct Answer
    A. Statements 1 & 2 are correct
    Explanation
    The given answer states that statements 1 and 2 are correct. This means that the part mentioned is a hydraulic pressure switch and it is used for the brake light.

    Rate this question:

  • 12.

    Where it is mounted in our ATV

    • A.

      On Dashboard

    • B.

      Rear Sidewall

    • C.

      Front Sidewall

    • D.

      None of these

    Correct Answer
    D. None of these
    Explanation
    The question is asking about the location where something is mounted on an ATV. The options provided are "On Dashboard," "Rear Sidewall," "Front Sidewall," and "None of these." However, the correct answer is "None of these" because the question does not specify what is being mounted on the ATV. Without this information, it is impossible to determine the correct location.

    Rate this question:

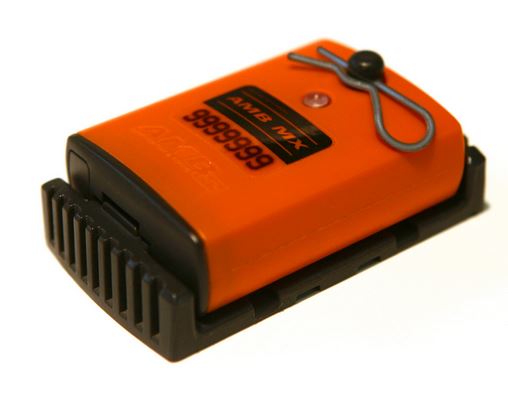

  • 13.

    Which one would you like to match with the picture?

    • A.

      SportCount Velo-X

    • B.

      Transponder

    • C.

      Pool-Mate Pro

    • D.

      Chrono 200

    • E.

      None of these

    Correct Answer
    B. Transponder
    Explanation
    The correct answer is "Transponder" because a transponder is a device that emits a signal in response to receiving a specific signal. In the context of the question, it is likely that there is a picture of a transponder and the question is asking which option matches the picture. The other options, SportCount Velo-X, Pool-Mate Pro, and Chrono 200, are not related to transponders and therefore would not match the picture.

    Rate this question:

  • 14.

    What was Saffrony's ATV number and what was its weight in 2015 SAEINDIA Baja competition?

    • A.

      84, 290 Kg

    • B.

      84, 270 Kg

    • C.

      83, 280 Kg

    • D.

      83, 280 Kg

    • E.

      84, 280

    Correct Answer
    A. 84, 290 Kg
    Explanation
    In the 2015 SAEINDIA Baja competition, Saffrony's ATV number was 84 and its weight was 290 Kg.

    Rate this question:

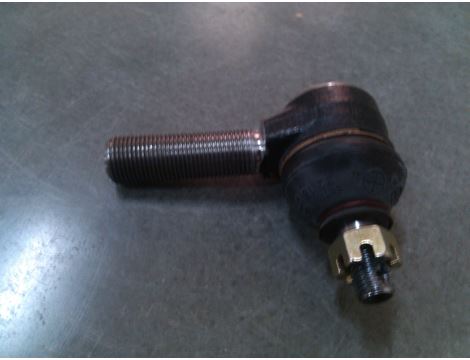

  • 15.

    Where it is used?1. on the steering tie-rod 2. Front A-Arms Mounting3. Rear A-Arms Mounting

    • A.

      Statements 3 & 2 are correct

    • B.

      Statements 1 & 2 are correct

    • C.

      Statements 3 & 1 are correct

    • D.

      Statements 3 & 2 & 1 are correct

    Correct Answer
    B. Statements 1 & 2 are correct
    Explanation
    The correct answer is Statements 1 & 2 are correct. This means that the statement "it is used on the steering tie-rod" and the statement "it is used on the front A-Arms mounting" are both correct. The answer does not include statement 3, which means that "it is used on the rear A-Arms mounting" is not correct.

    Rate this question:

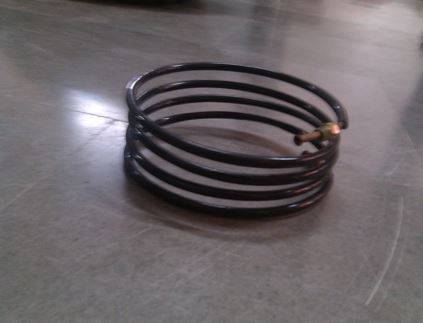

  • 16.

    What is this?

    • A.

      Meta Hose Pipe

    • B.

      Flexible Hose Pipe

    • C.

      Rubber Hose Pipe

    • D.

      None of these

    Correct Answer
    A. Meta Hose Pipe
  • 17.

    Name of the given part is ____________________

    • A.

      Brake Fluid reservoir

    • B.

      Brake Fluid tank

    • C.

      Tandem Master Cylinder

    • D.

      None of these

    Correct Answer
    C. Tandem Master Cylinder
    Explanation
    The correct answer is Tandem Master Cylinder because it is the only part listed that matches the given name. A tandem master cylinder is a type of brake master cylinder that is commonly used in modern vehicles. It consists of two separate cylinders that are connected in tandem, allowing for independent control of the front and rear brake systems. The other options listed, such as the brake fluid reservoir and brake fluid tank, are not the correct names for the given part.

    Rate this question:

  • 18.

    Name of the given part is ____________________

    • A.

      Brake Disc

    • B.

      Wheel Knuckle

    • C.

      Wheel Spacer

    • D.

      Wheel Hub

    Correct Answer
    D. Wheel Hub
    Explanation
    The correct answer is Wheel Hub. The wheel hub is the part of a vehicle's wheel assembly that holds the wheel bearings and allows the wheel to rotate smoothly. It is located at the center of the wheel and is connected to the axle. The wheel hub provides a stable and secure mounting point for the wheel, ensuring proper alignment and balance.

    Rate this question:

  • 19.

    In 2015 SAEINDIA Baja competition, 'The Team Effort' of Saffrony had used the gear box of ________________

    • A.

      Piaggio Loading Rickshaw

    • B.

      Piaggio Atul Loading Rickshaw

    • C.

      Atul Loading Rickshaw

    • D.

      Mahindra Champion Alfa Rickshaw

    Correct Answer
    A. Piaggio Loading Rickshaw
    Explanation
    In the 2015 SAEINDIA Baja competition, the team "The Team Effort" from Saffrony used the gearbox of the Piaggio Loading Rickshaw.

    Rate this question:

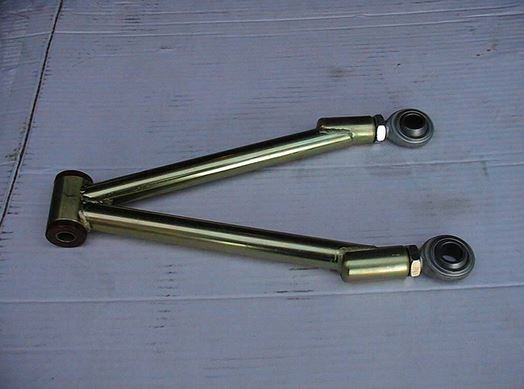

  • 20.

    In our 2015 Baja design of our ATV, where can it be used?

    • A.

      Front upper Wishbone

    • B.

      Rear upper Wishbone

    • C.

      Front lower Wishbone

    • D.

      Rear lower Wishbone

    Correct Answer
    D. Rear lower Wishbone
    Explanation
    The rear lower wishbone in the 2015 Baja design of the ATV can be used for a variety of purposes. It is typically responsible for supporting the weight of the vehicle and providing stability during acceleration, braking, and cornering. The rear lower wishbone also helps to control the movement of the suspension system, ensuring a smooth and controlled ride. Additionally, it plays a crucial role in maintaining proper alignment and tire contact with the road surface, enhancing overall handling and performance.

    Rate this question:
