CISCO Quiz 5.1 V2

The address 10.0.0.0 belongs to Class A. In the legacy IP addressing system, Class A addresses have a range of 1.0.0.0 to 126.0.0.0. These addresses are used for large networks with a large number of hosts. The first octet in a Class A address is always between 1 and 126, and the remaining three octets can be used to address hosts within the network. The address 10.0.0.0 falls within this range, making it a Class A address.

ICMP (Internet Control Message Protocol) and IP (Internet Protocol) function at the internet layer. ICMP is responsible for sending error messages and operational information about network conditions. IP is responsible for routing packets across different networks. Both protocols work together to ensure proper communication between devices on the internet.

The trailer of a data-link frame contains error detection information. This is important for ensuring the integrity of the data being transmitted. By including error detection in the trailer, the receiver can check if any errors occurred during transmission and take appropriate action, such as requesting retransmission of the data. This helps to maintain the reliability and accuracy of the data being transmitted over the data-link layer.

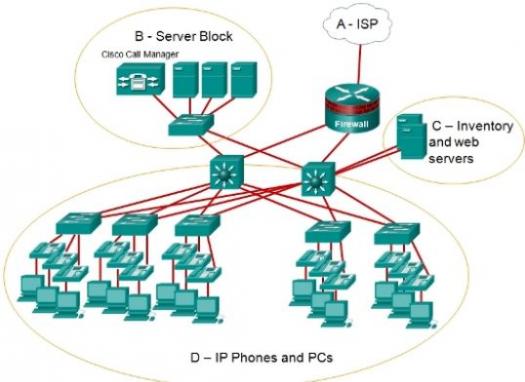

Area C would most likely be an extranet for the company network shown because it is located outside of the main network and is connected to both the company network and the internet. An extranet is a private network that allows external parties, such as customers, suppliers, or partners, to access certain resources or services of an organization. Area C, being connected to both the company network and the internet, suggests that it is a separate network that allows external access, making it the most likely candidate for an extranet.

During the transmission of an IPv4 packet, the Destination Address field will typically remain the same. This field specifies the IP address of the intended recipient of the packet. As the packet traverses through different routers and networks, other fields like Packet Length, Flag, and Time-to-Live may be modified or updated to ensure proper delivery and routing. However, the Destination Address remains constant to ensure that the packet reaches its intended destination.

CSMA/CD stands for Carrier Sense Multiple Access with Collision Detection, which is an access method used in Ethernet networks. It allows multiple devices to share the same transmission medium by sensing if the medium is idle before transmitting data. If collisions occur, the devices detect them and take appropriate actions to avoid further collisions. Therefore, the correct answer is "access method" as it accurately describes the role of CSMA/CD in regulating access to the network medium.

When a DHCPv4 client receives multiple DHCPOFFER messages from multiple DHCP servers, it sends a DHCPREQUEST to the server that it chooses to accept the lease offer from. The DHCPREQUEST message identifies the specific lease offer that the client is accepting. This allows the client to establish a connection with the chosen server and obtain the assigned IP address and other network configuration parameters.

The three application layer protocols that are part of the TCP/IP protocol suite are DHCP, DNS, and FTP. DHCP (Dynamic Host Configuration Protocol) is responsible for assigning IP addresses to devices on a network. DNS (Domain Name System) translates domain names into IP addresses. FTP (File Transfer Protocol) is used for transferring files between a client and a server on a network. ARP (Address Resolution Protocol), NAT (Network Address Translation), and PPP (Point-to-Point Protocol) are not application layer protocols in the TCP/IP suite.

The destination address used in an ARP request frame is FFFF.FFFF.FFFF. In ARP (Address Resolution Protocol), an ARP request is sent to obtain the MAC address corresponding to a given IP address. The destination address in the ARP request frame is set to the broadcast address (FFFF.FFFF.FFFF) to ensure that the request is received by all devices on the local network.

When a network administrator issues the "copy running-config startup-config" command in a Cisco switch, the new configuration will be saved in the startup-config file, which is stored in the NVRAM (non-volatile random-access memory). This means that the new configuration will be retained even if the switch is powered off or restarted. Therefore, if the switch is restarted, the new configuration will be loaded from the startup-config file, resulting in the new configuration being applied.

After the administrator issues the hostname command, the prompt that will be displayed is "Switch(config)#?". This prompt indicates that the administrator is in global configuration mode and can enter additional commands to configure the switch. The "?" symbol indicates that a list of available commands can be displayed by pressing the tab key.

The amount of traffic that is currently crossing the network can influence the throughput because if there is a high volume of traffic, it can cause congestion and slow down the transfer of data. The type of traffic that is crossing the network can also affect throughput because certain types of traffic, such as large file transfers or video streaming, require more bandwidth and can reduce the overall throughput. The latency created by the number of network devices that the data is crossing can impact throughput because each device introduces a delay in the transmission of data, which can slow down the overall transfer rate.

The subnet address for the given address is 2001:DB8:BC15:A::0 because the subnet address is obtained by setting all the host bits to 0. In this case, the host bits are represented by the "::1" portion of the given address, so setting them to 0 gives us the subnet address.

The IPv4 address 127.0.0.1, also known as the loopback address, can be pinged to test the internal TCP/IP operation of a host. This address is reserved for testing network software and communication between processes on the same host. When a packet is sent to this address, it is looped back and delivered to the sender's own network stack. This allows the host to verify that its TCP/IP stack is functioning correctly.

To create subnets for WAN links that need only 2 usable addresses, we need to borrow additional bits from the subnet mask. The /26 subnet mask provides 64 total addresses, out of which 62 are usable. Since we only need 2 usable addresses, we need to borrow enough bits to create a subnet with at least 4 addresses (2 usable addresses + network address + broadcast address). Borrowing 4 additional bits will give us a /30 subnet mask, which provides 4 total addresses and 2 usable addresses, making it suitable for the given requirement.

In this scenario, the highest priority will be given to the audio conference because it requires real-time transmission of audio data without any delay or interruption. Next, the financial transactions will be prioritized as they involve sensitive and critical data that needs to be transmitted securely and accurately. Lastly, the web page viewing will have the lowest priority as it is not time-sensitive and can tolerate some delay or interruptions without causing significant issues. Therefore, the correct order of priorities is audio conference, financial transactions, and web page.

The correct answer is audio conference, database, HTTP. In a school network where QoS is implemented, the highest priority would be given to real-time applications like audio conferences, as they require low latency and uninterrupted transmission. The next priority would be given to accessing the library database, as it involves retrieving and updating important information. The lowest priority would be given to HTTP traffic, which includes web browsing, as it is not as time-sensitive or critical as the other two activities.

During the conversation between the host and the Web server on a remote network, intermediary network devices perform three functions. Firstly, they regenerate data signals to ensure that the signals are strong and can travel long distances without degradation. Secondly, they apply security settings to control the flow of data, ensuring that unauthorized access is prevented and data integrity is maintained. Lastly, they notify other devices when errors occur, allowing for quick identification and resolution of any issues that may arise during the conversation.

TFTP (Trivial File Transfer Protocol) is a best-effort, connectionless application layer protocol used for transferring files. It is designed to be simple and lightweight, making it suitable for transferring small files in network environments with limited resources. TFTP operates on UDP (User Datagram Protocol) and does not provide reliable data transfer or error correction mechanisms. It is commonly used in scenarios such as booting diskless workstations or transferring firmware updates to network devices.

The loopback test is a diagnostic test that sends data from a device back to itself. If the TCP/IP stack on the device is working correctly, it means that the device is able to send and receive data within its own network stack. This test helps ensure that the networking software and protocols are functioning properly on the device. It does not provide information about end-to-end connectivity, DHCP functionality, the status of the Ethernet cable, or the correctness of the device's IP address on the network.

not-available-via-ai

During normal operation, most Cisco routers run the IOS from RAM. RAM (Random Access Memory) is a type of computer memory that allows data to be accessed quickly. Running the IOS from RAM allows the router to execute commands and processes efficiently. Flash memory is used to store the IOS image, but it is typically copied to RAM for execution. NVRAM (Non-Volatile Random Access Memory) is used to store the router's startup configuration, and a disk drive is not typically used to run the IOS.

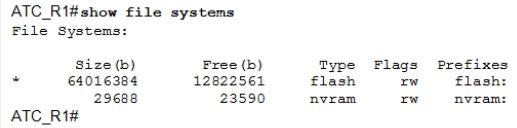

The asterisk (*) in the exhibited output designates which file system is the default file system.

A wireless client needs two components to be installed on a WLAN: a wireless NIC (Network Interface Card) and wireless client software. The wireless NIC allows the device to connect to the wireless network by sending and receiving signals. The wireless client software is necessary to manage the connection and communicate with the wireless network.

When a host PC is attempting to lease an address through DHCP, the server sends a DHCPOFFER message to the client to let it know that it is able to use the provided IP information. This message is sent by the server in response to the DHCPDISCOVER message sent by the client, indicating that the server has an available IP address to offer to the client. The DHCPOFFER message contains the IP address that the server is offering to the client, along with other configuration information such as subnet mask, default gateway, and DNS server.

A faulty network device can create a source of hazard for a user by stopping functioning, which can lead to disruptions in network connectivity and loss of important data or services. Additionally, a faulty device has the potential to explode, which can cause physical harm to the user and damage to surrounding equipment or infrastructure.

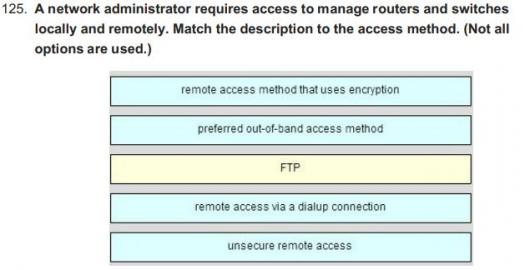

The correct answer is an AUX port. An AUX port, short for auxiliary port, is typically used for connecting a modem to a router. This allows for direct remote access to the router via the modem. The other options mentioned, such as inband router interface, console port, and serial WAN interface, are not typically used for direct remote access via a modem.

WPA (Wi-Fi Protected Access) is the correct answer because it uses a security protocol called Temporal Key Integrity Protocol (TKIP) which generates a new dynamic key for each client when they establish a connection with the Access Point (AP). This dynamic key helps to enhance the security of the wireless network by preventing unauthorized access and protecting the data transmitted over the network.

Intermediary network devices perform the following functions during a Telnet conversation: regenerating data signals, which ensures that the data is transmitted accurately over long distances; applying security settings to control the flow of data, which helps protect the Telnet session from unauthorized access; and notifying other devices when errors occur, allowing for prompt troubleshooting and resolution of any issues that may arise during the conversation.

Configuring the "ipv6 unicast-routing" command on a router enables the router to function as an IPv6 router. This command allows the router to forward IPv6 unicast traffic between different networks. By enabling this command, the router will be able to process and route IPv6 packets, allowing for the successful transmission of data across IPv6 networks.

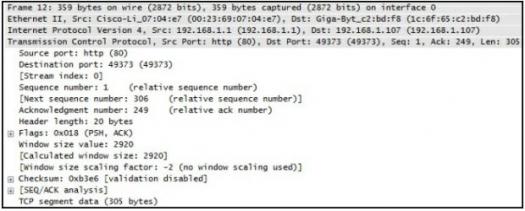

The acknowledgement number in TCP is used to inform the sender of the next expected byte of data. In this case, the host has received a TCP segment from the server. The host will send an acknowledgement number of 306 back to the server. This means that the host is expecting the next byte of data to be byte number 306.

The majority of addresses within the /8 block IPv4 bit space are public addresses. Public addresses are assigned to devices that are connected to the internet and can be accessed by other devices on the network. These addresses are globally unique and are used to identify and locate devices on the internet. In contrast, private addresses are used for devices within a private network and are not accessible from the internet. Multicast addresses are used for one-to-many communication, and experimental addresses are reserved for research and testing purposes.

The IP address and subnet mask are both components that are configured via software in order for a PC to participate in a network environment. The IP address is a unique identifier assigned to each device on a network, allowing for communication between devices. The subnet mask is used to determine which part of the IP address represents the network and which part represents the host. Both of these components are necessary for a PC to properly connect and communicate within a network environment.

DHCP is the preferred method of assigning IP addresses to hosts on large networks because it eliminates most address configuration errors. With DHCP, the network administrator can centrally manage and assign IP addresses, reducing the chances of manual configuration mistakes. Additionally, DHCP reduces the burden on network support staff as they don't need to manually assign and manage IP addresses for each device on the network. This automation saves time and resources, allowing the support staff to focus on other important network tasks.

The physical layer of the OSI model is responsible for transmitting raw data bits over a communication channel. It takes the frames received from the data link layer and encodes them into electrical, optical, or radio wave signals that can be transmitted through the physical media. This encoding process ensures that the data can be effectively transmitted over the chosen medium and decoded correctly by the receiving device. Therefore, encoding frames into electrical, optical, or radio wave signals is an important function of the physical layer.

The FF00::/8 IPv6 address range cannot be allocated as a host source address. This range is reserved for multicast addresses, which are used for one-to-many communication. Multicast addresses are not assigned to individual hosts, but rather to groups of hosts that are interested in receiving the multicast traffic. Therefore, this address range cannot be used as a source address for individual hosts.

HTTP uses TCP as the transport layer protocol because HTTP requires reliable delivery. TCP provides reliable delivery by ensuring that all data packets are received in the correct order and without errors. This is important for HTTP, as it is commonly used for transmitting important data such as web pages, files, and transactions. TCP's reliability ensures that the data is received accurately and completely, reducing the risk of data loss or corruption during transmission.

During the conversation between the host and the FTP server, intermediary network devices perform three functions. Firstly, they regenerate data signals to ensure that the signals remain strong and clear as they travel across the network. Secondly, they apply security settings to control the flow of data, ensuring that unauthorized access is prevented and data integrity is maintained. Lastly, these devices notify other devices when errors occur, allowing for prompt troubleshooting and resolution of any issues that may arise during the conversation.

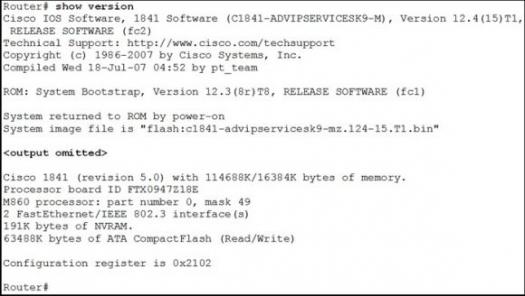

The router loaded the IOS from the flash memory. Flash memory is a type of non-volatile storage that retains data even when power is lost. It is commonly used to store the operating system and other firmware on networking devices like routers. The IOS, or Internetwork Operating System, is the software that runs on Cisco routers and provides the functionality for routing and switching. Therefore, it is logical for the router to load the IOS from the flash memory, which is a permanent storage location for the operating system.

WEP (Wired Equivalent Privacy) is easily compromised because it uses a weak encryption algorithm and has several vulnerabilities. It is susceptible to various attacks, such as packet sniffing, brute force attacks, and key recovery attacks. These vulnerabilities make it relatively easy for attackers to intercept and decrypt the wireless network traffic protected by WEP, compromising the security of the network.

Fiber optic cable is not affected by EMI or RFI because it uses light signals to transmit data instead of electrical signals, making it immune to electromagnetic interference. Additionally, fiber optic cable is the most expensive type of LAN cabling due to the high cost of the materials used and the complex manufacturing process involved in producing it.

The single IPv6 hextet :10CD: is made up of 16 bits. In IPv6, each hextet consists of 4 hexadecimal digits, and each hexadecimal digit represents 4 bits. Therefore, multiplying 4 hexadecimal digits by 4 bits per digit gives us a total of 16 bits in a single IPv6 hextet.

The correct answer is /64 and /68. In IPv6 subnetting, a nibble boundary refers to dividing the subnet into groups of 4 bits. Both /64 and /68 fall on nibble boundaries because they can be evenly divided by 4. Subnetting on a nibble boundary is recommended in IPv6 to simplify network management and ensure compatibility with various devices.

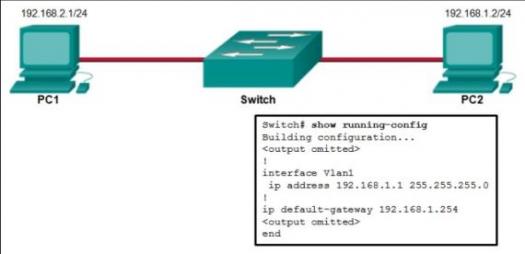

PC2 can send a ping to 192.168.1.1 because it is within the same network as PC2. The IP address 192.168.1.1 is within the range of the subnet that PC2 is connected to, allowing it to communicate with other devices within the same network.

The given host address is 2001:DB8:BC15:A:12AB::1/64. The prefix for this host address is 2001:DB8:BC15:A. The prefix represents the network portion of an IP address and is used to identify the network to which the host belongs. In this case, the prefix is 2001:DB8:BC15:A, which means that the host is part of the network with this prefix.

When an interface is configured with the IPv6 address command, a link-local IPv6 address is automatically configured on the interface. A link-local address is an IPv6 address that is only valid within the local network segment and is automatically assigned to the interface without the need for manual configuration or the presence of a DHCP server. This address is used for local communication within the network segment and cannot be used for communication outside of it. Therefore, the statement that a link-local IPv6 address is automatically configured on the interface is true.

Request for Comments (RFCs) are documents that describe protocols, processes, and technologies for the Internet. They are publicly available resources that provide information and guidelines for the development and implementation of Internet standards. However, RFCs do not give implementation details. They focus more on the conceptual and theoretical aspects of the protocols, providing a framework for their implementation rather than specific instructions on how to implement them.

The transport layer protocols, such as TCP and UDP, use port numbers to identify the specific application layer protocols that the data is intended for. TCP uses windowing and sequencing techniques to ensure reliable transfer of data, while UDP does not provide these mechanisms and is therefore considered a connectionless protocol. TCP is a connection-oriented protocol, meaning that a connection is established between the sender and receiver before data transfer begins, while UDP does not require a prior connection.

The subnet mask 255.255.255.192 provides 64 subnets with 62 hosts each. To create a subnet with 10 hosts, we need a subnet mask of /28 (255.255.255.240) which provides 14 usable hosts. The network address 192.168.1.64/27 satisfies this requirement as it provides 30 usable hosts. Similarly, to create a subnet with 18 hosts, we need a subnet mask of /27 (255.255.255.224) which provides 30 usable hosts. The network address 192.168.1.96/28 satisfies this requirement as it provides 14 usable hosts. Therefore, the two networks that achieve the desired number of hosts are 192.168.1.64/27 and 192.168.1.96/28.

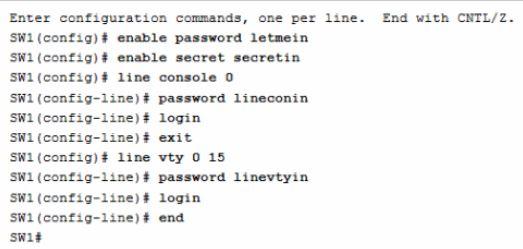

The conclusion that can be drawn from this configuration is that access to the device via Telnet will require authentication. This is because the IOS includes the login command on the vty lines by default, which means that users will be prompted to enter a password when connecting to the router via Telnet.

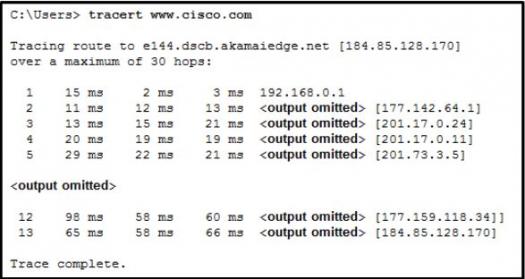

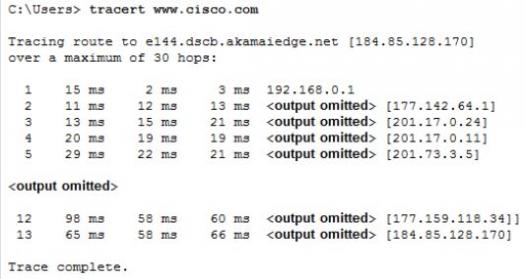

The network administrator would use the tracert utility to identify where a packet was lost or delayed on a network. Tracert (short for "traceroute") is a command-line tool that traces the route that packets take from the source to the destination. By showing the IP addresses of the routers along the path, it helps to pinpoint the location where a packet is being lost or experiencing delays. This information is crucial for troubleshooting network issues and optimizing network performance.

The given combination of network addresses and prefix lengths will make the most efficient use of addresses because it allows for the required number of subnets and hosts while minimizing address waste. The first subnet, 10.1.1.128/28, can support 14 hosts, which is more than enough for the required 10 hosts. The second subnet, 10.1.1.144/28, can also support 14 hosts. Finally, the third subnet, 10.1.1.160/29, can support 6 hosts, which is exactly what is needed. This combination ensures that the available addresses are used efficiently without wasting any.

The two preconfigured settings that affect security found on most new wireless routers are "broadcast SSID" and "default administrator password". The broadcast SSID setting determines whether the wireless network name is visible to other devices, while the default administrator password is the initial password used to access the router's settings. These settings can impact the security of the network as hiding the SSID can make it harder for unauthorized users to detect the network, and changing the default administrator password prevents unauthorized access to the router's settings.

Fiber-optic cabling does not conduct electricity because it is made of glass or plastic fibers that transmit data using light signals instead of electrical signals. This characteristic makes it ideal for environments where electrical interference is a concern, such as in hospitals or industrial settings. Additionally, fiber-optic cabling is primarily used as backbone cabling because it has a high bandwidth capacity and can transmit data over long distances without significant signal loss. This makes it suitable for connecting network switches and routers in large-scale networks.

NAT (Network Address Translation) is the technology that provides a solution to IPv4 address depletion by allowing multiple devices to share one public IP address. NAT works by translating private IP addresses used within a local network into a single public IP address that is visible on the internet. This allows multiple devices to access the internet using a single public IP address, conserving the limited number of available IPv4 addresses.

The auto-MDIX feature on a switch refers to the automatic configuration of an interface for a straight-through or a crossover Ethernet cable connection. This means that the switch can detect the type of cable being used (whether it is a straight-through or crossover cable) and automatically configure the interface accordingly. This feature eliminates the need for manual configuration or the use of special crossover cables, making network setup and connectivity easier and more convenient.

The correct answer is "A console port is not used for packet forwarding." This statement describes a characteristic of the Cisco router management ports. The console port is used for remote management of the router, but it does not participate in the forwarding of network packets. It is primarily used for initial configuration, troubleshooting, and accessing the router's command-line interface.

not-available-via-ai

During normal operation, most Cisco switches and routers run the IOS from RAM. RAM (Random Access Memory) is a type of computer memory that allows data to be read and written quickly. Running the IOS from RAM allows for faster access and execution of commands and processes. Additionally, RAM is volatile memory, meaning that it loses its data when power is removed, which provides an added layer of security for the IOS.

A router will first search for startup configuration information in NVRAM (Non-Volatile Random Access Memory), which is a type of memory that retains data even when the router is powered off. If the configuration is not found in NVRAM, the router will then search for it in TFTP (Trivial File Transfer Protocol), which allows the router to retrieve configuration files from a remote server. Finally, if the configuration is still not found, the router will enter setup mode, where a basic configuration can be manually entered.

ICMP (Internet Control Message Protocol) messages are used to provide feedback about the transmission of IP packets. These messages are sent by network devices, such as routers, to inform the sender about the status of the transmitted packets. ICMP messages can indicate whether a packet has been successfully delivered, encountered an error, or was unable to reach its destination. By receiving this feedback, the sender can take appropriate actions, such as retransmitting the packet or adjusting its transmission parameters. Therefore, the purpose of ICMP messages is to provide feedback and assist in the reliable delivery of IP packets.

The Hop Limit field is used by ICMPv6 to determine that a packet has expired. This field specifies the maximum number of hops that a packet can take before it is discarded. When a packet reaches the maximum number of hops allowed, the Hop Limit field is decremented by each router it passes through. If the Hop Limit field reaches zero, the packet is considered expired and an ICMPv6 Time Exceeded message is sent back to the source.

When a router receives a packet from a host to be delivered to a host on another network, it follows a sequence of processes. First, it de-encapsulates the packet, which means it removes the outer layers of the packet to access the inner data. Then, it selects the appropriate path for forwarding the packet based on its routing table. Finally, it encapsulates the packet again by adding the necessary headers and forwards it toward the destination host. This ensures that the packet is correctly routed and delivered to its intended destination.

Stateful packet inspection is a firewall technique that blocks incoming packets unless they are responses to internal requests. This technique examines the state of the packets and compares them to known and legitimate connections. It keeps track of the state of network connections and only allows incoming packets that are associated with an established connection or are a response to a request made from within the network. This helps to prevent unauthorized access and protects the network from potential threats.

The correct command to use in this scenario is "tracert 10.1.1.5". The tracert command is used to trace the route that packets take from the source to the destination. By issuing this command on the PC, the network technician will be able to see the complete path or route that the packets take to reach the remote host with the address 10.1.1.5. This can be helpful in troubleshooting network connectivity issues and identifying any network hops or routers that may be causing problems.

A router is a networking device that connects multiple networks and directs network traffic between them. One of the primary functions of a router is packet switching, which involves receiving packets of data and determining the most efficient path to forward them to their destination. Another primary function is path selection, where the router analyzes different paths and selects the best one based on factors like speed, cost, and reliability. Microsegmentation, domain name resolution, and flow control are not primary functions of a router.

The amount of traffic can affect the throughput on the network as higher traffic levels can lead to congestion and slower data transfer. The type of traffic can also impact throughput as certain types of data may require more bandwidth or have higher priority. The number and type of network devices that the data is crossing can introduce delays and bottlenecks, affecting the overall throughput. The other factors listed, such as the type of data encapsulation, bandwidth of the connection to the ISP, and reliability of the network backbone, may affect network performance but may not directly explain the difference between expected and actual throughput.

The receiving device checks the FCS field in the frame to verify that the frame has been received without any errors during transmission. The FCS (Frame Check Sequence) field contains a checksum value that is calculated by the sending device based on the data in the frame. The receiving device recalculates the checksum using the received data and compares it to the checksum value in the FCS field. If the calculated checksum matches the one in the FCS field, it indicates that the frame has been received correctly. If there is a mismatch, it suggests that there may have been errors during transmission.

The given answer, 2001:DB8:0:AB00::1234, is the most compressed format possible for the IPv6 address 2001:0DB8:0000:AB00:0000:0000:0000:1234. In IPv6, leading zeros in each 16-bit block can be omitted, and consecutive blocks of zeros can be replaced with a double colon (::). Therefore, the address can be compressed to 2001:DB8:0:AB00::1234, where the blocks with leading zeros and consecutive zeros are omitted.

When a host PC boots and attempts to lease an address through DHCP, it will typically broadcast two messages on the network. The first message is DHCPDISCOVER, which is a broadcast message sent by the client to discover DHCP servers available on the network. The second message is DHCPREQUEST, which is a broadcast message sent by the client to request an IP address from a specific DHCP server.

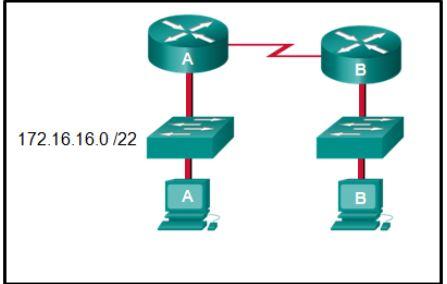

The given question is asking for the broadcast address for the network 172.16.16.0/22. The /22 indicates that the first 22 bits are the network address, leaving 10 bits for host addresses. In this case, the network address is 172.16.16.0. To find the broadcast address, we need to set all the host bits to 1. The last 10 bits in this case are 0100111111, which is equal to 19 in decimal. Therefore, the broadcast address for the network 172.16.16.0/22 is 172.16.19.255.

ARP (Address Resolution Protocol) is used to discover a physical address (MAC address) from a known logical address (IP address). ARP uses broadcast messages to send a request to all devices on the network, asking for the MAC address associated with a specific IP address. The device that has the requested IP address will respond with its MAC address, allowing the sender to establish a direct communication link.

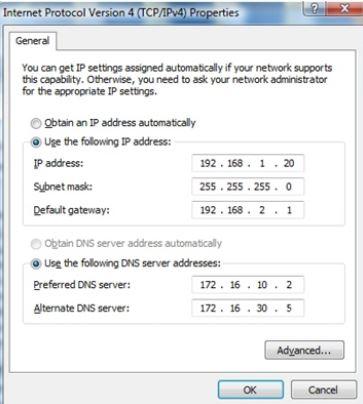

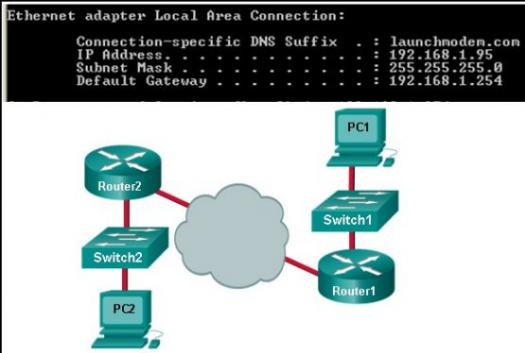

If the default gateway address is incorrectly configured on a host, the host will not be able to communicate with hosts in other networks. The default gateway is responsible for routing traffic between different networks. If the address is incorrect, the host will not be able to send packets to the correct gateway, resulting in the inability to communicate with hosts in other networks.

The default gateway address being incorrect could account for the user's inability to access Internet sites. The default gateway is responsible for routing traffic between different networks, including the local LAN and the Internet. If the default gateway address is incorrect, the user's requests to access Internet sites would not be properly routed, resulting in the failure to connect.

Predictable static IP addresses should be applied to the servers in a data center for easier identification. This means that each server is assigned a specific IP address that does not change, making it easier for the network administrator to identify and manage the servers. This is particularly useful in a data center where there may be a large number of servers that need to be monitored. Using predictable static IP addresses ensures that the administrator can easily locate and troubleshoot any issues with the servers.

not-available-via-ai

Cisco Express Forwarding (CEF) is a packet-switching technique used in Cisco routers. It has two main components: adjacency tables and forwarding information base (FIB). Adjacency tables store information about directly connected neighbors, such as their MAC addresses. The FIB, on the other hand, contains the routing information and is used to make forwarding decisions. By combining these two components, CEF can efficiently forward packets based on the destination IP address, improving network performance.

The transport layer protocols, TCP and UDP, both use port numbers to identify the specific application layer protocols that the data is being sent to. TCP utilizes windowing and sequencing to ensure reliable transfer of data, allowing for the retransmission of lost or corrupted packets. Additionally, TCP is a connection-oriented protocol, meaning that a connection is established between the sender and receiver before data transfer begins. On the other hand, UDP is a connectionless protocol, meaning that it does not establish a connection before sending data.

During a session with a server, the UDP client process does not reorder datagrams that arrive in a different order than they were sent. UDP does not guarantee the delivery or ordering of packets, so if the datagrams arrive out of order, they will not be rearranged by the UDP client process.

The purpose of the routing process is to select the paths that are used to direct traffic to destination networks. Routing involves determining the most efficient path for data packets to travel from the source to the destination network. This is done by analyzing network topology, network congestion, and other factors to make decisions on the best routes. Routing ensures that data packets reach their intended destinations in a timely and efficient manner, optimizing network performance.

When a switch receives a frame and the calculated CRC value is different from the value in the FCS field, it indicates that there is an error in the frame. In this case, the switch drops the frame. Dropping the frame prevents the error from propagating further in the network and ensures that only error-free frames are forwarded.

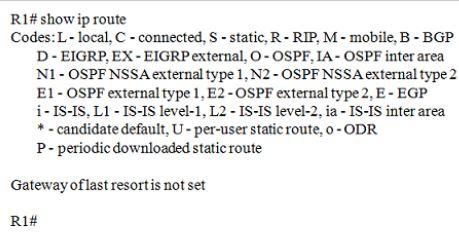

The show ip route command displays information about the routing table, including directly connected networks. However, in this scenario, the command output does not display any information about the directly connected networks. This suggests that there might be an issue with the interfaces. The correct answer states that the "no shutdown" command was not issued on these interfaces. This command is used to enable the interfaces and allow them to function properly. Therefore, the lack of information about the directly connected networks in the show ip route command output can be attributed to the interfaces not being properly enabled.

Adjacency tables are used in Cisco Express Forwarding (CEF) to maintain Layer 2 next-hop addresses. These tables store information about the directly connected devices and their corresponding MAC addresses. By keeping track of these Layer 2 addresses, CEF can quickly determine the next-hop device for forwarding packets. This helps in improving the efficiency and speed of the forwarding process.

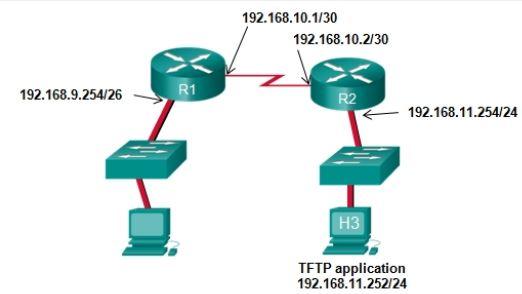

The IP address that the administrator should enter at the prompt is 192.168.11.252. This is because the command "copy running-config tftp" is used to copy the running configuration of the router to a TFTP server. The prompt is asking for the address or name of the remote host, which in this case is the TFTP server. Therefore, the administrator should enter the IP address of the TFTP server, which is 192.168.11.252.

Data throughput is a measure of the amount of data that is transferred across a medium, such as a network or storage device, within a specific time frame. It represents the rate at which data is transmitted and received. This measure is important as it helps to determine the efficiency and performance of a system or network. It is different from the capacity of a medium to carry data, as it specifically focuses on the actual transfer of bits over a given period of time, taking into account any limitations or constraints that may affect the transmission speed.

ROM is nonvolatile and contains basic diagnostic software. This statement is correct because ROM (Read-Only Memory) is a type of memory in a router that retains its contents even when the power is turned off. It contains the basic diagnostic software that is used during the boot process to initialize the router's hardware and perform self-tests.

RAM is volatile and stores the IP routing table. This statement is also correct because RAM (Random Access Memory) is a type of memory in a router that is used for temporary storage of data and instructions. It is volatile, meaning that its contents are lost when the power is turned off. The IP routing table, which contains information about the network paths and next hops, is stored in RAM for quick access and efficient routing decision-making.

Cisco Express Forwarding (CEF) is a default feature on most Cisco devices that perform Layer 3 switching. Therefore, there is no need to manually configure or enable CEF, as it is already enabled by default. CEF is responsible for forwarding packets based on the information stored in the forwarding information base (FIB), which is automatically populated.

When the administrator issues the "no service password-encryption" command, it will not reverse any encryption. This means that the passwords configured for enable password, vty, and console lines will remain encrypted. This command only disables the encryption feature for future passwords, but it does not decrypt the existing passwords. Therefore, the encryption applied to the passwords will still be in effect even after issuing this command.

ROM in a router maintains instructions for POST diagnostics, which means it holds the necessary information for the Power-On Self Test (POST) to check the hardware components during the router's startup process. It also stores the bootstrap program, which is responsible for initializing the router's operating system. These functions make ROM an essential component in the router's functionality and allow it to perform necessary diagnostic checks and boot up properly.

Network Address Translation (NAT) is a technique used by ISPs to allow multiple devices on a private network, such as a local area network (LAN), to share a single public IP address. In this scenario, both users are assigned the same private IP address (192.168.0.1) by their respective network administrators. When these devices connect to the Internet, the NAT function performed by the ISP translates the private IP address into a public IP address that can be used on the Internet. This allows both users to access the Internet, send and receive email, and search the web, even though they are using the same IP address.

Layer 3 devices, such as routers, perform the ANDing process on a destination IP and subnet mask to identify the network address of the destination host. The subnet mask is used to divide the IP address into network and host portions. By performing the AND operation, the router can determine the network address of the destination host and make routing decisions based on that information.

When the destination MAC address of a received frame is not in the MAC table, a Layer 2 switch will forward the frame out of all ports except for the port at which the frame was received. This is because the switch does not have the information needed to determine the correct port for the destination MAC address, so it floods the frame to ensure that it reaches the intended destination. By forwarding the frame out of all ports except the receiving port, the switch increases the chances of the frame reaching the correct destination.
