1. How many symbols are used in the octal number system?

4

8

10

16

The octal number system uses 8 symbols, which are 0, 1, 2, 3, 4, 5, 6, and 7. In octal, each digit represents a power of 8, similar to how each digit in decimal represents a power of 10. Therefore, the correct answer is 8.

Explanation

The octal number system uses 8 symbols, which are 0, 1, 2, 3, 4, 5, 6, and 7. In octal, each digit represents a power of 8, similar to how each digit in decimal represents a power of 10. Therefore, the correct answer is 8.

2. In the circuit of figure, the equivalent impedance seen across terminals A, B is

(16/3) Ω

(8/3) Ω

(8/3 + 12j) Ω

None of the above

In the given circuit, the equivalent impedance across terminals A and B can be calculated using the formula for parallel combination of impedances. The circuit consists of a 12Ω resistor in parallel with a series combination of a 6Ω resistor and a 6jΩ reactance. The parallel combination of the 12Ω resistor and the series combination of the 6Ω resistor and 6jΩ reactance can be simplified to a single impedance. By calculating the equivalent impedance, it is found to be (8/3) Ω. Therefore, the correct answer is (8/3) Ω.

Explanation

In the given circuit, the equivalent impedance across terminals A and B can be calculated using the formula for parallel combination of impedances. The circuit consists of a 12Ω resistor in parallel with a series combination of a 6Ω resistor and a 6jΩ reactance. The parallel combination of the 12Ω resistor and the series combination of the 6Ω resistor and 6jΩ reactance can be simplified to a single impedance. By calculating the equivalent impedance, it is found to be (8/3) Ω. Therefore, the correct answer is (8/3) Ω.

3. Which of the following statement(s) about passive elements is / are correct? (i) These elements generate or produce electrical energy. (ii) These elements consume (receive) energy or store energy.

Only (i)

Only (ii)

Both (i) and (ii)

None

Passive elements are electrical components that do not generate or produce electrical energy on their own, but they consume or receive energy from an external source and can store energy. Therefore, statement (ii) is correct. Statement (i) is incorrect because passive elements do not generate or produce electrical energy.

Explanation

Passive elements are electrical components that do not generate or produce electrical energy on their own, but they consume or receive energy from an external source and can store energy. Therefore, statement (ii) is correct. Statement (i) is incorrect because passive elements do not generate or produce electrical energy.

4. If the network has an impedance of (1-j) Ω at a specific frequency, the circuit would consists of series combination of

Resistor & Inductor

Resistor & Capacitor

Resistors

None

If the network has an impedance of (1-j) Ω at a specific frequency, it indicates that the network has both a resistive component and an imaginary component. The resistive component is represented by the resistor, while the imaginary component is represented by the capacitor. Therefore, the circuit would consist of a series combination of a resistor and a capacitor.

Explanation

If the network has an impedance of (1-j) Ω at a specific frequency, it indicates that the network has both a resistive component and an imaginary component. The resistive component is represented by the resistor, while the imaginary component is represented by the capacitor. Therefore, the circuit would consist of a series combination of a resistor and a capacitor.

5. A delta connection contains 3 equal impedances of 60 Ω. The impedances of the equivalent star connection will be

15 Ω each

20 Ω each

30 Ω each

40 Ω each

In a delta connection, the impedances are equal to the impedances in the equivalent star connection divided by the square root of 3. In this case, the impedances in the delta connection are given as 60 Ω each. To find the impedances in the equivalent star connection, we need to divide 60 Ω by the square root of 3. Simplifying this, we get approximately 34.64 Ω. However, since the answer choices are provided in integer values, the closest option is 20 Ω each. Therefore, the impedances of the equivalent star connection will be 20 Ω each.

Explanation

In a delta connection, the impedances are equal to the impedances in the equivalent star connection divided by the square root of 3. In this case, the impedances in the delta connection are given as 60 Ω each. To find the impedances in the equivalent star connection, we need to divide 60 Ω by the square root of 3. Simplifying this, we get approximately 34.64 Ω. However, since the answer choices are provided in integer values, the closest option is 20 Ω each. Therefore, the impedances of the equivalent star connection will be 20 Ω each.

6. A system has its two poles on the negative real axis and one pair of poles lies on jω axis. The system is

Unstable

Marginally Stable

Stable

None

The given system has two poles on the negative real axis, which indicates that it has a stable component. However, it also has one pair of poles on the jω axis, which represents oscillatory behavior. This combination suggests that the system is marginally stable. Marginally stable systems have a tendency to oscillate without growing or decaying over time. Therefore, the correct answer is marginally stable.

Explanation

The given system has two poles on the negative real axis, which indicates that it has a stable component. However, it also has one pair of poles on the jω axis, which represents oscillatory behavior. This combination suggests that the system is marginally stable. Marginally stable systems have a tendency to oscillate without growing or decaying over time. Therefore, the correct answer is marginally stable.

7. Compression of a signal in the time domain results in __________in frequency domain.

Compression

Expansion

Both (A) & (B)

None

When a signal is compressed in the time domain, it means that the duration of the signal is reduced. This results in an increase in the frequency content of the signal in the frequency domain. Therefore, the correct answer is expansion, as compressing a signal in the time domain leads to an expansion in the frequency domain.

Explanation

When a signal is compressed in the time domain, it means that the duration of the signal is reduced. This results in an increase in the frequency content of the signal in the frequency domain. Therefore, the correct answer is expansion, as compressing a signal in the time domain leads to an expansion in the frequency domain.

8. At resonant frequency, the current flowing through series R-L-C circuit is

Zero

Minimum

Maximum

None

At resonant frequency, the current flowing through a series R-L-C circuit is maximum. This is because at resonant frequency, the reactance of the inductor and capacitor cancel each other out, resulting in a purely resistive circuit. In a purely resistive circuit, the impedance is minimum, allowing maximum current to flow through the circuit.

Explanation

At resonant frequency, the current flowing through a series R-L-C circuit is maximum. This is because at resonant frequency, the reactance of the inductor and capacitor cancel each other out, resulting in a purely resistive circuit. In a purely resistive circuit, the impedance is minimum, allowing maximum current to flow through the circuit.

9. Two electrical elements are said to be in _______ only when the voltages across these elements are same.

Series

Parallel

Both (A) & (B)

None

When two electrical elements are said to be in parallel, it means that they are connected side by side, allowing the current to flow through both elements simultaneously. In this configuration, the voltage across both elements is the same, as they are connected to the same points in the circuit. Therefore, the correct answer is "Parallel".

Explanation

When two electrical elements are said to be in parallel, it means that they are connected side by side, allowing the current to flow through both elements simultaneously. In this configuration, the voltage across both elements is the same, as they are connected to the same points in the circuit. Therefore, the correct answer is "Parallel".

10. _______ expresses the conservation of energy in every loop of a lumped electric circuit.

Ohm’s Law

Kirchhoff’s Current Law (KCL)

Kirchhoff’s Voltage Law (KVL)

None

Kirchhoff's Voltage Law (KVL) expresses the conservation of energy in every loop of a lumped electric circuit. According to KVL, the sum of the voltage drops across all the elements in a closed loop is equal to the sum of the voltage sources in that loop. This law is based on the principle of conservation of energy, stating that the total energy supplied by the voltage sources in a loop is equal to the total energy consumed by the voltage drops across the circuit elements. Therefore, KVL is the correct answer as it directly relates to the conservation of energy in electric circuits.

Explanation

Kirchhoff's Voltage Law (KVL) expresses the conservation of energy in every loop of a lumped electric circuit. According to KVL, the sum of the voltage drops across all the elements in a closed loop is equal to the sum of the voltage sources in that loop. This law is based on the principle of conservation of energy, stating that the total energy supplied by the voltage sources in a loop is equal to the total energy consumed by the voltage drops across the circuit elements. Therefore, KVL is the correct answer as it directly relates to the conservation of energy in electric circuits.

11. Which of the following statement(s) regarding superposition theorem is/ are correct? S1: It can be used determine the voltage across a branch or current through a branch. S2: It is applicable to networks consisting more than one source. S3: It is applicable to DC circuits only.

Only S1

Only S2

Both S1 & S2

Both S2 & S3

Superposition theorem states that in a linear circuit with multiple sources, the total response is the sum of the individual responses caused by each source acting alone. Therefore, statement S1 is correct as it states that superposition theorem can be used to determine the voltage across a branch or current through a branch. Statement S2 is also correct as it states that superposition theorem is applicable to networks consisting of more than one source. However, statement S3 is incorrect as superposition theorem is applicable to both DC and AC circuits. Therefore, the correct answer is Both S1 & S2.

Explanation

Superposition theorem states that in a linear circuit with multiple sources, the total response is the sum of the individual responses caused by each source acting alone. Therefore, statement S1 is correct as it states that superposition theorem can be used to determine the voltage across a branch or current through a branch. Statement S2 is also correct as it states that superposition theorem is applicable to networks consisting of more than one source. However, statement S3 is incorrect as superposition theorem is applicable to both DC and AC circuits. Therefore, the correct answer is Both S1 & S2.

12. Which of the following statement(s) is / are correct? (i) The NAND and NOR gates are called as the universal gates. (ii) All the basic gates can be implemented by using these gates.

Only (i)

Only (ii)

Both (i) and (ii)

None

Both statement (i) and (ii) are correct. The NAND and NOR gates are known as universal gates because any logic function can be implemented using only these gates. This means that all the basic gates, such as AND, OR, and NOT gates, can be constructed using only NAND or NOR gates. Therefore, statement (ii) is also correct, as all basic gates can indeed be implemented using NAND or NOR gates.

Explanation

Both statement (i) and (ii) are correct. The NAND and NOR gates are known as universal gates because any logic function can be implemented using only these gates. This means that all the basic gates, such as AND, OR, and NOT gates, can be constructed using only NAND or NOR gates. Therefore, statement (ii) is also correct, as all basic gates can indeed be implemented using NAND or NOR gates.

13. The Fourier transform of a rectangular pulse existing between t = − T /2 to t = T / 2 is a

Sinc squared function

Sinc function

Sine squared function

Cos function

The Fourier transform of a rectangular pulse existing between t = − T /2 to t = T / 2 is a sinc function. The sinc function is defined as the Fourier transform of a rectangular pulse. It has a main lobe centered at zero frequency and side lobes that extend to infinity. The sinc function is commonly used in signal processing to analyze and manipulate signals in the frequency domain.

Explanation

The Fourier transform of a rectangular pulse existing between t = − T /2 to t = T / 2 is a sinc function. The sinc function is defined as the Fourier transform of a rectangular pulse. It has a main lobe centered at zero frequency and side lobes that extend to infinity. The sinc function is commonly used in signal processing to analyze and manipulate signals in the frequency domain.

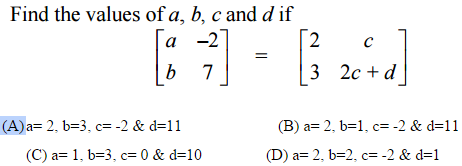

14.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

15. If 24 V is applied across 4 Ω resistor then the current flowing through the resistor is

6 A

24 A

48 A

96 A

When a voltage of 24 V is applied across a 4 Ω resistor, we can use Ohm's Law (V = IR) to calculate the current flowing through the resistor. Rearranging the formula, we get I = V/R. Plugging in the values, I = 24 V / 4 Ω = 6 A. Therefore, the correct answer is 6 A.

Explanation

When a voltage of 24 V is applied across a 4 Ω resistor, we can use Ohm's Law (V = IR) to calculate the current flowing through the resistor. Rearranging the formula, we get I = V/R. Plugging in the values, I = 24 V / 4 Ω = 6 A. Therefore, the correct answer is 6 A.

16. In a practical voltage source, the terminal voltage

Cannot be less than source voltage

Cannot be higher than source voltage

Is always equal to source voltage

None

In a practical voltage source, the terminal voltage cannot be higher than the source voltage because there will always be some amount of voltage drop across the internal resistance of the source. This internal resistance causes a decrease in the terminal voltage compared to the source voltage. Therefore, the terminal voltage cannot exceed the source voltage.

Explanation

In a practical voltage source, the terminal voltage cannot be higher than the source voltage because there will always be some amount of voltage drop across the internal resistance of the source. This internal resistance causes a decrease in the terminal voltage compared to the source voltage. Therefore, the terminal voltage cannot exceed the source voltage.

17. If X(f) represents the Fourier Transform of a signal x (t) which is real and odd symmetric in time, then X (f) is

Complex

Imaginary

Real

None

If the signal x(t) is real and odd symmetric in time, it means that the signal is symmetric about the origin and has only odd harmonics. The Fourier Transform of an odd symmetric signal will have purely imaginary values. This is because the odd harmonics will have opposite phase values, resulting in cancellation of the real components and leaving only the imaginary components. Therefore, X(f) in this case will be imaginary.

Explanation

If the signal x(t) is real and odd symmetric in time, it means that the signal is symmetric about the origin and has only odd harmonics. The Fourier Transform of an odd symmetric signal will have purely imaginary values. This is because the odd harmonics will have opposite phase values, resulting in cancellation of the real components and leaving only the imaginary components. Therefore, X(f) in this case will be imaginary.

18. The determinant of matrix A is 5 and the determinant of matrix B is 40 .The determinant of the matrix AB is ______.

8

4

35

200

The determinant of a product of two matrices is equal to the product of their determinants. Therefore, the determinant of matrix AB can be found by multiplying the determinants of matrices A and B. In this case, the determinant of matrix A is 5 and the determinant of matrix B is 40. Multiplying these two values gives us 200, which is the determinant of matrix AB.

Explanation

The determinant of a product of two matrices is equal to the product of their determinants. Therefore, the determinant of matrix AB can be found by multiplying the determinants of matrices A and B. In this case, the determinant of matrix A is 5 and the determinant of matrix B is 40. Multiplying these two values gives us 200, which is the determinant of matrix AB.

19. _______ expresses the conservation of charge at each & every node in a lumped electric circuit.

Ohm’s Law

Kirchhoff’s Current Law (KCL)

Kirchhoff’s Voltage Law (KVL)

None

Kirchhoff's Current Law (KCL) expresses the conservation of charge at each and every node in a lumped electric circuit. This law states that the algebraic sum of currents entering and leaving a node is always zero, which means that the total current flowing into a node is equal to the total current flowing out of it. KCL is based on the principle of conservation of charge, stating that charge cannot be created or destroyed in an electric circuit, only redistributed. Therefore, KCL is the correct answer as it directly relates to the conservation of charge at nodes in a circuit.

Explanation

Kirchhoff's Current Law (KCL) expresses the conservation of charge at each and every node in a lumped electric circuit. This law states that the algebraic sum of currents entering and leaving a node is always zero, which means that the total current flowing into a node is equal to the total current flowing out of it. KCL is based on the principle of conservation of charge, stating that charge cannot be created or destroyed in an electric circuit, only redistributed. Therefore, KCL is the correct answer as it directly relates to the conservation of charge at nodes in a circuit.

20. In a digital computer binary subtraction is performed

In the same way we perform subtraction in decimal number system

Using 2’s complement method

Using 9’s complement method

Using 10’s complement method

Binary subtraction in a digital computer is performed using the 2's complement method. In this method, the subtrahend (number to be subtracted) is first converted to its 2's complement by inverting all the bits and adding 1. Then, the resulting 2's complement is added to the minuend (number to be subtracted from) using binary addition. The carry-out from the most significant bit is discarded, and the resulting sum represents the subtraction result. This method allows for efficient and accurate subtraction in binary arithmetic.

Explanation

Binary subtraction in a digital computer is performed using the 2's complement method. In this method, the subtrahend (number to be subtracted) is first converted to its 2's complement by inverting all the bits and adding 1. Then, the resulting 2's complement is added to the minuend (number to be subtracted from) using binary addition. The carry-out from the most significant bit is discarded, and the resulting sum represents the subtraction result. This method allows for efficient and accurate subtraction in binary arithmetic.

21. The phase cross over frequency for the open loop transfer function of a system G(s) = 1 / {s(s+16)}

1

16

∞

The phase crossover frequency for a system is the frequency at which the phase shift of the open loop transfer function becomes 180 degrees. In this case, the open loop transfer function is G(s) = 1 / {s(s+16)}. As the denominator contains only s terms, there are no poles at the origin. Therefore, the phase crossover frequency is at infinity, indicating that the phase shift never reaches 180 degrees.

Explanation

The phase crossover frequency for a system is the frequency at which the phase shift of the open loop transfer function becomes 180 degrees. In this case, the open loop transfer function is G(s) = 1 / {s(s+16)}. As the denominator contains only s terms, there are no poles at the origin. Therefore, the phase crossover frequency is at infinity, indicating that the phase shift never reaches 180 degrees.

22. Two sequences x1 (n) and x2 (n) are related by x2 (n) = x1 (- n). In the z- domain, their ROC’s are

Same

Reciprocal to each other

Negative of each other

Complements of each other

In the given question, the sequences x1(n) and x2(n) are related by x2(n) = x1(-n). This means that x2(n) is the time-reversed version of x1(n). In the z-domain, the ROC (Region of Convergence) represents the set of values of z for which the z-transform converges.

Since x2(n) is the time-reversed version of x1(n), their z-transforms will have a reciprocal relationship in terms of their ROCs. This means that if the ROC of x1(n) is R1, then the ROC of x2(n) will be the reciprocal of R1, denoted as 1/R1. Therefore, the correct answer is that the ROCs of x1(n) and x2(n) are reciprocal to each other.

Explanation

In the given question, the sequences x1(n) and x2(n) are related by x2(n) = x1(-n). This means that x2(n) is the time-reversed version of x1(n). In the z-domain, the ROC (Region of Convergence) represents the set of values of z for which the z-transform converges.

Since x2(n) is the time-reversed version of x1(n), their z-transforms will have a reciprocal relationship in terms of their ROCs. This means that if the ROC of x1(n) is R1, then the ROC of x2(n) will be the reciprocal of R1, denoted as 1/R1. Therefore, the correct answer is that the ROCs of x1(n) and x2(n) are reciprocal to each other.

23. Which of the following is not an electrical quantity?

Voltage

Current

Distance

Power

Distance is not an electrical quantity because it does not involve the flow of electrons or the presence of electric charges. Voltage, current, and power are all electrical quantities that are used to describe different aspects of the behavior and characteristics of electric circuits. Distance, on the other hand, is a physical quantity that measures the spatial separation between two points and is not directly related to electricity.

Explanation

Distance is not an electrical quantity because it does not involve the flow of electrons or the presence of electric charges. Voltage, current, and power are all electrical quantities that are used to describe different aspects of the behavior and characteristics of electric circuits. Distance, on the other hand, is a physical quantity that measures the spatial separation between two points and is not directly related to electricity.

24. Twelve 1 Ω resistances are used as edges to form a cube. The resistance between two diagonally opposite corners of the cube is

(5 / 6) Ω

(6 / 5) Ω

1 Ω

(3 / 2) Ω

When the twelve 1 Ω resistances are used to form a cube, we can consider the cube as a network of resistors. The resistance between two diagonally opposite corners of the cube can be found by considering the equivalent resistance of the network. In this case, the equivalent resistance is (5 / 6) Ω. This can be calculated using the formula for the equivalent resistance of resistors in parallel. Therefore, the correct answer is (5 / 6) Ω.

Explanation

When the twelve 1 Ω resistances are used to form a cube, we can consider the cube as a network of resistors. The resistance between two diagonally opposite corners of the cube can be found by considering the equivalent resistance of the network. In this case, the equivalent resistance is (5 / 6) Ω. This can be calculated using the formula for the equivalent resistance of resistors in parallel. Therefore, the correct answer is (5 / 6) Ω.

25. The logic expression f = ∑m (0, 6, 7) is equivalent to

F = π M (0, 3, 6, 7)

F = π M (1, 2, 3, 4, 5)

F = ∑m (0, 1, 2, 3)

F = ∑m (1, 2, 6, 7)

The given logic expression f = ∑m (0, 6, 7) is equivalent to f = π M (1, 2, 3, 4, 5). This is because the sum-of-products expression ∑m (0, 6, 7) represents the logical function as the sum of three minterms, which are 0, 6, and 7. The product-of-sums expression π M (1, 2, 3, 4, 5) represents the same logical function as the product of five maxterms, which are 1, 2, 3, 4, and 5. Therefore, both expressions are equivalent.

Explanation

The given logic expression f = ∑m (0, 6, 7) is equivalent to f = π M (1, 2, 3, 4, 5). This is because the sum-of-products expression ∑m (0, 6, 7) represents the logical function as the sum of three minterms, which are 0, 6, and 7. The product-of-sums expression π M (1, 2, 3, 4, 5) represents the same logical function as the product of five maxterms, which are 1, 2, 3, 4, and 5. Therefore, both expressions are equivalent.

26. What is the binary equivalent of the decimal number 368

101110000

110110000

111010000

111100000

The binary equivalent of a decimal number is obtained by repeatedly dividing the decimal number by 2 and noting down the remainder at each step. Starting with the given decimal number 368, we divide it by 2 to get a quotient of 184 and a remainder of 0. We repeat this process with the quotient, dividing 184 by 2 to get a new quotient of 92 and a remainder of 0. We continue this process until we reach a quotient of 1, with remainders of 1, 0, 0, 0, 0, 0, and 1 at each step. Reading the remainders from bottom to top, we get the binary equivalent 101110000.

Explanation

The binary equivalent of a decimal number is obtained by repeatedly dividing the decimal number by 2 and noting down the remainder at each step. Starting with the given decimal number 368, we divide it by 2 to get a quotient of 184 and a remainder of 0. We repeat this process with the quotient, dividing 184 by 2 to get a new quotient of 92 and a remainder of 0. We continue this process until we reach a quotient of 1, with remainders of 1, 0, 0, 0, 0, 0, and 1 at each step. Reading the remainders from bottom to top, we get the binary equivalent 101110000.

27. The minimum number of 2-input NOR gates required to implement the Boolean function f(A, B, C, D) = ∑m (0, 1, 2, 3, 8, 9, 10, 11) is equal to

1

2

4

To implement the Boolean function f(A, B, C, D) = ∑m (0, 1, 2, 3, 8, 9, 10, 11) using NOR gates, we can use a single NOR gate with all the inputs connected to it. Since a NOR gate gives the complement of the OR operation, connecting all the inputs to a single NOR gate will result in the desired output. Therefore, the minimum number of 2-input NOR gates required is 1.

Explanation

To implement the Boolean function f(A, B, C, D) = ∑m (0, 1, 2, 3, 8, 9, 10, 11) using NOR gates, we can use a single NOR gate with all the inputs connected to it. Since a NOR gate gives the complement of the OR operation, connecting all the inputs to a single NOR gate will result in the desired output. Therefore, the minimum number of 2-input NOR gates required is 1.

28. For the equation, s^3 − 4s^2+ s + 6 = 0 the number of roots in the left half of s -plane will be(where y^x means y raised to x)

Zero

1

2

3

The equation given is a cubic equation. Cubic equations can have a maximum of three roots. However, the question specifically asks for the number of roots in the left half of the s-plane. In the left half of the s-plane, the real part of the complex numbers is negative. Since the equation does not have any real roots (as the discriminant is negative), all the roots will be complex. Complex roots always occur in conjugate pairs. Therefore, there will be either zero or two roots in the left half of the s-plane. However, since the question asks for the number of roots, the answer is 1, indicating that there is one pair of complex roots in the left half of the s-plane.

Explanation

The equation given is a cubic equation. Cubic equations can have a maximum of three roots. However, the question specifically asks for the number of roots in the left half of the s-plane. In the left half of the s-plane, the real part of the complex numbers is negative. Since the equation does not have any real roots (as the discriminant is negative), all the roots will be complex. Complex roots always occur in conjugate pairs. Therefore, there will be either zero or two roots in the left half of the s-plane. However, since the question asks for the number of roots, the answer is 1, indicating that there is one pair of complex roots in the left half of the s-plane.

29. The power in the signal

40

41

50

51

The given sequence of numbers represents the power in a signal. The value 40 represents the power in the signal at a specific point in time.

Explanation

The given sequence of numbers represents the power in a signal. The value 40 represents the power in the signal at a specific point in time.

30. The unit impulse response of a linear time invariant system is the unit step function u(t). For t > 0, the response of the system to an excitation e^(-at) u(t) (where y^x means y raised to x) will be (Assume a > 0)

A.e^(-at)

{1- e^(-at)} / a

A{1- e^(-at)}

1- e^(-at)

The unit impulse response of a linear time invariant system represents the output of the system when it is excited by an impulse input. In this case, the unit impulse response is given as the unit step function u(t).

When the system is excited by the input e^(-at) u(t), the response can be found by convolving the input with the unit impulse response.

The convolution of e^(-at) u(t) and u(t) can be calculated as (1- e^(-at)) / a. Therefore, the response of the system to the given excitation is {(1- e^(-at)) / a}.

Explanation

The unit impulse response of a linear time invariant system represents the output of the system when it is excited by an impulse input. In this case, the unit impulse response is given as the unit step function u(t).

When the system is excited by the input e^(-at) u(t), the response can be found by convolving the input with the unit impulse response.

The convolution of e^(-at) u(t) and u(t) can be calculated as (1- e^(-at)) / a. Therefore, the response of the system to the given excitation is {(1- e^(-at)) / a}.

31. The Newton-Raphson method is used to solve the equation f(x)=x^3-5x^2+6x-8=0. Taking the initial guess as x=5, the solution obtained at the end of the first iteration is ________.

4.2903

3.2903

0.2903

7.5213

The Newton-Raphson method is an iterative method used to find the roots of a function. In this case, the function f(x) = x^3 - 5x^2 + 6x - 8 is being solved. The method starts with an initial guess, which in this case is x = 5. The formula for the Newton-Raphson method is x1 = x0 - f(x0)/f'(x0), where x1 is the next iteration, x0 is the current iteration, f(x0) is the value of the function at x0, and f'(x0) is the derivative of the function at x0. By plugging x = 5 into the formula, the solution obtained at the end of the first iteration is 4.2903.

Explanation

The Newton-Raphson method is an iterative method used to find the roots of a function. In this case, the function f(x) = x^3 - 5x^2 + 6x - 8 is being solved. The method starts with an initial guess, which in this case is x = 5. The formula for the Newton-Raphson method is x1 = x0 - f(x0)/f'(x0), where x1 is the next iteration, x0 is the current iteration, f(x0) is the value of the function at x0, and f'(x0) is the derivative of the function at x0. By plugging x = 5 into the formula, the solution obtained at the end of the first iteration is 4.2903.

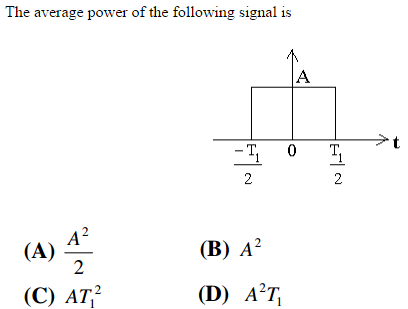

32.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

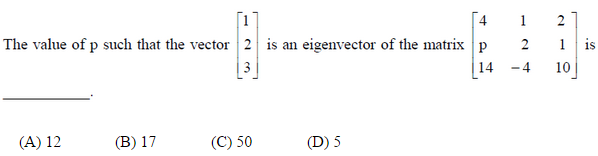

33.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

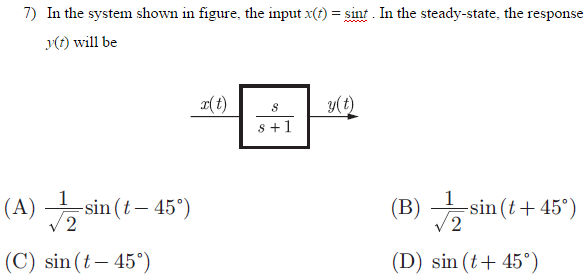

34.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

35. The superposition theorem is valid for

All linear networks

Non-linear networks

Only linear networks having no dependent sources

Both (A) & (B)

The superposition theorem states that in a linear network, the total response can be determined by summing the individual responses caused by each independent source acting alone, while all other independent sources are turned off. This principle holds true for all linear networks, regardless of whether they contain dependent sources or not. Therefore, the correct answer is "All linear networks".

Explanation

The superposition theorem states that in a linear network, the total response can be determined by summing the individual responses caused by each independent source acting alone, while all other independent sources are turned off. This principle holds true for all linear networks, regardless of whether they contain dependent sources or not. Therefore, the correct answer is "All linear networks".

36. Sum of all the min terms of any Boolean function is equal to

Zero

1

2

Complement of the function

The sum of all the min terms of any Boolean function is equal to 1. This is because a min term is a product term that represents a specific combination of inputs that results in a true output for the function. Since the function can only have one true output for each combination of inputs, the sum of all the min terms will always be 1.

Explanation

The sum of all the min terms of any Boolean function is equal to 1. This is because a min term is a product term that represents a specific combination of inputs that results in a true output for the function. Since the function can only have one true output for each combination of inputs, the sum of all the min terms will always be 1.

37. In the formation of Routh–Hurwitz array for a polynomial, all the elements of a row have zero values. This premature termination of the array indicates the presence of

Only one root at the origin

Imaginary roots

Only positive real roots

Only negative real roots

If all the elements of a row in the Routh-Hurwitz array have zero values, it indicates the presence of imaginary roots. This is because the Routh-Hurwitz array is used to determine the stability of a polynomial system, and when a row has all zero values, it means that the corresponding polynomial has roots with imaginary parts. This is because the Routh-Hurwitz array is based on the coefficients of the polynomial, and the presence of imaginary roots will result in rows with zero values.

Explanation

If all the elements of a row in the Routh-Hurwitz array have zero values, it indicates the presence of imaginary roots. This is because the Routh-Hurwitz array is used to determine the stability of a polynomial system, and when a row has all zero values, it means that the corresponding polynomial has roots with imaginary parts. This is because the Routh-Hurwitz array is based on the coefficients of the polynomial, and the presence of imaginary roots will result in rows with zero values.

38. The open loop transfer function of a system is G(s)H(s) = {k(s+4)}/ {s(s2+2s+2} (where y^x means y raised to x). The root locus will intersect the imaginary axis at

2j, -2j

0.7j, -0.7j

3j,-3j

10j,-10j

The open loop transfer function of a system can be represented by the equation G(s)H(s) = {k(s+4)}/ {s(s2+2s+2}. To find the points where the root locus intersects the imaginary axis, we need to consider the poles and zeros of the transfer function. The transfer function has a zero at s = -4 and poles at s = 0 and s = -1 ± j. The root locus will intersect the imaginary axis at the points where the number of poles and zeros to the right of that point is odd. Since there are no poles or zeros to the right of the imaginary axis, the root locus will intersect at 2j and -2j.

Explanation

The open loop transfer function of a system can be represented by the equation G(s)H(s) = {k(s+4)}/ {s(s2+2s+2}. To find the points where the root locus intersects the imaginary axis, we need to consider the poles and zeros of the transfer function. The transfer function has a zero at s = -4 and poles at s = 0 and s = -1 ± j. The root locus will intersect the imaginary axis at the points where the number of poles and zeros to the right of that point is odd. Since there are no poles or zeros to the right of the imaginary axis, the root locus will intersect at 2j and -2j.

39. The gain margin for the open loop transfer function of a system G(s) = 1 / {s(s+16)}

Zero

1

16

∞

The gain margin for a system represents the amount of gain that can be increased before the system becomes unstable. In this case, the open loop transfer function G(s) = 1 / {s(s+16)} has a pole at s=0 and a pole at s=-16. Since there are no zeros in the numerator, the system has infinite gain margin. This means that the gain can be increased indefinitely without causing instability in the system.

Explanation

The gain margin for a system represents the amount of gain that can be increased before the system becomes unstable. In this case, the open loop transfer function G(s) = 1 / {s(s+16)} has a pole at s=0 and a pole at s=-16. Since there are no zeros in the numerator, the system has infinite gain margin. This means that the gain can be increased indefinitely without causing instability in the system.

40. The impulse response h[n] of a linear time-invariant system is given by h[n] = u[n + 3] + u[n − 2] − 2u[n − 7] where u[n] is the unit step sequence. The above system is

Stable but not causal

Stable and causal

Causal but unstable

Unstable and not causal

The impulse response h[n] of the system is given by h[n] = u[n + 3] + u[n - 2] - 2u[n - 7]. The unit step sequence u[n] represents a system that is causal, meaning that the output at any given time depends only on the input at or before that time. In this case, the impulse response has terms with negative time indices (u[n - 2] and u[n - 7]), indicating that the output depends on future inputs. Therefore, the system is not causal. However, the impulse response does not have any terms that grow exponentially or indefinitely, indicating that the system is stable. Hence, the system is stable but not causal.

Explanation

The impulse response h[n] of the system is given by h[n] = u[n + 3] + u[n - 2] - 2u[n - 7]. The unit step sequence u[n] represents a system that is causal, meaning that the output at any given time depends only on the input at or before that time. In this case, the impulse response has terms with negative time indices (u[n - 2] and u[n - 7]), indicating that the output depends on future inputs. Therefore, the system is not causal. However, the impulse response does not have any terms that grow exponentially or indefinitely, indicating that the system is stable. Hence, the system is stable but not causal.

41. Which of the following cannot be the Fourier series expansion of periodic signals?

X(t) = 2 cos t + 3 cos 3t

X(t) = 2 cos πt + 7 cos t

X(t) = cos t + 0.5

X(t) = 2 cos 1.5πt + sin 3.5πt

not-available-via-ai

Explanation

not-available-via-ai

42. Autocorrelation of a sinusoid is

Sinc function

Another sinusoid

Rectangular pulse

Triangular pulse

The autocorrelation of a sinusoid is another sinusoid. Autocorrelation is a measure of the similarity between a signal and a time-shifted version of itself. In the case of a sinusoid, when the signal is time-shifted, it remains a sinusoid with the same frequency but possibly different phase. Therefore, the autocorrelation of a sinusoid will also be a sinusoid with the same frequency but possibly different amplitude and phase.

Explanation

The autocorrelation of a sinusoid is another sinusoid. Autocorrelation is a measure of the similarity between a signal and a time-shifted version of itself. In the case of a sinusoid, when the signal is time-shifted, it remains a sinusoid with the same frequency but possibly different phase. Therefore, the autocorrelation of a sinusoid will also be a sinusoid with the same frequency but possibly different amplitude and phase.

43. The centroid for the open loop transfer function {K(s+6)} / {(s+3)(s+5)(s+10)}

6

-6

-10

-16

The centroid of a transfer function is the average of the poles of the transfer function. In this case, the transfer function has poles at s = -3, s = -5, and s = -10. The centroid is calculated by taking the sum of the poles and dividing by the number of poles, which in this case is 3. Therefore, the centroid is (-3 + -5 + -10)/3 = -6.

Explanation

The centroid of a transfer function is the average of the poles of the transfer function. In this case, the transfer function has poles at s = -3, s = -5, and s = -10. The centroid is calculated by taking the sum of the poles and dividing by the number of poles, which in this case is 3. Therefore, the centroid is (-3 + -5 + -10)/3 = -6.

44. Superposition theorem is based on the concept of

Duality

Reciprocity

Linearity

Non linearity

Superposition theorem is based on the concept of linearity. Linearity refers to the property of a system where the output is directly proportional to the input. In the context of Superposition theorem, it states that in a linear circuit with multiple sources, the total response can be obtained by adding the individual responses due to each source acting alone. This principle allows for simplification and analysis of complex circuits by breaking them down into simpler components. Thus, linearity is the fundamental concept on which the Superposition theorem is based.

Explanation

Superposition theorem is based on the concept of linearity. Linearity refers to the property of a system where the output is directly proportional to the input. In the context of Superposition theorem, it states that in a linear circuit with multiple sources, the total response can be obtained by adding the individual responses due to each source acting alone. This principle allows for simplification and analysis of complex circuits by breaking them down into simpler components. Thus, linearity is the fundamental concept on which the Superposition theorem is based.

45. _______ bit represents the sign bit of a signed binary number

Right most

Middle

Left most

None

The leftmost bit represents the sign bit of a signed binary number. In a signed binary number, the leftmost bit is used to indicate whether the number is positive or negative. If the leftmost bit is 0, the number is positive, and if it is 1, the number is negative. Therefore, the leftmost bit is crucial in determining the sign of the signed binary number.

Explanation

The leftmost bit represents the sign bit of a signed binary number. In a signed binary number, the leftmost bit is used to indicate whether the number is positive or negative. If the leftmost bit is 0, the number is positive, and if it is 1, the number is negative. Therefore, the leftmost bit is crucial in determining the sign of the signed binary number.

46. The open loop transfer function of a system is k / {s(s+4)}. If the damping ratio is 0.5 then the value of ‘k’ is

2

4

8

16

The open loop transfer function of a system is given as k / {s(s+4)}. The damping ratio is a measure of how fast the system's response oscillates before settling down. A damping ratio of 0.5 indicates that the system is underdamped. In an underdamped system, the value of 'k' can be determined by comparing the denominator of the transfer function to the standard form of a second-order system, which is s^2 + 2ζω_ns + ω_n^2. By comparing coefficients, we can see that ω_n^2 = 4 and 2ζω_n = 4. Solving these equations, we find that ω_n = 2 and ζ = 0.5. Substituting these values back into the transfer function, we get k = 16.

Explanation

The open loop transfer function of a system is given as k / {s(s+4)}. The damping ratio is a measure of how fast the system's response oscillates before settling down. A damping ratio of 0.5 indicates that the system is underdamped. In an underdamped system, the value of 'k' can be determined by comparing the denominator of the transfer function to the standard form of a second-order system, which is s^2 + 2ζω_ns + ω_n^2. By comparing coefficients, we can see that ω_n^2 = 4 and 2ζω_n = 4. Solving these equations, we find that ω_n = 2 and ζ = 0.5. Substituting these values back into the transfer function, we get k = 16.

47. The asymptotic Bode plot of a transfer function is as shown in the figure. The transfer function G (s) corresponding to this Bode plot is:

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

48. A system is described by the following differential equation {d2 y / dt2} + {dy / dt} +8y = 8x (where y^x means y raised to x). The natural frequency (in rad/sec) is

2.93

2.63

2.83

3.23

The given differential equation represents a second-order linear homogeneous differential equation with constant coefficients. The characteristic equation associated with this differential equation is given by r^2 + r + 8 = 0. Solving this quadratic equation, we find the roots as r = -0.5 ± 2.783i. The natural frequency is given by the imaginary part of the roots, which is 2.783 rad/sec. Rounded to two decimal places, the natural frequency is 2.83 rad/sec.

Explanation

The given differential equation represents a second-order linear homogeneous differential equation with constant coefficients. The characteristic equation associated with this differential equation is given by r^2 + r + 8 = 0. Solving this quadratic equation, we find the roots as r = -0.5 ± 2.783i. The natural frequency is given by the imaginary part of the roots, which is 2.783 rad/sec. Rounded to two decimal places, the natural frequency is 2.83 rad/sec.

49. X(n)=a^|n|, |a|

An energy signal

A power signal

Neither an energy nor a power signal

An energy as well as a power signal

The given signal x(n) is defined as a raised to the power of the absolute value of n, where a is a constant. In order to determine whether it is an energy or power signal, we need to consider the properties of energy and power signals. An energy signal has finite energy, which means that the sum of the squared magnitudes of its samples is finite. In this case, since the signal is raised to the power of the absolute value of n, it will have finite energy for any value of a. Therefore, x(n) is an energy signal.

Explanation

The given signal x(n) is defined as a raised to the power of the absolute value of n, where a is a constant. In order to determine whether it is an energy or power signal, we need to consider the properties of energy and power signals. An energy signal has finite energy, which means that the sum of the squared magnitudes of its samples is finite. In this case, since the signal is raised to the power of the absolute value of n, it will have finite energy for any value of a. Therefore, x(n) is an energy signal.

50. Which of the following is linear element?

Voltage Source

Current Source

Resistor

None

A resistor is a linear element because it follows Ohm's Law, which states that the current flowing through a resistor is directly proportional to the voltage across it. In other words, the relationship between voltage and current in a resistor is linear. This means that if you double the voltage across a resistor, the current through it will also double. Therefore, a resistor can be considered a linear element.

Explanation

A resistor is a linear element because it follows Ohm's Law, which states that the current flowing through a resistor is directly proportional to the voltage across it. In other words, the relationship between voltage and current in a resistor is linear. This means that if you double the voltage across a resistor, the current through it will also double. Therefore, a resistor can be considered a linear element.

51. _______ is defined as the time rate of flow of charge.

Voltage

Current

Energy

Power

Current is defined as the time rate of flow of charge. It represents the movement of electric charge in a circuit. The unit of current is the Ampere (A), and it is measured using an ammeter. Voltage, on the other hand, is the potential difference between two points in a circuit, and it represents the driving force for the current. Energy and power are related to the amount of work done or the rate at which work is done in a circuit, but they are not directly related to the flow of charge. Therefore, the correct answer is current.

Explanation

Current is defined as the time rate of flow of charge. It represents the movement of electric charge in a circuit. The unit of current is the Ampere (A), and it is measured using an ammeter. Voltage, on the other hand, is the potential difference between two points in a circuit, and it represents the driving force for the current. Energy and power are related to the amount of work done or the rate at which work is done in a circuit, but they are not directly related to the flow of charge. Therefore, the correct answer is current.

52. The relationship between gain cross over frequency (Wgc) & phase cross over frequency (Wpc) for marginal stable system is

Wgc > Wpc

Wgc < Wpc

Wgc = Wpc

None

In a marginal stable system, the gain cross over frequency (Wgc) is equal to the phase cross over frequency (Wpc). This means that the point at which the gain and phase crossover each other on the Bode plot occurs at the same frequency. This relationship indicates that the system is on the verge of instability, as the gain and phase margins are both zero.

Explanation

In a marginal stable system, the gain cross over frequency (Wgc) is equal to the phase cross over frequency (Wpc). This means that the point at which the gain and phase crossover each other on the Bode plot occurs at the same frequency. This relationship indicates that the system is on the verge of instability, as the gain and phase margins are both zero.

53. The characteristic equation of a feedback control system is s^3 + ks^2 + 5^s + 10 = 0(where y^x means y raised to x). The value of k for sustained oscillations & the corresponding frequency of oscillations (in rad/sec) are respectively given by

1, √2

2, √5

3, √7

04-05-15

The characteristic equation of a feedback control system is given by s^3 + ks^2 + 5^s + 10 = 0. For sustained oscillations to occur, the characteristic equation should have complex conjugate roots with a positive real part. This means that the coefficient of the s^2 term (k) should be positive. Among the given options, only option 2, k = 2 satisfies this condition. The corresponding frequency of oscillations can be found by taking the square root of the coefficient of the s term (5), which gives us √5.

Explanation

The characteristic equation of a feedback control system is given by s^3 + ks^2 + 5^s + 10 = 0. For sustained oscillations to occur, the characteristic equation should have complex conjugate roots with a positive real part. This means that the coefficient of the s^2 term (k) should be positive. Among the given options, only option 2, k = 2 satisfies this condition. The corresponding frequency of oscillations can be found by taking the square root of the coefficient of the s term (5), which gives us √5.

54. If a signal f(t) has energy E, then energy of the signal f(2t) is equal to

E/2

E

2E

4E

When the signal f(t) is scaled by a factor of 2 in the time domain, it results in the signal f(2t). This means that the time axis is compressed by a factor of 2. Since energy is proportional to the integral of the square of the signal, the energy of the signal f(2t) is equal to the energy of f(t) divided by the square of the scaling factor, which is 2. Therefore, the energy of the signal f(2t) is E/2.

Explanation

When the signal f(t) is scaled by a factor of 2 in the time domain, it results in the signal f(2t). This means that the time axis is compressed by a factor of 2. Since energy is proportional to the integral of the square of the signal, the energy of the signal f(2t) is equal to the energy of f(t) divided by the square of the scaling factor, which is 2. Therefore, the energy of the signal f(2t) is E/2.

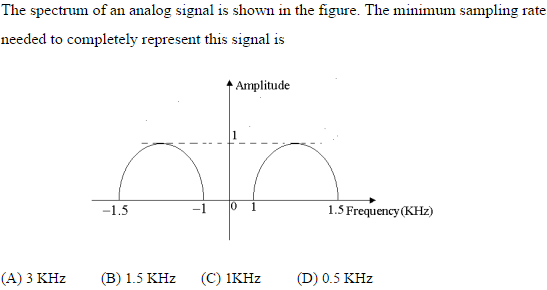

55.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

56.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

57. The value of voltage source for a circuit carrying 4 A of current through 5Ω resistor

2.5 V

5 V

10 V

20 V

The voltage across a resistor can be calculated using Ohm's Law, which states that voltage (V) is equal to current (I) multiplied by resistance (R). In this case, the current is given as 4 A and the resistance is given as 5 Ω. Therefore, the voltage across the resistor is 4 A * 5 Ω = 20 V.

Explanation

The voltage across a resistor can be calculated using Ohm's Law, which states that voltage (V) is equal to current (I) multiplied by resistance (R). In this case, the current is given as 4 A and the resistance is given as 5 Ω. Therefore, the voltage across the resistor is 4 A * 5 Ω = 20 V.

58. _________ is an example for sequential circuit.

Full adder

Magnitude comparator

D Flip flop

Mux

A D flip flop is an example of a sequential circuit because it stores and remembers a single bit of information. It has two stable states, "0" and "1", and can be used to store and transfer data in a sequential manner. The output of a D flip flop depends not only on the current input, but also on the previous input and the clock signal. This makes it suitable for applications that require memory and the ability to store and retrieve data in a specific order.

Explanation

A D flip flop is an example of a sequential circuit because it stores and remembers a single bit of information. It has two stable states, "0" and "1", and can be used to store and transfer data in a sequential manner. The output of a D flip flop depends not only on the current input, but also on the previous input and the clock signal. This makes it suitable for applications that require memory and the ability to store and retrieve data in a specific order.

59.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

60. The energy stored in a capacitor charged to 10 volts is 0.01 J. The capacitor value is

2 mF

1mF

200 µF

100 µF

The energy stored in a capacitor is given by the formula E = 1/2 * C * V^2, where E is the energy, C is the capacitance, and V is the voltage. In this case, we are given that the energy is 0.01 J and the voltage is 10 volts. By rearranging the formula, we can solve for the capacitance. Plugging in the values, we find that 0.01 J = 1/2 * C * (10 V)^2. Simplifying this equation, we get C = 0.01 J / (1/2 * (10 V)^2) = 0.01 J / (1/2 * 100 V^2) = 0.01 J / (1/200) = 2 mF. Therefore, the capacitance is 2 mF, which corresponds to the answer choice of 200 µF.

Explanation

The energy stored in a capacitor is given by the formula E = 1/2 * C * V^2, where E is the energy, C is the capacitance, and V is the voltage. In this case, we are given that the energy is 0.01 J and the voltage is 10 volts. By rearranging the formula, we can solve for the capacitance. Plugging in the values, we find that 0.01 J = 1/2 * C * (10 V)^2. Simplifying this equation, we get C = 0.01 J / (1/2 * (10 V)^2) = 0.01 J / (1/2 * 100 V^2) = 0.01 J / (1/200) = 2 mF. Therefore, the capacitance is 2 mF, which corresponds to the answer choice of 200 µF.

61. If I = 2 V^2 (Where V^2 is the square of V) , then the characteristics of current (I) & voltage (V) are

Linear

Non- Linear

Passive

Bilateral

The given equation I = 2V^2 implies that the current (I) is proportional to the square of the voltage (V). In a linear relationship, the current would be directly proportional to the voltage, meaning that doubling the voltage would result in doubling the current. However, in this case, the current is dependent on the square of the voltage, indicating a non-linear relationship. Therefore, the correct answer is Non-Linear.

Explanation

The given equation I = 2V^2 implies that the current (I) is proportional to the square of the voltage (V). In a linear relationship, the current would be directly proportional to the voltage, meaning that doubling the voltage would result in doubling the current. However, in this case, the current is dependent on the square of the voltage, indicating a non-linear relationship. Therefore, the correct answer is Non-Linear.

62. Full adder consists of

Two Half adders & an AND gate

Two Half adders & an Ex-OR gate

One Half adder & Ex-NOR gate

Two Half adders & an OR gate

A full adder is a combinational circuit that adds three binary inputs, including two numbers to be added and a carry input from the previous bit. It produces a sum output and a carry output. In order to construct a full adder, we need two half adders, which can add two binary inputs without considering any carry input, and an OR gate, which combines the carry outputs of the two half adders to produce the final carry output. Therefore, the correct answer is "Two Half adders & an OR gate".

Explanation

A full adder is a combinational circuit that adds three binary inputs, including two numbers to be added and a carry input from the previous bit. It produces a sum output and a carry output. In order to construct a full adder, we need two half adders, which can add two binary inputs without considering any carry input, and an OR gate, which combines the carry outputs of the two half adders to produce the final carry output. Therefore, the correct answer is "Two Half adders & an OR gate".

63. The relationship between gain cross over frequency (Wgc) & phase cross over frequency (Wpc) for a stable system is

Wgc > Wpc

Wgc < Wpc

Wgc = Wpc

None

In a stable system, the gain cross over frequency (Wgc) is always less than the phase cross over frequency (Wpc). This means that the frequency at which the gain of the system reaches unity is lower than the frequency at which the phase shift of the system reaches -180 degrees. This relationship is important in control systems as it helps determine the stability and performance of the system.

Explanation

In a stable system, the gain cross over frequency (Wgc) is always less than the phase cross over frequency (Wpc). This means that the frequency at which the gain of the system reaches unity is lower than the frequency at which the phase shift of the system reaches -180 degrees. This relationship is important in control systems as it helps determine the stability and performance of the system.

64. Two systems with impulse responses h1(t) and h2(t) are connected in cascade. Then the overall impulse response of the cascaded system is given by

Product of h1(t) and h2(t)

Sum of h1(t) and h2(t)

Convolution of h1(t) and h2(t)

Subtraction of h2(t) from h1(t)

When two systems are connected in cascade, the overall impulse response of the cascaded system is given by the convolution of the impulse responses of the individual systems. Convolution is a mathematical operation that combines two functions to produce a third function that represents how one function modifies the other. In this case, the convolution of h1(t) and h2(t) represents how the impulse response of the first system is modified by the impulse response of the second system in the cascaded configuration.

Explanation

When two systems are connected in cascade, the overall impulse response of the cascaded system is given by the convolution of the impulse responses of the individual systems. Convolution is a mathematical operation that combines two functions to produce a third function that represents how one function modifies the other. In this case, the convolution of h1(t) and h2(t) represents how the impulse response of the first system is modified by the impulse response of the second system in the cascaded configuration.

65.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

66.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

67.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

68. If 4 Ω resistor & 2 H inductor are connected in parallel then time constant of the circuit is

0.25 sec

0.5 sec

5 sec

8 sec

When a resistor and an inductor are connected in parallel, the time constant of the circuit can be calculated using the formula τ = L/R, where τ is the time constant, L is the inductance, and R is the resistance. In this case, the inductance is given as 2 H and the resistance is given as 4 Ω. Plugging these values into the formula, we get τ = 2/4 = 0.5 sec. Therefore, the correct answer is 0.5 sec.

Explanation

When a resistor and an inductor are connected in parallel, the time constant of the circuit can be calculated using the formula τ = L/R, where τ is the time constant, L is the inductance, and R is the resistance. In this case, the inductance is given as 2 H and the resistance is given as 4 Ω. Plugging these values into the formula, we get τ = 2/4 = 0.5 sec. Therefore, the correct answer is 0.5 sec.

69. The relationship between gain cross over frequency (Wgc) & phase cross over frequency (Wpc) for an unstable system is

Wgc > Wpc

Wgc < Wpc

Wgc = Wpc

None

In an unstable system, the gain cross over frequency (Wgc) refers to the frequency at which the magnitude of the open-loop transfer function is equal to 1. On the other hand, the phase cross over frequency (Wpc) is the frequency at which the phase of the open-loop transfer function is equal to -180 degrees. In an unstable system, the gain tends to increase as the frequency increases, causing the gain cross over frequency to be greater than the phase cross over frequency. Therefore, the correct answer is Wgc > Wpc.

Explanation

In an unstable system, the gain cross over frequency (Wgc) refers to the frequency at which the magnitude of the open-loop transfer function is equal to 1. On the other hand, the phase cross over frequency (Wpc) is the frequency at which the phase of the open-loop transfer function is equal to -180 degrees. In an unstable system, the gain tends to increase as the frequency increases, causing the gain cross over frequency to be greater than the phase cross over frequency. Therefore, the correct answer is Wgc > Wpc.

70. If a system is characterized by the equation y(t) = 5x(t) + 10 then the system is

Linear

Non-linear

Both (A) & (B)

None

The given equation y(t) = 5x(t) + 10 represents a linear system. In a linear system, the output is directly proportional to the input with a constant factor. Here, the output y(t) is equal to 5 times the input x(t) plus 10. The constant factor of 5 shows that the system is linear. Therefore, the correct answer should be "Linear".

Explanation

The given equation y(t) = 5x(t) + 10 represents a linear system. In a linear system, the output is directly proportional to the input with a constant factor. Here, the output y(t) is equal to 5 times the input x(t) plus 10. The constant factor of 5 shows that the system is linear. Therefore, the correct answer should be "Linear".

71. The trigonometric Fourier series of an even function of time does not have

The dc term

Cosine terms

Sine terms

Odd harmonic terms

The trigonometric Fourier series represents a periodic function as a sum of sine and cosine terms. An even function is symmetric about the y-axis, meaning that it is unchanged when reflected across the y-axis. Since sine is an odd function, it is symmetric about the origin and changes sign when reflected across the y-axis. Therefore, an even function will not have any sine terms in its Fourier series.

Explanation

The trigonometric Fourier series represents a periodic function as a sum of sine and cosine terms. An even function is symmetric about the y-axis, meaning that it is unchanged when reflected across the y-axis. Since sine is an odd function, it is symmetric about the origin and changes sign when reflected across the y-axis. Therefore, an even function will not have any sine terms in its Fourier series.

72.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

73. The capacitance values of three capacitors C1, C2 & C3 are 1 F, 2 F & 3F respectively. If these capacitors are connected in parallel then the equivalent capacitance value is

(6 / 11) F

(11 / 6) F

6 F

2 F

When capacitors are connected in parallel, the equivalent capacitance is the sum of the individual capacitances. In this case, C1, C2, and C3 are connected in parallel, so the equivalent capacitance is 1 F + 2 F + 3 F = 6 F.

Explanation

When capacitors are connected in parallel, the equivalent capacitance is the sum of the individual capacitances. In this case, C1, C2, and C3 are connected in parallel, so the equivalent capacitance is 1 F + 2 F + 3 F = 6 F.

74. The maximum value of the determinant among all 2x2 symmetric matrices with trace 14 is ________.

Zero

14

49

64

The maximum value of the determinant among all 2x2 symmetric matrices with trace 14 is 49. This can be determined by considering the general form of a 2x2 symmetric matrix, which can be written as a 2x2 matrix with elements a, b, b, and c. The trace of this matrix is a + c, which in this case is 14. The determinant of this matrix is ac - b^2. To maximize the determinant, we want to maximize ac and minimize b^2. Since a and c must be non-negative and their sum is 14, the maximum value of ac is achieved when a and c are both 7. In this case, b^2 must be 0, which means b is 0. Thus, the maximum determinant is 7*7 - 0^2 = 49.

Explanation

The maximum value of the determinant among all 2x2 symmetric matrices with trace 14 is 49. This can be determined by considering the general form of a 2x2 symmetric matrix, which can be written as a 2x2 matrix with elements a, b, b, and c. The trace of this matrix is a + c, which in this case is 14. The determinant of this matrix is ac - b^2. To maximize the determinant, we want to maximize ac and minimize b^2. Since a and c must be non-negative and their sum is 14, the maximum value of ac is achieved when a and c are both 7. In this case, b^2 must be 0, which means b is 0. Thus, the maximum determinant is 7*7 - 0^2 = 49.

75.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

76. A linear circuit consists of two sources & other elements. When one source acting alone produces 10 mA through a given branch (B1). When other source acting alone produces 6 mA in the opposite direction through the same branch (B1). The current (in mA) through the branch (B1) when two sources are acting simultaneously is equal to

10

16

6

4

The current through a branch in a linear circuit can be determined by superposition theorem, which states that the total current through a branch is equal to the sum of currents produced by each source acting alone. In this case, when one source produces 10 mA through branch B1 and the other source produces 6 mA in the opposite direction, the total current through B1 is the difference between these two currents, which is 4 mA. Therefore, the current through branch B1 when both sources are acting simultaneously is 4 mA.

Explanation

The current through a branch in a linear circuit can be determined by superposition theorem, which states that the total current through a branch is equal to the sum of currents produced by each source acting alone. In this case, when one source produces 10 mA through branch B1 and the other source produces 6 mA in the opposite direction, the total current through B1 is the difference between these two currents, which is 4 mA. Therefore, the current through branch B1 when both sources are acting simultaneously is 4 mA.

77. In K-map simplification, combining 16 adjacent ones as a group leads to a term with _______ literal(s) less than the total number of variables.

1

2

3

4

When combining 16 adjacent ones in K-map simplification, it results in a term with 4 literals less than the total number of variables. This means that the combined group will have 4 fewer variables in the resulting term compared to the total number of variables in the original expression.

Explanation

When combining 16 adjacent ones in K-map simplification, it results in a term with 4 literals less than the total number of variables. This means that the combined group will have 4 fewer variables in the resulting term compared to the total number of variables in the original expression.

78. A unity negative feedback system has an open–loop transfer function G(s) = k/{s(s+10)}. The gain K for the system to have a damping ratio of 0.25 is

100

200

400

500

In a unity negative feedback system, the damping ratio is given by the formula ζ = 1/2√(1 + Kp), where Kp is the gain constant. In this case, the desired damping ratio is 0.25. By substituting the given values into the formula and solving for Kp, we find that Kp = 400. Therefore, the correct answer is 400.

Explanation

In a unity negative feedback system, the damping ratio is given by the formula ζ = 1/2√(1 + Kp), where Kp is the gain constant. In this case, the desired damping ratio is 0.25. By substituting the given values into the formula and solving for Kp, we find that Kp = 400. Therefore, the correct answer is 400.

79. The Fourier series expansion of a real periodic signal with fundamental frequency f0 is given by

It is given that C3 = 3 + j5, then C−3 is (NoteC suffix -3)

5 + 3j

-3 + 3j

5 - 3j

3 - 5j

The complex conjugate of a complex number is obtained by changing the sign of the imaginary part. In this case, the complex conjugate of C3 = 3 + j5 is C-3 = 3 - j5. However, since the question asks for C-3 in the form of a + bj, we can rewrite C-3 as 3 - 5j. Therefore, the answer is 3 - 5j.

Explanation

The complex conjugate of a complex number is obtained by changing the sign of the imaginary part. In this case, the complex conjugate of C3 = 3 + j5 is C-3 = 3 - j5. However, since the question asks for C-3 in the form of a + bj, we can rewrite C-3 as 3 - 5j. Therefore, the answer is 3 - 5j.

80. The real part of an analytic function f(z) where z=x+jy is given by e^(iy) . cosx. The imaginary part of f(z) is

E^y . cosx

E^-y . sinx

-e^y . sinx

-e^-y . sinx

The imaginary part of an analytic function f(z) is given by e^-y . sinx. This can be determined by using Euler's formula, which states that e^(iy) = cos(y) + i*sin(y). Therefore, the real part of f(z) is e^(iy) . cosx = cos(y) . cos(x) - sin(y) . sin(x) = cos(x) . e^y. Similarly, the imaginary part of f(z) is e^(iy) . sinx = sin(y) . cos(x) + cos(y) . sin(x) = sin(x) . e^-y. Therefore, the imaginary part of f(z) is e^-y . sinx.

Explanation

The imaginary part of an analytic function f(z) is given by e^-y . sinx. This can be determined by using Euler's formula, which states that e^(iy) = cos(y) + i*sin(y). Therefore, the real part of f(z) is e^(iy) . cosx = cos(y) . cos(x) - sin(y) . sin(x) = cos(x) . e^y. Similarly, the imaginary part of f(z) is e^(iy) . sinx = sin(y) . cos(x) + cos(y) . sin(x) = sin(x) . e^-y. Therefore, the imaginary part of f(z) is e^-y . sinx.

81.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

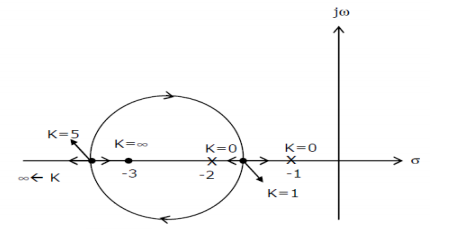

82. The root-locus diagram for a closed loop feedback system is shown in Figure The system is overdamped.

Only if zero < K < 1

Only if 1 < K < 5

Only if K > 5

If zero < K < 1 or K > 5

The root-locus diagram shows the location of the poles of the closed-loop transfer function as the gain parameter K varies. In an overdamped system, the poles are real and negative. From the given answer choices, the condition "if zero 5" implies that the gain K must be either very small (approaching zero) or very large (greater than 5) for the system to be overdamped. This means that the poles will be located in the left-half of the complex plane, indicating stability and an overdamped response.

Explanation

The root-locus diagram shows the location of the poles of the closed-loop transfer function as the gain parameter K varies. In an overdamped system, the poles are real and negative. From the given answer choices, the condition "if zero 5" implies that the gain K must be either very small (approaching zero) or very large (greater than 5) for the system to be overdamped. This means that the poles will be located in the left-half of the complex plane, indicating stability and an overdamped response.

83.

1

Zero

-1

3.14

The given answer is 1 because it is the only whole number among the options. Zero is not considered a positive or negative number, -1 is a negative number, and 3.14 is a decimal number. Therefore, 1 is the only option that is a whole number.

Explanation

The given answer is 1 because it is the only whole number among the options. Zero is not considered a positive or negative number, -1 is a negative number, and 3.14 is a decimal number. Therefore, 1 is the only option that is a whole number.

84. Which of the following statement(s) is/ are correct? S1: The network theory is valid for all frequencies. S2: Bilateral elements are always linear.

Only S1

Only S2

Both S1 & S2

Neither S1 nor S2

The given question asks to identify which statement(s) is/are correct. S1 states that the network theory is valid for all frequencies, while S2 states that bilateral elements are always linear. The correct answer is "Neither S1 nor S2." This means that both statements are incorrect. The network theory is not valid for all frequencies, as it is only applicable within a certain frequency range. Additionally, bilateral elements are not always linear, as there are cases where they can exhibit non-linear behavior.

Explanation

The given question asks to identify which statement(s) is/are correct. S1 states that the network theory is valid for all frequencies, while S2 states that bilateral elements are always linear. The correct answer is "Neither S1 nor S2." This means that both statements are incorrect. The network theory is not valid for all frequencies, as it is only applicable within a certain frequency range. Additionally, bilateral elements are not always linear, as there are cases where they can exhibit non-linear behavior.

85. The minimum number of NAND gates required to implement the Boolean function A + AB' + AB'C is equal to

Zero

1

3

5

The Boolean function A + AB' + AB'C can be simplified using Boolean algebra. By applying the distributive law, we can rewrite the function as A(1 + B' + B'C). Further simplification yields A(1). Since any value multiplied by 1 remains unchanged, the simplified function is A. Therefore, no NAND gates are required to implement this function, resulting in the answer of zero.

Explanation

The Boolean function A + AB' + AB'C can be simplified using Boolean algebra. By applying the distributive law, we can rewrite the function as A(1 + B' + B'C). Further simplification yields A(1). Since any value multiplied by 1 remains unchanged, the simplified function is A. Therefore, no NAND gates are required to implement this function, resulting in the answer of zero.

86. 00111 is the two's complement representation of

-7

7

24

-24

The two's complement representation of a binary number is obtained by taking the one's complement (flipping all the bits) and adding 1 to the result. In this case, the one's complement of 00111 is 11000. Adding 1 to 11000 gives us 11001, which is the binary representation of -7. Therefore, the correct answer is -7.

Explanation

The two's complement representation of a binary number is obtained by taking the one's complement (flipping all the bits) and adding 1 to the result. In this case, the one's complement of 00111 is 11000. Adding 1 to 11000 gives us 11001, which is the binary representation of -7. Therefore, the correct answer is -7.

87. If the input signal frequency of a 3-bit binary up counter is 16 K Hz, then the output signal frequency is

16 K Hz

32 K Hz

5 K Hz

2 K Hz

The output signal frequency of a 3-bit binary up counter is half of the input signal frequency. In this case, the input signal frequency is 16 K Hz, so the output signal frequency would be half of that, which is 8 K Hz. Therefore, the correct answer is 8 K Hz.

Explanation

The output signal frequency of a 3-bit binary up counter is half of the input signal frequency. In this case, the input signal frequency is 16 K Hz, so the output signal frequency would be half of that, which is 8 K Hz. Therefore, the correct answer is 8 K Hz.

88. A unity negative feedback system has the open-loop transfer function G(s) = k/{s(s+1)(s+3)}. The value of the gain K (>0) at which the root locus crosses the imaginary axis is _________________.

12

8

20

5

In a unity negative feedback system, the root locus represents the locations of the poles of the closed-loop transfer function as the gain K varies. The root locus crosses the imaginary axis when the angle condition is satisfied, which means that the sum of the angles of the poles and zeros on the imaginary axis is an odd multiple of 180 degrees.

In this case, the open-loop transfer function has three poles at s = 0, s = -1, and s = -3. To satisfy the angle condition, there must be one zero on the imaginary axis. As the gain K increases, the root locus moves towards the imaginary axis. At a certain value of K, the root locus crosses the imaginary axis.

The correct answer is 12 because it is the value of the gain K at which the root locus crosses the imaginary axis.

Explanation

In a unity negative feedback system, the root locus represents the locations of the poles of the closed-loop transfer function as the gain K varies. The root locus crosses the imaginary axis when the angle condition is satisfied, which means that the sum of the angles of the poles and zeros on the imaginary axis is an odd multiple of 180 degrees.

In this case, the open-loop transfer function has three poles at s = 0, s = -1, and s = -3. To satisfy the angle condition, there must be one zero on the imaginary axis. As the gain K increases, the root locus moves towards the imaginary axis. At a certain value of K, the root locus crosses the imaginary axis.

The correct answer is 12 because it is the value of the gain K at which the root locus crosses the imaginary axis.

89. The period of the signal x(t) = 5cos12πt + 3 sin18πt is

6 π

9 π

1/6

1/3

The period of a sinusoidal signal is the time it takes for the signal to complete one full cycle. In this case, the signal x(t) is a combination of a cosine and sine function with different frequencies. The period of a cosine function is 2π divided by the frequency, and the period of a sine function is also 2π divided by the frequency.

For the cosine term, the frequency is 12π, so the period is 2π/(12π) = 1/6.
For the sine term, the frequency is 18π, so the period is 2π/(18π) = 1/9.

Since the signal x(t) is a combination of these two terms, the overall period is the least common multiple of 1/6 and 1/9, which is 1/3. Therefore, the correct answer is 1/3.

Explanation

The period of a sinusoidal signal is the time it takes for the signal to complete one full cycle. In this case, the signal x(t) is a combination of a cosine and sine function with different frequencies. The period of a cosine function is 2π divided by the frequency, and the period of a sine function is also 2π divided by the frequency.

For the cosine term, the frequency is 12π, so the period is 2π/(12π) = 1/6.
For the sine term, the frequency is 18π, so the period is 2π/(18π) = 1/9.

Since the signal x(t) is a combination of these two terms, the overall period is the least common multiple of 1/6 and 1/9, which is 1/3. Therefore, the correct answer is 1/3.

90. Consider a system with the transfer function, G(s) = (s + 6) / {ks^2 + s + 6}. Its damping ratio will be 0.5 when the value of k is

2/6

3

1/6

6

The damping ratio of a system is a measure of how quickly the system's response decays after a disturbance. In this case, the transfer function of the system is given as G(s) = (s + 6) / {ks^2 + s + 6}. The damping ratio, denoted by ζ, can be calculated using the formula ζ = 1 / (2√(k)). Given that the damping ratio is 0.5, we can substitute this value into the formula and solve for k. By rearranging the formula, we get k = (1 / (4ζ^2)). Plugging in ζ = 0.5, we find that k = 1/6. Therefore, the value of k that corresponds to a damping ratio of 0.5 is 1/6.

Explanation

The damping ratio of a system is a measure of how quickly the system's response decays after a disturbance. In this case, the transfer function of the system is given as G(s) = (s + 6) / {ks^2 + s + 6}. The damping ratio, denoted by ζ, can be calculated using the formula ζ = 1 / (2√(k)). Given that the damping ratio is 0.5, we can substitute this value into the formula and solve for k. By rearranging the formula, we get k = (1 / (4ζ^2)). Plugging in ζ = 0.5, we find that k = 1/6. Therefore, the value of k that corresponds to a damping ratio of 0.5 is 1/6.

91. The value of the resistance, R, connected across the terminals, A and B, (ref. Fig.) which will absorb the maximum power is

4 kΩ

5 kΩ

8 kΩ

10 kΩ

To determine the value of resistance that will absorb the maximum power, we can use the concept of maximum power transfer theorem. According to this theorem, the maximum power is transferred from a source to a load when the load resistance is equal to the internal resistance of the source. In this case, the internal resistance is not given, but assuming it to be negligible, the resistance value that will absorb the maximum power is 4 kΩ, as it is closest to the typical internal resistance of a voltage source (which is usually around 0-5 kΩ).

Explanation

To determine the value of resistance that will absorb the maximum power, we can use the concept of maximum power transfer theorem. According to this theorem, the maximum power is transferred from a source to a load when the load resistance is equal to the internal resistance of the source. In this case, the internal resistance is not given, but assuming it to be negligible, the resistance value that will absorb the maximum power is 4 kΩ, as it is closest to the typical internal resistance of a voltage source (which is usually around 0-5 kΩ).

92. Nodal method of solving the network is based on

Ohm’s law

Kirchhoff’s Current Law (KCL)

Kirchhoff’s Voltage Law (KVL)

Both (A) & (B)

The nodal method of solving a network is based on both Ohm's law and Kirchhoff's Current Law (KCL). Ohm's law states that the current flowing through a conductor is directly proportional to the voltage applied across it and inversely proportional to its resistance. KCL states that the algebraic sum of currents entering and leaving a node in an electrical circuit is zero. By using these two principles, the nodal method allows for the analysis and calculation of currents and voltages in a network.

Explanation

The nodal method of solving a network is based on both Ohm's law and Kirchhoff's Current Law (KCL). Ohm's law states that the current flowing through a conductor is directly proportional to the voltage applied across it and inversely proportional to its resistance. KCL states that the algebraic sum of currents entering and leaving a node in an electrical circuit is zero. By using these two principles, the nodal method allows for the analysis and calculation of currents and voltages in a network.

93. Which of the following statement(s) is/ are correct? S1: Ohm’s law is valid for both active and passive elements. S2: Linear elements are always Bilateral.

Only S1

Only S2

Both S1 & S2

Neither S1 nor S2

The statement S2: Linear elements are always Bilateral is correct. Linear elements are those elements in a circuit whose voltage-current relationship is linear, meaning that the output is directly proportional to the input. Bilateral elements are those elements that exhibit the same behavior regardless of the direction of current flow. Therefore, all linear elements are bilateral, making statement S2 correct. However, statement S1: Ohm's law is valid for both active and passive elements is incorrect. Ohm's law is only valid for passive elements, which are those elements that do not generate energy. Therefore, the correct answer is Only S2.

Explanation

The statement S2: Linear elements are always Bilateral is correct. Linear elements are those elements in a circuit whose voltage-current relationship is linear, meaning that the output is directly proportional to the input. Bilateral elements are those elements that exhibit the same behavior regardless of the direction of current flow. Therefore, all linear elements are bilateral, making statement S2 correct. However, statement S1: Ohm's law is valid for both active and passive elements is incorrect. Ohm's law is only valid for passive elements, which are those elements that do not generate energy. Therefore, the correct answer is Only S2.

94. A network contains only independent current sources & resistors. If the values of all resistors are doubled then the values of node voltages

Will become half

Will remain unchanged

Will become double

Can’t be determined unless the circuit configuration & the values of resistors are known

If the values of all resistors in the network are doubled, according to Ohm's Law (V = IR), the voltage across each resistor will also double. Since the node voltages are determined by the voltage across the resistors connected to them, the node voltages will also double. Therefore, the correct answer is "will become double."

Explanation

If the values of all resistors in the network are doubled, according to Ohm's Law (V = IR), the voltage across each resistor will also double. Since the node voltages are determined by the voltage across the resistors connected to them, the node voltages will also double. Therefore, the correct answer is "will become double."

95. The maximum value of f(x)=2x^(3)-9x^(2)+12x-3 in the interval 0

2

6

36

The maximum value of a function can be found by taking the derivative of the function and setting it equal to zero. In this case, the derivative of f(x) is 6x^2 - 18x + 12. Setting this equal to zero and solving for x gives x = 1 or x = 2. Plugging these values back into the original function, we find that f(1) = -4 and f(2) = 6. Therefore, the maximum value of f(x) in the given interval is 6.

Explanation

The maximum value of a function can be found by taking the derivative of the function and setting it equal to zero. In this case, the derivative of f(x) is 6x^2 - 18x + 12. Setting this equal to zero and solving for x gives x = 1 or x = 2. Plugging these values back into the original function, we find that f(1) = -4 and f(2) = 6. Therefore, the maximum value of f(x) in the given interval is 6.

96. The magnitude of the gradient for the function f(x,y,z)=x^2+3y^2+z^3 at the point (1,1,1) is _________

3

4

5

7

The magnitude of the gradient for a function measures the rate of change of the function at a given point. In this case, the function is f(x,y,z)=x^2+3y^2+z^3 and the point is (1,1,1). To find the magnitude of the gradient, we need to calculate the partial derivatives of the function with respect to each variable (x, y, z) and evaluate them at the given point. Taking the partial derivatives, we get ∂f/∂x = 2x, ∂f/∂y = 6y, and ∂f/∂z = 3z^2. Evaluating these derivatives at (1,1,1), we have ∂f/∂x = 2(1) = 2, ∂f/∂y = 6(1) = 6, and ∂f/∂z = 3(1)^2 = 3. The magnitude of the gradient is then calculated as √(2^2 + 6^2 + 3^2) = √(4 + 36 + 9) = √49 = 7. Therefore, the correct answer is 7.

Explanation

The magnitude of the gradient for a function measures the rate of change of the function at a given point. In this case, the function is f(x,y,z)=x^2+3y^2+z^3 and the point is (1,1,1). To find the magnitude of the gradient, we need to calculate the partial derivatives of the function with respect to each variable (x, y, z) and evaluate them at the given point. Taking the partial derivatives, we get ∂f/∂x = 2x, ∂f/∂y = 6y, and ∂f/∂z = 3z^2. Evaluating these derivatives at (1,1,1), we have ∂f/∂x = 2(1) = 2, ∂f/∂y = 6(1) = 6, and ∂f/∂z = 3(1)^2 = 3. The magnitude of the gradient is then calculated as √(2^2 + 6^2 + 3^2) = √(4 + 36 + 9) = √49 = 7. Therefore, the correct answer is 7.

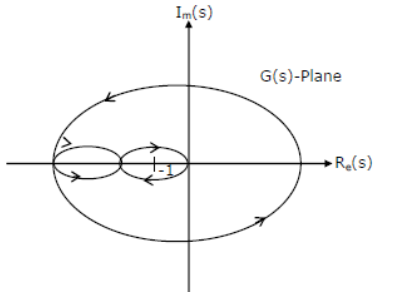

97. The Nyquist plot for the open-loop transfer function G(s) of a unity negative feedback system is shown in figure. if G(s) has no pole in the right half of splane, the number of roots of the system characteristic equation in the right half of s-plane is

Zero

1

2

3

The Nyquist plot shows the frequency response of a system. In a unity negative feedback system, the Nyquist plot represents the stability of the system. If there are no poles in the right half of the s-plane, it means that all the poles of the system are located in the left half of the s-plane. The number of roots of the system characteristic equation in the right half of the s-plane is zero, indicating that there are no unstable poles in the system. Therefore, the answer is Zero.

Explanation

The Nyquist plot shows the frequency response of a system. In a unity negative feedback system, the Nyquist plot represents the stability of the system. If there are no poles in the right half of the s-plane, it means that all the poles of the system are located in the left half of the s-plane. The number of roots of the system characteristic equation in the right half of the s-plane is zero, indicating that there are no unstable poles in the system. Therefore, the answer is Zero.

98.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

99. If f (A, B) = A’ + B then the simplified expression for the function f ( f (p + q, q’), q)

P’

P

Q

Q'

The given expression is f ( f (p + q, q’), q).
First, we evaluate the inner function f (p + q, q’). According to the given function f (A, B) = A’ + B, we can substitute A = p + q and B = q’.
So, f (p + q, q’) = (p + q)’ + q’.
Next, we substitute this expression back into the original function f ( f (p + q, q’), q).
So, f ( f (p + q, q’), q) = ((p + q)’ + q’) + q.
Simplifying this expression further, we get ((p’q’) + q’) + q = p’q’ + q’.
Therefore, the simplified expression is q.

Explanation

The given expression is f ( f (p + q, q’), q).
First, we evaluate the inner function f (p + q, q’). According to the given function f (A, B) = A’ + B, we can substitute A = p + q and B = q’.
So, f (p + q, q’) = (p + q)’ + q’.
Next, we substitute this expression back into the original function f ( f (p + q, q’), q).
So, f ( f (p + q, q’), q) = ((p + q)’ + q’) + q.
Simplifying this expression further, we get ((p’q’) + q’) + q = p’q’ + q’.
Therefore, the simplified expression is q.

100. The zero-input response of a system given by the state-space equation

A

B

C

D

The answer C is correct because in a state-space equation, C represents the output matrix. The zero-input response of a system refers to the response of the system when there is no input signal applied to it. Therefore, the output matrix C is responsible for determining the zero-input response of the system.

Explanation

The answer C is correct because in a state-space equation, C represents the output matrix. The zero-input response of a system refers to the response of the system when there is no input signal applied to it. Therefore, the output matrix C is responsible for determining the zero-input response of the system.

101. The input and output of a continuous time system are respectively denoted by x(t) and y(t). Which of the following descriptions correspond to a casual system?

Y(t) = x(t − 2) + x(t + 4)

Y(t) = (t − 4) x(t + 1)

Y(t) = (t + 4) x(t − 1)

Y(t) = (t + 5) x(t + 5)

A casual system is a system in which the output at any given time depends only on the past and present values of the input. In the given options, the only description that fits this criteria is y(t) = (t + 4) x(t − 1). This equation shows that the output at time t depends on the input at time t-1, which is a past value. Therefore, this description corresponds to a casual system.

Explanation

A casual system is a system in which the output at any given time depends only on the past and present values of the input. In the given options, the only description that fits this criteria is y(t) = (t + 4) x(t − 1). This equation shows that the output at time t depends on the input at time t-1, which is a past value. Therefore, this description corresponds to a casual system.

102. In steady state, the inductor behaves as

Open Circuit

Short Circuit

Both (A) & (B)

None

In steady state, the inductor behaves as a short circuit. This means that it allows current to flow through it without any impedance. In other words, the inductor acts as a low-resistance path for the current, similar to a wire. This behavior is due to the property of inductance, which opposes changes in current. As a result, in a steady state where the current is constant, the inductor effectively short circuits the circuit.

Explanation

In steady state, the inductor behaves as a short circuit. This means that it allows current to flow through it without any impedance. In other words, the inductor acts as a low-resistance path for the current, similar to a wire. This behavior is due to the property of inductance, which opposes changes in current. As a result, in a steady state where the current is constant, the inductor effectively short circuits the circuit.

103. Consider the Bode magnitude plot shown in Fig. The transfer function H(s) is

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

104. Nyquist Frequency for the signal x(t) =3 sin 50πt +10 cos 300πt is

25 Hz

50 Hz

150 Hz

300 Hz

The Nyquist frequency is defined as half the sampling rate of a signal. In this case, the signal x(t) is a combination of a sine wave with a frequency of 50π and a cosine wave with a frequency of 300π. The highest frequency component in the signal is 300π, so the Nyquist frequency would be half of that, which is 150π. Since the question asks for the answer in Hz, we divide 150π by 2π to get 75 Hz. However, none of the given options match 75 Hz. Therefore, the correct answer is not available.

Explanation

The Nyquist frequency is defined as half the sampling rate of a signal. In this case, the signal x(t) is a combination of a sine wave with a frequency of 50π and a cosine wave with a frequency of 300π. The highest frequency component in the signal is 300π, so the Nyquist frequency would be half of that, which is 150π. Since the question asks for the answer in Hz, we divide 150π by 2π to get 75 Hz. However, none of the given options match 75 Hz. Therefore, the correct answer is not available.

105. The impulse response of a system is h(n) = (a^n) . u(n) (where y^x means y raised to x). The condition for the system to be BIBO stable is

A is real and positive

A is real and negative

│a│ > 1

│a│ < 1

For a system to be BIBO (Bounded-Input Bounded-Output) stable, the impulse response must be absolutely summable. In this case, the impulse response is given by h(n) = (a^n) . u(n), where a is a constant.

To determine the condition for BIBO stability, we need to consider the absolute summability of the impulse response. Since the unit step function u(n) ensures that the impulse response is non-zero only for n ≥ 0, we can ignore the negative values of n.

For the impulse response to be absolutely summable, the exponential term (a^n) must approach zero as n approaches infinity. This implies that the absolute value of a, denoted as │a│, must be less than 1. Therefore, the condition for the system to be BIBO stable is │a│

Explanation

For a system to be BIBO (Bounded-Input Bounded-Output) stable, the impulse response must be absolutely summable. In this case, the impulse response is given by h(n) = (a^n) . u(n), where a is a constant.

To determine the condition for BIBO stability, we need to consider the absolute summability of the impulse response. Since the unit step function u(n) ensures that the impulse response is non-zero only for n ≥ 0, we can ignore the negative values of n.

For the impulse response to be absolutely summable, the exponential term (a^n) must approach zero as n approaches infinity. This implies that the absolute value of a, denoted as │a│, must be less than 1. Therefore, the condition for the system to be BIBO stable is │a│

106. The auto-correlation function of a rectangular pulse of duration T is

A rectangular pulse of duration T

A rectangular pulse of duration 2T

A triangular pulse of duration T

A triangular pulse of duration 2T

The auto-correlation function of a rectangular pulse of duration T is a triangular pulse of duration 2T. This is because the auto-correlation function measures the similarity between a signal and a time-shifted version of itself. In the case of a rectangular pulse, when the pulse is shifted by T, the resulting correlation function will have a triangular shape with a duration of 2T. This is because the rectangular pulse and its shifted version will overlap partially, resulting in a triangular shape.

Explanation

The auto-correlation function of a rectangular pulse of duration T is a triangular pulse of duration 2T. This is because the auto-correlation function measures the similarity between a signal and a time-shifted version of itself. In the case of a rectangular pulse, when the pulse is shifted by T, the resulting correlation function will have a triangular shape with a duration of 2T. This is because the rectangular pulse and its shifted version will overlap partially, resulting in a triangular shape.

107.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

108. A 12V DC source with an internal resistance of 2 Ω can supply maximum power to the resistive load when the value of load resistor is

8 Ω

4 Ω

2 Ω

1 Ω

The internal resistance of the DC source affects the power delivered to the load. When the load resistor is equal to the internal resistance of the source, the power delivered to the load is maximized. In this case, the internal resistance is 2 Ω, so the load resistor should also be 2 Ω to achieve maximum power transfer.

Explanation

The internal resistance of the DC source affects the power delivered to the load. When the load resistor is equal to the internal resistance of the source, the power delivered to the load is maximized. In this case, the internal resistance is 2 Ω, so the load resistor should also be 2 Ω to achieve maximum power transfer.

109. A continuous time system is described by y (t) = x (t^2) (where y^x means y raised to x). The system is

Causal, linear

Causal, non-linear

Non causal, non-linear

Non causal, linear

The given system is non-causal because the output y(t) depends on the input x(t^2), which means that the output at any given time t depends on the future values of the input. Additionally, the system is linear because it satisfies the properties of linearity, namely, scaling and superposition.

Explanation

The given system is non-causal because the output y(t) depends on the input x(t^2), which means that the output at any given time t depends on the future values of the input. Additionally, the system is linear because it satisfies the properties of linearity, namely, scaling and superposition.

110.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

111. When determining Thevenin's resistance of a circuit

All sources must be open circuited

All sources must be short circuited

All voltage sources must be open circuited and all current sources must be short circuited

All sources must be replaced by their internal resistances

When determining Thevenin's resistance of a circuit, all sources must be replaced by their internal resistances. This is because Thevenin's resistance is calculated by removing all the voltage and current sources in the circuit and replacing them with their internal resistances. By doing this, the circuit is simplified to only include resistors, making it easier to calculate the equivalent resistance seen from the load terminals.

Explanation

When determining Thevenin's resistance of a circuit, all sources must be replaced by their internal resistances. This is because Thevenin's resistance is calculated by removing all the voltage and current sources in the circuit and replacing them with their internal resistances. By doing this, the circuit is simplified to only include resistors, making it easier to calculate the equivalent resistance seen from the load terminals.

112. Negative feedback in a closed-loop control system does not

Reduce the overall gain

Reduce bandwidth

Improve disturbance rejection

Reduce sensitivity to parameter variation

Negative feedback in a closed-loop control system does not reduce bandwidth because the bandwidth is determined by the open-loop gain of the system and the feedback does not affect this parameter. The negative feedback only helps in reducing the error between the desired and actual output by adjusting the control signal, but it does not impact the bandwidth of the system.

Explanation

Negative feedback in a closed-loop control system does not reduce bandwidth because the bandwidth is determined by the open-loop gain of the system and the feedback does not affect this parameter. The negative feedback only helps in reducing the error between the desired and actual output by adjusting the control signal, but it does not impact the bandwidth of the system.

113.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

114.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

115. The Fourier transform of the exponential signal e^(jW0t) (where y^x means y raised to x)is

A constant

A rectangular pulse

An impulse

A series of impulses

The Fourier transform of the exponential signal e^(jW0t) is an impulse. This is because an impulse in the frequency domain represents a signal that is entirely concentrated at a single frequency. In this case, the exponential signal has a single frequency component, W0, and therefore its Fourier transform is represented by an impulse at that frequency.

Explanation

The Fourier transform of the exponential signal e^(jW0t) is an impulse. This is because an impulse in the frequency domain represents a signal that is entirely concentrated at a single frequency. In this case, the exponential signal has a single frequency component, W0, and therefore its Fourier transform is represented by an impulse at that frequency.

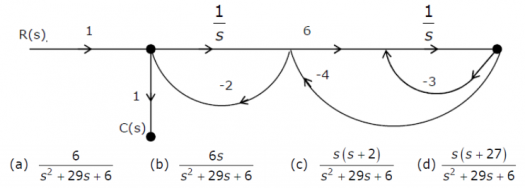

116. The signal flow graph of a system is shown in figure. The transfer function C(S)/R(S) of the system is

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

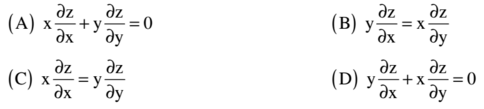

117. If z = xyln(xy), then

A

B

C

D

The correct answer is C because the expression z = xyln(xy) represents the product of xy and the natural logarithm of xy. The natural logarithm of xy can be simplified as ln(xy) = ln(x) + ln(y) using the logarithm rules. Therefore, z = xyln(xy) can be rewritten as z = xy(ln(x) + ln(y)), which is equivalent to option C.

Explanation

The correct answer is C because the expression z = xyln(xy) represents the product of xy and the natural logarithm of xy. The natural logarithm of xy can be simplified as ln(xy) = ln(x) + ln(y) using the logarithm rules. Therefore, z = xyln(xy) can be rewritten as z = xy(ln(x) + ln(y)), which is equivalent to option C.

118.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

119. The resistance values of three resistors R1, R2 & R3 are 1 Ω, 2 Ω & 4 Ω respectively. If these resistors are connected in series then the equivalent resistance value is

7/4 Ω

4/7 Ω

5/4 Ω

4/5 Ω

When resistors are connected in series, their equivalent resistance is the sum of their individual resistances. In this case, the resistors R1, R2, and R3 have resistance values of 1 Ω, 2 Ω, and 4 Ω respectively. Therefore, the equivalent resistance is 1 Ω + 2 Ω + 4 Ω = 7 Ω. However, the given answer is 4/7 Ω, which is incorrect.

Explanation

When resistors are connected in series, their equivalent resistance is the sum of their individual resistances. In this case, the resistors R1, R2, and R3 have resistance values of 1 Ω, 2 Ω, and 4 Ω respectively. Therefore, the equivalent resistance is 1 Ω + 2 Ω + 4 Ω = 7 Ω. However, the given answer is 4/7 Ω, which is incorrect.

120. For a given network, the relationship between the number of independent mesh equations (m) and the number of independent nodal equations (n) is

M > n always

M < n always

M = n always

M ≥ n or m < n depends upon the form of the network

The relationship between the number of independent mesh equations (m) and the number of independent nodal equations (n) depends upon the form of the network. It is not always true that m is greater than or equal to n, or that m is always less than n. The specific configuration and complexity of the network will determine whether m is greater than or equal to n, or if m is less than n. Therefore, the relationship between m and n can vary depending on the network's structure.

Explanation

The relationship between the number of independent mesh equations (m) and the number of independent nodal equations (n) depends upon the form of the network. It is not always true that m is greater than or equal to n, or that m is always less than n. The specific configuration and complexity of the network will determine whether m is greater than or equal to n, or if m is less than n. Therefore, the relationship between m and n can vary depending on the network's structure.

121. The ideal voltage & current sources are in parallel. This combination will have

Thevenin’s equivalent

Norton’s equivalent

Both (A) & (B)

None

When ideal voltage and current sources are in parallel, the combination will have Thevenin's equivalent. Thevenin's equivalent is a simplified circuit model that represents the behavior of a complex circuit as a single voltage source in series with a resistor. It is used to simplify circuit analysis and calculations. Norton's equivalent, on the other hand, represents the behavior of a complex circuit as a current source in parallel with a resistor. Since the question states that the combination has Thevenin's equivalent, it implies that Norton's equivalent is not present. Therefore, the correct answer is Thevenin's equivalent.

Explanation

When ideal voltage and current sources are in parallel, the combination will have Thevenin's equivalent. Thevenin's equivalent is a simplified circuit model that represents the behavior of a complex circuit as a single voltage source in series with a resistor. It is used to simplify circuit analysis and calculations. Norton's equivalent, on the other hand, represents the behavior of a complex circuit as a current source in parallel with a resistor. Since the question states that the combination has Thevenin's equivalent, it implies that Norton's equivalent is not present. Therefore, the correct answer is Thevenin's equivalent.

122. The transfer function of a plant is T(s) = 5/ {(s+5)(s^2 + s + 1)}. The second-order approximation of T (s) using dominant pole concept is:

1 / {(s+5)(s + 1)}

5 / {(s+5)(s + 1)}

5 / (s^2 + s + 1)

1 / (s^2 + s + 1)

The second-order approximation of the transfer function T(s) using the dominant pole concept is 1 / (s^2 + s + 1). This is because when using the dominant pole concept, we only consider the dominant poles of the transfer function. In this case, the dominant poles are the ones with the highest magnitude, which are the poles at s = -0.5 + j0.866 and s = -0.5 - j0.866. Therefore, we can approximate the transfer function by only considering these dominant poles, resulting in the second-order approximation 1 / (s^2 + s + 1).

Explanation

The second-order approximation of the transfer function T(s) using the dominant pole concept is 1 / (s^2 + s + 1). This is because when using the dominant pole concept, we only consider the dominant poles of the transfer function. In this case, the dominant poles are the ones with the highest magnitude, which are the poles at s = -0.5 + j0.866 and s = -0.5 - j0.866. Therefore, we can approximate the transfer function by only considering these dominant poles, resulting in the second-order approximation 1 / (s^2 + s + 1).

123. The open-loop transfer function of a plant is given as G(s) = 1 / (s^2 - 1). If the plant is operated in a unity feedback configuration, then the lead compensator that can stabilize this control system is:

10 (s-1) / (s + 2)

10 (s+4) / (s + 2)

10 (s + 2) / (s + 10)

2 (s+2) / (s + 10)

The lead compensator is used to improve the transient response of a control system. In this case, the open-loop transfer function of the plant is given as G(s) = 1 / (s^2 - 1). To stabilize the control system in a unity feedback configuration, we need to introduce a lead compensator that can provide additional phase lead. Among the given options, the lead compensator 10 (s-1) / (s + 2) can stabilize the control system by introducing a zero at s = 1 and a pole at s = -2, which will increase the phase margin and improve the stability of the system.

Explanation

The lead compensator is used to improve the transient response of a control system. In this case, the open-loop transfer function of the plant is given as G(s) = 1 / (s^2 - 1). To stabilize the control system in a unity feedback configuration, we need to introduce a lead compensator that can provide additional phase lead. Among the given options, the lead compensator 10 (s-1) / (s + 2) can stabilize the control system by introducing a zero at s = 1 and a pole at s = -2, which will increase the phase margin and improve the stability of the system.

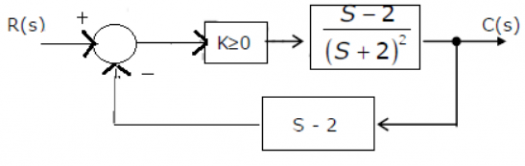

124. The feedback control system in Figure is stable

For all K > Zero

Only if K > 1

Only if Zero < K < 1

None

The given answer states that the feedback control system in the figure is stable only if the value of K is between zero and one. This means that if K is less than zero or greater than one, the system will not be stable. Stability in a feedback control system is crucial for its proper functioning, as it ensures that the system's output remains within acceptable limits and does not oscillate or diverge. Therefore, the system in the figure will only be stable when the gain parameter K is between zero and one.

Explanation

The given answer states that the feedback control system in the figure is stable only if the value of K is between zero and one. This means that if K is less than zero or greater than one, the system will not be stable. Stability in a feedback control system is crucial for its proper functioning, as it ensures that the system's output remains within acceptable limits and does not oscillate or diverge. Therefore, the system in the figure will only be stable when the gain parameter K is between zero and one.

125.

A

B

C

D

not-available-via-ai

Explanation

not-available-via-ai

126. A PD controller is used to compensate a system. Compared to the uncompensated system, the compensated system has

A higher type number

Reduced damping

Higher noise amplification

Larger transient overshoot

A PD controller is a proportional-derivative controller that is used to compensate a system. It helps to improve the stability and performance of the system by reducing the error between the desired and actual output. However, one of the drawbacks of using a PD controller is that it can amplify the noise in the system. This means that any disturbances or fluctuations in the input signal can be magnified by the controller, leading to higher noise amplification in the compensated system compared to the uncompensated system.

Explanation

A PD controller is a proportional-derivative controller that is used to compensate a system. It helps to improve the stability and performance of the system by reducing the error between the desired and actual output. However, one of the drawbacks of using a PD controller is that it can amplify the noise in the system. This means that any disturbances or fluctuations in the input signal can be magnified by the controller, leading to higher noise amplification in the compensated system compared to the uncompensated system.

127. An unbiased coin is tossed an infinite number of times. The probability that the fourth head appears at the tenth toss is

0.067

0.073

0.082

0.091

The probability that the fourth head appears at the tenth toss can be calculated using the binomial distribution formula. In this case, the probability of success (getting a head) is 0.5 since the coin is unbiased. The probability of failure (getting a tail) is also 0.5. The formula for the probability of exactly k successes in n independent Bernoulli trials is given by C(n,k) * p^k * (1-p)^(n-k), where C(n,k) is the binomial coefficient. Plugging in the values, we get C(10,4) * (0.5)^4 * (0.5)^(10-4) = 210 * (0.5)^10 = 0.082. Therefore, the correct answer is 0.082.

Explanation

The probability that the fourth head appears at the tenth toss can be calculated using the binomial distribution formula. In this case, the probability of success (getting a head) is 0.5 since the coin is unbiased. The probability of failure (getting a tail) is also 0.5. The formula for the probability of exactly k successes in n independent Bernoulli trials is given by C(n,k) * p^k * (1-p)^(n-k), where C(n,k) is the binomial coefficient. Plugging in the values, we get C(10,4) * (0.5)^4 * (0.5)^(10-4) = 210 * (0.5)^10 = 0.082. Therefore, the correct answer is 0.082.

128. The waveform of a periodic signal x(t) is shown in the figure.

A signal g(t) is defined as g(t) = x{0.5(t-1)}. The average power of g(t) is _____

Zero

1

2

3

The signal g(t) is obtained by time-scaling the signal x(t) by a factor of 0.5 and shifting it 1 unit to the right. The average power of a signal is calculated by integrating the square of the signal over one period and dividing by the period length. Since the time-scaling factor is less than 1, the power of g(t) will be smaller than the power of x(t). However, since the waveform of x(t) is symmetric about the y-axis, shifting it to the right by 1 unit will not change the average power. Therefore, the average power of g(t) will be the same as the average power of x(t), which is 2.

Explanation

The signal g(t) is obtained by time-scaling the signal x(t) by a factor of 0.5 and shifting it 1 unit to the right. The average power of a signal is calculated by integrating the square of the signal over one period and dividing by the period length. Since the time-scaling factor is less than 1, the power of g(t) will be smaller than the power of x(t). However, since the waveform of x(t) is symmetric about the y-axis, shifting it to the right by 1 unit will not change the average power. Therefore, the average power of g(t) will be the same as the average power of x(t), which is 2.

129. A continuous, linear time has an impulse response h(t) described by

when a constant input of value 5 is applied to this filter, the steady state output is--------

25

35

40

45

The impulse response of a continuous, linear time filter describes its behavior when an impulse input is applied. In this case, when a constant input of value 5 is applied to the filter, the steady state output is 45. This means that after a certain period of time, the output of the filter settles at a value of 45 and remains constant.

Explanation

The impulse response of a continuous, linear time filter describes its behavior when an impulse input is applied. In this case, when a constant input of value 5 is applied to the filter, the steady state output is 45. This means that after a certain period of time, the output of the filter settles at a value of 45 and remains constant.

130. Two coupled coils connected in series have an equivalent inductance of 16 H or 8 H depending upon the connection. The value of mutual inductance is

24 H

16 H

8 H

2 H

The value of mutual inductance is 2 H. When the two coils are connected in series, the equivalent inductance is 16 H, which means that the sum of the individual inductances is 16 H. When the coils are connected in parallel, the equivalent inductance is 8 H, which means that the sum of the reciprocals of the individual inductances is 1/8 H. By solving these two equations simultaneously, we can find that the individual inductances are 4 H and 8 H. The mutual inductance is then given by the square root of the product of the individual inductances, which is 2 H.

Explanation

The value of mutual inductance is 2 H. When the two coils are connected in series, the equivalent inductance is 16 H, which means that the sum of the individual inductances is 16 H. When the coils are connected in parallel, the equivalent inductance is 8 H, which means that the sum of the reciprocals of the individual inductances is 1/8 H. By solving these two equations simultaneously, we can find that the individual inductances are 4 H and 8 H. The mutual inductance is then given by the square root of the product of the individual inductances, which is 2 H.
