Test Your Knowledge About Different Types Of Tool
About This Quiz
Test your knowledge about different types of Tool by taking this quiz. There are different types of tools that people use every day to fix something may it be a construction worker, a plumber, or even a gardener. These tools are created for specific purposes that should not be confused. Take the quiz and see if you know which Tool See moredoes what.
Quiz Preview

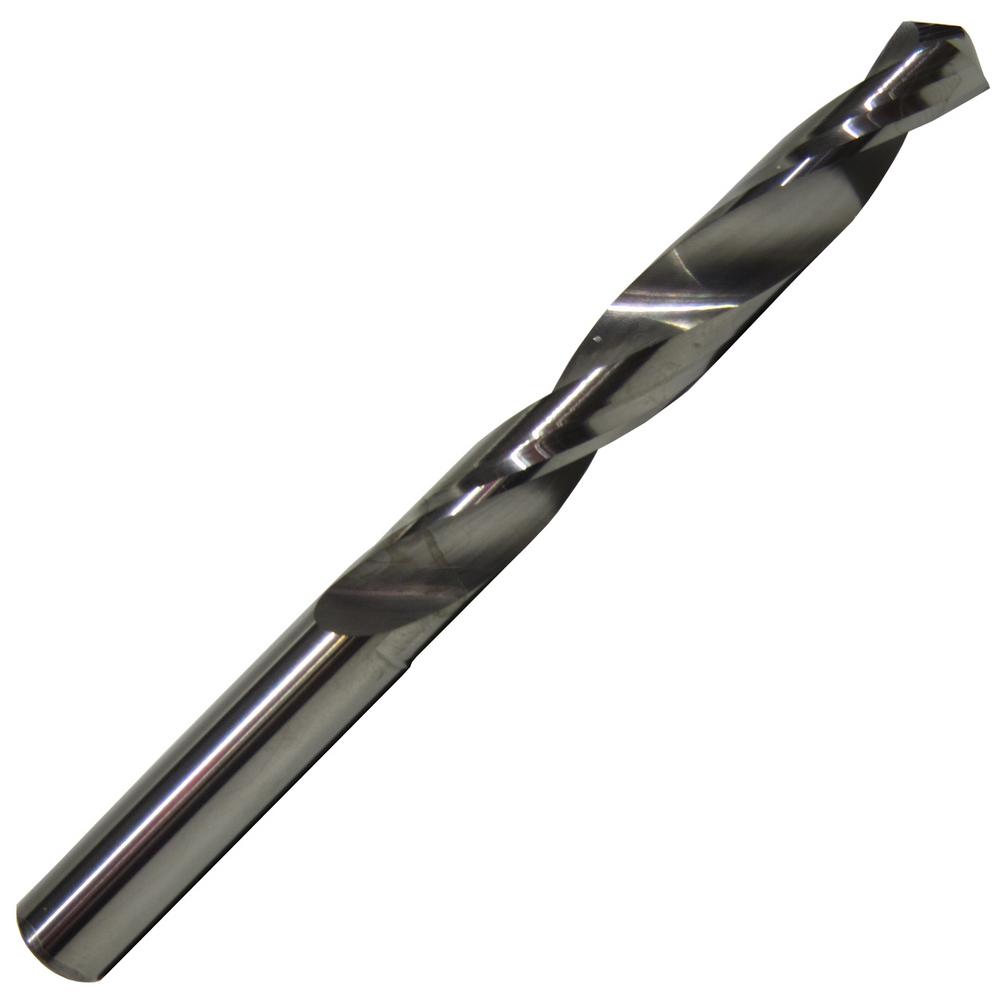

- 2.
What is it? - Most common and widely used drill bit. Good for drilling holes, but entrance often less messy.
Explanation
A twist drill bit is the most common and widely used type of drill bit. It is known for its effectiveness in drilling holes and is often preferred for its ability to produce clean and neat entrances.Rate this question:
- 3.

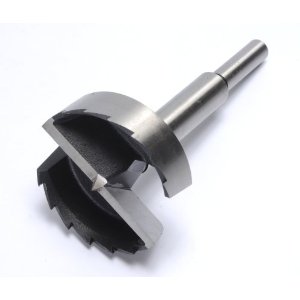

What is it? - Makes clean holes with flat bottom. Used for holes with a larger diameter (e.g. hinges)
Explanation
A Forstner bit is a type of drill bit that is specifically designed to make clean holes with a flat bottom. It is commonly used for drilling holes with a larger diameter, such as those needed for hinges. Unlike regular drill bits, Forstner bits have a central point and a circular cutting edge that allows for precise and accurate drilling. The flat bottom created by the Forstner bit is ideal for fitting hinges or other hardware that require a flush surface.Rate this question:
- 4.
What is it? - Tool resembling a large corkscrew, used for boring holes
Explanation
An auger is a tool that resembles a large corkscrew and is used for boring holes. It typically has a spiral-shaped blade that is attached to a handle or a drill, allowing it to be rotated and drilled into various materials such as wood or soil. The spiral shape of the blade helps to remove the material as the auger is rotated, making it an efficient tool for creating holes.Rate this question:
- 5.
What is it? - Normally molded in plastic which makes them strong. Screws pass through four holes which hold sides at each corner firmly together
Explanation
The description provided states that the object is normally molded in plastic, which makes it strong. It also mentions that screws pass through four holes to hold the sides at each corner firmly together. This indicates that the object has a rigid joint, as the screws provide stability and prevent any movement or flexibility in the joint. Therefore, the correct answer is "Rigid Joint".Rate this question:
- 6.
What is it? - Pressed against two pieces of material. Screws fix block into position. Strong and can be dismantled using screwdriver.
Explanation
Corner blocks are objects that are pressed against two pieces of material and fixed into position using screws. They are strong and can be easily dismantled using a screwdriver. These blocks are commonly used in construction or woodworking projects to provide stability and support at the corners of structures or furniture pieces.Rate this question:
- 7.
What is it? - Used for general carpentry, pallets and frames
Explanation
Wire nails are commonly used in general carpentry, as well as for making pallets and frames. These nails are made of wire, which makes them strong and durable. They have a sharp point and a flat head, allowing for easy insertion and providing a secure hold. Wire nails are versatile and can be used for various woodworking projects, making them a popular choice among carpenters and DIY enthusiasts.Rate this question:
- 8.
What is it? - Used in cabinet work. Fine gauge, small headed and easily punched. Used for materials such as hardboard where little to no punching is required.
Explanation
Panel pins are small, fine gauge nails that are commonly used in cabinet work. They have a small head and can be easily punched into materials such as hardboard. Panel pins are ideal for situations where little to no punching is required, making them suitable for delicate woodworking tasks.Rate this question:
- 9.
What is it? - Quick method of securing materials. Used for upholstering or holding wire and cable
Explanation
Staples are a quick and efficient way to secure materials, commonly used in upholstering or holding wire and cable. They are small metal fasteners that can be easily inserted into materials to hold them together firmly. Staples are often used in various industries and applications, such as construction, office work, and crafts, due to their simplicity and effectiveness.Rate this question:
- 10.

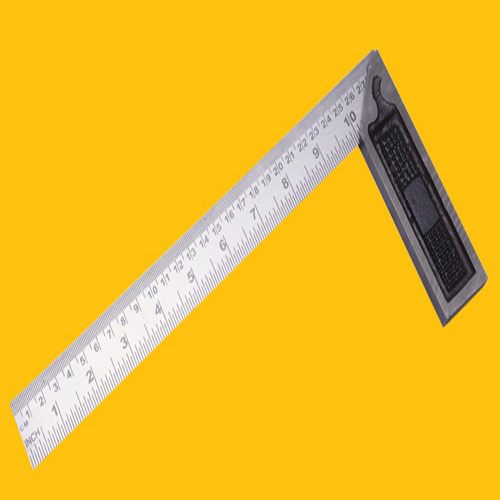

What is it? - Used to make 90 degree lines to a datum surface and to check edges have been cut to right angles. USED ON WOOD
Explanation
A try square is a tool used in woodworking to create 90 degree lines on a surface and to check if edges have been cut at right angles. It is specifically designed for use on wood and is used by carpenters and woodworkers to ensure accuracy and precision in their work.Rate this question:

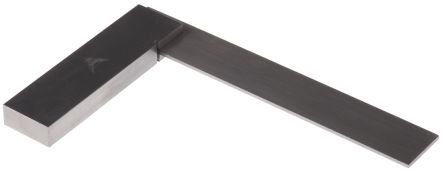

- 11.
What is it? - Used to make 90 degree lines to a datum surface and to check edges have been cut to right angles USED ON METAL
Explanation
An engineer's square is a tool used to make 90 degree lines to a datum surface and to check if edges have been cut to right angles. It is specifically designed for use on metal surfaces. This tool is commonly used by engineers and metalworkers to ensure precision and accuracy in their work.Rate this question:
- 12.
What is it? - Used to mark out lines for cutting or other operations. The purpose is to scribe a line parallel to a reference edge or surface
Explanation
A marking gauge is a tool used to mark out lines for cutting or other operations. It is designed to scribe a line parallel to a reference edge or surface. This tool is commonly used in woodworking to accurately mark measurements and guide the cutting process. By adjusting the position of the marking gauge, the user can create a line that is parallel to the desired reference edge or surface, ensuring precise and accurate cuts.Rate this question:
- 13.
What is it? - Mark out lines parallel to an edge. Stepped foot must be kept firmly pressed against edge of work (metal)
Explanation
Odd leg calipers are a type of measuring tool used to mark out lines parallel to an edge. The stepped foot of the calipers needs to be firmly pressed against the edge of the work, which in this case is metal. This ensures accurate and parallel markings on the metal surface.Rate this question:

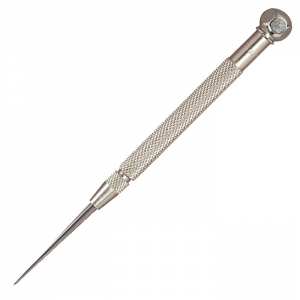

- 14.
What is it? - Used to mark lines on workpieces
Explanation
A scriber is a tool that is used to mark lines on workpieces. It typically has a sharp point or tip that can be used to make precise and accurate markings on various materials such as metal, wood, or plastic. The scriber is commonly used in industries such as carpentry, metalworking, and machining, where precise measurements and markings are crucial for ensuring accuracy in the final product.Rate this question:
- 15.
What is it? - A wavy pencil used to write on china, glass or other hard surfaces
Explanation
A China graph pencil is a type of wavy pencil that is specifically designed for writing on china, glass, or other hard surfaces. The wavy shape of the pencil allows for better grip and control while writing, ensuring precise and smooth lines. The graphite or wax-based core of the pencil is formulated to adhere to these surfaces without smudging or smearing. This makes it a popular tool for labeling or marking items in industries such as ceramics, glassware, or even for artistic purposes.Rate this question:
- 16.
What is it? - Used to mark centre of a point, forms large enough punch so compass or drill can be used
Explanation
A centre punch is a tool that is used to mark the center of a point. It is designed to create a small indentation that is large enough for a compass or drill to be used. This allows for precise drilling or marking of materials. The centre punch is typically made of hardened steel and has a pointed end that is struck with a hammer to create the mark.Rate this question:

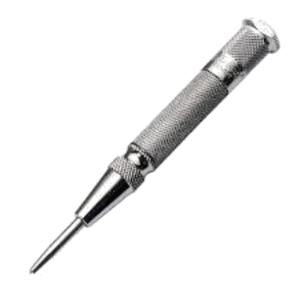

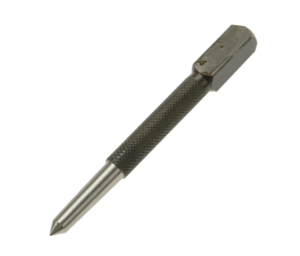

- 17.
What is it? - Used to mark centre of point, creating punch into piece. However more accurate as dot created is smaller
Explanation
A dot punch is a tool used to mark the center of a point on a piece of material, creating a small indentation or punch. This tool is preferred when accuracy is crucial because it creates a smaller dot compared to other marking methods. The smaller dot allows for more precise measurements and ensures that the center point is marked accurately.Rate this question:
- 18.
Accuracy of drilled pilot hole is important, as it should be slightly __________ than tap. Allows to create indentation so bolt fits properly. Too small bolt won't fit, too big won't create thread grooves
-
Smaller
-
Bigger
-
Same size as tap
-
I don't know
Correct Answer
A. SmallerExplanation
The accuracy of the drilled pilot hole is important because it should be slightly smaller than the tap. This is because a smaller hole allows for the creation of an indentation so that the bolt fits properly. If the hole is too small, the bolt won't fit, and if it is too big, it won't create the necessary thread grooves.Rate this question:
-
- 19.
________ used when cutting the thread. Makes tapering process easier and requires less manual labour
Correct Answer
OilExplanation
Oil is used when cutting the thread because it helps to lubricate the cutting process. This lubrication reduces friction between the cutting tool and the thread, making the tapering process easier. Additionally, the use of oil reduces the amount of manual labor required as it allows the cutting tool to glide smoothly through the material, requiring less force and effort from the operator.Rate this question:
- 20.
Turn the taper back each half turn to allow any chips cut from tapering to go up the flute of the tunnel so chips aren't stuck down taper hole
-
True
-
False
Correct Answer
A. TrueExplanation
Turning the taper back each half turn allows any chips that are cut from the tapering process to go up the flute of the tunnel. This prevents the chips from getting stuck down the taper hole, ensuring smooth and efficient drilling.Rate this question:
-
- 21.
WHAT PROCESS IS THIS: Involves heating along a section of plastic sheet. Line is marked and that line is then heated on both sides of plastic. Sheet placed over heating source. Once line is heated, you can then shape it. Make former before heating and place plastic onto former. Heated plastic takes shape of former into desired outcome
Correct Answer
Line bendingExplanation
The given description describes the process of line bending. It involves heating a section of plastic sheet along a marked line on both sides of the plastic. The heated plastic is then shaped over a former, resulting in the desired outcome. This process is commonly used in industries such as manufacturing and fabrication to create curved or angled plastic components.Rate this question:
- 22.
FILING TECHNIQUE: Place plastic in bench vice, use __(1)___ with cross filing action. To reduce scratch marks left by ___(1)____, use ___(2)____ with cross filing action. With __(3)____ change to draw filing action. Use ___(4)____ to remove final scratch marks . Polish edge with appropriate polishing compound with buffing wheel or gas torch in order to flame polish
-
1 = Smoothing File, 2 = Second Cut File, 3 = Bastard File, 4 = Scraper
-
1 = Bastard File, 2 = Smoothing File, 3 = Second Cut File, 4 = Scraper
-
1 = Bastard File, 2 = Second Cut File, 3 = Smoothing File, 4 = Scraper
-
1 = Smoothing File, 2 = Bastard File, 3 = Second Cut file, 4 = Scraper
Correct Answer
A. 1 = Bastard File, 2 = Second Cut File, 3 = Smoothing File, 4 = ScraperExplanation
The correct order of filing technique is to first use a Bastard File for initial shaping and removing excess material, then switch to a Second Cut File to reduce scratch marks left by the Bastard File. After that, a Smoothing File is used with a draw filing action to further refine the surface. Finally, a Scraper is used to remove any remaining scratch marks.Rate this question:
-

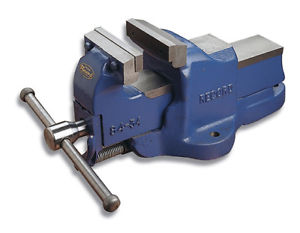

- 23.
WHAT IS THIS? - Hardened steel jaws for strong grip. Additional clip-on plastic or aluminium covers can be used to protect work when clamped.
Correct Answer
Engineers ViceExplanation
The given answer "Engineers Vice" is the correct answer because the description provided matches the features and functionality of an Engineers Vice. It mentions "hardened steel jaws for strong grip," which is a characteristic of an Engineers Vice. Additionally, it states that "additional clip-on plastic or aluminium covers can be used to protect work when clamped," which is a common feature found in Engineers Vices to prevent damage to the workpiece.Rate this question:

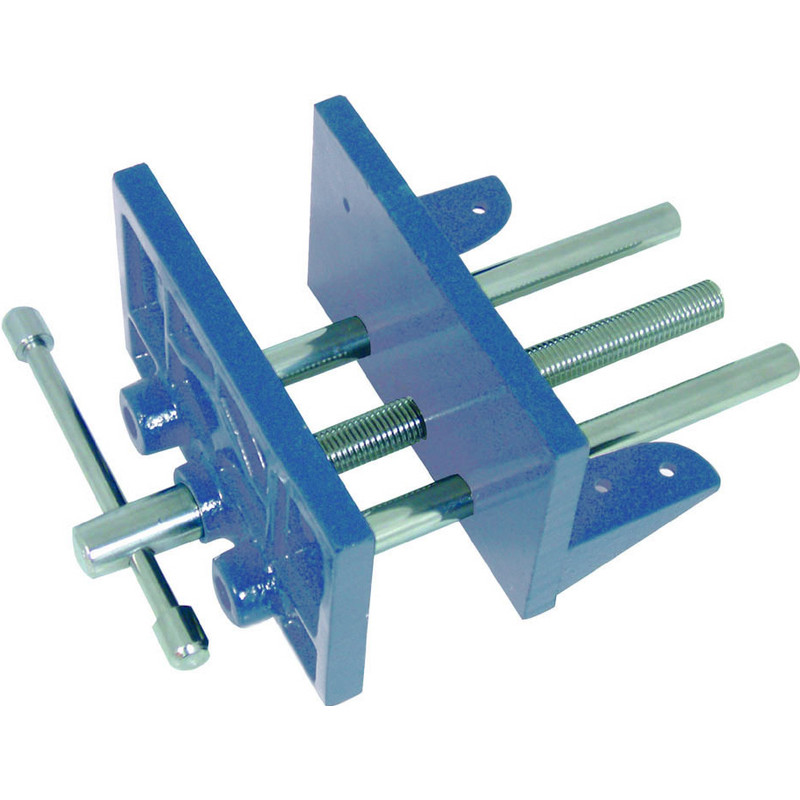

- 24.
WHAT IS THIS? - Often installed under benches. Toe-in toward jaws help ensure firm grip, able to install wooden cheeks to protect work pieces.
Correct Answer
Woodworkers ViceExplanation
A woodworker's vice is often installed under benches and has jaws that toe-in towards each other, which helps ensure a firm grip on work pieces. It is also able to install wooden cheeks to further protect the work pieces.Rate this question:
- 25.

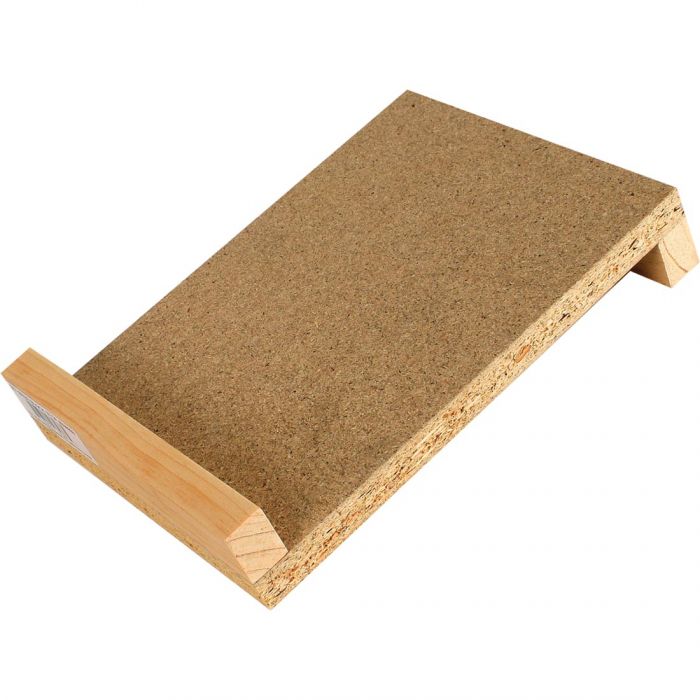

WHAT IS THIS? - Work bench accessory with purpose to provide stop against which piece of wood can be firmly held, without using vice therefore saving time.
Correct Answer
Bench HookExplanation
A bench hook is a work bench accessory that is used to provide a stop against which a piece of wood can be firmly held. It allows the woodworker to hold the piece securely without the need for a vice, saving time and effort. The bench hook typically consists of a wooden board with a raised lip or hook at one end, which is placed against the edge of the workbench. The woodworker can then push the piece of wood against the hook, preventing it from moving while they work on it.Rate this question:

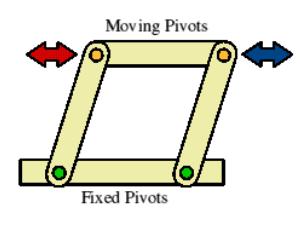

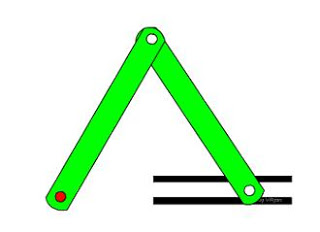

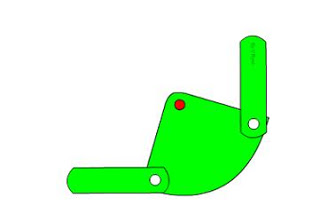

- 26.
WHAT IS THIS? - Clamp moves against work piece and linkage is stressed or compressed. Firmly holds work piece until user moves handle to release toggle.
Correct Answer
Toggle ClampsExplanation
This explanation describes the function of a toggle clamp. A toggle clamp is a device that is used to securely hold a workpiece in place. It works by moving a clamp against the workpiece, putting stress or compression on a linkage. This linkage firmly holds the workpiece until the user moves the handle to release the toggle. Toggle clamps are commonly used in woodworking, metalworking, and other applications where a strong and secure grip is needed.Rate this question:
- 27.

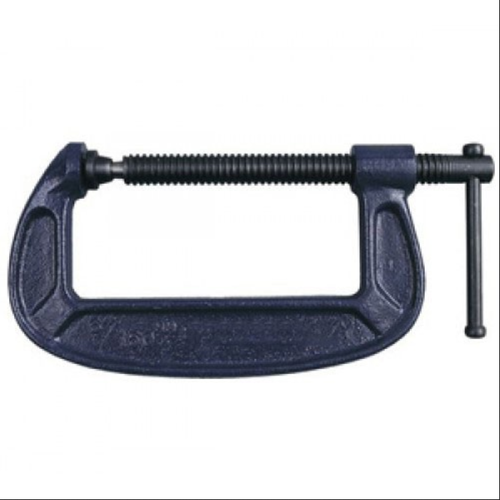

WHAT IS THIS? - Used to hold down materials. Works like third hand
Correct Answer
G-clampExplanation
A G-clamp is a tool that is used to hold down materials securely. It works like a third hand, providing stability and allowing the user to work on the materials without them moving or shifting. The G-clamp has a screw mechanism that tightens and holds the materials in place, making it an essential tool for woodworking, metalworking, and other applications where a strong grip is required.Rate this question:

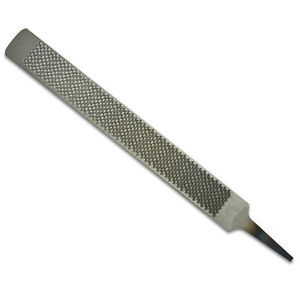

- 28.
WHAT IS THIS? - Course form of file used for coarsely shaping material.
Correct Answer
RaspExplanation
A rasp is a coarse file used for shaping materials. It has a rough surface with sharp teeth that are designed to quickly remove material. It is commonly used in woodworking and metalworking to shape and smooth rough surfaces. The answer "Rasp" accurately describes the tool that is being referred to in the question.Rate this question:

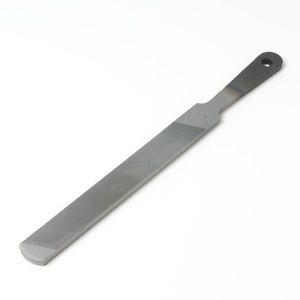

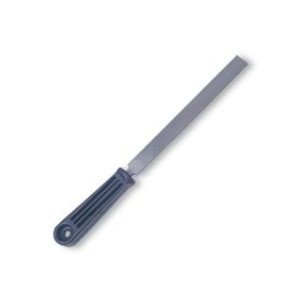

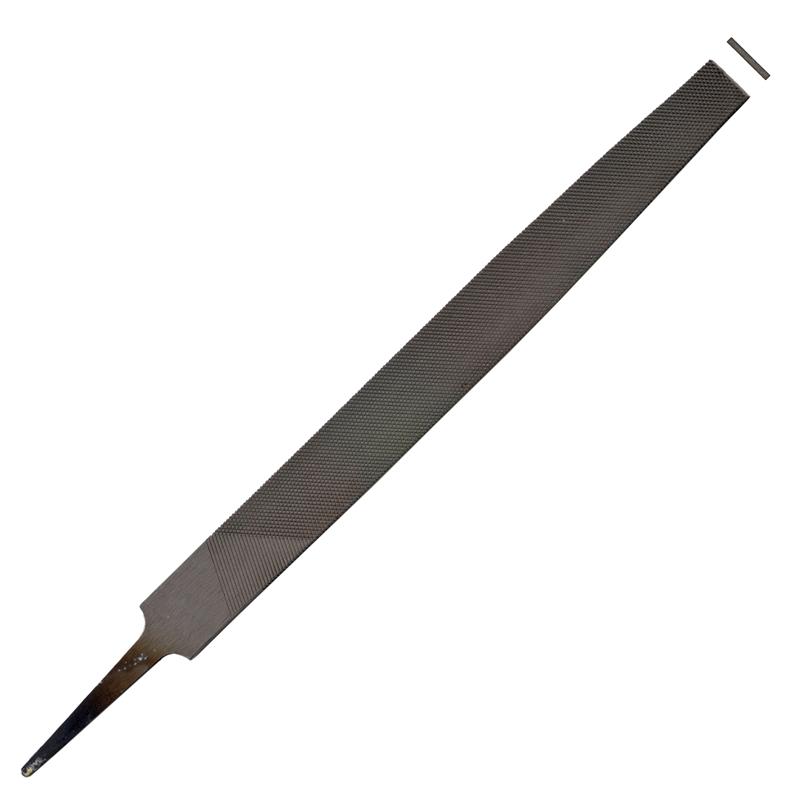

- 29.
WHAT IS THIS? - General purpose file. Quite rough and used in first few processed of polishing material. Gets rid of material fast but leaves scratch marks.
Correct Answer
Bastard FileExplanation
A bastard file is a type of file that is used for general purposes, particularly in the initial stages of polishing materials. It is known for its roughness, allowing it to remove material quickly. However, it also leaves behind scratch marks on the surface being filed.Rate this question:
- 30.
WHAT IS THIS? - Less rough, used to further polish whilst getting rid of scratch marks
Correct Answer
Second Cut FileExplanation
The given answer, "Second Cut File," is the correct answer because it accurately describes the tool that is being referred to in the question. The question is asking for a term that is used to further polish and remove scratch marks, indicating that it is a tool used in finishing or refining a surface. The term "Second Cut File" fits this description as it is a type of file that has finer teeth and is used for smoothing and refining surfaces.Rate this question:
- 31.
WHAT IS THIS? - Fine file, further polishes and gets rid of any remaining scratch marks
Correct Answer
Smoothing FileExplanation
A smoothing file is a type of file that is used to refine and smooth the surface of a material by removing any remaining scratch marks or imperfections. It is typically used after using a coarser file to shape and remove larger imperfections. The smoothing file has a fine grit and is designed to provide a smooth and polished finish to the material.Rate this question:
- 32.

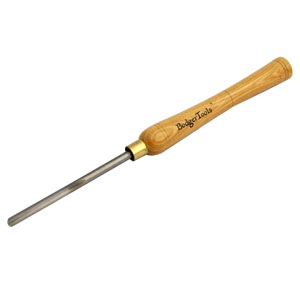

When making first cut with gouge hold angle of tool down so angle at same of wood turning. Bring gouge down once it begins to dig in
-
True
-
False
Correct Answer
A. TrueExplanation
The statement suggests that when making the first cut with a gouge, the angle of the tool should be held down so that it matches the angle of the wood turning. Additionally, it advises bringing the gouge down once it starts to dig into the wood. This implies that the statement is instructing the correct technique for using a gouge tool while working on woodturning.Rate this question:
-
- 33.
Name the joint
Correct Answer
Butt jointExplanation
A butt joint is a type of joint used in woodworking or metalworking where two pieces of material are joined together by simply butting them against each other. This joint is commonly used in furniture making, carpentry, and construction projects. It is a simple and straightforward method of joining two pieces, but it may not be as strong or durable as other types of joints.Rate this question:
- 34.
Name the joint
Correct Answer
Mortise and tenon jointExplanation
The given question is asking for the name of a specific joint, and the correct answer is "Mortise and tenon joint." This joint is a traditional woodworking joint that is commonly used to join two pieces of wood together. It consists of a rectangular hole (mortise) cut into one piece of wood and a corresponding projection (tenon) on the other piece of wood that fits into the mortise. This joint is known for its strength and durability, making it a popular choice in furniture and carpentry.Rate this question:
- 35.
Name the joint
Correct Answer
Biscuit JointExplanation
The correct answer is Biscuit Joint because the question asks for the name of a joint, and the given answer matches exactly with the joint name mentioned. A biscuit joint is a woodworking joint created by inserting an oval-shaped wooden biscuit into slots made in two adjoining pieces of wood, which helps in aligning and strengthening the joint.Rate this question:
- 36.
Name the joint
Correct Answer
Dovetail JointExplanation
A dovetail joint is a type of joint used in woodworking to join two pieces of wood together. It is named after its shape, which resembles the tail of a dove. The joint consists of a series of trapezoidal-shaped pins on one piece of wood that interlock with corresponding tails on the other piece of wood. This creates a strong and durable connection that is resistant to pulling or twisting forces. The dovetail joint is commonly used in furniture making, cabinet construction, and other woodworking applications.Rate this question:

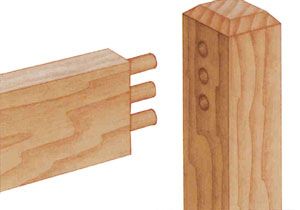

- 37.
Name the joint
Correct Answer
Dowel jointExplanation
A dowel joint is a type of joint in woodworking where two pieces of wood are joined together using dowels, which are cylindrical rods. The dowels are inserted into corresponding holes drilled in the two pieces of wood, creating a strong and secure connection. This type of joint is commonly used in furniture making and cabinetry to join parts together without the need for screws or nails, resulting in a clean and seamless appearance.Rate this question:
- 38.
WHAT IS THIS? - A metal combined with other substances resulting in superior properties such as strength, hardness and durability
Correct Answer
AlloyExplanation
An alloy is a combination of a metal with other substances, resulting in a material that possesses superior properties such as strength, hardness, and durability. By mixing different metals or adding non-metal elements to a base metal, the resulting alloy can exhibit enhanced characteristics that surpass those of the individual components. This makes alloys highly desirable in various industries, including manufacturing, construction, and engineering, where the need for materials with exceptional properties is crucial.Rate this question:
- 39.
Technical name for bending woods
Correct Answer
LaminatingExplanation
Laminating is the technical name for bending woods. This process involves layering thin sheets of wood together and applying heat and pressure to create a curved shape. The layers are bonded together using adhesives, resulting in a strong and flexible wood material. Laminating is commonly used in furniture making, construction, and other woodworking applications where curved or shaped wood is required.Rate this question:

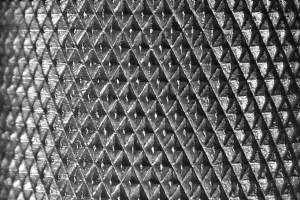

- 40.
WHAT PROCESS IS THIS? - __________ tool pressed against rotating steel and pressure slowly increased until tool produces pattern on steel.
Correct Answer
KnurlingExplanation
Knurling is the process where a tool is pressed against rotating steel with increasing pressure to produce a pattern on the surface. This process is commonly used to create a textured grip on handles or knobs, improving their functionality and aesthetics.Rate this question:
- 41.
WHAT IS THIS? - Protects surface and brings out natural features but allows texture to be seen
Correct Answer
VarnishExplanation
Varnish is a clear protective coating that is applied to surfaces to enhance their appearance and protect them from damage. It is commonly used on wood, but can also be used on other materials like metal or concrete. Varnish brings out the natural features of the surface it is applied to, while still allowing the texture of the material to be seen. This means that the surface will have a glossy or satin finish, but the texture of the wood grain or other features will still be visible.Rate this question:
- 42.
PROCESS TO PAINT MDF: First sand with 240 grit sandpaper, then using brush or foam roller paint primer and undercoat onto MDF then leave to dry. Once dry, sand again with 240 grit. Once sanded , ready for painting.
-
True
-
False
Correct Answer
A. TrueExplanation
The explanation for the given correct answer is that the process mentioned in the statement is a correct and accurate way to paint MDF (Medium Density Fiberboard). It involves sanding the MDF with 240 grit sandpaper, applying primer and undercoat using a brush or foam roller, allowing it to dry, and then sanding it again with 240 grit before proceeding with the actual painting. Therefore, the answer "True" is correct as it accurately reflects the process described in the statement.Rate this question:
-
- 43.
PROCESS OF PAINTING METAL: Put chemical gloves on, using clean rag and methylated spirits give metal good clean. Spray paint primer onto metal (outside) and leave primer to dry. Once primer dry, apply top coat with short quick bursts (Wear mask to avoid fumes)
-
True
-
False
Correct Answer
A. TrueExplanation
The explanation for the given correct answer is that the process described in the statement is a correct and logical sequence for painting metal. It starts with cleaning the metal using methylated spirits and a clean rag, followed by applying a spray paint primer and allowing it to dry. Once the primer is dry, the top coat can be applied using short quick bursts. The mention of wearing chemical gloves and a mask also indicates the importance of safety precautions during the painting process. Therefore, the answer "True" is correct.Rate this question:
-
- 44.
Safety in workshop
-
Remove or tuck in ties, take off jewelry and tie back long hair (when using tools)
-
Wear aprons or overalls to wear clothes
-
Wear special protective clothing and eye protection when required
-
Don't run, shout or distract others. Be responsible
-
Move around and carry tools in safe manner
-
Check condition of tools before using (blunt, broken, loose parts)
-
Keep area clear to avoid trip hazard
-
When using sharp-edged tools remember both hands must be kept behind cutting edge
-
Clean equipment thoroughly after use
-
Leave hot tools or pieces of work in safe place to cool down before putting away (put sign up saying equipment is hot as warning)
-
Wear face mask when using power sanders
-
When using power tools, use guards that are fitted to machines and remember eye protection
-
Don't put compressed air pipes or nozzles close to skin
-
Ensure work piece is secure
-
Don't leave machine tools unattended, always switch off when finished
Correct Answer(s)
A. Remove or tuck in ties, take off jewelry and tie back long hair (when using tools)
A. Wear aprons or overalls to wear clothes
A. Wear special protective clothing and eye protection when required
A. Don't run, shout or distract others. Be responsible
A. Move around and carry tools in safe manner
A. Check condition of tools before using (blunt, broken, loose parts)
A. Keep area clear to avoid trip hazard
A. When using sharp-edged tools remember both hands must be kept behind cutting edge
A. Clean equipment thoroughly after use
A. Leave hot tools or pieces of work in safe place to cool down before putting away (put sign up saying equipment is hot as warning)
A. Wear face mask when using power sanders
A. When using power tools, use guards that are fitted to machines and remember eye protection
A. Don't put compressed air pipes or nozzles close to skin
A. Ensure work piece is secure
A. Don't leave machine tools unattended, always switch off when finishedExplanation
The given answer provides a comprehensive list of safety measures that should be followed in a workshop. These measures include removing or tucking in ties, taking off jewelry and tying back long hair when using tools, wearing aprons or overalls to protect clothes, wearing special protective clothing and eye protection when required, not running, shouting, or distracting others, moving around and carrying tools in a safe manner, checking the condition of tools before using them, keeping the area clear to avoid trip hazards, keeping both hands behind the cutting edge when using sharp-edged tools, cleaning equipment thoroughly after use, leaving hot tools or pieces of work in a safe place to cool down, wearing a face mask when using power sanders, using guards on power tools and wearing eye protection, avoiding putting compressed air pipes or nozzles close to the skin, ensuring the workpiece is secure, and not leaving machine tools unattended and always switching them off when finished.Rate this question:
-

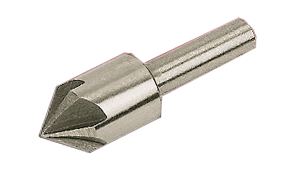

- 45.
Name the router bit
Correct Answer(s)
Chamfer bitExplanation
A chamfer bit is a type of router bit that is specifically designed to create a chamfer, which is a beveled edge or cut, on the corners or edges of a material. This type of bit is commonly used in woodworking and carpentry to create decorative or functional chamfers on furniture, moldings, and other wooden pieces. The chamfer bit typically has a flat cutting surface with an angled edge, allowing it to remove material at a specific angle and create a clean and precise chamfer.Rate this question:
- 46.

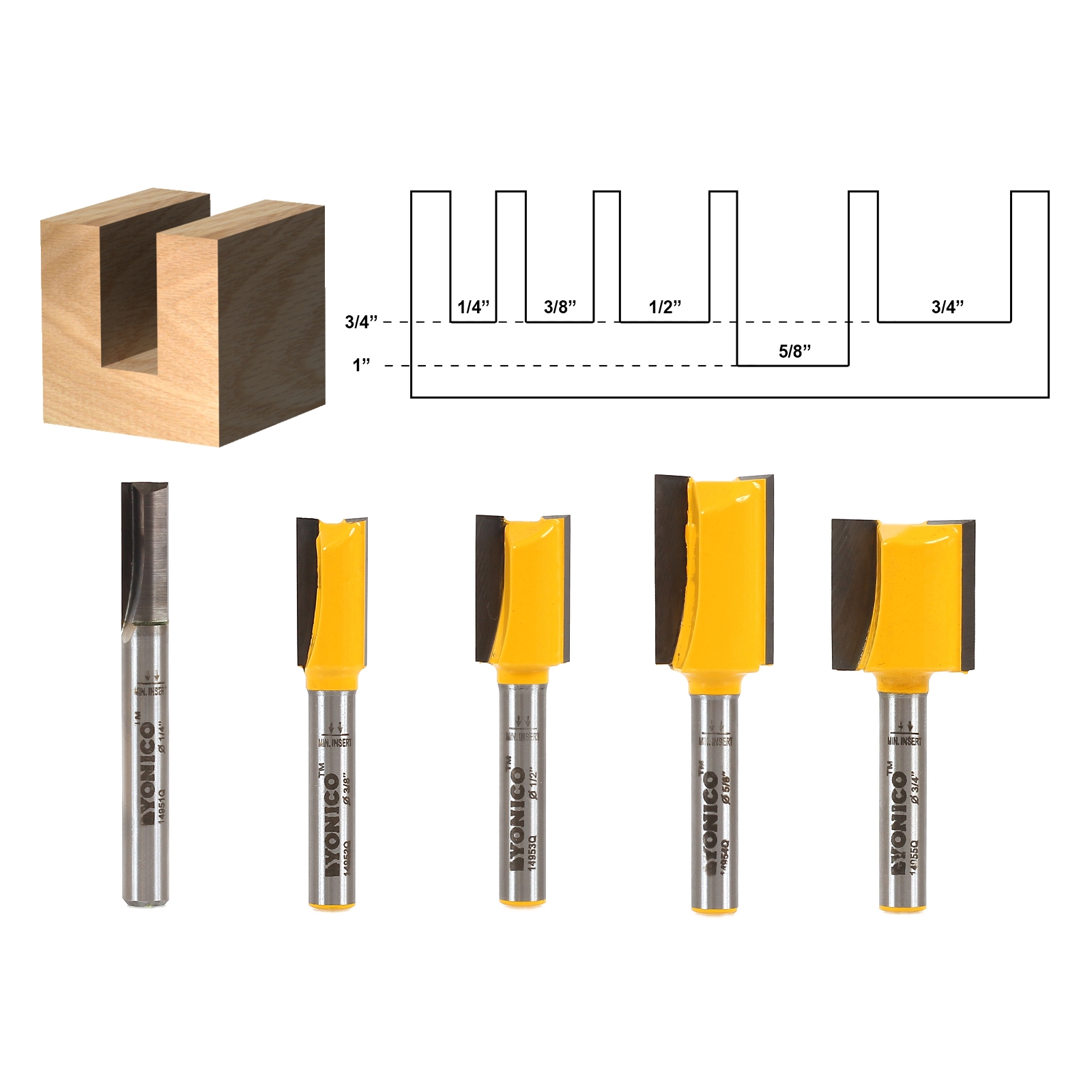

Name the router bit
Correct Answer(s)
Dado bitExplanation
A dado bit is a type of router bit that is specifically designed for creating dado joints. Dado joints are used to join two pieces of wood together at a right angle, creating a strong and sturdy connection. The dado bit has a flat bottom and two cutting edges on the sides, allowing it to remove material and create a wide groove or channel in the wood. This groove is then used to house the corresponding piece of wood, creating a secure joint. Dado bits are commonly used in woodworking projects such as building shelves, cabinets, and bookcases.Rate this question:
- 47.
Name the router but
Correct Answer(s)
Dovetail bit - 48.
Name the router bit
Correct Answer(s)
Ogee bitExplanation
The correct answer is Ogee bit. The Ogee bit is a type of router bit that is used to create decorative edges on wood. It has a curved shape with a concave section followed by a convex section, giving it an S-shaped profile. This bit is commonly used for adding intricate details to furniture, cabinetry, and other woodworking projects.Rate this question:
- 49.
Name the router bit
Correct Answer(s)
V-groove bitExplanation
A V-groove bit is a type of router bit that is designed with a V-shaped cutting edge. It is commonly used to create decorative V-grooves or chamfers on the edges of wooden boards or panels. The V-groove bit is versatile and can be used for various applications, such as creating decorative details on furniture, cabinetry, or trim work. It is a popular choice among woodworkers and carpenters for adding visual interest and enhancing the overall appearance of their projects.Rate this question:
