Latihan Soal Unbk Produktif Tkj Smk

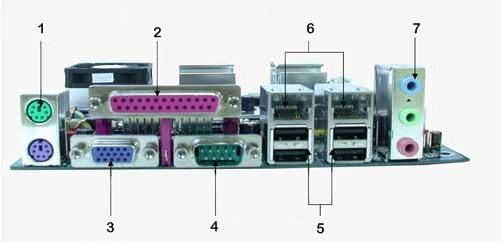

The correct answer is 6 because in the given diagram, the number 6 is the only one labeled as "Port RJ 45." This indicates that it is the specific port that is being referred to in the question.

The correct answer is "Wirreless." Wireless communication refers to the transmission of information without the use of physical cables or wires. It involves the use of electromagnetic waves to send and receive signals between devices. This type of communication is commonly used in various technologies such as Wi-Fi, Bluetooth, and cellular networks.

To change the equalizer settings for the audio speaker after installing the operating system, one should install the sound driver. The sound driver is responsible for managing and controlling the audio output of the system. By installing the appropriate sound driver, the user can gain access to advanced settings such as equalizer options, allowing them to customize the sound according to their preferences.

During the process of Power-On Self Test (POST), a beep sound is emitted to indicate the successful detection or initialization of hardware components. This beep sound serves as an auditory feedback to the user, confirming that the system is functioning properly. Therefore, the correct answer is "Beep".

The correct answer is IP Address. Utilitas Ping is used to determine the connectivity between devices on a network using their IP addresses. It sends a small packet of data called an ICMP echo request to the specified IP address and waits for a response. If a response is received, it means that the device is connected and reachable.

The correct answer is "Toko di mana periferal di beli" because the log sheet for computer maintenance and repair should include information such as corrective actions taken, symptoms of damage, date and time of maintenance, and the name and specifications of the peripherals. However, the information about the store where the peripherals were purchased is not relevant or necessary for the maintenance and repair log.

The correct answer is "Graphical User Interface". Windows is an example of a GUI-based operating system, where users interact with the system through graphical elements such as icons, menus, and windows, rather than text-based commands.

To check the installation of an RJ45 connector on a UTP cable, a LAN tester is used. A LAN tester is a device that helps in verifying the connectivity and functionality of network cables. It can detect faults such as open circuits, short circuits, and incorrect wiring configurations. By using a LAN tester, one can ensure that the RJ45 connector is properly installed and the cable is ready for network communication.

The correct answer is "boros kabel" because the STAR topology does not require excessive amounts of cable compared to other topologies. In a STAR topology, each device is connected directly to a central hub, reducing the amount of cable needed for the network. This makes it a more cost-effective and efficient option for network installations.

Collision refers to the occurrence of data packets colliding with each other on a computer network. This can happen when multiple devices attempt to transmit data simultaneously on a shared network segment. When a collision occurs, the data packets become corrupted and need to be retransmitted. Collision detection and avoidance mechanisms are implemented in network protocols, such as Ethernet, to minimize the occurrence of collisions and ensure efficient data transmission.

A PC is generally divided into three main parts: input devices, CPU (Central Processing Unit), and output devices. Input devices are used to input data or commands into the computer, such as a keyboard or mouse. The CPU is the brain of the computer that processes the data and performs calculations. Output devices are used to display or output the processed data, such as a monitor or printer. Therefore, the correct answer is Input Device-CPU-Output Device.

The correct answer is BIOS. BIOS stands for Basic Input/Output System, which is a firmware that is built into the computer's motherboard. It is responsible for initializing and controlling the hardware components of the computer, including the VGA card. In the BIOS settings, there is an option to enable or disable the onboard VGA card. By accessing the BIOS, users can choose whether to use the onboard VGA card or an external one.

DirectX is a built-in tool in Windows that is used to diagnose all hardware related to graphics, network, and multimedia. It helps in optimizing and enhancing the performance of these components by providing the necessary drivers and APIs. It is commonly used in gaming and multimedia applications to ensure smooth and efficient operation.

The correct answer is SSID. SSID stands for Service Set Identifier, which is the name of a wireless network. It is used to identify and differentiate between different wireless networks in the vicinity. Access Points broadcast their SSID so that devices can connect to them.

When a peripheral is not fully installed or its driver is not installed properly, a yellow exclamation mark (!) symbol will appear in the device manager. This indicates that there is an issue with the peripheral and it requires attention or troubleshooting.

The correct answer for the sequence of colors in making a straight cable is "Putih orange-orange, putih hijau-biru, putih biru-hijau, coklat coklat – coklat". This sequence follows the standard color coding for Ethernet cables, where the white color indicates the base color of the wire (orange, green, blue), and the solid color represents the stripe color. The brown wires are used for the grounding connection.

A repeater is used to strengthen the signal in a local network cable. It receives the weak signal and regenerates it, amplifying it before sending it out again. This helps to extend the reach of the network and improve the quality of the signal. A bridge connects two separate networks, a gateway connects a local network to an external network, an amplifier increases the power of a signal, and a router directs network traffic between different networks. Therefore, the correct answer is repeater.

Server-server yang tercantum adalah layanan-layanan yang umumnya dapat diaktifkan pada server. Namun, NTFS Server bukanlah sebuah layanan yang dapat diaktifkan pada server. NTFS (New Technology File System) adalah sistem file yang digunakan oleh sistem operasi Windows untuk mengatur dan mengelola data pada hard drive. NTFS Server tidak ada karena NTFS adalah sistem file yang digunakan oleh server untuk menyimpan dan mengelola data, bukan sebuah layanan yang dapat diaktifkan atau dinonaktifkan.

When the message "Request timed out" appears from the ping command, it means that the connection between the two computers is disconnected.

When the paper enters the printer in an asymmetric manner, it can cause a paper jam. The paper needs to be inserted properly and aligned symmetrically to prevent any obstructions or misfeeds that may lead to a paper jam.

A mail server is a service on a server that allows clients to send and receive electronic mail, either locally or over the internet. It is responsible for storing, sending, and receiving emails. This service enables clients to communicate through electronic mail, making it the correct answer for the given question.

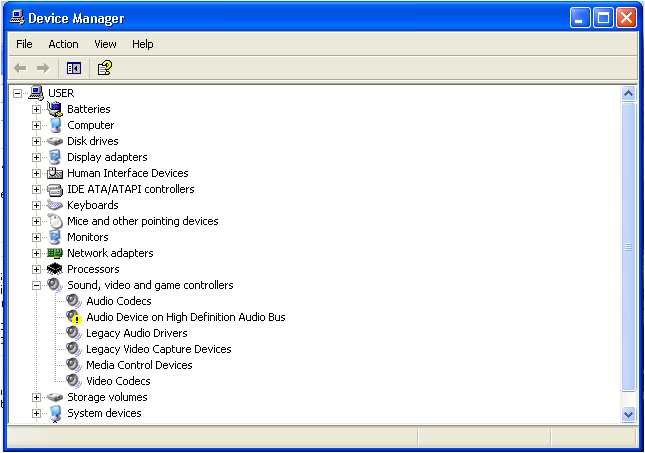

The given correct answer states that the computer component driver has not been installed yet. This can be inferred from the image shown in the Device Manager, which displays a warning sign indicating that the driver is missing or not installed.

The correct answer is "ls". In Linux, the "ls" command is used to list the contents of a directory. It displays the names of files and directories within the specified directory, allowing users to see what files are present. This command is widely used for navigating and managing directories in the Linux operating system.

To configure a web server in Ms. Windows 2003 Server, the menu option to select is "Internet Information Services (IIS) Manager". This tool allows users to manage and configure the IIS web server, including settings such as website creation, virtual directories, application pools, and security settings. It provides a user-friendly interface for managing web server-related tasks in Windows Server 2003.

The beep code pattern of 1 long beep followed by 3 short beeps indicates a problem with the VGA card. This could mean that the VGA card is not properly installed or there might be an issue with the card itself. It is recommended to check the connection of the VGA card and ensure that it is securely seated in the motherboard. If the issue persists, it may be necessary to replace the VGA card.

In a star topology, all workstations are connected to a central hub. The hub acts as a central point for all the workstations in the network. This allows for easy management and troubleshooting as any issues can be identified and resolved at the central hub. Additionally, the star topology provides better performance and scalability compared to other topologies like mesh, bus, and ring. Therefore, the correct answer is topologi star.

The avometer is not a tool commonly found in a toolkit. It is an electrical measuring instrument used to measure voltage, current, and resistance. The other options listed (kuas, tang, cairan pembersih, obeng) are all tools that are commonly found in a toolkit.

The LAN Card is responsible for translating the smallest unit of information in the physical layer. It is a hardware component that enables a computer to connect to a local area network (LAN) and communicate with other devices. The LAN Card converts the digital signals from the computer into electrical signals that can be transmitted over the network and vice versa. It acts as an interface between the computer and the network, allowing the translation of data between the two.

Ms. Windows 2003 Server is the correct answer because it is a network operating system that is based on a graphical user interface (GUI). This operating system was specifically designed for server use and includes features such as Active Directory, domain controller capabilities, and enhanced security. Windows 98, Windows XP, Windows Vista, and Windows Millennium are all client operating systems, not network operating systems.

The correct answer is "Open System Interconnection". This is the correct answer because OSI stands for Open System Interconnection, which is a model that describes how different devices in a network communicate with each other. The OSI model has seven layers, each with its own specific function, and it is widely used in the field of networking to understand and troubleshoot network communication.

Tracert is a command used to display the route that a packet takes to reach a specific destination. It helps in troubleshooting network connectivity issues by showing each hop the packet takes and the time it takes to reach each hop. It is commonly used to identify network latency or packet loss.

Squid is a program that functions as a proxy server. It is commonly used to improve web performance by caching and delivering web content to clients. It acts as an intermediary between clients and servers, allowing clients to make requests for resources through the proxy server. Squid then retrieves the requested resources from the server and delivers them back to the clients. This helps to reduce bandwidth usage, improve response times, and provide better overall performance for users accessing the internet through the proxy server.

Dalam keamanan jaringan data, interupsi merujuk pada serangan yang menyebabkan gangguan atau gangguan pada aliran data sebelum mencapai tujuan. Serangan interupsi dapat mencakup penghentian paket data, penghancuran data, atau gangguan pada koneksi jaringan. Serangan ini bertujuan untuk mengganggu komunikasi dan mempengaruhi ketersediaan dan integritas data.

To access a web server, the necessary program would be either Mozilla or Opera. These are web browsers that allow users to access and view websites on the internet. Apache and IIS are web server software, not the programs needed to access them. Squid and Samba are proxy server software and file sharing software, respectively, not web browsers. MySQL is a database management system and Outlook is an email client, neither of which are used to access web servers. Friendster and Blogger are social networking and blogging platforms, not web browsers.

The maximum data speed for wireless communication with the 802.11b specification is 11 Mb/s. This specification is an older version of the Wi-Fi standard and has a lower data rate compared to newer versions such as 802.11n or 802.11ac. The 11 Mb/s speed is sufficient for basic internet browsing and email, but may not be suitable for high-bandwidth activities such as streaming HD videos or online gaming.

The correct answer is "Transport." The OSI reference model consists of seven layers, and the fourth layer is the Transport layer. This layer is responsible for ensuring reliable and efficient communication between end systems. It provides end-to-end error recovery, flow control, and congestion control mechanisms to ensure that data is delivered accurately and efficiently.

The correct answer is LAN. LAN stands for Local Area Network, which is a computer network that covers a small area, typically a single building or a few nearby buildings. LANs are known for their high bandwidth and low latency, making them suitable for local communication within a limited area.

The correct answer is "Topologi Insfrastructure dan adhoc". This is because the question is asking for two types of wireless topologies that use an Access Point (AP). The Infrastructure topology refers to a network where all devices connect to a central AP, while the Adhoc topology refers to a network where devices can connect directly to each other without the need for a central AP. Therefore, the combination of Infrastructure and Adhoc topologies is the correct answer.

A hub is not a WAN device. It is a device used to connect multiple devices in a local area network (LAN). A modem, repeater, router, and bridge are all examples of WAN devices that are used to connect different networks over a wide area.

The correct answer is "Pemilihan Paket". When installing a network operating system like Redhat 9, it is important to carefully choose the packages that will be installed. This is because different packages contain different software and functionalities, and selecting the appropriate packages will ensure that the necessary components for networking are included in the installation.
