Electrostatics Quiz
-
Two charges q1 and q2 in r distance have a repulsive force F. If the distance of both the charges is made 2 r, the repulsive force become . . . .
-
4 F
-
2 F
-
F
-
1/2 F
-
1/4 F
-
Quiz Preview
- 2.
Ada empat buah muatan A, B, C dan D. A menarik B, A menolak C, dan C menarik D dan C bermuatan positif. Jenis muatan lainnya adalah . . . .
-
A negatif, B positif dan D positif
-
A negatif, B negatif dan D positif
-
A negatif, B negatif dan D negatif
-
A positif, B positif dan D negatif
-
A positif, B negatif dan D negatif
Correct Answer
A. A positif, B negatif dan D negatifExplanation
Based on the given information, A attracts B and repels C. Since C attracts D and C is positively charged, it can be inferred that D is negatively charged. Therefore, A must be positively charged in order to attract B. This leaves us with the answer choice A positif, B negatif, and D negatif.Rate this question:
-
- 3.
Alat yang digunakan untuk menentukan suatu benda mengandung muatan atau tidak adalah . . . .
-
Stetoskop
-
Osciloskop
-
Elektroskop
-
Periskop
-
Mikroskop
Correct Answer
A. ElektroskopExplanation
An elektroskop is a device used to determine whether an object contains a charge or not. It works by detecting the presence of an electric field around the object. When the object is charged, the elektroskop will show a deflection or movement of its indicator. Therefore, an elektroskop is the correct tool to use for determining the presence of a charge in an object.Rate this question:
-
- 4.
The direction of negative electrical charge field is . . . .
-
Outwardly radial
-
Disordered straight
-
Inwardly radial
-
Unidirectional straight
-
Depend on charge location
Correct Answer
A. Inwardly radialExplanation
The direction of the negative electrical charge field is inwardly radial. This means that the field lines originate from the negative charge and point towards it in a radial direction. This is because negative charges repel each other, so the field lines move away from other negative charges and towards positive charges.Rate this question:
-
- 5.
Ukuran yang menyatakan jumlah garis gaya listrik yang menembus suatu permukaan. Pernyataan ini dikenal dengan . . . .
-
Hukum Coulomb
-
Hukum Archimedes
-
Fluks listrik
-
Hukum Gauss
-
Hukum Boyle
Correct Answer
A. Fluks listrikExplanation
The given statement is describing the concept of "Fluks listrik" which refers to the electric flux. Electric flux is a measure of the number of electric field lines that pass through a given surface. It is a concept used in electromagnetism to understand the flow of electric fields and is calculated by taking the dot product of the electric field and the area vector of the surface.Rate this question:
-
- 6.
Diketahui muatan q1 = +4 μC dan q2 = +9 μC. Letak titik yang mempunyai kuat medan listrik nol diukur dari q1 arah ke kanan pada jarak . . . . +q1 --------------------- 1 m -------------------- q2
-
0,04 m
-
0,10 m
-
0,20 m
-
0,30 m
-
0,40 m
Correct Answer
A. 0,40 mExplanation
The point that has a zero electric field is located at a distance of 0.40 m from q1 in the direction towards the right.Rate this question:
-
- 7.
Sebuah inti atom hydrogen mempunyai muatan 1,6.10–19 C, maka besar potensial listrik pada jarak 2,4.10–10 m dari muatan itu adalah . . . .
-
4 volt
-
6 volt
-
8 volt
-
10 volt
-
12 volt
Correct Answer
A. 6 voltExplanation
The electric potential at a distance from a charged particle is given by the equation V = kQ/r, where V is the electric potential, k is the Coulomb's constant, Q is the charge of the particle, and r is the distance from the particle. In this case, the charge of the hydrogen atom is 1.6 x 10^-19 C and the distance is 2.4 x 10^-10 m. Plugging these values into the equation, we get V = (9 x 10^9 Nm^2/C^2)(1.6 x 10^-19 C)/(2.4 x 10^-10 m) = 6 volts. Therefore, the electric potential at a distance of 2.4 x 10^-10 m from the hydrogen atom is 6 volts.Rate this question:
-
- 8.
Sebuah kapasitor memiliki kapasitas 2 μF, beda potensial antara kedua ujung kapasitor itu sehingga dapat menyimpan energi 3,6 x 10–5 Joule sebesar . . . .
-
2 volt
-
3 volt
-
4 volt
-
5 volt
-
6 volt
Correct Answer
A. 6 voltExplanation
The energy stored in a capacitor is given by the formula E = 1/2 CV^2, where E is the energy, C is the capacitance, and V is the voltage. In this case, the energy is given as 3.6 x 10^-5 Joule and the capacitance is 2 μF. Plugging these values into the formula, we can solve for V. Rearranging the formula, we get V = sqrt(2E/C). Substituting the given values, we find V = sqrt(2 * 3.6 x 10^-5 / 2 x 10^-6) = sqrt(36) = 6 volt. Therefore, the correct answer is 6 volt.Rate this question:
-
- 9.
Medan listrik homogen E melintasi suatu permukaan seluas A dengan arah membentuk sudut 30o terhadap permukaan bidang. Besar fluks medan listrik yang melalui luasan itu adalah . . . .
-
E. A cos 30
-
E. A cos 60
-
0
-
E. A
-
- E. A
Correct Answer
A. E. A cos 60Explanation
The correct answer is E. A cos 60. This is because the flux of an electric field through a surface is given by the formula Φ = E * A * cosθ, where E is the electric field strength, A is the area of the surface, and θ is the angle between the electric field and the surface. In this case, the electric field is homogeneous and is passing through the surface at an angle of 30 degrees. Since the cosine of 30 degrees is equal to the cosine of 60 degrees, the answer is E. A cos 60.Rate this question:
-
- 10.
Berikut ini adalah data 5 buah kapasitor keping sejajar. Kapasitor Keping Luas Keping Jarak antar keping Permitivitas C1 C2 C3 C4 C5 A 2A 2A 2A 2A 2d 2d d ½ d ½ d ε 3ε ½ε 2ε ½ε Dari data tersebut yang memiliki kapasitas terbesar adalah kapasitor . . . .
-
C1
-
C2
-
C3
-
C4
-
C5
Correct Answer
A. C4Explanation
The capacitor with the largest capacitance is C4 because it has the largest area of the parallel plates among all the capacitors. The capacitance of a capacitor is directly proportional to the area of its plates. Therefore, C4 has the largest capacitance compared to C1, C2, C3, and C5.Rate this question:
-
- 11.

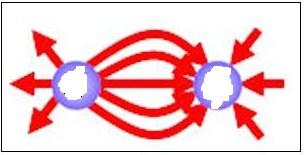

Gambar di bawah adalah garis-garis medan di sekitar dua muatan titik qA dan qB. Dari gambar tersebut dapat ditarik kesimpulan bahwa . . . .
-
QA negatif; |qA|>|qB|
-
QA negatif; |qA|>|qB|
-
QA positif; |qA|=|qB|
-
QA positif; |qA|>|qB|
-
QA positif; |qA|
Correct Answer
A. QA positif; |qA|=|qB|Explanation
Based on the given diagram, we can conclude that qA is positive and the magnitude of qA is equal to the magnitude of qB.Rate this question:
-
- 12.
Diantara pernyataan berikut yang BUKAN merupakan fungsi kapasitor adalah . . . .
-
Menyimpan muatan
-
Menyimpan energi
-
Memilih gelombang radio
-
Mengatur besarnya arus listrik
-
Tidak ada jawaban yang benar
Correct Answer
A. Mengatur besarnya arus listrikExplanation
The correct answer is "Mengatur besarnya arus listrik" because capacitors do not have the ability to regulate the magnitude of electric current. Capacitors are primarily used to store and release electrical energy, as well as to filter out certain frequencies in electronic circuits. They are not designed to control or adjust the magnitude of electric current flowing through a circuit.Rate this question:
-
- 13.
Sisir plastik yang telah digosokkan pada rambut kering atau kain wool dapat menarik potongan kertas karena . . . .
-
Sisir menjadi kelebihan elektron sehingga sisir bermuatan negatif sedangkan kain wool akan bermuatan positif
-
Sisir menjadi kekurangan elektron sehingga sisir bermuatan negatif sedangkan kain wool akan bermuatan negatif
-
Kain wol menjadi kelebihan elektron sehingga kain wol bermuatan negatif sedangkan sisir akan bermuatan negatif
-
Kain wol menjadi kelebihan netron sehingga kain wol tidak bermuatan sedangkan sisir menjadi bermuatan positif
-
Tidak ada jawaban yang benar
Correct Answer
A. Sisir menjadi kelebihan elektron sehingga sisir bermuatan negatif sedangkan kain wool akan bermuatan positifExplanation
When plastic is rubbed against dry hair or wool, the plastic comb becomes negatively charged due to an excess of electrons transferred from the hair or wool. At the same time, the hair or wool becomes positively charged. This charge imbalance between the comb and the hair/wool creates an electrostatic attraction, causing the comb to attract small pieces of paper.Rate this question:
-
- 14.
Suatu kapasitor mempunyai kapasitas 10 μF kalau di dalam kapasitor berisi udara. Apabila ke dalam kapasitor dimasukkan mika yang mempunyai konstanta dielektrik εr = 5, maka kapasitasnya akan menjadi . . . .
-
2 μF
-
5 μF
-
15 μF
-
50 μF
-
250 μF
Correct Answer
A. 50 μFExplanation
When a dielectric material is inserted into a capacitor, it increases the capacitance of the capacitor. The capacitance of a capacitor with a dielectric material can be calculated using the formula C = C0 * εr, where C is the capacitance with the dielectric, C0 is the capacitance without the dielectric, and εr is the relative permittivity or dielectric constant of the material. In this case, the initial capacitance without the dielectric is 10 μF. When the mica with a dielectric constant of εr = 5 is inserted, the capacitance becomes 10 μF * 5 = 50 μF. Therefore, the correct answer is 50 μF.Rate this question:
-
- 15.
Three capacitors C1, C2 and C3 with the amount of 6 μF, 2 μF and 1 μF respectively, are connected as in the figure on the below. If the point A and C is given voltage difference of 12 Volt and then the charge in C2 is . . . .
-
8 μC
-
16 μC
-
24 μC
-
30 μC
-
36 μC
Correct Answer
A. 16 μCExplanation
The charge in a capacitor is given by the equation Q = CV, where Q is the charge, C is the capacitance, and V is the voltage difference across the capacitor. In this case, the capacitance of C2 is given as 2 μF and the voltage difference across C2 is 12 volts. Plugging these values into the equation, we get Q = (2 μF)(12 V) = 24 μC. Therefore, the charge in C2 is 24 μC.Rate this question:
-
.JPG "Gambar di bawah adalah garis-garis medan di sekitar dua muatan titik qA dan qB. Dari gambar tersebut dapat ditarik kesimpulan bahwa . . . .")
