David T Prep Vcp5 Test

When deploying an OVF template, the resulting virtual disk is created in the VMDK file format. VMDK is the file format used by VMware for virtual machine disk files. It stands for Virtual Machine Disk and is a widely supported format that can be used with various virtualization platforms. The VMDK file contains all the data and settings of the virtual disk, allowing it to be easily transported and used across different virtualization environments.

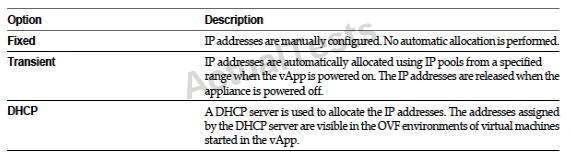

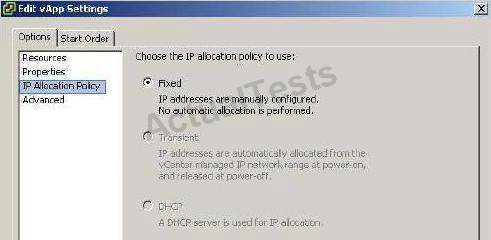

The administrator has three options for IP allocation within the vApp: Transient, Fixed, and DHCP.

- Transient IP allocation means that the IP address is assigned dynamically and can change each time the vApp is powered on or off. This is useful for temporary or short-term deployments.

- Fixed IP allocation means that the IP address is manually assigned and remains constant even if the vApp is powered on or off. This is useful for long-term or permanent deployments.

- DHCP IP allocation means that the IP addresses are assigned by a DHCP server within the network. This is useful for automatically assigning and managing IP addresses in a large-scale deployment.

These options provide flexibility and control over IP allocation within the vApp.

At the vApp level, two valid resource settings that can be set are CPU and Memory. These settings allow users to allocate specific amounts of CPU and memory resources to the vApp, ensuring that it has the necessary computational power and memory capacity to run efficiently. By adjusting these settings, users can optimize the performance of the vApp based on its specific requirements and workload.

VMware View is the correct answer because it is a VMware solution that utilizes the security features of vSphere and offers linked-clone technology to virtual desktops. VMware ACE is not the correct answer as it is a separate product that provides secure remote access to virtual machines. VMware Workstation is a desktop virtualization solution for running multiple operating systems on a single machine, and VMware ThinApp is a tool for virtualizing applications.

The administrator is getting error messages in the disk burning application because the virtual machine is configured to use Emulate IDE mode for the DVD drive. To fix this issue, the administrator should change the DVD mode to Passthrough IDE. This will allow the virtual machine to directly access the physical DVD drive on the host machine, resolving the error messages and enabling the administrator to burn a DVD.

The administrator has the option to choose between three IP allocation policies for the vApp: Transient, DHCP, and Fixed. The Transient option means that IP addresses are allocated to virtual machines within the vApp dynamically, and they can change each time the vApp is powered on. The DHCP option allows the use of a DHCP server to allocate IP addresses to the virtual machines. The Fixed option means that IP addresses are manually assigned to the virtual machines and remain the same even when the vApp is powered off and on again.

The administrator can set an alarm at the datastore level to notify the storage team. Since the virtual machines have been deployed using thin disks due to limited storage space availability, the storage team may be concerned about the potential impact on storage resources. By setting an alarm at the datastore level, the administrator can monitor and notify the storage team about any potential issues or limitations related to storage usage.

In a vSphere HA cluster, each master maintains a maximum of 32 point-to-point communication links to the slaves. This means that the master can communicate with up to 32 slave nodes in the cluster. This limit ensures efficient communication and coordination between the master and the slave nodes for high availability and failover purposes.

If the unassigned AD accounts with vSphere permissions are removed from Active Directory, the user logged into vCenter with those accounts will be able to remain logged in for up to 24 hours.

not-available-via-ai

Converting a virtual machine to a template is significantly faster than creating a clone because making a clone creates a full copy of the VMDK file. This means that all the data and configurations of the virtual machine are duplicated, resulting in a larger file size and more time required for the cloning process. On the other hand, converting a virtual machine to a template involves creating a reusable template that can be easily deployed multiple times, without the need to duplicate all the data and configurations.

The metric that can be checked to determine if CPU contention exists on an ESXi 5.x host is %RDY. This metric represents the percentage of time a virtual machine is ready to run but is unable to do so because the CPU is busy with other tasks. A high %RDY value indicates that there is contention for CPU resources and can explain the performance issues on the converted machines.

The page file for a Windows guest operating system or the swap partition for a Linux guest operating system is created by the guest operating system itself. This is because the page file or swap partition is a part of the guest operating system's memory management system and is used to temporarily store data that cannot fit in the physical memory. The guest operating system determines the size and location of the page file or swap partition based on its own settings and requirements.

To receive email notifications when the virtual machine CPU usage enters a warning state and again when it enters an alarm state, the user must select the Yellow-red state change and the Green-yellow state change. The Yellow-red state change indicates a transition from a warning state (yellow) to an alarm state (red), while the Green-yellow state change indicates a transition from an alarm state (red) back to a warning state (yellow). By selecting these two state changes, the user will receive notifications for both the warning and alarm states.

The correct answer is A. Separate Virtual Machines. In this scenario, each virtual machine is running an instance of the front-end web application. By implementing the Separate Virtual Machines DRS rule, it ensures that VM23 and VM43 are kept on separate hosts to distribute the load evenly and provide better performance and availability for the application. This rule prevents both virtual machines from being placed on the same host, reducing the risk of a single point of failure.

This answer suggests that the poor performance on the virtual machine is likely due to a lack of physical memory. The drop in performance when utilized memory exceeds 1GB indicates that the virtual machine may not have enough memory available. To further investigate this issue, the compression and swap activity on the ESXi host should be checked next. This will help determine if the virtual machine is experiencing memory-related issues and if there is a need to allocate more physical memory to improve performance.

An administrator can vary the "Shares" value and the "Memory Reservation" value to increase the amount of physical memory granted to a given virtual machine. By increasing the "Shares" value, the virtual machine will have a higher priority for memory allocation compared to other virtual machines. By increasing the "Memory Reservation" value, a specific amount of physical memory will be reserved exclusively for the virtual machine, ensuring that it always has that amount of memory available.

A virtual machine template is a pre-configured image that can be used to create multiple instances of a virtual machine. Cloning a template creates a new virtual machine using the same configuration and settings as the template. This allows for easy and efficient deployment of multiple instances of the same virtual machine. Cloning is a common action performed on a template to quickly create new virtual machines without having to manually configure each one.

To enable SSH on the newly-installed ESXi 5.x host, the administrator must open the SSH port on the ESXi firewall and start the SSH service on the ESXi server. Opening the SSH port on the firewall allows incoming SSH connections to reach the server, while starting the SSH service ensures that the server is actively listening for SSH connections. By doing these two steps, the user will be able to establish a remote SSH connection to the ESXi host and execute commands.

To allow users to create new virtual machines, the administrator should add a privilege to the role "Virtual machine > Inventory - Create new". This privilege is necessary to grant users the ability to create new virtual machines within the VMs and Templates folder, Cluster, and Datastore objects where the role has been applied. Without this privilege, users will not have the necessary permissions to create new virtual machines.

The size of a virtual machine .vswp file is set to the amount of memory allocated for the virtual machine minus any memory reservation. This means that the .vswp file will be equal to the difference between the total memory allocated to the virtual machine and any memory that has been reserved specifically for other purposes. The .vswp file acts as a swap file for the virtual machine, allowing it to temporarily store data that cannot fit in its allocated memory.

The administrator is trying to clone a running virtual machine but encounters an error. This error could be caused by two device types: an independent mode virtual disk and a physical compatibility mode RDM. These devices could be preventing the operation because they are not compatible with the cloning process.

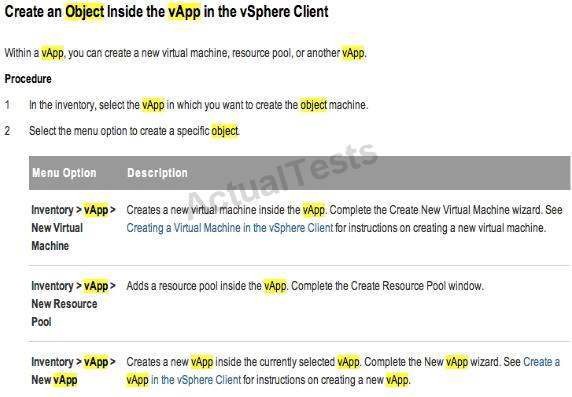

The question is asking for three valid objects that can be placed in a vApp. A vApp is a container for virtual machines and other vApp templates. Resource pools are used to allocate resources to virtual machines, so they can be placed in a vApp. vApps themselves can also be placed in a vApp, allowing for nested vApps. Finally, virtual machines are the main components of a vApp, so they can also be placed in a vApp. Therefore, the correct answers are C. Resource pools, D. vApps, and E. Virtual machines.

A high value in the CPU (%) / Ready counter on the virtual machine's Performance tab would confirm the results of the performance analysis. This is because the high CPU activity on the ESXi host indicates that the host is ready to process tasks, but the low CPU activity on the Windows VM suggests that the VM is not utilizing the available CPU resources efficiently. Therefore, a high value in the CPU (%) / Ready counter would indicate that the VM is not able to keep up with the demand for CPU resources, confirming the performance issues reported by users.

The correct answer is C because it states that the administrator should download the current OVF package from VMware.com and use the Deploy OVF from Template option on a machine with the vSphere Client installed. This suggests that the installation process involves downloading the necessary files and using the vSphere Client to deploy the OVF template, which is the recommended method for installing Data Recovery.

To send email alerts from vCenter Server, two options must be configured in the vCenter Server settings. The first option is the Sender email address, which is the email address from which the alerts will be sent. The second option is the SMTP server information, which includes the server address and port number for the email server that will be used to send the alerts. These two options are necessary to ensure that the email alerts are properly sent from vCenter Server to the intended recipients.

The Plug-in Manager allows users to perform two functions. The first function is to enable an installed plug-in, which means activating a plug-in that has been installed but is currently not in use. The second function is to view the status of installed plug-ins, which provides information about the installed plug-ins such as whether they are active or inactive. Removing permissions for a plug-in and uninstalling a plug-in are not mentioned as functions that can be performed with the Plug-in Manager.

The correct answer is B because ESX 3.x hosts can be upgraded to ESX 4.x before upgrading to ESXi 5.x. This means that a direct, in-place upgrade from ESX 3.x to ESXi 5.x is not possible and an intermediate upgrade to ESX 4.x is required.

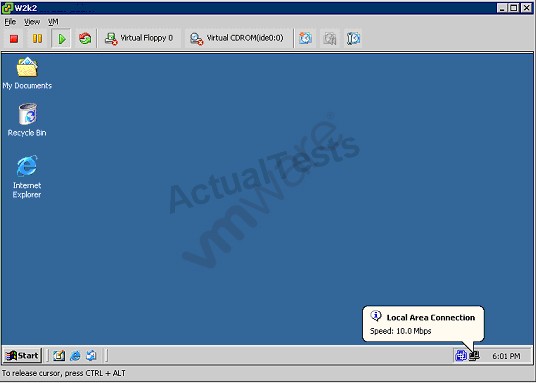

The exhibit does not provide any information about the maximum speed of the virtual machine's network connection. However, it does mention that the virtual machine can send traffic as fast as the underlying virtual switch allows. This means that the network performance of the virtual machine is limited by the capabilities of the virtual switch, not by any specific maximum speed. Therefore, option B is the correct answer.

In a DRS cluster, when an ESXi host is placed into maintenance mode, the behavior depends on the DRS cluster mode and vMotion configuration. If the DRS cluster is in fully automated mode and vMotion is configured, the virtual machines on the host will be automatically moved to other hosts in the cluster. Additionally, all the virtual machines on the host must be migrated or powered off before the ESXi host can complete entering maintenance mode.

Physical compatibility mode for RDMs offers two benefits compared to virtual compatibility mode. Firstly, it allows the use of SAN-aware applications, which are specifically designed to work with storage area networks. This enables better performance and functionality for applications that require direct access to SAN resources. Secondly, physical compatibility mode allows the virtual machine to access SAN hardware directly, bypassing the virtualization layer. This can enhance performance and reduce latency for applications that require direct access to the underlying storage infrastructure.

When installing the VMware vCenter Server Virtual Appliance (vCSA), two settings are required by the deployment wizard. The first setting is the Datastore to install on, which determines where the vCSA will be stored. The second setting is the Name of the vCenter server, which is the unique identifier for the vCSA instance. The Number of CPUs and Linked-mode settings are not required for the installation process.

The most efficient place for the administrator to check for slow disk performance would be the performance tab of the virtual machine. This is because the virtual machine is the entity directly responsible for disk operations, so monitoring its performance would provide the most accurate and relevant information regarding disk performance. Checking the performance tab of the vApp, vApp resource pool, or cluster may provide some insights, but they are not as specific or focused on the disk performance of the virtual machine.

VGT (Virtual Guest Tagging) and VST (Virtual Switch Tagging) are two different VLAN tagging modes. VGT allows the virtual machine to handle its own VLAN tagging, while VST requires the VLAN tagging to be handled by the virtual switch. If VM1 is configured for VGT and VM2 is configured for VST, they will not be able to communicate with each other because they are using different VLAN tagging modes.

The correct answer is D. Clone the role, add the Alarms - Acknowledge Alarm privilege, replace the current role. This is the best action to perform because cloning the role allows the administrator to create a new role with the necessary privileges without affecting the current role. By adding the Alarms - Acknowledge Alarm privilege to the cloned role, the helpdesk staff will be able to acknowledge alarms on the hosts. Finally, replacing the current role with the cloned role ensures that the helpdesk staff will have the necessary permissions without any disruption to their current access.

Creating a new portgroup for the virtual machine and enabling traffic shaping can help relieve a network bottleneck caused by occasional high outbound network activity. By creating a separate portgroup for the virtual machine, its network traffic can be isolated and managed separately from other virtual machines in the same port group. Enabling traffic shaping allows for the control and prioritization of network traffic, ensuring that the virtual machine with high activity does not overwhelm the network and cause a bottleneck.

Virtual machine hardware version 8 does not support the vmxnet 2 network driver.

Networking policies for a vSphere Standard Switch can be overridden on the port group. This means that specific policies, such as traffic shaping and security, can be applied to individual port groups within the vSphere environment. This allows for more granular control and customization of networking settings based on the needs of different virtual machines or groups of virtual machines.

During the Migrate wizard for a powered on virtual machine, the two options that will be presented are changing the host and changing the datastore. These options allow the user to move the virtual machine to a different host or a different datastore while the virtual machine is still running. This can be useful for load balancing, resource optimization, or for maintenance purposes. The option to change the network is not available during the Migrate wizard.

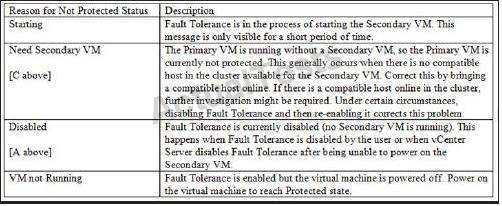

The correct answers are B and D. If the Fault Tolerance status is "Need Secondary VM," it means that the primary virtual machine is running without a secondary virtual machine, which makes it unprotected. If the Fault Tolerance status is "Disabled," it means that Fault Tolerance is disabled for the virtual machine, also making it unprotected.

Restarting the Management Agent from the ESXi host can restore connectivity without disrupting running virtual machines. This option allows the administrator to restart the necessary services on the host without affecting the virtual machines.

Disk performance bottlenecks are usually due to either Disk queue lenght or Disk Latency

The recommended maximum memory value that is displayed when configuring a virtual machine is based on the amount of memory in the ESXi host. This is because the virtual machine's memory allocation should not exceed the available memory on the host in order to ensure optimal performance and avoid resource contention.

A license server would be configured for vCenter Server 5.x when managing ESX 3.x servers. This is because ESX 3.x servers require a license server to manage the licensing for the vCenter Server.

Transparent Page Sharing is a memory conservation technique that collaborates with the server to reclaim pages that are redundant in a virtual machine or virtual machines. This technique identifies and eliminates duplicate memory pages across multiple virtual machines by sharing the identical pages. By doing so, it reduces the overall memory footprint and improves memory utilization efficiency. This helps in optimizing the memory resources and improving the performance of the virtual environment.

Distributed Resource Scheduler (DRS) is the additional vSphere feature that satisfies the requirement of restricting the failover of VMs to certain hosts within a given site. DRS is responsible for load balancing and resource optimization in a cluster. It automatically migrates VMs between hosts based on resource utilization. By configuring DRS rules and affinity rules, the administrator can control which hosts VMs can failover to, ensuring that they only failover to the desired hosts within the given site.

Deleting a VMFS datastore from an ESXi 5.x host has two consequences. First, the datastore becomes inaccessible from all connected ESXi hosts. This means that any virtual machines or data stored on the datastore cannot be accessed or used by any of the hosts. Second, when the datastore is deleted, all virtual machines and their associated data are also removed from the storage device. This means that the virtual machines and their data are permanently deleted and cannot be recovered unless they have been backed up elsewhere.

Configuring Authentication Services for Active Directory based authentication allows each administrator to use their unique AD account to access the ESXi hosts, ensuring that each administrator has a unique account. Configuring the Active Directory group ESX Admins with each administrator's AD account further enforces this requirement by providing a centralized way to manage and assign permissions to the administrators. These actions minimize administrative effort by leveraging existing Active Directory accounts and groups.

PVLAN (Private VLAN) is a feature that is only available with vSphere Distributed Switches. PVLAN allows for more granular control over network traffic by segregating network ports into different VLANs within a single VLAN. This helps enhance network security and isolation within a virtualized environment. Jumbo Frames, Load Balancing, and Promiscuous Mode are network settings that are available with both vSphere Distributed Switches and standard vSphere switches.

Paravirtual SCSI and LSI Logic SAS are both valid SCSI adapters for installing a Windows Server 2008 operating system into a virtual machine on an ESXi 5.x host. These adapters are compatible with the virtualization software and can be used to connect virtual hard drives to the virtual machine.

Based on the output in the exhibit, we can see that the "PCPU USED(%)" column for the VM named "FileServer01" is consistently around 800%. This indicates that the VM is using 8 vCPUs, as each vCPU can utilize up to 100% of a physical CPU core. Therefore, the correct answer is D. 8.

A hardware FCoE Adapter appears to an ESXi host as a Fibre Channel Adapter. This means that the FCoE Adapter is recognized and treated as a traditional Fibre Channel Adapter by the ESXi host. It allows the host to connect to Fibre Channel storage devices and access data on them. This is different from options A, B, and C, which do not accurately describe how a hardware FCoE Adapter appears to an ESXi host.

Enabling traffic shaping can be a valid reason to limit the bandwidth of a FTP server. Traffic shaping allows for the control and prioritization of network traffic, ensuring that certain types of traffic or specific applications do not consume excessive bandwidth. By implementing traffic shaping on a FTP server, the bandwidth can be limited, preventing it from overwhelming the network and affecting the performance of other critical applications or services.

When the Failback option is set to Yes in the NIC teaming policy for a vSwitch, a failed uplink will be returned to active duty immediately upon recovery. This means that once the failed uplink is restored, it will be automatically reactivated and used for network traffic again without any manual intervention. This option allows for faster recovery and ensures that all available uplinks are utilized efficiently.

In a vSphere 5.x environment, using Storage vMotion to migrate the affected VMDKs and placing the datastore into maintenance mode can help minimize the impact of downtime during the upgrade of a Fibre Channel storage array. By using Storage vMotion, the virtual machine disks (VMDKs) can be migrated to another datastore without interrupting the VMFS LUN. Placing the datastore into maintenance mode ensures that no virtual machines are running on it during the upgrade, reducing the risk of data corruption or loss. These steps help ensure continuous availability of the virtual machines and minimize the impact of the upgrade on the SDRS cluster.

Dynamic binding is the port binding option that assigns a port to a virtual machine when it is first powered on. This means that the port is allocated to the virtual machine dynamically and can be changed if needed. This option provides flexibility and allows for efficient resource allocation as ports are only assigned when they are actually needed.

Virtual machines can be moved between datacenters using cold migration. Cold migration refers to the process of shutting down a virtual machine, copying its files and configurations to another datacenter, and then starting it up again. This method is typically used when there is no shared storage between the source and destination datacenters. It requires downtime for the virtual machine during the migration process.

To disable alarm actions for the ESXi host during maintenance, the administrator should right-click on the ESXi host and select "Alarm and Disable Alarm Actions." This will prevent any alarms related to the host from triggering any actions or notifications while the maintenance is being performed.

When VMware Fault Tolerance is enabled, a secondary virtual machine is created on a different host from the primary. This secondary virtual machine is an exact replica of the primary and is kept in sync with it in real-time. If the primary virtual machine fails, the secondary takes over seamlessly. During this time, the secondary virtual machine reserves resources on the host, preventing other virtual machines from powering up until the primary is restored or the secondary takes over permanently.

vCenter maps can be used outside of the vSphere client by sending them to a printer and exporting them as a jpg. Sending them to a printer allows for physical copies to be made, which can be useful for documentation or sharing with others. Exporting them as a jpg allows for digital copies to be saved, which can be easily shared or used in presentations or reports. Saving to a Visio .vsd file or as a PDF are not mentioned as options for using vCenter maps outside of the vSphere client.

When cloning a virtual machine to a template, the two attributes that can be changed for the destination virtual disk are the virtual disk format and the location for virtual machine files. The virtual disk format refers to the file format used to store the virtual disk, such as VMDK or VHD. The location for virtual machine files refers to the directory or storage location where the virtual machine files are stored.

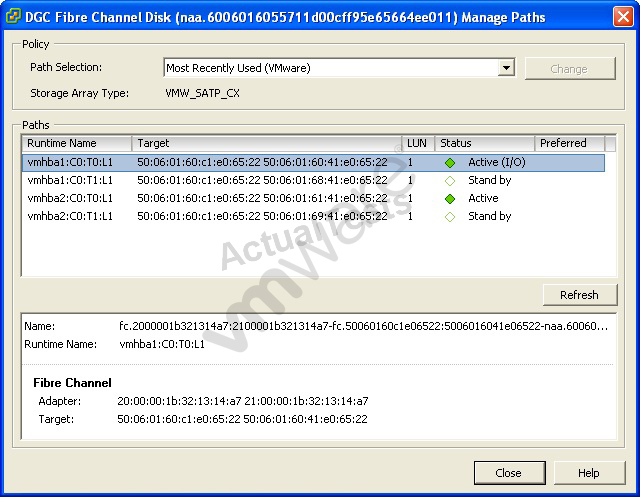

The storage administrator could use the properties "20.00.00.1b.32.13.14.a7" and "50.06.01.60.c1.e0.65.22" to create a zone. These properties likely refer to specific storage devices or addresses that can be used to identify and configure the zone.

Explanation: http://www.vmware.com/pdf/Perf_Best_Practices_vSphere5.0.pdf page 31, clearly states that best performance is achieved using eager zeroed provisioned disks, even when VAAI is available

The administrator can use the VMware SiteSurvey Tool to determine if an existing environment is ready for Fault Tolerance. This tool helps to assess the environment's readiness by analyzing various factors such as network connectivity, storage performance, and host compatibility. It provides valuable insights and recommendations to ensure that the environment meets the requirements for implementing Fault Tolerance effectively.

A Community port on a secondary private VLAN can communicate with both promiscuous ports and other ports that share its VLAN tag. This means that it can send and receive traffic with both the promiscuous ports, which are connected to the primary VLAN, and other ports within the same secondary VLAN. This allows for more flexible and controlled communication within the private VLAN network.

Storage capabilities can be generated in two ways. Firstly, they can be retrieved from the array through the VMware APIs for Storage Awareness (VASA). This allows the administrator to gather information about the storage capabilities directly from the storage array. Secondly, the administrator can manually generate the storage capabilities. This means that the administrator can manually define and configure the storage capabilities based on their specific requirements and environment.

The correct parameters to specify when adding an iSCSI target to an ESXi 5.x host using the Static Discovery tab are the iSCSI server IP address, port 3260, and the iSCSI target name. The iSCSI server IP address is necessary to establish a connection, while port 3260 is the default port used for iSCSI communication. Additionally, the iSCSI target name is required to identify the specific target that the host will connect to.

To quickly identify and notify an administrator about the inconsistent connectivity states of the storage interface card, two methods can be used. The first method is to set up an alarm with the Lost Storage Connectivity trigger. This alarm will send an email notification when the connection is lost. The second method is to set up the same alarm but also configure an SNMP trap for notification. This SNMP trap will provide additional notification when the connection is lost. By using these two methods, the administrator can be promptly notified about the issue and take necessary actions to resolve it.

VMware Fault Tolerance is designed to protect against a failure on the ESXi host running the primary virtual machine. This means that if the ESXi host fails, the secondary virtual machine will take over seamlessly without any interruption in service.

Upgrading the VMware Tools will have the least impact on the existing environment because it is a software component that is installed inside the guest operating system of a virtual machine. It provides additional functionality and performance improvements, but upgrading it does not affect the underlying infrastructure or other virtual machines. On the other hand, upgrading the Virtual Machine Hardware, ESX Hosts, or VMFS datastores can have a more significant impact on the environment as it may require downtime, compatibility checks, and potential configuration changes.

When creating a custom role and not assigning any privileges, the system automatically adds the System.Anonymous privilege. This privilege allows anonymous users to access certain resources or perform specific actions. Additionally, the System.Read privilege is also added by default. This privilege grants users the ability to read or view information and resources within the system.

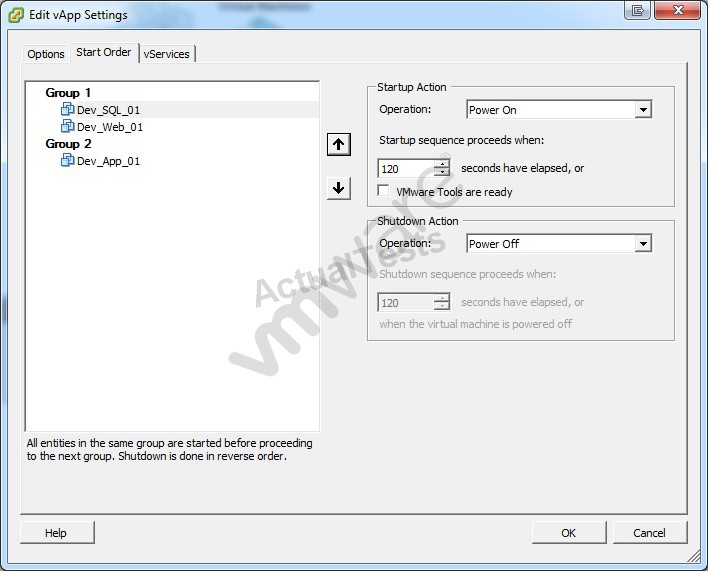

The correct answer is D. Moving the Dev_Web_01 virtual machine to Group 3 ensures that it powers on after the database server, as Group 3 is set to start after Group 2. Increasing the time value allows for more time for the database server to fully start before the other servers power on. Additionally, checking that VMware Tools are ready ensures that the necessary tools for communication are properly installed and functioning. These changes will address the issue of failed communication with the web server and minimize recovery time.

In a vSphere HA cluster, when there is a failure in the management network, the hosts in the cluster are unable to communicate with each other. However, the VMs running on these hosts are unaffected by this failure. In this scenario, a second master will be elected to manage the cluster and ensure the availability of the VMs. Therefore, option C is the correct answer.

The migration failed the validation check because of a CPU incompatibility issue. This means that there is a mismatch between the CPUs in the source and destination hosts. Inconsistent CPU manufacturers and inconsistent CPU generations could both be causing this issue. If the source and destination hosts have different CPU manufacturers or different CPU generations, they may not be compatible for migration.

The administrator should add an action for when the alarm changes from green to yellow. Currently, the configured actions only cover the transition from yellow to red, but not from green to yellow. By adding this additional action, the administrator will ensure that the alarm triggers the desired actions when it changes from green to yellow.

HA determines the current failover capacity by calculating the largest possible CPU and Memory guarantee for any running virtual machine in the cluster. It then calculates how many virtual machines of that size can be started on the largest host and reserves space in the cluster accordingly. This ensures that resource reservations are enforced during a failover event.

Increasing the memory share value for the virtual machine can help increase its performance by allocating more resources to it. Installing VMware Tools into the virtual machine can also improve performance as it provides additional drivers and utilities that optimize the virtual machine's operations.

The correct answer for this question is C and D. The vCenter Server application must be installed on a physical machine, so option A is incorrect. A valid vSphere vCenter license is required before installing the application, so option B is incorrect. vCenter must be in the same network as the hosts if supporting vSphere Storage Appliance Cluster, so option C is correct. The system vCenter Server is installed on cannot be a domain controller, so option D is correct.

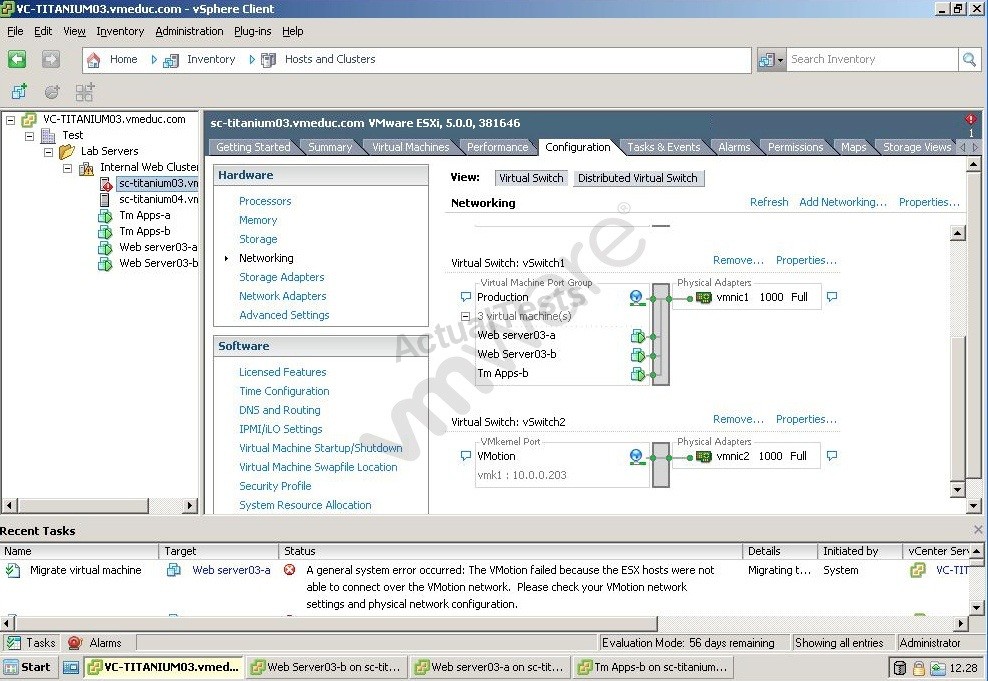

The exhibit shows that the network cable for the vMotion interface is connected to the incorrect physical network. In order for DRS to migrate virtual machines, the vMotion network must be properly configured. By connecting the network cable to the correct physical network, the issue should be resolved and DRS will be able to migrate virtual machines based on resource usage.

The additional CHAP security levels available for a software implementation are "Do not use CHAP unless required by target" and "Use CHAP". These options provide flexibility in implementing CHAP security based on the requirements of the target.

A fully functional vSphere HA cluster requires two things. First, it requires vCenter to be installed or a vCenter Server Virtual Appliance (vCSA) to be deployed. This is necessary for managing and orchestrating the cluster. Second, it requires a minimum of one VMkernel port per host. VMkernel ports are used for communication and networking within the cluster, so having at least one per host is essential for proper functioning.

Applying a memory limit to the virtual machines means that the host will not allocate any physical memory above the set limit. However, the Virtual Machine Swap (VSWP) can be used to compensate for any memory shortage. VSWP allows the host to swap out memory pages to disk when there is contention for physical memory. Therefore, even if the virtual machines exceed their memory limit, they can still use VSWP to access additional memory resources.

A resource pool can contain child resource pools, virtual machines, or both. You can create a
hierarchy of shared resources. The resource pools at a higher level are called parent resource
pools. Resource pools and virtual machines that are at the same level are called siblings. The
cluster itself represents the root resource pool. If you do not create child resource pools, only the
root resource pools exist.
In the following example, RP-QA is the parent resource pool for RP-QA-UI. RP-Marketing and RPQA
are siblings. The three virtual machines immediately below RP-Marketing are also siblings.
Figure 8-1. Parents, Children, and Siblings in Resource Pool Hierarchy

The correct answer is B. Two RDMs on a FCP array, C. One NFS mount on the ESXi host and one RDMs on an iSCSI array, E. Two NFS mounts on the ESXi host. These options can be used because they provide different storage options that can be used for deduplication. Using two RDMs on a FCP array allows for deduplication to be performed on the storage array itself. Using one NFS mount on the ESXi host and one RDM on an iSCSI array allows for deduplication to be performed on both the ESXi host and the iSCSI array. Using two NFS mounts on the ESXi host allows for deduplication to be performed on both NFS mounts.

To calculate the number of IOPS needed to limit disk throughput to roughly 10 MBps, we can use the formula:

IOPS = Throughput (in bytes) / Block size (in bytes)

Given that the guest application writes 64KB blocks, we need to convert 10 MBps to bytes, which is 10,000,000 bytes.

Therefore, the calculation would be:

IOPS = 10,000,000 bytes / 64KB = 156.25

Since the number of IOPS must be a whole number, we round up to the nearest integer, which is 160. Therefore, the correct answer is B. 160.

The vCenter Syslog Collector is an optional component that can be added from the vCenter Server installer. It collects and stores logs from ESXi hosts and virtual machines, providing centralized log management. The vSphere Authentication Proxy is another optional component that can be added. It helps to secure remote access to the vCenter Server by acting as an intermediary between the user and the server. Finally, the vSphere Auto Deploy is the third optional component that can be added. It automates the deployment and provisioning of ESXi hosts, making it easier to manage large-scale deployments.

The host must be placed into maintenance mode before applying a host profile to prevent any disruptions to the running virtual machines. If the host is not in maintenance mode, the profile cannot be applied. Additionally, if the host is running virtual machines, applying a host profile may cause disruptions to the virtual machines, so the profile cannot be applied in this case as well.

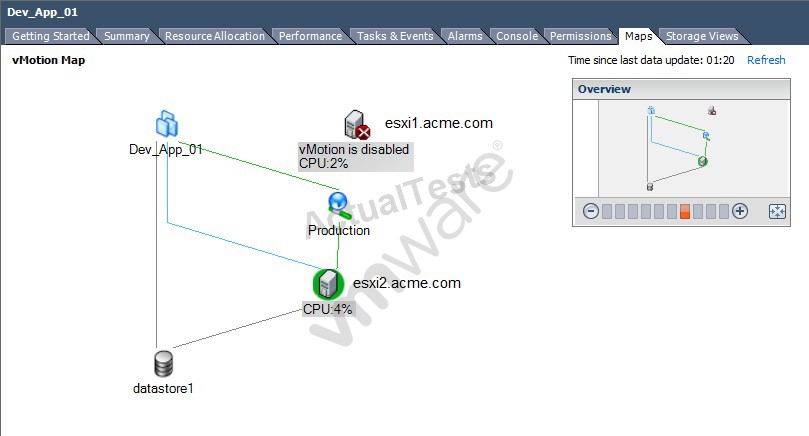

Explanation: This only shows up in the Maps when the vmotion OPTION is not checked in the
PORT group – hence vMotion is DISABLED!
Other Notes: vMotion doesn’t need a “production” network it can use any network. It also should
not be using a “production” network. Datastore has nothing to do with vMotion in this diagram –
this is Maps – it would give a vmotion error if it wasn’t on the datastore not a vmotion disabled..

Restarting the management agents in the Direct Console User Interface (DCUI) or using the services.sh restart command from either SSH or the local CLI are both likely methods to resolve the connectivity problem with the ESXi host. These actions would restart the management services on the host without affecting the virtual machines running on it.

To improve storage performance for the virtual machines located in the Production1 datastore, two actions can be taken. First, changing the storage multipathing policy to Round Robin will distribute I/O across all available paths, increasing throughput and reducing latency. Second, adding physical storage and creating a new VMFS datastore called Production2 will distribute the load across multiple datastores, further improving performance. Migrating some virtual machines from Production1 to Production2 will also help balance the workload and optimize performance.

The correct answer is A. The administrator has not performed a Rescan All on the ESXi host and D. The LUN was not presented to the correct ESXi host.

A Rescan All operation is necessary for the ESXi host to detect new LUNs that have been presented to it. Without performing this operation, the new LUN will not be visible in the Storage configuration. Additionally, if the LUN was not presented to the correct ESXi host, it will not be visible in the Storage configuration.

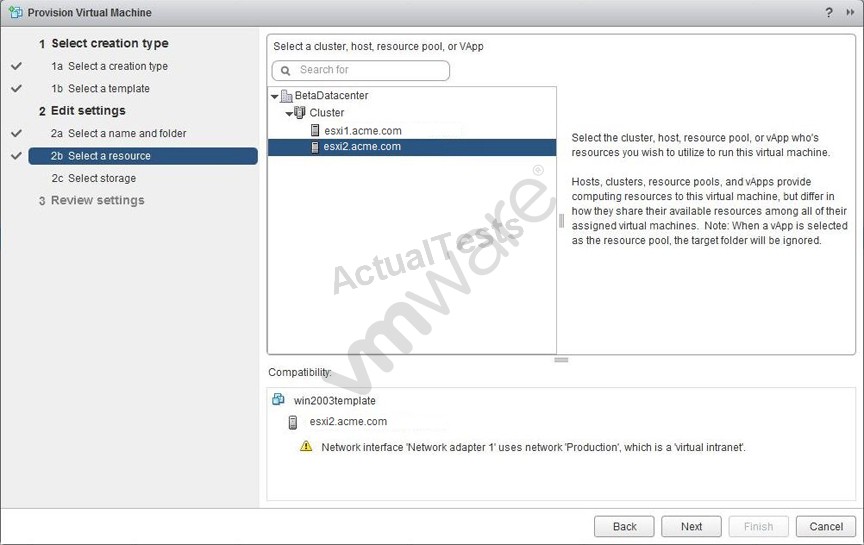

The likely problem is that the Production virtual switch is internal only. This means that the virtual machines deployed using the template will not be able to connect to the Development network because the Production virtual switch is not connected to it. Therefore, the virtual machine is not able to establish a connection to the assigned network.

VLANs (Virtual Local Area Networks) provide the benefit of reducing hardware requirements. This is because VLANs allow for the logical segmentation of a physical network into multiple virtual networks, eliminating the need for separate physical switches for each network. By using VLANs, organizations can save on costs associated with purchasing and maintaining additional networking hardware.

To resolve the issue of log files being rotated quickly, the administrator can make two configuration changes. First, they can configure syslog to send the logs to a syslog server. By doing this, the logs will be stored externally, allowing for easier troubleshooting without the logs being rotated. Second, they can increase the number of logs kept. This will ensure that a larger number of logs are available for troubleshooting purposes. Increasing the logging level or the size of the partition where log files are stored will not directly address the issue of log rotation.

The RDM map file (-rdm.vmdk) is a valid virtual machine file that can be identified when examining a folder containing a virtual machine template on a VMFS datastore. The RDM map file is used to map raw device mappings (RDMs) to the virtual machine.

The Template file (.vmtx) is also a valid virtual machine file that can be identified. The template file is used to create new virtual machines based on a predefined configuration.

The Suspended state file (.vmsn) is another valid virtual machine file that can be identified. This file is created when a virtual machine is suspended, and it stores the state of the virtual machine at the time of suspension.

When patches are recalled in vSphere Update Manager, three steps are followed. First, the recalled patch binary is deleted from the repository. Second, the recalled patch is flagged in the database. Finally, a notification is generated in the notification tab. These steps ensure that the recalled patches are properly removed and flagged for future reference, and that users are notified of the recall.

For Enhanced vMotion Compatibility (EVC) to be used, two conditions must exist on all hosts in the cluster. Firstly, all hosts in the cluster must be running ESX/ESXi 3.5 Update 2 or later. This ensures that the necessary software compatibility is met. Secondly, all hosts in the cluster must have hardware virtualization support enabled. This ensures that the hardware is capable of supporting virtualization. Therefore, options B and C are the correct answers.

A private cloud requires pooled resources including storage and networking, which means that these resources are shared and allocated dynamically based on demand. This allows for greater efficiency and flexibility in resource utilization. On the other hand, a vSphere Infrastructure assumes a secure location for the workloads, meaning that it focuses more on the security and isolation aspects rather than resource pooling. Additionally, vSphere Infrastructure allows consumption of resources over open standards, enabling interoperability with different technologies and platforms. However, the main differentiation between a private cloud and vSphere Infrastructure lies in the requirement of pooled resources for a private cloud.

The correct answer is D. none. This means that there is no default VFAT scratch partition size for ESXi 5.x when installed on a USB drive. This suggests that the ESXi installation on a USB drive does not require a separate VFAT scratch partition.

Beaconing is a feature in vSphere standard switches that helps to detect and recover from network failures. It requires at least three uplinks to be considered useful because it needs multiple paths for redundancy and failover. Setting the number of ports to the maximum on a vSwitch will indeed exhaust the total ports on a host, as each port consumes system resources. Therefore, both statements A and D are true regarding vSphere standard switches.
