Hardware and Network Troubleshooting Trivia Test!

The proposed solution of installing a separate air conditioning unit for the server room that will maintain the temperature at 72 degrees and the humidity at 50 percent, and attaching a dedicated UPS to the air conditioning unit, addresses both the required result and the optional desired result. By maintaining the temperature and humidity within the recommended range, it eliminates the external event of high temperature causing the server to reboot. Additionally, providing uninterruptible AC power to external devices through the dedicated UPS ensures that power fluctuations or outages do not contribute to the problem. Therefore, the proposed solution meets both the required result and optional desired result.

The correct answer is to ask the Administrator to open the correct ports in the firewall. This is because the firewall is blocking the access to the remote files, so opening the necessary ports in the firewall will allow the network clients to access the files again. Rebooting the client computers or the server may not resolve the issue as it is related to the firewall configuration. Changing the client TCP/IP configuration may not be necessary if the only issue is the firewall blocking the access.

When you ping the card using 127.0.0.1, it is a loopback address that refers to the local machine itself. Therefore, if the installed NIC card is working properly, it will respond to the ping request by sending back four, 32-byte packets. This indicates that the NIC card is functioning correctly and able to communicate with itself.

The purpose of the ping -t command is to continuously ping the remote host until it is manually stopped. This can be useful for troubleshooting sporadic network connectivity issues as it allows the technician to monitor the network connection over an extended period of time to identify any intermittent problems. The other options mentioned in the question do not accurately describe the purpose of the ping -t command.

Netstat is a utility that can be used to view the current protocol connections on a system. It displays active network connections, listening ports, and other network statistics. This information can be useful for troubleshooting network issues, monitoring network activity, and identifying potential security threats. Ping is used to test network connectivity, Telnet is used to establish remote connections, and Tracert is used to trace the route taken by packets in a network.

The likely problem in this scenario is that the server cable is bad. This is indicated by the fact that the server NIC link light and the corresponding hub port light are not lit. When one of the workstation cables is inserted into the server port at the hub, the hub link light is lit, indicating that the hub and the workstation cables are functioning properly. Therefore, the issue is most likely with the server cable itself.

To get everyone working together in the extended network, you need to install a DHCP relay agent. A DHCP relay agent is used to forward DHCP messages between different network segments. In this case, since the DHCP server is not configuring clients on the additional network segment, installing a DHCP relay agent will allow the DHCP messages to be forwarded from the additional network segment to the DHCP server, enabling the clients on the additional network segment to receive IP addresses and join the network.

In this scenario, the user is complaining of problems connecting to the server and no other calls have been received from other users with similar problems. Calling another user who is connected to the same segment and asking them whether they are experiencing any problems accessing the server helps to determine if the issue is specific to the user or if it is a wider problem. Similarly, calling another user on a remote segment and asking them whether they can connect helps to identify if the issue is localized or widespread. Trying to connect to the server oneself helps to directly assess whether there are any connectivity issues.

Checking the virus vendor's website for system patches or service packs would be the most appropriate action to take in order to isolate the problem. Since the system errors are occurring throughout the entire network after installing the new virus suite, it is possible that there may be compatibility issues or bugs in the software. By checking the vendor's website, you can determine if there are any updates or patches available that address these issues and potentially resolve the system errors.

Tracert is a TCP/IP utility that is used to trace the route taken by packets from the local host to a remote server. It shows all the routers or hops that the packets pass through in order to reach the destination. This utility is helpful in troubleshooting network connectivity issues by identifying the specific router or hop where the connection might be failing. Therefore, Tracert is the correct answer as it provides information about all the routers to the remote server.

The next step would be to connect an outside workstation to the suspect default router to see whether the problem occurs. By doing this, it will help determine if the issue lies with the default router for the LAN. If the outside workstation is also unable to access the Internet, then it confirms that the problem is indeed with the default router.

The solid red LED on the Link light of the router indicates that there are too many packet collisions occurring. Packet collisions occur when two devices on the network try to transmit data at the same time, causing the packets to collide and become corrupted. This can lead to network congestion and result in clients being unable to access the remote web server.

The DNS server will provide the function of allowing some hostname to IP address resolutions to occur internally. This means that instead of relying on external DNS servers to resolve domain names to IP addresses, the internal DNS server will handle some of these resolutions within the organization's network. This can help improve network efficiency and reduce reliance on external resources for DNS resolution.

Winipcfg is the correct answer because it is a utility specifically designed for checking IP configuration on a Windows 95 workstation. It provides detailed information about the IP address, subnet mask, default gateway, and other network settings of the workstation. Ipconfig is a similar utility, but it is primarily used on newer versions of Windows. Netstat is used to display active network connections and listening ports, while Ping is used to test network connectivity.

BIND (DNS) is used to dynamically resolve a host name on a UNIX server. BIND (Berkeley Internet Name Domain) is the most commonly used DNS (Domain Name System) software on UNIX systems. It translates human-readable domain names into IP addresses, allowing computers to communicate with each other over the internet. ARP (Address Resolution Protocol) is used to resolve an IP address to a MAC address on a local network. WINS (Windows Internet Name Service) and LMHOSTS are used for name resolution in Windows systems, not UNIX systems.

If a client is given a static IP address while the server is using DHCP to assign IP addresses, the client will be the sole owner of that static IP address. This means that the client will have a fixed IP address that will not change, even if the server assigns different IP addresses to other clients. This ensures that the client always has the same IP address, which can be useful for certain network configurations or applications that require a consistent IP address.

The next troubleshooting step would be to examine the log files on the server to see whether there are any printing related events. This is because even though the printer seems to be connected and functioning properly, there may be errors or issues logged on the server that could provide more information about the printing problems reported by the users. By examining the log files, it would be possible to identify any errors or events related to printing that could help in troubleshooting and resolving the issue.

The command "nbtstat -c" can be used to view a list of the NetBIOS names and their associated IP addresses that have been resolved by the system.

The correct answer is nbtstat. Nbtstat is a command-line tool used to troubleshoot NetBIOS name resolution problems. It allows you to check the connectivity to workstations by querying their NetBIOS names. Nslookup is used for DNS (Domain Name System) queries, netstat is used to display active network connections and listening ports, and netwatch is not a valid command.

The correct answer is Nbstat. Nbstat is a TCP/IP utility that is used to display NetBIOS over TCP/IP statistics for the local computer. The output provided in the question includes information about the Node IpAddress, NetBIOS Remote Machine Name, TableName, Type, and Status. This information is typically displayed by the Nbstat utility.

The next troubleshooting step would be to examine the log files on the server to see if there are any printing related events. This is because the printer is connected and online, and it appears to perform a test print without any problems. Therefore, the issue may be related to a specific event or error logged on the server that is causing the printing problems. By examining the log files, it would provide more information about any errors or issues that may be occurring with the printing process.

To determine the nature of the problem, the next step would be to replicate network traffic on a test network and compare the number of collisions. This step would help in isolating the issue and understanding if the increase in collisions is due to the addition of new user workstations or if there is another underlying cause. By comparing the number of collisions on the test network with the actual network, it would provide insights into the impact of the new workstations and help in troubleshooting and finding a solution.

Netstat is a Windows 2000-based utility that displays detailed protocol connection information for TCP connections. It provides information about active TCP connections, listening ports, and other network statistics. It is commonly used to troubleshoot network connectivity issues and monitor network activity. NetBIOS is a different protocol used for name resolution, Nbtstat is a command-line tool used to troubleshoot NetBIOS name resolution problems, and Ping is used to test network connectivity. Therefore, the correct answer is Netstat.

Winipcfg is the correct utility to check IP configuration on a Windows 95/98 workstation. It is a command-line tool that displays detailed information about the IP configuration of the workstation, including the IP address, subnet mask, default gateway, and DNS servers. Netstat is a utility used to display active network connections, listening ports, and routing tables. Ping is used to test network connectivity by sending ICMP echo requests to a specific IP address. Ipconfig is a command-line tool used to display and manage the IP configuration on Windows NT/2000/XP/Vista/7/8/10 workstations.

To list the active network connections, the appropriate tool to use is "netstat". Netstat is a command-line utility that displays active network connections, listening ports, and various network statistics. By using netstat, you can identify which processes or services are utilizing network resources, helping to diagnose and troubleshoot issues such as slow Internet connections.

The given correct answer states that the server isn't protected. This implies that while antivirus software is installed on all client computers in the network, the server itself does not have any antivirus protection. This could potentially leave the server vulnerable to virus attacks, as it lacks the necessary software to detect and remove viruses. Therefore, it is important to ensure that antivirus software is also installed and regularly updated on the server to provide comprehensive protection for the entire network.

To accommodate NetBIOS, the WINS service needs to be installed. WINS (Windows Internet Name Service) is a legacy name resolution service used by older versions of Windows operating systems to resolve NetBIOS names to IP addresses. By installing the WINS service, the router will be able to handle NetBIOS name resolution requests and ensure proper communication between devices on the network that rely on NetBIOS.

The default gateway setting on the workstation being incorrect or missing is a valid reason for the workstation's inability to communicate with devices on other segments. The default gateway is responsible for routing traffic between different segments or networks. If the default gateway setting is incorrect or missing on the workstation, it won't know where to send the traffic meant for other segments, resulting in the connectivity problem.

When adding a new Windows Server 2003 server acting as a mailserver to a network, the A records should be updated automatically. A records are used to map domain names to IP addresses, and in this case, the server's IP address should be automatically registered with the DNS (Domain Name System) server responsible for the network. Therefore, there is no need to contact any specific party such as the ISP or the domain registrar to update the A records manually.

To determine the computer name of a remote server, you would use the nbtstat command to resolve the name of the remote server to its IP address. Nbtstat is a Windows command-line tool that displays protocol statistics and current TCP/IP connections using NetBIOS over TCP/IP. By using the nbtstat command with the appropriate parameters, you can retrieve the IP address associated with the computer name of the remote server.

The command "ipconfig" will NOT display the MAC address of the workstation.

To determine delays from a local machine to a remote server on the Internet, you would use the "tracert" command to trace the route taken by the network packets from the local machine to the remote server. This command provides information about each hop along the route, including the time it takes for the packets to reach each hop. By analyzing the time taken at each hop, you can identify any delays or bottlenecks in the network path between the local machine and the remote server.

Netstat is the correct answer because it is a command-line utility used to view the TCP connections that have been established between two systems. It provides information about active network connections, listening ports, and various network statistics. By using netstat, users can identify the source and destination IP addresses, ports, and the status of the TCP connections. This utility is commonly used for troubleshooting network issues and monitoring network activity.

The most likely explanation for the problem is that the firewall is blocking port 443. Port 443 is the default port for secure communication using HTTPS. Since external users are unable to access the new secure page, it suggests that the firewall is blocking the specific port required for secure access. This is further supported by the fact that internal access from workstations seems fine, indicating that the firewall is not blocking all traffic, but specifically blocking port 443.

To correct the problem of periodic loss of connectivity for wireless clients, checking the connection from the WAP (Wireless Access Point) to the wired network is necessary. This step is crucial because it helps identify any issues or disruptions in the connection between the WAP and the wired network, which may be causing the loss of communication for the wireless clients. By ensuring a stable and reliable connection between the WAP and the wired network, the connectivity issues for the wireless clients can be resolved.

The next step is to have a second operator perform the task on the original workstation. This will help determine if the issue is specific to the user's workstation or if it is a broader problem affecting multiple workstations. By having another operator perform the task on the original workstation, it can help identify if there is a problem with the user's workstation or if there is a larger issue with the server or network connectivity.

The first step in determining the nature of the problem is to determine whether the entire network is affected. By doing so, it helps to identify if the problem is localized to a specific area or if it is a network-wide issue. This step is crucial as it provides a starting point for troubleshooting and helps to narrow down the possible causes of the increased collisions.

The two troubleshooting steps that might be suggested are checking the configuration for the dial-up connection and checking the authentication information. These steps are relevant because the issue described involves the modem being disconnected shortly after it is answered. This could indicate a problem with the configuration settings or authentication information, which could be causing the disconnection. Reinstalling device drivers or replacing the cable would not directly address the issue of the modem being disconnected.

Tracert is a utility that can be used to find the bottleneck in accessing a web page. It traces the route that packets take from the user's computer to the destination web page, showing the time it takes for each hop along the way. By analyzing the results, the user can identify any slow or problematic hops that may be causing the slow access. This information can be used to troubleshoot and resolve the issue.

To enable communication between Computer A and Computer B across the network, the default gateway for Computer B should be changed to 193.100.100.1. The default gateway is responsible for routing network traffic between different networks. In this case, Computer B is in Network B with an IP address of 193.100.100.2, and the default gateway should be set to the IP address of the router that connects Network B to the rest of the network, which is 193.100.100.1. By changing the default gateway to the correct IP address, Computer B will be able to send and receive data from Computer A.

The proposed solution of replacing the category 5 UTP with shielded coaxial cable does not address the issue of server access slowing in the afternoon. It also does not address the optional desired results of speeding up access times beyond the benchmark or increasing internet availability. Therefore, the proposed solution does not produce the required result or either of the optional desired results.

By plugging the workstation into a different port on the network hub, you can determine if the issue is specific to the port or if it is a problem with the workstation itself. This step helps to isolate the cause of the intermittent connectivity problems.

The proposed solution of removing the space heater and replacing it with a unit located a distance from the server room is aimed at eliminating the server crash. Since the baseline and diagnostic data have already eliminated the server as the problem, the focus is on addressing other potential causes such as the space heater. Therefore, by removing the space heater, the proposed solution aligns with the required result of eliminating the server crash.

The best solution for addressing the cable lengths is to reduce the client-to-wall outlet length to 3m. By doing this, the total cable length from the hub to the client computer will be reduced, which can help improve the connection stability. The other options, such as reducing the hub-to-patch panel length or the patch panel-to-wall outlet length, do not address the length of the cable that directly connects the client computer to the wall outlet, which is likely causing the erratic connection.

After implementing an Action Plan to resolve the issue of a duplicate IP address, the next standard troubleshooting model action that should be performed is to test the result. This step is important to ensure that the action taken has successfully resolved the problem and that the duplicate IP address issue no longer persists. Testing the result will help in verifying the effectiveness of the solution and confirming that the issue has been resolved.

The correct answers are "ping 127.0.0.1" and "ping localhost" because both commands are valid ways to check the local TCP/IP connection. "127.0.0.1" is the loopback address that always refers to the local host, and "localhost" is a hostname that also points to the local machine. By pinging these addresses, you can verify if the TCP/IP connection is functioning properly on the workstation.

Switch-over time refers to the time it takes for the alternative power supply, in this case, SPS (Standby Power Supply), to kick in and start providing power when the main power source fails. This can be considered a disadvantage because during the switch-over time, there might be a temporary loss of power which could disrupt the functioning of sensitive devices or systems. Additionally, if the switch-over time is too long, it may lead to significant downtime and inconvenience.

Since the co-worker was able to print successfully from their workstation, it suggests that the issue may be specific to the user's workstation. By having the co-worker attempt to print from the original workstation, it can help determine if the problem is isolated to the user's workstation or if it is a more widespread issue. This step can help narrow down the cause of the error message and guide further troubleshooting steps.

If a user is unable to connect to the Internet from her workstation, the next step should be to run diagnostics on the server. This is because the issue could be with the server itself, such as a network configuration problem or a server malfunction. By running diagnostics, it will help identify any potential issues with the server that may be causing the connectivity problem for the user.

The likely cause of the LED not being lit on the switch connection to the modem is that the switch needs to be set to MDIX. MDIX stands for Medium Dependent Interface Crossover, which is a feature that allows the switch to automatically detect and correct for cable crossover. In this case, since both the modem and laptop are connected to the switch using straight Ethernet cabling, the switch needs to be set to MDIX in order for the connection to work properly.

The likely cause for users connected to an NT server being unable to communicate outside their LAN and receiving negative results when pinged by name but positive results when pinged by IP is an incorrect WINS (Windows Internet Name Service) configuration. WINS is responsible for resolving NetBIOS names to IP addresses, and if it is not configured correctly, the server may not be able to resolve the names of the connected computers, resulting in failed communication.

Adding a DHCP Relay Agent would solve the problem. The server on subnet A has been assigned an IP address from the DHCP scope of subnet B, which is causing the connectivity issue. By adding a DHCP Relay Agent, the DHCP requests from subnet A will be forwarded to the DHCP server on subnet B, allowing the server on subnet A to receive the correct IP address and enabling the users on subnet A to connect to company resources.

The link light flashing intermittently on the network card indicates a problem with the physical connection between the workstation and the network. To troubleshoot this issue, you can try plugging the workstation into a different port on the network hub to see if the problem lies with the port. Changing the network card in the workstation can also help determine if the issue is with the card itself. Additionally, trying a known working cable on the connection can help identify if the cable is faulty. Changing the IP address is not relevant to resolving the intermittent connectivity problem.

The most likely cause of this condition is that the hub port is bad. Since nothing is being displayed from the activity light on the back of the NIC, it suggests that there is a problem with the connection between the NIC and the hub. This could be due to a faulty port on the hub, which is preventing the NIC from establishing a connection and displaying any activity.

The Novell Client for Windows 95/98 and the Microsoft Client for NetWare Networks are both client software that allow Windows 98 systems to connect to a NetWare server. The Novell Client for Windows 95/98 is specifically designed for Windows 95 and 98 systems, while the Microsoft Client for NetWare Networks is a client software developed by Microsoft to connect Windows systems to NetWare servers. These clients provide the necessary protocols and services to establish a connection between the Windows 98 workstations and the NetWare server.

After entering the host and domainname, the next step in setting up DNS on a workstation is to enter the DNS Server Search Order. This is necessary to specify the order in which the workstation will query DNS servers to resolve domain names into IP addresses. Without this information, the workstation will not be able to effectively communicate with the DNS servers and resolve domain names.

Fluorescent lights emit electromagnetic interference that can disrupt the signal transmission in network cables. This interference can cause connectivity issues and result in a bad network drop. Since the cable length is mentioned as 80 meters, it is not excessively long to cause such a problem. The type of cable required (CAT3 or CAT6) is not relevant to the issue of bad connectivity. Therefore, the most likely cause of the problem is the interference caused by the fluorescent lights.

The most likely cause of the user's problem is that the domain name server needs to be repaired. This is because the user is unable to reach remote servers using his domain name, but can reach them using their numerical IP addresses. This suggests that there is an issue with the domain name server, which is responsible for translating domain names into IP addresses.

The proposed solution suggests reducing the length of the patch cable from the wall outlet to the client workstation to 10 meters. This would help in providing consistent access to the server from the client workstation, which is the required result. Additionally, it would also help in reducing collisions on the network, which is one of the optional desired results. However, it does not address the second optional desired result of reducing the number of service calls. Therefore, the proposed solution produces the required result and one of the optional desired results.

The best solution to establish the remote connection in this scenario would be to change the access protocol to PPP. SLIP (Serial Line Internet Protocol) is an outdated protocol for establishing a remote connection, while PPP (Point-to-Point Protocol) is a more modern and widely used protocol that supports various network protocols, including IP. Therefore, changing the access protocol to PPP would enable the user to establish a remote connection to her ISP successfully.

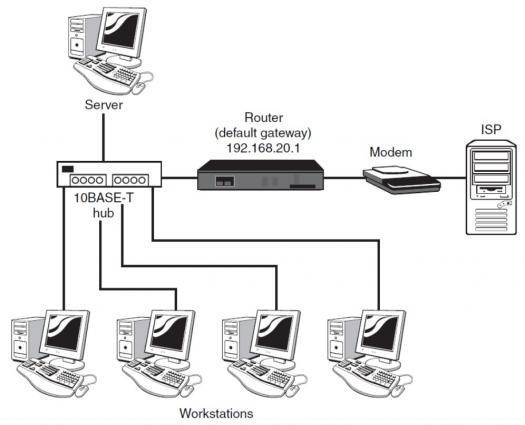

The modem is the component in the network that best identifies the problem. The modem is responsible for connecting the workstation to the Internet. If the same data is being sent to and from the Internet at a much slower speed when sent to and from the server, it suggests that there may be an issue with the modem's connection or performance.

The most possible cause for the network slowing down noticeably after the office building is remodeled is a disconnected network. During the remodeling process, it is common for cables to be unplugged or accidentally disconnected, leading to a loss of network connectivity. This can result in a significant decrease in network speed and performance.

The correct answer is to make the end node connections to a MSAU. The problem is that the client stations are connected to a 100BaseT hub, which is not compatible with a Token Ring network. To correct this, the end node connections need to be made to a MSAU (Multistation Access Unit), which is the appropriate device for connecting client stations in a Token Ring network.

Netstat is a command-line utility that displays active network connections and listening ports on a computer. It provides information about the network connections, including the number of errors generated during a connection. Therefore, netstat is the correct utility to use for obtaining the number of errors generated during a connection.

Netstat is a command-line tool used to display active network connections, listening ports, and routing tables. By running Netstat, one can identify if the server is listening on the correct ports and if there are any active connections established. This information can help isolate the problem by determining if the server is properly configured and accessible from the LAN.

not-available-via-ai

The given output is generated by the "ping" command. This command is used to send a network request to a specific IP address or domain name and receive a response. The output shows the round-trip time (in milliseconds) for each request sent to different network nodes along the path, indicating the latency or speed of the network connection.

The correct answer is "Ping 127.0.0.1, Ping localhost."

This is because both "127.0.0.1" and "localhost" are loopback addresses that refer to the local machine. By pinging these addresses, you can test if the TCP/IP stack is functioning properly on the workstation. If the pings are successful, it indicates that the network card bindings are correct and the issue may lie elsewhere.

The most likely cause of the problem is that the phone line in the motel room is digital. This is indicated by the modem reporting a no dial tone error. Digital phone lines often require different equipment or settings than analog phone lines, which can cause compatibility issues when trying to establish a connection.

You can use the "Netstat" and "Route" utilities to view the routing table. "Netstat" displays active network connections and listening ports, and it also shows the routing table. "Route" is a command-line utility that allows you to view and manipulate the IP routing table. Both utilities can provide information about the routes in the routing table and help identify any incorrect routes that may be causing network connectivity issues.

not-available-via-ai

During the Novell Client install to configure the connection to the NetWare server, two pieces of information that will be needed are the context in which the user resides and the target NDS replica name NDS tree name. The context in which the user resides refers to the specific location or container within the NetWare directory where the user account is located. This information is necessary for the Novell Client to properly authenticate and connect to the NetWare server. The target NDS replica name NDS tree name refers to the specific NetWare directory tree and replica that the client system will be connecting to. This information is necessary for the Novell Client to establish the correct connection to the NetWare server.

When installing new PCs on a Novell NetWare-based network using DHCP, you would enter the DNS context in which the user object resides and the IP address of the default gateway into the workstation configuration. The DNS context is important for resolving user object information, while the default gateway IP address is necessary for routing network traffic outside of the local network.
