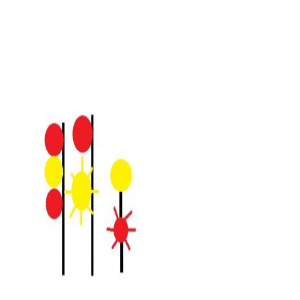

1. What is the signal name _____

Explanation

The signal name is "approach".

Submit
Please wait...
About This Quiz
Signal Aspects & Indications - Quiz

Explore key aspects of railroad signal systems, including signal identification and understanding various signal indications like Stop and Proceed, Restricting, and Slow Approach.

Personalize your quiz and earn a certificate with your name on it!

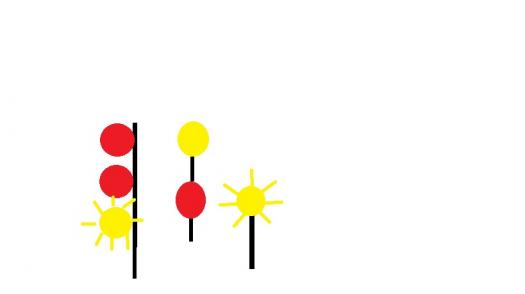

2. What signal is this

Explanation

This signal is indicating a slow approach.

Submit

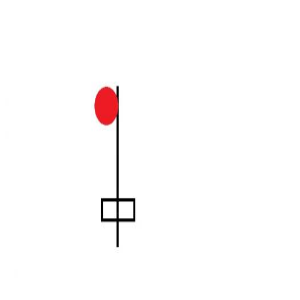

3. Name this signal

Explanation

not-available-via-ai

Submit

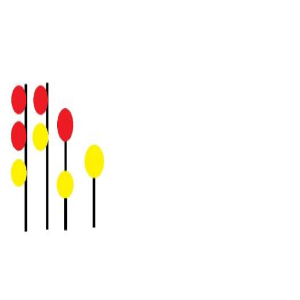

4. What is the name of this signal

Explanation

not-available-via-ai

Submit

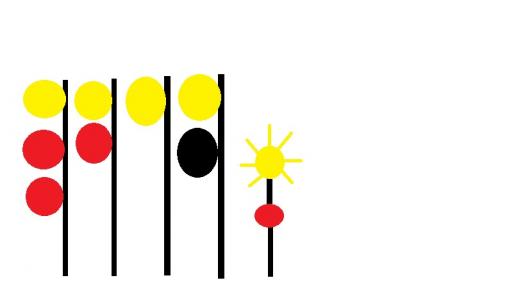

5. What is This Signal Called

Explanation

The signal in question is called the "medium approach."

Submit
6. What is the indication of medium Approach

Explanation

The indication of medium approach is that trains should proceed but be prepared to stop at the next signal. Trains exceeding medium speed must begin reducing their speed to medium as soon as the medium approach signal is clearly visible.

Submit
7. What is the signal indication of Approach

Explanation

The signal indication of Approach is to proceed prepared to stop at the next signal. Additionally, trains exceeding medium speed must begin reducing their speed to medium speed as soon as the engine passes the approach signal.

Submit
8. Match the following Signals to their indications
Submit
9. What is the indication to Slow Approach

Explanation

The indication to Slow Approach is to proceed prepared to stop at the next signal. The train should maintain a slow speed until the entire train clears all interlocking or spring switches. After that, the train can increase its speed to medium.

Submit
10. Whats the Indication for Stop and Proceed

Explanation

The indication for "Stop and Proceed" is to come to a complete stop and then proceed at a restricted speed. This is done until the entire train has cleared all interlocking and spring switches if the signal is an interlocking or CP Signal. Additionally, the entire train must have passed a more favorable signal or entered a non-signaled DCS Territory. In CSS territory, trains with operative cab signals must not increase their speed until they have traveled one train length or 500 feet (whichever distance is greater) past a location where a more favorable signal was received or where special instructions or letter G grade marker or letter R restricting marker with a number plate are displayed. Freight trains may observe the signal as if through restricting rule 290 were displayed.

Submit
11. What is the indication of Restricting Verbatim  (NO Punctuation )(Verbatim)

Explanation

The indication of Restricting Verbatim is that the train must proceed at Restricted Speed until the entire train has cleared all interlocking and spring switches. If the signal is an interlocking or CP Signal, the train must also wait until the entire train has passed a more favorable fixed signal or entered non-signaled DCS territory in CSS Territory. Trains with operative cab signals must not increase their speed until the train has run one train length or 500 feet, whichever distance is greater, past a location where a more favorable cab signal was received.

Submit
