    1/37
  • La siguiente figura representa un conector ISO 2593 de 34 patillas: De acuerdo a la información de distribución de pines ¿En que parte realizarias un Loop sobre este conector hacia el equipo de Telmex?

    • Pin D- Pin N / Pin X-Pin U
    • Pin L - Pin J / Pin M-Pin C
    • Pin A - Pin E / Pin V - Pin F
    • Pin R - Pin T / Pin P - Pin S
Please wait...
About This Quiz

.

Servicios Nx63 Y Nxe1 - Quiz

Questions and Answers
  • 2.

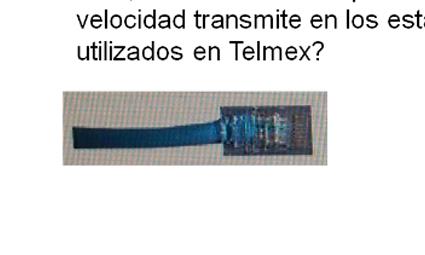

    La figura representa un medio de transmisión de categoría 5/5e, en el se utilizan 4 pares. ¿Qué nombre recibe y a que velocidad transmite en los estándares del servicio Ethernet utilizados en Telmex?

    • 1000-LX Gigabit Ethernet y 1 Gbps

    • 100Base-TX Fast Ethernet y 10 Mbps

    • 1000base-T Gigabit Ethernet y 1 Gbps

    • 100Base-TX Fast Ethernet y 1Gbps

    Correct Answer
    A. 1000base-T Gigabit Ethernet y 1 Gbps
    Explanation
    The figure represents a category 5/5e transmission medium, which uses 4 pairs. The correct answer is 1000base-T Gigabit Ethernet and 1 Gbps because it is the standard for transmitting data at a speed of 1 Gbps in Telmex's Ethernet service.

    Rate this question:

  • 3.

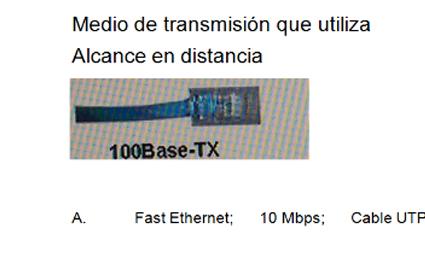

    Responde los datos que se solicitan de la interface Ethernet presentada en la figura Tipo Velocidad de Transmisión  Medio de transmisión que se utiliza Alcance en distancia

    • Fast Ethernet; 10 Mbps; Cable UTP Categoria 5/5/e; 275 metros

    • Fast Ethernet; 1Gbps; Cable UTP Categoria 5/5e; 100 metros

    • Fast Ethernet; 1 Gbps; Cable UTP Categoria 5; 100 metros

    • Fast Ethernet; 10 Mbps; Cable UTP Categoria 5; 100 metros

    Correct Answer
    A. Fast Ethernet; 10 Mbps; Cable UTP Categoria 5; 100 metros
    Explanation
    The given correct answer states that the type of interface is Fast Ethernet, the transmission speed is 10 Mbps, the medium of transmission used is UTP Category 5 cable, and the distance range is 100 meters. This means that the Ethernet interface being referred to in the figure is a Fast Ethernet interface that supports a maximum transmission speed of 10 Mbps and uses UTP Category 5 cable for communication. The maximum distance that can be covered using this setup is 100 meters.

    Rate this question:

  • 4.

    Es la encargada de proporcionar los servicios con marcación 700 y 800

    • Red de transporte

    • Red inteligente

    • Red de conmutacion

    • Red de acceso

    Correct Answer
    A. Red inteligente
    Explanation
    The correct answer is "Red inteligente". A "Red inteligente" refers to a telecommunications network that is capable of providing services with dialing codes 700 and 800. This network is designed to handle and route calls efficiently, offering advanced features such as call forwarding, call waiting, and interactive voice response systems. It enables the provision of intelligent services to users, making it the suitable option for the given description.

    Rate this question:

  • 5.

    Monitorea, diagnostica y colabora en la solución de fallas de los elementos de red de procesamiento, fuerza y clima a nivel nacional, de la red de larga distancia y la red local de las divisiones.

    • CNS-II (Guadalajara)

    • CNS-lll (puebla)

    • CNS-I (Querétaro)

    • CNS-IV (DF)

    Correct Answer
    A. CNS-lll (puebla)
    Explanation
    The correct answer is CNS-lll (Puebla) because the given statement mentions monitoring, diagnosing, and collaborating in the solution of network faults at a national level, including processing, power, and climate elements. Since CNS-lll is specified as the location in Puebla, it can be inferred that this particular CNS (Centro Nacional de Soporte or National Support Center) is responsible for handling network issues in that region.

    Rate this question:

  • 6.

    Es la entidad de gestión que monitorea, diagnostica y colabora en la solución de fallas de los elementos de red de acceso a nivel nacional:

    • CNS-lll

    • CNS-I

    • CSN-II

    • CNS-IV

    Correct Answer
    A. CNS-IV
    Explanation
    CNS-IV is the correct answer because it is the entity responsible for monitoring, diagnosing, and collaborating in the resolution of network access failures at a national level. The other options (CNS-lll, CNS-I, and CSN-II) are not mentioned in the question and therefore can be considered incorrect.

    Rate this question:

  • 7.

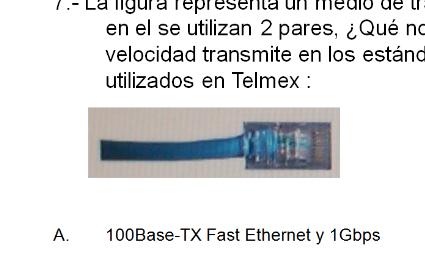

    La figura representa un medio de transmisión de categoría 5. en el se utilizan 2 pares, ¿Qué recibe  y a que velocidad transmite en los estandares del servicio Ethernet utilizados en Telmex:

    • 100Base-TX Fast Ethernet y 1 Gbps

    • 100Base-Tx Fast Ethernet y 10 Mbps

    • 1000-LX Gigabit Ethernet y 1 Gbps

    • 1000base-T Gigabit Ethernet y 1Gbps

    Correct Answer
    A. 100Base-Tx Fast Ethernet y 10 Mbps
    Explanation
    The figure represents a Category 5 transmission medium. It uses 2 pairs of wires. In the Ethernet standards used by Telmex, it receives and transmits at a speed of 10 Mbps in the 100Base-Tx Fast Ethernet standard.

    Rate this question:

  • 8.

    Utilizan los equipos HDSL, por medio de 2 pares de cobre se tiene un alcance sin repetidor de hasta 3 Km. Con una atenuación máxima de

    • 30 dB

    • 39 dB

    • 31 dB

    • 37 dB

    Correct Answer
    A. 31 dB
    Explanation
    The correct answer is 31 dB. HDSL equipment uses 2 pairs of copper to achieve a reach of up to 3 km without the need for repeaters. The maximum attenuation allowed is 31 dB.

    Rate this question:

  • 9.

    Es la interfaz de cliente para LADA Enlaces E1 cuando se utiliza par de cobre como medio de transmisión:

    • G. 703

    • RJ-11

    • G. 957

    • RJ-45

    Correct Answer
    A. G. 703
    Explanation
    G. 703 is the correct answer because it is the interface standard for connecting digital transmission equipment using E1 lines. In this case, it is specifically used when copper pairs are used as the transmission medium. RJ-11 and RJ-45 are connector types commonly used for telephone and Ethernet connections, respectively, but they are not relevant to the given question. G. 957 is not a recognized interface standard.

    Rate this question:

  • 10.

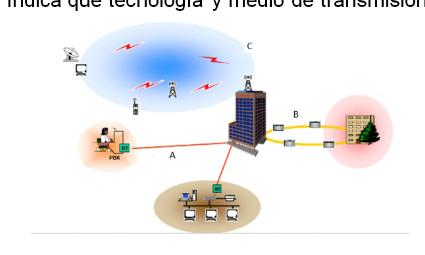

    La siguiente figura representa la red de acceso y los medios utilizados por TELMEX para proporcionar servicios datos NX64 y NXE1. Indica que tecnología y medio de transmisión se utiliza en el punto B.

    • Medio Fibra; Tecnología SHDSL

    • Medio Cobre; Tecnología WLL

    • Medio Fibra; Tecnología SDH NG

    • Medio cobre; Tecnología SHDSL

    Correct Answer
    A. Medio Fibra; Tecnología SDH NG
    Explanation
    The correct answer is "Medio Fibra; Tecnología SDH NG". This means that fiber optic cable is used as the medium of transmission and SDH NG (Synchronous Digital Hierarchy Next Generation) is the technology used at point B.

    Rate this question:

  • 11.

    Es el nivel de disponibilidad (Nivel garantizado) para criticidad 4:

    • 99.999%

    • 99.95%

    • 99.50%

    • 99.90%

    Correct Answer
    A. 99.50%
    Explanation
    The correct answer is 99.50%. This means that the level of availability (guaranteed level) for criticality 4 is 99.50%. This indicates that the system or service with criticality 4 is guaranteed to be available 99.50% of the time.

    Rate this question:

  • 12.

    Como se conoce a la variante del servicio Lada Enlace E1 que transporta datos desde clientes hasta uno solo?

    • E1 Troncal digital

    • E1 P-P

    • E1 P-MP

    • E1 acceso PRI

    Correct Answer
    A. E1 P-MP
    Explanation
    The correct answer is E1 P-MP. E1 P-MP refers to the variant of the Lada Enlace service that transports data from multiple clients to a single destination. This means that multiple clients can send their data through the E1 P-MP service, and it will be aggregated and delivered to a single recipient.

    Rate this question:

  • 13.

    De acuerdo con los criterios de ingeniería para el servicio LADA enlace E1 con solución por radios Spread Spectrum de E1 y de 4 E1's en la banda de 5.7 GHz¿ Hasta que distancia se puede tener entre la central y el domicilio del cliente?

    • 60 Km

    • 40 Km

    • 50 Km

    • 20 Km

    Correct Answer
    A. 50 Km
    Explanation
    Based on the engineering criteria for the LADA service, the maximum distance that can be maintained between the central and the customer's home is 50 Km.

    Rate this question:

  • 14.

    Es el numero máximo de enlaces remotos que se pueden tener para un LADA Enlace punto multipunto E1

    • 16

    • 63

    • 30

    • 8

    Correct Answer
    A. 30
    Explanation
    The correct answer is 30. This means that the maximum number of remote links that can be established for a LADA Multipoint Point-to-Multipoint E1 is 30.

    Rate this question:

  • 15.

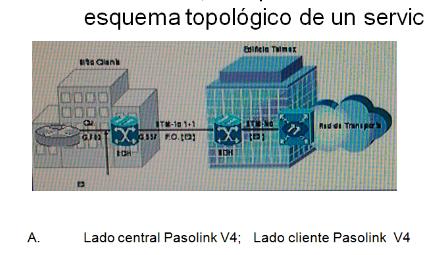

    Que aprovisionamiento se tendrá en el lado central y en el lado cliente, con plataforma Alcatel de acuerdo al siguiente esquema topológico de un servicio E3

    • Lado central Pasolink V4; Lado cliente Pasolink V4

    • Lado central 1650 Optinex, Lado cliente 1642 EMC

    • Lado central 15305; Lado cliente 15302

    • Lado central Unode WBM; Lado cliente CNODE

    Correct Answer
    A. Lado central 1650 Optinex, Lado cliente 1642 EMC
    Explanation
    The correct answer indicates that on the central side, the equipment used is the 1650 Optinex, while on the client side, the equipment used is the 1642 EMC. This suggests that the Alcatel platform utilizes different types of equipment for the central and client sides of the E3 service.

    Rate this question:

  • 16.

    En un equipo utilizado para la medición del desempeño de errores (G. 821) a nivel de 2 Mbps:

    • ELMI

    • Smart Class

    • ANT 20

    • ODTDR de JDSU

    Correct Answer
    A. ELMI
    Explanation
    ELMI stands for Ethernet Line Management Interface. In the context of a performance measurement equipment for error measurement at the 2 Mbps level, ELMI is a relevant term. ELMI is a protocol used for Ethernet operations, administration, and maintenance. It allows for the monitoring and management of Ethernet links, including error detection and performance measurement. Therefore, ELMI is the correct answer in this case as it is specifically related to the measurement of performance and errors at the 2 Mbps level.

    Rate this question:

  • 17.

    Es la parte de la red de telecomunicaciones de Telmex (RTT) con la que el cliente tiene contacto:

    • Red de conmutación

    • Red inteligente

    • Red de acceso

    • Red de Larga distancia

    Correct Answer
    A. Red de acceso
    Explanation
    The correct answer is "Red de acceso". This refers to the part of the telecommunications network that connects the customer to the service provider, in this case, Telmex. It is the network through which the customer accesses the services provided by Telmex, such as phone calls, internet, and television.

    Rate this question:

  • 18.

    Tecnología utilizada en la red de acceso, con la velocidad máxima de 2048 Kbps, que permite transportar a través de uno o dos pares de cobre, hasta 30 canales de voz o 31 canales de datos de 64 Kbps

    • SDH

    • ADSL

    • PDH

    • HDSL

    Correct Answer
    A. HDSL
    Explanation
    HDSL (High-bit-rate Digital Subscriber Line) is the correct answer. HDSL is a technology used in the access network that allows for a maximum speed of 2048 Kbps. It can transport up to 30 voice channels or 31 data channels of 64 Kbps over one or two pairs of copper.

    Rate this question:

  • 19.

    Con radio digitales en las bandas de 15 y 23 GHz se pueden alcanzar distancias de :

    • Mas de 40 Km.

    • Hasta 40 Km

    • 5 a 10 Km

    • 5 a 20 Km

    Correct Answer
    A. 5 a 10 Km
    Explanation
    Con radio digitales en las bandas de 15 y 23 GHz se pueden alcanzar distancias de 5 a 10 Km. Esto se debe a que las ondas de radio en estas frecuencias tienen una capacidad limitada para atravesar obstáculos y su señal se debilita rápidamente a medida que se aleja de la fuente. Por lo tanto, la distancia máxima que se puede alcanzar con una calidad de señal adecuada es de 5 a 10 Km.

    Rate this question:

  • 20.

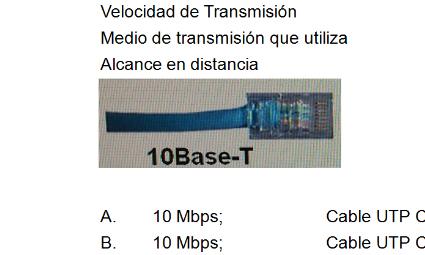

    Responde los datos que se solicitan de las interfaces Ethernet presentada en la figura : Velocidad de Transmisión Medio de transmisión que utiliza Alcance en distancia

    • 10 Mbps; Cable UTP Categoria 5; 100 metros

    • 10 Mbps; Cable UTP Categoria 3; 100 metros

    • 1 Gbps; Cable UTP Categoria 3; 100 metros

    • 1 Gbps; Cables UTP Categoria 5/5e; 100 metros

    Correct Answer
    A. 10 Mbps; Cable UTP Categoria 3; 100 metros
    Explanation
    The correct answer is 10 Mbps; Cable UTP Categoria 3; 100 metros. This is because the question is asking for the speed of transmission, the type of medium used for transmission, and the distance range for the Ethernet interfaces presented in the figure. The given answer matches all three criteria, indicating that the Ethernet interface operates at a speed of 10 Mbps, uses UTP Categoria 3 cables for transmission, and has a maximum distance range of 100 meters.

    Rate this question:

  • 21.

    Es el acuerdo negociado entre un cliente y un provedor de servicios donde se especifican los objetivos de validad del servicio, las unidades de medida asi como las características del enlace:

    • MTBF

    • SLA

    • MTTR

    • QoS

    Correct Answer
    A. SLA
    Explanation
    An SLA, or Service Level Agreement, is a negotiated agreement between a client and a service provider. It specifies the validity objectives of the service, the units of measurement, and the characteristics of the link. This agreement outlines the agreed-upon level of service that the provider will deliver to the client, including metrics such as uptime, response time, and availability. The SLA ensures that both parties have a clear understanding of the expectations and responsibilities involved in the service relationship.

    Rate this question:

  • 22.

    Es una Red SDH, ¿Qué Elemento de Red permite conmutar las líneas de transmisión con diferentes velocidades?:

    • Procesador

    • Regenerador

    • ADM

    • DXC

    Correct Answer
    A. DXC
    Explanation
    A DXC (Digital Cross-Connect) is a network element that allows the switching of transmission lines with different speeds. It is specifically designed for SDH (Synchronous Digital Hierarchy) networks, which are used for high-speed telecommunications. The DXC enables the efficient routing and management of data traffic by dynamically connecting different transmission lines based on their speeds. This helps optimize network performance and allows for flexible and scalable connectivity options.

    Rate this question:

  • 23.

    Que modulo de transporte le corresponde respectivamente a las siguientes velocidades: 9953.28 y 622.080 Mbps

    • STM-16 y STM-4

    • STM-16 y STM-64

    • STM-64 y STM-4

    • STM-4 y STM 256

    Correct Answer
    A. STM-64 y STM-4
    Explanation
    The given question is asking for the corresponding transport module for the given speeds of 9953.28 and 622.080 Mbps. The correct answer is STM-64 and STM-4. This means that a speed of 9953.28 Mbps corresponds to the STM-64 module, while a speed of 622.080 Mbps corresponds to the STM-4 module.

    Rate this question:

  • 24.

    Es el centro responsable de las intervenciones realizadas en sitio, con el fin de ejecutar las rutinas de Manetnimiento Preventivo programado :

    • CM

    • CASE

    • CAO

    • COM

    Correct Answer
    A. CM
    Explanation
    CM stands for Centro de Mantenimiento, which translates to Maintenance Center in English. This is the correct answer because it is stated in the question that it is the responsible center for interventions performed on site in order to execute scheduled Preventive Maintenance routines. Therefore, CM is the most suitable option that aligns with the given explanation.

    Rate this question:

  • 25.

    Es el tipo de conector que se utiliza para la interfaz G. 703

    • ISO 4902 de 37 patillas

    • ISO 2593 de 34 patillas

    • BNC de 75 ohms

    • ISO 2110 de 25 patillas

    Correct Answer
    A. BNC de 75 ohms
    Explanation
    The correct answer is BNC de 75 ohms. The BNC connector is commonly used for the G.703 interface, which is a standard for digital transmission over coaxial cables. The 75 ohm impedance of the BNC connector matches the impedance of the coaxial cables used in G.703 applications, ensuring optimal signal transmission and minimizing signal loss. The other options listed, such as ISO 4902, ISO 2593, and ISO 2110, do not match the specifications of the G.703 interface.

    Rate this question:

  • 26.

    Es la velocidad de un LADA Enlace E1:

    • 64 Kbps

    • 2048 Kbps

    • 34 Mbps

    • 1024 Kbps

    Correct Answer
    A. 2048 Kbps
    Explanation
    The correct answer is 2048 Kbps. This indicates the speed of a LADA Enlace E1, which is 2048 kilobits per second.

    Rate this question:

  • 27.

    Es una característica del nivel de criticidad 4:

    • Redundancia de equipo de transporte

    • No existe proteccion

    • Diversidad geografica

    • Posibilidad de diversidad de medio

    Correct Answer
    A. No existe proteccion
    Explanation
    The correct answer is "No existe proteccion." This means that there is no protection in place for the level of criticality 4. This suggests that there are no measures or systems in place to safeguard against potential risks or failures. Without protection, the level of criticality 4 may be more vulnerable to disruptions or damages.

    Rate this question:

  • 28.

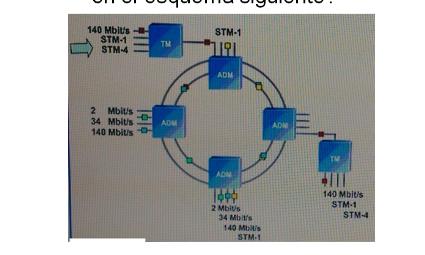

    Cuantos bits por segundo entran en la tributarias señaladas en el esquema siguiente ?

    • 155.520 y 2488.320 Mbits/seg

    • 155.520 y 34 Mbits/seg

    • 155.520 y 622.080 Mbits/seg

    • 622.080 y 2488.320 Mbits/seg

    Correct Answer
    A. 155.520 y 622.080 Mbits/seg
    Explanation
    The correct answer is 155.520 y 622.080 Mbits/seg. This is because the question is asking for the number of bits per second that enter the specified tributaries. The other options do not match the given values in the question.

    Rate this question:

  • 29.

    Es la técnica de modulación utilizada en los equipos Watson 5:

    • CAP128

    • TCPAM 16

    • 2B1Q

    • CAP64

    Correct Answer
    A. CAP64
    Explanation
    CAP64 is the correct answer because it is stated in the question that it is the modulation technique used in Watson 5 equipment.

    Rate this question:

  • 30.

    Es uno de los proveedores recomendados para el equipamiento de los LADA Enlaces NXE1, (N=4, 8, 16) cuando se utiliza par de cobre como medio de transmisión:

    • NEC

    • Watson

    • Alcatel

    • Cisco

    Correct Answer
    A. Watson
    Explanation
    Watson is one of the recommended providers for the equipment of LADA Enlaces NXE1 (N=4, 8, 16) when using copper pairs as a transmission medium.

    Rate this question:

  • 31.

    Es el numero de enlaces remotos que se pueden tener para un LADA enlace punto multipunto E1, si el HUB o concentrador se encuentra equipado para trabajar a una velocidad de 8 Mbps en el sitio del cliente.

    • 2

    • 3

    • 4

    • 1

    Correct Answer
    A. 4
    Explanation
    The correct answer is 4. This is because the question is asking for the number of remote links that can be established for a point-to-multipoint E1 link with a hub or concentrator that is capable of working at a speed of 8 Mbps. Since the question does not provide any specific limitations or constraints, it can be assumed that the hub or concentrator can support multiple remote links, and therefore, the correct answer is 4.

    Rate this question:

  • 32.

    Si en un enlace punto multipunto E1 se tienen 30 sitios remotos, ¿Cuál es la velocidad en cada uno de esos sitios?:

    • 128 Kbps

    • 64 Kbps

    • 2048 Kbps

    • 34

    Correct Answer
    A. 64 Kbps
    Explanation
    The correct answer is 64 Kbps. In a point-to-multipoint E1 link with 30 remote sites, each of those sites will have a speed of 64 Kbps.

    Rate this question:

  • 33.

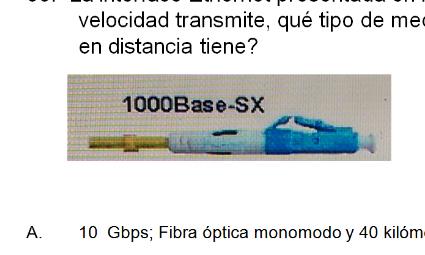

    La interface Ethernet presentada en la figura, ¿A que velocidad transmite, que tipo de medio utiliza y que alcance en distancia tiene?

    • 10 Gbps; Fibra óptica monomodo y 40 km

    • 10 Gbps; Fibra óptica multimodo y 40 km

    • 1 Gbps; Fibra óptica monomodo y 550 metros

    • 1 Gbps; Fibra óptica multimodo y 550 metros

    Correct Answer
    A. 1 Gbps; Fibra óptica multimodo y 550 metros
    Explanation
    The correct answer is 1 Gbps; Fibra óptica multimodo y 550 metros. This means that the Ethernet interface transmits at a speed of 1 Gbps, uses multimode fiber optic as the medium, and has a maximum distance range of 550 meters.

    Rate this question:

  • 34.

    Al atender un reporte de falla de un servicio E1, el técnico de CM determina que existe una falla en el equipo 15305 de Cisco ubicado en el punto ETC (quipado terminal de central) ¿ Con que centro nacional de supervisión debe contactarse el técnico para obtener apoyo y solucionar la falla?

    • CNS-III

    • CNS-II

    • CNS-IV

    • CNS-I

    Correct Answer
    A. CNS-IV
    Explanation
    The technician should contact CNS-IV for support and to resolve the failure.

    Rate this question:

  • 35.

    En el esquema de la red de acceso mostrada en la siguiente figura, ¿En que punto se ubica la interfdaz fisica G.703 para un servicio E1 en el lado cliente?

    • ETC

    • UNI

    • ETU

    • SNI

    Correct Answer
    A. UNI
    Explanation
    The UNI (User Network Interface) is the point in the access network where the physical G.703 interface for an E1 service is located on the client side.

    Rate this question:

  • 36.

    Monitorea, diagnostica y colabora en la solución de fallas de los elementos de red de banda ancha a nivel nacional, de la red de larga distancia y la red local de las divisiones:

    • CNS-1 (queretaro)

    • CNS-IV (Metro-DF)

    • CNS-II (Guadalajara)

    • CNS-III(Puebla)

    Correct Answer
    A. CNS-II (Guadalajara)
    Explanation
    The given answer, CNS-II (Guadalajara), is correct because it states that the individual or system monitors, diagnoses, and collaborates in the solution of failures in the broadband network elements at a national level. This includes the long-distance network and the local network of the divisions CNS-1 (Queretaro), CNS-IV (Metro-DF), CNS-II (Guadalajara), and CNS-III (Puebla). Therefore, CNS-II in Guadalajara is responsible for monitoring and resolving network issues in that specific region.

    Rate this question:

  • 37.

    Es uno de los proveedores recomendados para el equipamiento de los LADA enlaces NX64 cuando se utiliza par de cobre como medio de transmisión:

    • NEC

    • Mixbaal

    • Tellabs

    • CISCO

    Correct Answer
    A. Tellabs
    Explanation
    Tellabs is one of the recommended providers for the equipment of LADA NX64 links when copper pairs are used as the transmission medium.

    Rate this question:

Quiz Review Timeline +

Our quizzes are rigorously reviewed, monitored and continuously updated by our expert board to maintain accuracy, relevance, and timeliness.

  • Current Version
  • Jul 22, 2024
    Quiz Edited by
    ProProfs Editorial Team
  • Nov 12, 2018
    Quiz Created by
    Mgcarreonr
Back to Top Back to top
Advertisement
