ASTB Mechanics Comprehension Questions Quiz

When the wheels are connected by a belt, the wheel on the right will have more rotations than the wheel on the left due to the mechanics of the belt system transferring motion.

When one wheel turns clockwise, the other wheel, to maintain forward motion, must turn counterclockwise.

When the dragster begins to accelerate, the woman's weight pushes more into the seat due to the inertia and acceleration forces acting on her body.

In a gear system, the direction in which the gears rotate depends on the configuration of the gears and their interlocking teeth. Since Gear 1 is rotating clockwise, the gears connected directly to it, which are Gears 3 and 5, also rotate clockwise.

When moving weight up a ramp, less force is needed when the ramp is less steep (case A), as it reduces the angle of inclination and the effective weight being opposed.

The length of the pendulum affects the time taken to complete one swing - the longer the length, the longer the time taken. In this case, pendulum B has the longest length among the options provided, hence requiring the longest amount of time to complete one swing.

In a series circuit, the same current flows through all the resistors, thus resulting in the same voltage drop across each resistor.

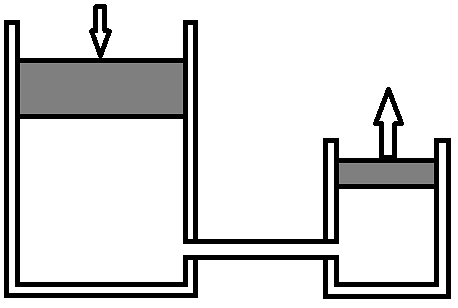

The large piston having 3 times the surface area of the small piston means that it requires 3 times the force to lift it. Therefore, to raise the large piston 1 inch, the small piston must be pushed down 3 inches to generate enough force.

In order for the three squad leaders to stay on line, Leader C must turn the most slowly as they are located at the end of the line and need to adjust their speed to keep the line formation intact.

In order to balance a scale, the fulcrum should be moved towards the heavier side to counterbalance the weight distribution.

When the scale is balanced, it means that the weight on each side is equal. By moving the fulcrum towards Ball B, it indicates that Ball B has a greater mass and therefore higher density compared to Ball A.

Option B is the correct answer because holding the pruners' handles at the correct position allows for better control and leverage when cutting a branch.

The current flows from the positive terminal of the battery to the negative terminal, therefore in resistor X, the current flows from left to right (option A). Option B is incorrect because the current would not flow in the opposite direction. Option C states there is no current in the resistor, which is not accurate as there is current in a resistor in a closed circuit. Option D is also incorrect as the direction of the current flow in a closed circuit is not from right to left.

The voltage drop across a resistor is determined by its resistance value. The greater the resistance, the greater the voltage drop. Therefore, the voltage drop is greater across resistor Rx compared to Ry.

In a series circuit, the current remains the same at all points within the circuit. This is due to the fact that there is only one path for the current to flow, and the total current is constant throughout the circuit.

When a negative charge is positioned between a positive and a negative charge, it will be attracted towards the positive charge and move in the direction of the positive charge (A). This is because opposite charges attract each other.

Water flows faster in narrow sections of a stream due to the principle of conservation of mass and continuity equation.

The velocity of a bullet is fastest when it leaves the muzzle due to the initial acceleration from the gunpowder explosion. As the bullet travels through the air, air resistance and gravity affect its velocity, causing it to slow down before it hits the target. When it reaches the top of its arc, the bullet's velocity is not at its highest point as it momentarily stops before beginning to descend.

The correct answer indicates that the individual did read the handout and understood its contents, making it the most appropriate response out of the options provided.

When the large piston has 2 times the surface area of the small piston, it means that for the same force applied, the pressure will be distributed over a larger area for the large piston. Therefore, the large piston must only move half the distance of the small piston to achieve the same upward force. Hence, the correct answer is 1/2 inch.

When the wheels X are turned at the same speed, Wheel X1 turns wheels Y faster because of its smaller radius compared to Wheel X2. The smaller radius of Wheel X1 contributes to a higher angular velocity, resulting in faster rotation of wheels Y.

The front sprocket (wheel X) of a bicycle is typically smaller than the rear sprocket (wheel Y), meaning that the system A would require more force to pedal up a hill compared to system B.

When wheel X1 is turned once, it completes one full rotation. Since wheel X1 is twice the size of wheel Y1, wheel Y1 will need to turn twice to cover the same distance.

In system A, as wheel X1 makes one revolution, point A is fixed to the wheel and moves along with it, hence it travels the same distance as point B which is located on the circumference of the wheel.

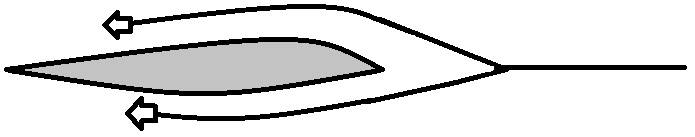

The speed relative to the foil is greater above the wing due to the shape of the wing generating lift from the Bernoulli's principle.

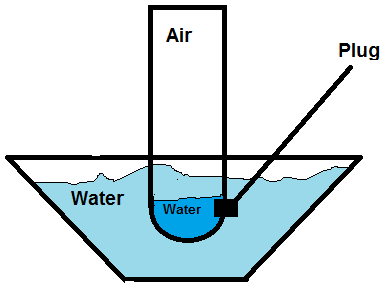

When the plug is removed, water will naturally flow into the tube due to gravity and pressure differences.

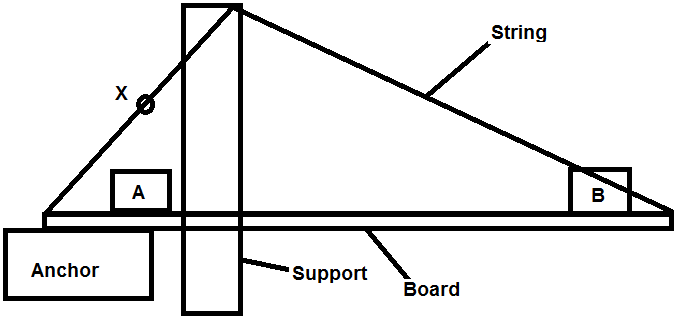

The tension on the string at point X is greater when the weight is positioned at point B because the weight at that position exerts a direct downward force, increasing the tension in the string.

As depth increases, the pressure exerted by the water increases, making it harder to keep the beach ball submerged. Close to the surface, the pressure is lower, making it easier to hold the beach ball underwater.
