  • 1/20 Pertanyaan

    Setiap kali putaran penuh 3600 pada skala timble micrometer menunjukkan gerakan sepanjang adalah :

    • 1 mm
    • 0,5 mm
    • 0,1 mm
    • 0,05 mm
Please wait...
Soal Alat Ukur Mekanik Kelas X Otomotif - Quiz
About This Quiz

Kerjakan Kuis ini dengan baik

Quiz Preview

  • 2.

    Alat untuk mengukur keolengan velg roda / rim wheel adalah :

    • Dial gauge

    • Micrometer

    • Vernier Caliper

    • Cylinder gauge

    Correct Answer
    A. Dial gauge
    Explanation
    The correct answer is Dial gauge. Dial gauge is a tool used to measure the roundness and concentricity of a wheel rim. It is specifically designed for measuring the accuracy and precision of wheel rims. Micrometer is used to measure the thickness of objects, Vernier Caliper is used for measuring length, and Cylinder gauge is used for measuring the inner diameter of cylinders.

    Rate this question:

  • 3.

    Hasil akhir pengukuran diameter silinder adalah 53,54 mm, maka rod dan washer yang digunakan adalah :

    • Rod 50 mm, washer 3 mm + 0,5 mm

    • Rod 50 mm, washer 2 mm + 1 mm

    • Rod 50 mm, washer 3 mm + 1 mm

    • Rod 50 mm, washer 2 mm + 0,5 mm

    Correct Answer
    A. Rod 50 mm, washer 3 mm + 1 mm
    Explanation
    The correct answer is rod 50 mm, washer 3 mm + 1 mm because the final measurement of the cylinder diameter is 53.54 mm. This means that the rod and washer combination should have a total thickness of 53.54 mm. The rod has a thickness of 50 mm, and the washer should have a thickness of 3 mm + 1 mm, which equals 4 mm. So, the total thickness of the rod and washer combination is 50 mm + 4 mm = 54 mm, which is close to the final measurement of 53.54 mm.

    Rate this question:

  • 4.

    Penggunaan jangka sorong berikut yang paling tepat berdasarkan nilai ketelitiannya adalah pada pengukuran :

    • Diameter dalam blok silinder

    • Ketebalan kanvas kopling

    • Jarak main (free play) pedal rem

    • Diameter luar piston

    Correct Answer
    A. Ketebalan kanvas kopling
    Explanation
    The most appropriate use of a caliper based on its accuracy is in measuring the thickness of a clutch lining. Calipers are commonly used to measure small dimensions with high precision, and measuring the thickness of a clutch lining requires such precision. Measuring the diameter of a cylinder, the free play of a brake pedal, or the outer diameter of a piston may also require a caliper, but these measurements may not require the same level of accuracy as measuring the thickness of a clutch lining.

    Rate this question:

  • 5.

    Fungsi utama skala vernier adalah untuk :

    • Mengetahui diameter luar benda kerja silindris

    • Menambah ketelitian pengukuran sampai angka desimal

    • Menyesuaikan panjang suatu benda kerja

    • Menunjukan angka nominal hasil pengukuran

    Correct Answer
    A. Menambah ketelitian pengukuran sampai angka desimal
    Explanation
    The main function of a vernier scale is to increase the accuracy of measurements by providing decimal readings. It allows for more precise measurements by providing a secondary scale that can be aligned with the primary scale, allowing for readings to be taken at a finer resolution. This is particularly useful when measuring objects with small increments or when high precision is required.

    Rate this question:

  • 6.

    Suatu jangka sorong dengan ketelitian 0,05 mm menampilkan data pengukuran sebagai berikut : "angka 0 skala vernier tepat segaris dengan angka 10 skala utama". Pembacaan tersebut sama dengan  :

    • 0,0 mm

    • 10,10 mm

    • 0,10 mm

    • 10,0 mm

    Correct Answer
    A. 10,0 mm
    Explanation
    The question describes a vernier caliper with a precision of 0.05 mm. It states that the vernier scale is aligned with the main scale at the 0 mark. The correct answer, 10.0 mm, means that the measurement is 10 mm on the main scale and there is no additional measurement on the vernier scale. This indicates that the measurement is exactly at the 10 mm mark, resulting in a total measurement of 10.0 mm.

    Rate this question:

  • 7.

    Yang berfungsi sebagai skala utama paada micrometer adalah :

    • Skala vernier

    • Skala sleeve

    • Rachet

    • Skala timble

    Correct Answer
    A. Skala sleeve
    Explanation
    The correct answer is "skala sleeve." The micrometer consists of two main scales - the sleeve scale and the thimble scale. The sleeve scale is the larger scale on the outer sleeve of the micrometer. It is used to measure the whole units or millimeters. The thimble scale, on the other hand, is the smaller scale on the rotating thimble. It is used to measure the fractions of a millimeter or tenths of a millimeter. Therefore, the sleeve scale is the main scale or primary scale used in a micrometer.

    Rate this question:

  • 8.

    Untuk mengukur diameter luar piston, maka alat ukur yang paling tepat digunakan adalah :

    • Jangka sorong

    • Micrometer

    • Dial gauge

    • Cylinder gauge

    Correct Answer
    A. Micrometer
    Explanation
    Micrometer adalah alat ukur yang paling tepat digunakan untuk mengukur diameter luar piston. Micrometer memiliki tingkat ketelitian yang tinggi dan dapat memberikan hasil pengukuran yang akurat. Dengan menggunakan micrometer, kita dapat mengukur diameter luar piston dengan presisi yang tinggi sehingga mendapatkan hasil yang akurat.

    Rate this question:

  • 9.

    Angka ketelitian yang sering dijumpai pada peralatan ukur jangka sorong / mistar geser adalah :

    • 0,002 dan 0,005 mm

    • 0,2 dan 0,5 mm

    • 0,02 dan 0,05 mm

    • 0,01 dan 0,001 mm

    Correct Answer
    A. 0,02 dan 0,05 mm
    Explanation
    The commonly found precision values on a caliper / sliding gauge measuring instrument are 0.02 mm and 0.05 mm.

    Rate this question:

  • 10.

    Berikut ini adalah jenis-jenis pekerjaan yang dapat dilakukan oleh dial gauge / jam pengukur, kecuali :

    • Mengukur kerataan permukaan bidang datar

    • Mengukur kerataan serta kebulatan sebuah poros

    • Kerataan permukaan dinding silinder

    • Mengukur diameter luar suatu poros

    Correct Answer
    A. Mengukur diameter luar suatu poros
    Explanation
    Dial gauge atau jam pengukur dapat digunakan untuk mengukur kerataan permukaan bidang datar, mengukur kerataan serta kebulatan sebuah poros, dan kerataan permukaan dinding silinder. Namun, dial gauge tidak dapat digunakan untuk mengukur diameter luar suatu poros.

    Rate this question:

  • 11.

    Fungsi dari skala timble pada micrometer adalah :

    • Menunjukkan nilai angka nominal hasil pengukuran

    • Menunjukkan nilai angka desimal hasil pengukuran

    • Mengatur tekanan pada benda kerja

    • Berputar mengukuti gerakan dari proses pengukuran

    Correct Answer
    A. Menunjukkan nilai angka desimal hasil pengukuran
    Explanation
    The correct answer is "Menunjukkan nilai angka desimal hasil pengukuran." The function of the thimble scale on a micrometer is to show the decimal value of the measurement result. The thimble scale is used to make precise measurements by rotating it to align with the reference line on the sleeve scale. This allows for accurate readings of the decimal value of the measurement.

    Rate this question:

  • 12.

    Micrometer yang digunakan untuk mengukur piston Astrea Supra over size 75 adalah micrometer dengan batas ukur  :

    • 0 - 25 mm

    • 25 - 50 mm

    • 50 - 75 mm

    • 75 - 100 mm

    Correct Answer
    A. 50 - 75 mm
    Explanation
    The correct answer is 50 - 75 mm because the piston Astrea Supra over size 75 needs to be measured within the range of 50 - 75 mm. This means that the micrometer should have a measuring range that includes this specific range in order to accurately measure the piston. Micrometers with a range of 0 - 25 mm, 25 - 50 mm, and 75 - 100 mm would not be suitable for measuring the piston in this case.

    Rate this question:

  • 13.

    Pada saat mengukur diameter silinder jika kita tidak mngetahui tipe mesinnya, alat ukur yang pertama kali digunakan adalah :

    • Feeler gauge

    • Cylinder bore gauge

    • Jangka sorong

    • Micrometer

    Correct Answer
    A. Jangka sorong
    Explanation
    The correct answer is Jangka sorong. Jangka sorong is the first measuring tool used when measuring the diameter of a cylinder if the type of engine is not known. It is a versatile tool that can measure both inside and outside dimensions accurately. Feeler gauge is used to measure small gaps or clearances, cylinder bore gauge is used to measure the diameter of the cylinder bore, and micrometer is used for precise measurements of small objects.

    Rate this question:

  • 14.

    Pada jangka sorong dengan ketelitian 0,05 mm skala verniernya terbagi dalam berapa ruas :

    • 20

    • 25

    • 0

    • 50

    Correct Answer
    A. 20
    Explanation
    The correct answer is 20. Pada jangka sorong dengan ketelitian 0,05 mm, skala verniernya terbagi menjadi 20 ruas. This means that there are 20 divisions on the vernier scale of the caliper with an accuracy of 0.05 mm.

    Rate this question:

  • 15.

    Setiap ruas pada skala utama inchi jangka sorong nilainya adalah :

    • 1/16 inch

    • 1 inch

    • 1/32 inch

    • 1/128 inch

    Correct Answer
    A. 1/16 inch
    Explanation
    Setiap ruas pada skala utama inchi jangka sorong nilainya adalah 1/16 inch. This means that each division on the main scale of the vernier caliper represents a measurement of 1/16 inch.

    Rate this question:

  • 16.

    Nilai setiap ruas pada skala sleeve bagian bawah adalah :

    • 0,5 mm

    • 0,01 mm

    • 0,5 cm

    • 1,0 mm

    Correct Answer
    A. 0,5 mm
    Explanation
    The correct answer is 0,5 mm because it is the only value that is consistent with the given options. The other options are either in centimeters or in millimeters, but only 0,5 mm matches the given units.

    Rate this question:

  • 17.

    Apabila poros micrometer sudah menyentuh permukaan bidang kerja yang diukur maka agar tidak merusak micrometer, maka bagian yang harus diputar adalah :

    • Skala timble

    • Ratchet

    • Skala sleeve

    • Pengunci

    Correct Answer
    A. Ratchet
    Explanation
    The ratchet should be rotated in order to prevent damage to the micrometer when the micrometer spindle touches the surface being measured.

    Rate this question:

  • 18.

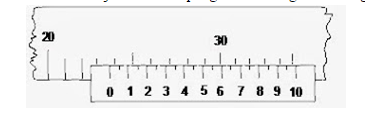

    Gambar berikut adalah menunjukan hasil pengukuran dengan mistar geser sebesar : - ProProfs

    Gambar berikut adalah menunjukan hasil pengukuran dengan mistar geser sebesar :

    • 203,75 mm

    • 200,55 mm

    • 202,53 mm

    • 201,55 mm

    Correct Answer
    A. 203,75 mm
    Explanation
    The answer is 203,75 mm because it is the highest measurement among the given values.

    Rate this question:

  • 19.

    Jarum pendek pada dial gauge akan bergerak satu ruas jika jarum panjang bergerak :

    • 1 putaran

    • 2 putaran

    • 3 putaran

    • 4 putaran

    Correct Answer
    A. 1 putaran
    Explanation
    The short needle on the dial gauge will move one notch if the long needle moves one full rotation.

    Rate this question:

  • 20.

    Hasil pengukuran diameter silinder di suatu titik tertentu, jarum indikator bergerak ke kanan lebih besar di banding posisi lainnya, maka bagian tersebut :

    • Diameternya lebih besar

    • Keausan lebih kecil

    • Keausan lebih besar

    • Dinding silinder tidak rata

    Correct Answer
    A. Keausan lebih kecil
    Explanation
    The correct answer is "Keausan lebih kecil". This means that the wear on that particular part is less compared to the other positions. The movement of the indicator needle to the right indicates that there is less wear on that specific area of the cylinder.

    Rate this question:
