CCNA 2 - Chapitre 3

The sentence states that during the establishment and updating of a larger network, it is observed that routing is easier to configure than static routing. The word "dynamique" (dynamic) is the correct answer as it refers to dynamic routing protocols which automatically adjust and update routing tables based on network changes. This contrasts with static routing, where routes are manually configured and do not adapt to network changes.

A network route with a subnet mask smaller than its classful equivalent is called a supernet route. This means that the route covers a larger range of IP addresses than what would be expected based on its classful designation.

The letter "D" in the routing table entry indicates that the route source has been learned dynamically. This means that the router has learned about the network destination 172.16.4.0/24 from another router or through a dynamic routing protocol, rather than being manually configured.

The correct answer is "Route apprise dynamiquement par le protocole de routage EIGRP." The question is asking about the type of routing table entry indicated by the code D. In routing tables, the code D typically represents a route that has been dynamically learned by a routing protocol such as EIGRP. This means that the route has been automatically added to the routing table based on information exchanged between routers using the EIGRP protocol.

Based on the given information, the correct answer is 120. The question is asking for the administrative distance of the route for router R1 to reach the destination IPv6 address 2001:DB8:CAFE:4::A. Administrative distance is a metric used in routing protocols to determine the reliability or trustworthiness of a route. The lower the administrative distance, the more reliable or preferred the route is. Therefore, a value of 120 indicates that the route is highly reliable and preferred by router R1 to reach the destination IPv6 address.

Serial 0/0/1 est utilisé pour transférer un paquet de données avec l'adresse IP de destination 172.16.0.66.

Les protocoles de routage dynamique sont responsables de la détection du réseau et de la mise à jour et de la maintenance des tables de routage. Ils permettent de découvrir les réseaux disponibles et de trouver les meilleures routes pour acheminer les paquets de données. L'attribution d'adresses IP, la détection des hôtes et la propagation des passerelles par défaut du host ne sont pas des tâches effectuées par les protocoles de routage dynamique.

Il est préférable d'utiliser un protocole de routage dynamique au lieu du routage statique sur un réseau où de nombreuses modifications de la topologie ont été effectuées. Les protocoles de routage dynamique sont capables de s'adapter aux changements de la topologie du réseau en mettant à jour automatiquement les tables de routage. Cela permet d'assurer une connectivité continue et une efficacité optimale du réseau, même en cas de modifications fréquentes de la configuration du réseau.

Dans certains cas, il est préférable d'utiliser le routage statique au lieu des protocoles de routage dynamique lorsque les mises à jour dynamiques génèrent un risque de sécurité. Cela peut être dû à des vulnérabilités potentielles dans les protocoles de routage dynamique qui pourraient être exploitées par des attaquants. En utilisant le routage statique, les mises à jour de routage ne sont pas envoyées automatiquement, ce qui réduit le risque de compromettre la sécurité du réseau.

RIP (Routing Information Protocol) is a routing protocol that is limited to implementing small networks due to its inadequacy in large networks. RIP uses a simple metric, hop count, to determine the best path for routing packets. However, this metric does not take into account factors such as network congestion or link speed, which can lead to inefficient routing decisions in large networks with complex topologies. Therefore, RIP is not suitable for large-scale networks and is more commonly used in small, simple networks.

La commande "auto-summary" permet à un routeur RIPv2 de regrouper automatiquement plusieurs sous-réseaux directement connectés dans une seule instruction réseau. Cela facilite la gestion et le routage des sous-réseaux en utilisant une seule entrée dans la table de routage RIPv2.

Les protocoles de routage dynamique ont pour fonction de mettre à jour les tables de routage, ce qui permet aux routeurs de connaître les chemins les plus efficaces pour acheminer les paquets de données. Ils permettent également de détecter les réseaux, en identifiant les routeurs voisins et en échangeant des informations sur les réseaux disponibles.

The correct answer is C and L. When a router interface is configured with an IP address and activated, two source codes are automatically created in a routing table. The "C" code represents directly connected networks, which are the networks directly connected to the router's interfaces. The "L" code represents local routes, which are the routes to the router's own IP addresses.

The reason for the failure is that RIPv2 is misconfigured on the router R2. This misconfiguration prevents the successful exchange of ping requests between the hosts H1 and H2 and also prevents the ping requests from reaching the server.

not-available-via-ai

The objective of classifying the entries of the IP Cisco routing table in terms of best route, level 1 route, level 1 parent route, and level 2 child routes is to explain the functioning of the hierarchical structure of the routing table. This classification helps in organizing the routing information in a hierarchical manner, allowing for efficient routing decision-making. By understanding the hierarchical structure, network administrators can better comprehend the relationships between different routes and optimize the routing process.

Une adresse réseau avec un masque de sous-réseau inférieur à son équivalent classful indique qu'il s'agit d'une adresse réseau qui couvre une plage d'adresses plus large que ce qui est normalement attribué à cette classe de réseau. Cela signifie que cette adresse réseau est une adresse de super-réseau, car elle englobe plusieurs adresses de réseau classful.

The inconvenience of using dynamic routing protocols is that they send unsecured messages by default regarding the state of the network. This means that sensitive information about the network's configuration and topology can be intercepted and accessed by unauthorized individuals. This lack of security can pose a significant risk to the overall network's integrity and confidentiality.

When an interface of a router is activated and configured with an IP address, a directly connected route is automatically created for that IP address. In this case, the answer states that the route for the network 192.168.0.0/24 is directly connected to the router's interface F0/0. This means that any traffic destined for the 192.168.0.0/24 network will be sent directly through the F0/0 interface without needing to be routed through any other devices.

BGP (Border Gateway Protocol) is the correct answer because it is a protocol specifically designed for interconnecting different Internet Service Providers (ISPs). BGP allows ISPs to exchange routing information and determine the best path for data to flow between networks. It is commonly used in large-scale networks where multiple ISPs are involved, enabling efficient and reliable routing across different providers. OSPF, EIGRP, and RIP are also routing protocols, but they are typically used within a single autonomous system (AS) and not specifically designed for interconnecting different ISPs.

When the command "network 192.168.10.0" is entered in router configuration mode while configuring RIPv2 on an enterprise network, the interface of the network 192.168.10.0 will only send updates of version 2.

The correct answer is "O 10.1.1.0/24 [110/65] via 192.168.200.2, 00:01:20, Serial0/1/0". This is because the route with the prefix 10.1.1.0/24 is the most specific route for the destination IP address 10.1.1.1. The route is learned through OSPF (O) with a metric of 110/65 and it is reachable via the next hop IP address 192.168.200.2 through the interface Serial0/1/0.

The correct answer is: It allows a router to receive routing updates on an interface, but not to send updates through that interface. This means that the router can still receive information about network changes from other routers, but it will not actively participate in the routing process by advertising its own updates through that specific interface.

IPv6 is designed to be classless, meaning that there are no predefined classes of IP addresses like in IPv4. This allows for more efficient routing and the ability to allocate addresses more flexibly. In IPv6, all routes are considered to be the best level 1 routes, as there is no concept of classful routing or different levels of routes based on their class. This is different from IPv4, where routes can be classified into different levels (e.g., level 1, level 2, etc.) based on their class.

The best route for a packet with a destination address of 10.16.0.2 is "S 10.16.0.0/24 [1/0] via 192.168.0.9". This is because it has the most specific destination address match (10.16.0.0/24) compared to the other routes. The "via 192.168.0.9" indicates that the packet should be forwarded to the next hop router with the IP address 192.168.0.9.

Les protocoles mentionnés sont utilisés pour faciliter l'échange dynamique d'informations de routage entre les routeurs. Ils permettent aux routeurs de partager les informations sur les différentes routes disponibles et de mettre à jour ces informations en temps réel. Cela permet d'optimiser le processus de routage en assurant que les routeurs disposent des informations les plus récentes sur les chemins disponibles pour acheminer les données.

The correct answer is "Utiliser la commande default-information originate". This command is used to automatically share the default route in the RIP protocol. By using this command, the router will advertise the default route to other routers in the RIP domain. This allows all routers in the network to know about the default route and use it as a gateway of last resort.

Une fois que le routeur identifie une adresse IPv6 de destination et localise une route réseau correspondante de niveau 1, il transmet le paquet. Cela signifie que le routeur envoie le paquet vers le prochain saut sur le réseau afin de le faire avancer vers sa destination finale.

Once the router identifies a destination IP address and locates a corresponding level 1 parent route, the next step in the search process is to examine the level 2 child routes. This means that the router will check the sub-routes or more specific routes within the level 1 route to find the best match for the destination IP address.

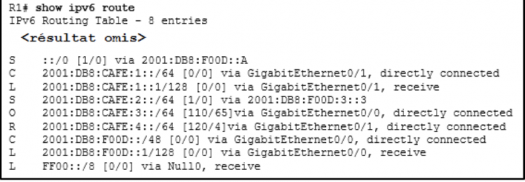

The correct answer is R because it indicates that the route for transferring the packet with the source IPv6 address 2001:DB8:F00D:1::1 and the destination IPv6 address 2001:DB8:CAFE:2::1 is through the network 2001:DB8:CAFE:2::/64. The next hop for this route is FE80::201:84FF:FEAC:8501, and the interface used for the transfer is GigabitEthernet0/0. The metric value of 120/3 indicates the cost and reliability of this route.

The correct answer is "La route contient une adresse IP de tronçon suivant" (The route contains a next hop IP address) and "La route contient une interface de sortie" (The route contains an output interface). These requirements determine whether a route can be considered as the final route in a router's routing table. The next hop IP address specifies the next router or destination for the packet, while the output interface determines the physical interface through which the packet will be sent.

The correct answer is "une route finale utilisant l'adresse IP de troncon suivant sur un routeur qui n'utilise pas le protocole CEF." This means that a final route using the next hop IP address on a router that does not use the CEF protocol requires the router to perform a recursive lookup. This suggests that the router needs to search for the next hop IP address in order to determine the appropriate path for forwarding the packet.

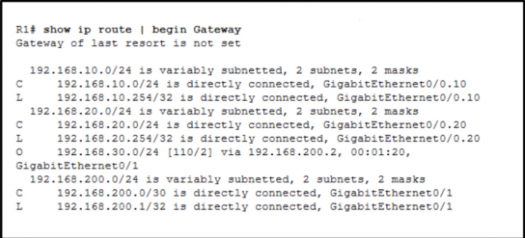

The correct answer is "Meilleure route, route enfant de niveau 2". The term "meilleure route" refers to the best route available for reaching a particular destination. In this case, it means that the route 192.168.200.0/30 is the most optimal route for reaching its destination. The term "route enfant de niveau 2" means that this route is a second-level child route, indicating that it is a more specific route within a larger network.

Based on the partial output of the "show ip route" command, we can conclude that the neighbor router using RIP has used the "no auto-summary" command, which means that it is not summarizing routes automatically. Additionally, the output also indicates that the RIP version 2 protocol is functioning on both this router and its neighbor using RIP.

The correct answer is "une route 192.168.14.0/26 associee au protocole RIP". This means that the router will use a route with a subnet mask of /26 (255.255.255.192) associated with the RIP routing protocol to transmit the traffic to the network 192.168.14.0.

The correct answer is "Elle definit les interfaces qui appartiennent a un reseau specifique." This means that the network command is used to specify which interfaces belong to a specific network when configuring the RIPv2 routing protocol.

The correct answer is "Ils envoient des informations sur les masques de sous-réseau dans les mises à jour de routage" and "Ils permettent l'accès aux sous-réseaux 192.168.1.0/30 et 192.168.1.16/28 dans la même topologie." This means that classless routing protocols include information about subnet masks in their routing updates and allow access to the specified subnets in the same topology. These protocols do not reduce the available addressing space in an enterprise and are not supported by RIP version 1.
