CCNA 2 - Chapitre 1

When a router receives a packet, it examines the destination address of the packet and looks in the routing table for the best path to use for transferring the packet.

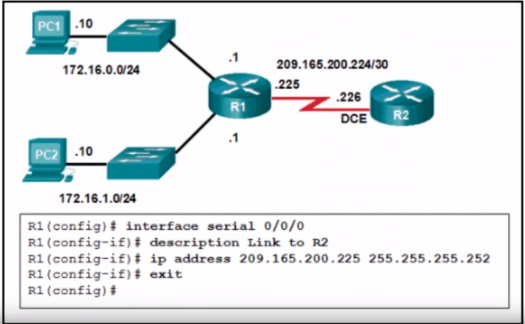

To activate the interface on R1, the "no shutdown" command should be executed on the serial interface. This command is used to enable the interface and bring it up, allowing it to send and receive data. By executing this command, the interface will become active and operational.

The possible cause of the problem is that the Fa0/0 interface on router R1 has not been activated. This means that the interface is not up and running, so it cannot establish a connection with the network. As a result, the routing table does not display the directly connected network.

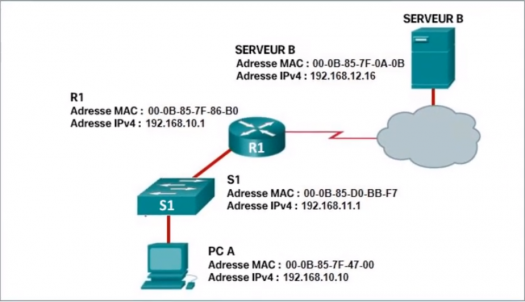

The correct answer is 192.168.12.16. This is the destination IP address used in the packet when it leaves PC A.

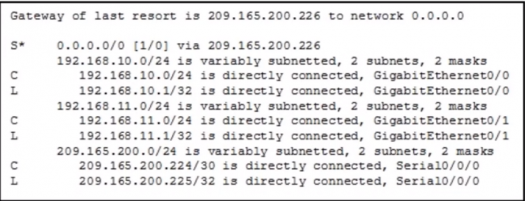

The value indicated by the "1" in the part [1/0] of the result represents the administrative distance. Administrative distance is a measure used by routers to determine the trustworthiness of routing information received from different sources. It is a numerical value assigned to each routing protocol, and the lower the value, the more trustworthy the routing information is considered to be. In this case, the value of "1" indicates that the route is directly connected and has the highest level of trustworthiness.

When a router discovers multiple available routes to reach a destination network using the same routing protocol, it considers the metric with the lowest value to determine the best path for transferring a packet. The metric represents the cost or distance associated with each route, and the router chooses the route with the lowest metric as it indicates the shortest or most efficient path.

The correct answer is D. In the routing table, the code "D" is used to identify the routes learned by the EIGRP (Enhanced Interior Gateway Routing Protocol) protocol.

To ensure that packets are sent to a remote destination, three pieces of information need to be configured on a host: the default gateway, the IP address, and the subnet mask. The default gateway is the IP address of the router that connects the host to other networks. The IP address is the unique identifier assigned to the host on the network. The subnet mask is used to determine the network portion of an IP address. These three pieces of information are essential for the host to correctly route packets to the intended destination.

The correct answer is "un réseau connecté directement". This means that the route associated with the shortest administrative distance is a directly connected network. In networking, administrative distance is a measure of the trustworthiness of a particular routing protocol. A directly connected network has an administrative distance of 0, which means it is the most trusted and preferred route.

Routers are necessary in a network to transfer network traffic to remote networks. Routers are responsible for forwarding data packets between different networks, ensuring that the data reaches its intended destination. They connect different networks together and enable communication between devices on different networks.

La fonction de passerelle de dernier recours sur un routeur Cisco permet de transférer du trafic qui ne dispose pas d'une route spécifique. Lorsque le routeur ne trouve pas de route correspondante pour un paquet, il utilise la passerelle de dernier recours pour déterminer où envoyer le trafic. Cela permet d'acheminer les paquets vers une destination par défaut lorsque aucune autre route n'est disponible.

The initial configuration is stored in NVRAM (Non-Volatile Random Access Memory). NVRAM is a type of memory that retains its contents even when the power is turned off. It is commonly used to store the startup configuration of networking devices, such as routers and switches. This allows the device to maintain its configuration settings even after a reboot or power outage. Flash memory, RAM, and ROM are other types of memory used in networking devices, but they do not typically store the initial configuration.

The correct answer is "::/0". This is the IPv6 notation for the default route, which means that any destination that does not match a more specific route will be sent to this default route. The "::" represents all zeros in the address, and the "/0" indicates that the prefix length is 0, meaning that the entire address is considered part of the prefix. This is commonly used in IPv6 routing to ensure that all traffic not matching any other route is sent to the default route.

A routing protocol serves the purpose of allowing a router to share information about known networks with other routers. This enables routers to exchange routing information and make informed decisions about the best path to forward data packets. By sharing this information, routers can efficiently and accurately route traffic across a network, ensuring that data reaches its intended destination.

Creating a console password would have been the best action to better protect the switch. This password would prevent unauthorized access to the switch's console port, adding an extra layer of security.

La configuration de la commande "ipv6 unicast-routing" active le routeur en tant que routeur IPv6. Cela signifie que le routeur sera capable de router les paquets IPv6 entre les différents réseaux.

The objective of wearing the router represented is to configure the router.

Cisco Express Forwarding (CEF) is a method of packet forwarding used by routers. It uses a forwarding information base (FIB) and adjacency table to make switching decisions. CEF builds a table of prefixes and their corresponding next-hop addresses, allowing for efficient packet forwarding. It is a high-performance forwarding method that improves the speed and efficiency of packet switching in Cisco routers.

The correct answer choices explain the concepts of administrative distance and metric accurately. The first choice states that the best path is indicated by routes with the smallest metric towards a destination, which aligns with the concept of metric. The fourth choice mentions that the metric varies depending on the layer 3 routing protocol, such as IP, which is also correct. The second choice, stating that the metric always depends on the number of hops, is incorrect as the metric can be based on various factors, not just the number of hops. The third choice, stating that administrative distance relates to the reliability of a given route, is correct. The fifth choice, stating that a network administrator cannot modify the value of administrative distance, is incorrect as administrative distance can be manually adjusted by the administrator. The sixth choice, stating that a router initially installs routes with higher administrative distances, is correct.

The correct answer is "Il envoie le paquet a s0/0/0." This means that the router will send the packet to the interface s0/0/0.

The correct answers are "Elles requièrent une reconfiguration manuelle pour prendre en compte les modifications apportées au réseau" (They require manual reconfiguration to take into account the changes made to the network) and "Elles sont identifiées par le préfixe suivant dans la table de routage : S" (They are identified by the following prefix in the routing table: S). These statements describe static routes because they require manual configuration and do not automatically update when interfaces are reconfigured or closed. They are also identified by the prefix "S" in the routing table.

An IPv4 loopback interface on a Cisco IOS router is a logical internal interface. It is not associated with any physical port and cannot be connected to other devices. It is used for internal testing, troubleshooting, and management purposes. It is always active and does not require the "no shutdown" command to be configured.

A router determines the best path to send packets and connects multiple IP networks.

During the encapsulation process, the PC determines if the packet is destined for a host on a remote network by performing a logical AND operation on the destination IP address and its own subnet mask. This operation allows the PC to compare the network portion of the destination IP address with its own network address. If the result of the AND operation matches the PC's network address, then the packet is destined for a host on the local network. If the result does not match, then the packet is destined for a host on a remote network and will be forwarded accordingly.

Lorsqu'une opération AND est effectuée pour déterminer si une adresse de destination se trouve sur le même réseau local, les éléments utilisés par un périphérique hôte sont l'adresse IP de destination et le masque de sous-réseau. L'adresse IP de destination est utilisée pour identifier l'adresse spécifique vers laquelle les données sont envoyées, tandis que le masque de sous-réseau est utilisé pour déterminer la portée du réseau local. En faisant un AND logique entre l'adresse IP de destination et le masque de sous-réseau, le périphérique hôte peut déterminer si l'adresse de destination appartient au même réseau local.

The correct answer is "une route statique ver un reseau donne" and "une route statique par defaut." These two types of static routes are commonly found in routing tables. "Une route statique ver un reseau donne" refers to a static route that is manually configured to a specific network. "Une route statique par defaut" is a default static route that is used when no other routes match the destination. These static routes are manually configured and do not rely on dynamic routing protocols.

This command "ip route 0.0.0.0 209.165.200.226" is used to provide a route for transferring packets for which there is no existing route in the routing table. It sets the default route, which means that any packet for which there is no specific route will be forwarded to the device with the IP address 209.165.200.226.

The first statement is incorrect because routers install routes with lower administrative distances, not higher. The second statement is correct as it states that the administrative distance refers to the reliability of a given route. The third statement is incorrect because network administrators can modify the value of the administrative distance. The fourth statement is incorrect as the measure depends on the routing of the layer 3 protocol, not the layer 2 protocol. The fifth statement is incorrect as the measure does not always depend on the number of hops. The sixth statement is correct as the best path is indicated by routes with the smallest measure to a destination.

An administrator uses a terminal emulation client software to secure the initial configuration of a router. This software allows the administrator to remotely access and configure the router using a command-line interface. By using a terminal emulation client, the administrator can establish a secure and encrypted connection to the router, ensuring that the configuration process is protected from unauthorized access or interception.

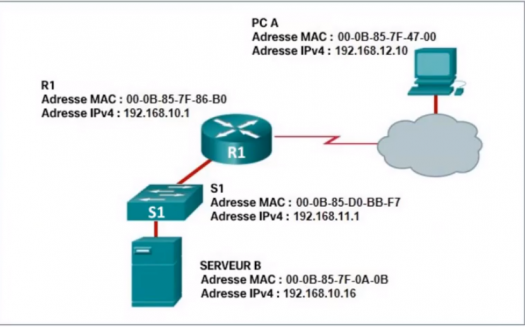

If the destination MAC address corresponding to the IPv4 address is not in the ARP cache, R1 will send an ARP request. This means that if R1 does not have the MAC address of the server B in its ARP cache, it will send an ARP request to find the MAC address of the server B before transferring the data.

Une passerelle de dernier recours est l'adresse IP d'un autre routeur vers lequel les paquets sont envoyés lorsque toutes les autres routes ont échoué. C'est une option de sauvegarde utilisée lorsque le routeur par défaut n'est pas disponible ou ne peut pas acheminer les paquets correctement.

The parameters used by the EIGRP protocol to measure the selection of the optimal path to reach a network are delay and bandwidth. The delay parameter represents the time taken for a packet to traverse a link, while the bandwidth parameter represents the capacity of the link to handle data. By considering both delay and bandwidth, EIGRP can determine the most efficient path with the least delay and highest bandwidth to reach a network.

When PC1 sends a packet to PC2 and routing is configured between the two routers, R1 removes the Ethernet header and configures a new Layer 2 header before sending it to s0/0/0. This is because the router needs to replace the original Ethernet header with its own header in order to properly route the packet to the correct destination.

not-available-via-ai

L'équilibrage de la charge permet à un routeur de transférer des paquets sur plusieurs chemins vers le même réseau de destination. Cela signifie que le routeur peut répartir la charge du trafic sur différents chemins pour éviter la congestion et améliorer les performances du réseau. De plus, le protocole EIGRP prend en charge l'équilibrage de la charge à coût inégal, ce qui signifie qu'il peut répartir la charge de manière intelligente en tenant compte des mesures de coût des différents chemins disponibles.

The given correct answer states that it is the interface on R1 used to send data destined for the network 10.1.1.0/24. This means that when the destination IP address is associated with the network 10.1.1.0/24, R1 will use this interface to forward the data.

The command "show ip interface brief" displays two types of information: IP addresses and layer 1 statuses. It does not show MAC addresses, next-hop addresses, speed and duplex mode settings, interface descriptions, or any other information.

La mémoire ROM contient les diagnostics exécutés sur les modules physiques, ce qui signifie qu'elle stocke les informations nécessaires pour effectuer des tests et des vérifications sur les différents composants matériels du routeur. La mémoire Flash, quant à elle, conserve son contenu même en cas de redémarrage du routeur, ce qui permet de conserver les fichiers système et les commandes de démarrage nécessaires pour le fonctionnement du routeur.

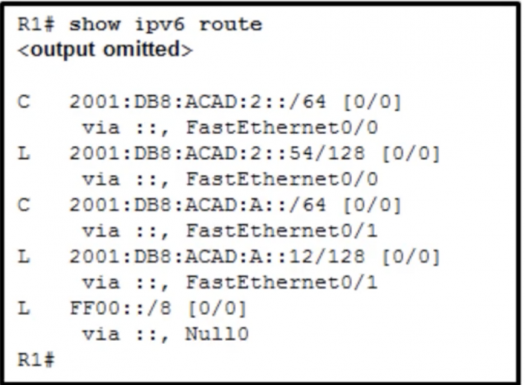

From the given options, we can conclude that R1 does not have any route to a remote network and the interface Fa0/1 is configured with the IPv6 address 2001:DB8:ACAD:A::12.
