Quiz- GoF Design Patterns (IV)

  • IEEE
  • ACM
Reviewed by Editorial Team
The ProProfs editorial team is comprised of experienced subject matter experts. They've collectively created over 10,000 quizzes and lessons, serving over 100 million users. Our team includes in-house content moderators and subject matter experts, as well as a global network of rigorously trained contributors. All adhere to our comprehensive editorial guidelines, ensuring the delivery of high-quality content.
Learn about Our Editorial Process
| By Sarvesh
S
Sarvesh
Community Contributor
Quizzes Created: 9 | Total Attempts: 72,285
| Attempts: 1,460 | Questions: 10
Please wait...
Question 1 / 10
0 %
0/100
Score 0/100

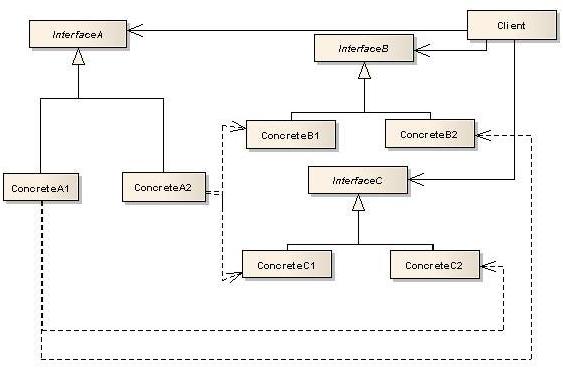

1. Identify the Creational pattern represented by following Diagram

Explanation

InterfaceA is AbstractFactory, ConcreteA1 is ConcreteFactory1, ConcreteA2 is ConcreteFactory2, InterfaceB is AbstractProductA and InterfaceC is AbstractProductB and so on

Submit
Please wait...
About This Quiz
Quiz- GoF Design Patterns (IV) - Quiz

The quiz test you knowledge about GoF design patterns as introduced in"Design Patterns" Element of Reusable Object Oriented Software.

Personalize your quiz and earn a certificate with your name on it!
2. Identify the Structural pattern represented by following Diagram

Explanation

InterfaceA is Target, ConcreteA is Adapter, ConcreteB is Adaptee

Submit
3. Identify the Behavioral pattern represented by following Diagram

Explanation

InterfaceA is Handler, ConcreteA1 is ConcreteHandler1, ConcreteA2 is ConcreteHandler2

Submit
4. Identify the Behavioral pattern represented by following Diagram

Explanation

InterfaceA is Subject, InterfaceB is Observer, ConcreteA is ConcreteSubject and ConcreteB is ConcreteObserver

Submit

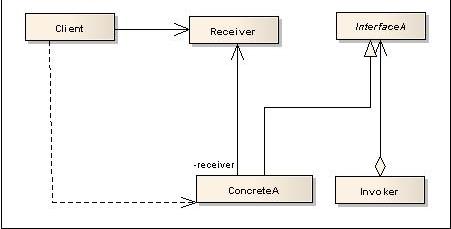

5. Identify the Behavioral pattern represented by following Diagram

Explanation

InterfaceA is Command and ConcreteA is ConcreteCommand

Submit
6. Identify the Creational pattern represented by following Diagram

Explanation

ClassB is Product, ClassA is Creator, ConcreteClassB is ConcreteProduct, ConcreteClassA is ConcreteCreator

Submit
7. Identify the Structural pattern represented by following Diagram

Explanation

InterfaceA is Subject, ConcreteA is RealSubject and ImplementA is Proxy

Submit

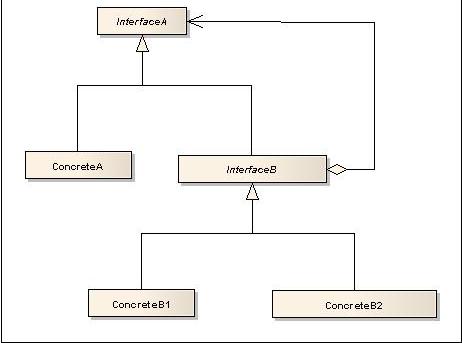

8. Identify the Structural pattern represented by following Diagram

Explanation

InterfaceA is Component, InterfaceB is Decorator, ConcreteA is ConcreteComponent, ComponentB1 is ConcreteDecoratorA and ComponentB2 is ConcreteDecoratorB

Submit
9. Identify the Behavioral pattern represented by following Diagram

Explanation

InterfaceA is Iterator, InterfaceB is Aggregate, ConcreteA is ConcreteIterator and ConcreteB is ConcreteAggregate

Submit
10. Identify the Creational pattern represented by following Diagram

Explanation

InterfaceA is Prototype, ConcreteA1 is ConcretePrototype1 and ConcreteA2 is ConcretePrototype2

Submit
