Soal Perbaikan Poros Penggerak Roda Kelas Xi Tkr

1. Komponen yang berfungsi untuk mengantisipasi perubahan sudut yang bervariasi adalah

slevee yoke

universal joint

axel

spindel

spider

The universal joint is a component that is designed to accommodate varying angles and changes in direction. It allows for the transmission of torque between two shafts that are not in a straight line with each other. This flexibility in movement helps to prevent damage to the drivetrain and allows for smooth operation even when the angle between the shafts changes. The other options listed, such as slevee yoke, axel, spindel, and spider, do not have the same capability to handle varying angles and changes in direction.

Explanation

The universal joint is a component that is designed to accommodate varying angles and changes in direction. It allows for the transmission of torque between two shafts that are not in a straight line with each other. This flexibility in movement helps to prevent damage to the drivetrain and allows for smooth operation even when the angle between the shafts changes. The other options listed, such as slevee yoke, axel, spindel, and spider, do not have the same capability to handle varying angles and changes in direction.

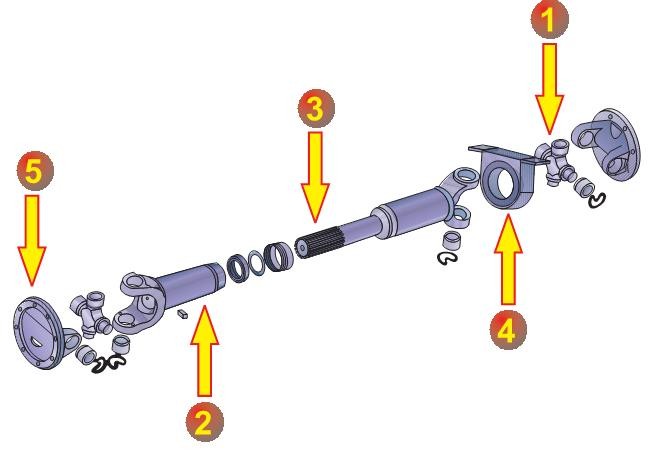

2. Komponen sambungan luncur,spider,pada gambar dibawah ditunjukkan pada nomor..

3,1

3,2

3,3

3,4

3,5

The correct answer is 3,1. The component shown in the picture is a sliding joint spider.

Explanation

The correct answer is 3,1. The component shown in the picture is a sliding joint spider.

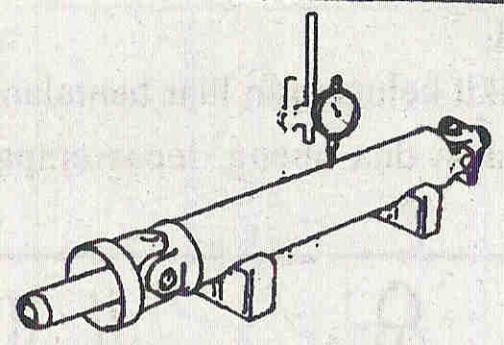

3. Pada gambar di samping merupakan pemeriksaan

kekocakan propeller shaft

kelonggaran propeller shaft

kebengkokan propeller shaft

kebengkokan universal joint

keolengan universal joint

The correct answer is "kebengkokan propeller shaft." This means that the picture shows an inspection of the bending of the propeller shaft.

Explanation

The correct answer is "kebengkokan propeller shaft." This means that the picture shows an inspection of the bending of the propeller shaft.

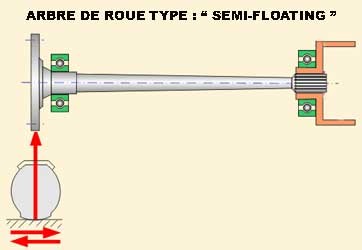

4.

Berikut pernyataan yang tepat pada poros axel tipe semi floating disamping

bantalan double sehingga kuat

bantalan pada poros sehingga beban tertumpu pada poros

bantalan pada axel sehingga beban tertumpu pada axel

poros terkunci bantalan

poros terpasang pada pinggir bantalan

The correct answer states that the bearing is located on the shaft, causing the load to be focused on the shaft. This means that the bearing supports the weight and forces applied to the shaft, ensuring its stability and strength.

Explanation

The correct answer states that the bearing is located on the shaft, causing the load to be focused on the shaft. This means that the bearing supports the weight and forces applied to the shaft, ensuring its stability and strength.

5. Berikut yang bukan merupakan pemeriksaan pada propeller shaft

kekocakan universal joint

kelonggaran niversal joint

sambungan luncur

keolengan universal joint

keoengan propeller shaft

The correct answer is "keolengan universal joint." The other options mentioned in the question are all inspections related to the propeller shaft, such as checking for looseness in the universal joint, checking for play in the universal joint, and checking the sliding connection. However, "keolengan universal joint" does not make sense and is not a valid inspection for the propeller shaft.

Explanation

The correct answer is "keolengan universal joint." The other options mentioned in the question are all inspections related to the propeller shaft, such as checking for looseness in the universal joint, checking for play in the universal joint, and checking the sliding connection. However, "keolengan universal joint" does not make sense and is not a valid inspection for the propeller shaft.
