1.
Optical fiber fusion splice adalah alat yang digunakan untuk...
Correct Answer
D. Menghubungkan antara core yang satu dengan core lainya
Explanation
The correct answer is "Menghubungkan antara core yang satu dengan core lainya" (Connecting one core to another core). Optical fiber fusion splice is a tool used to connect two optical fiber cores together. It involves melting the ends of the fibers and fusing them together to create a continuous optical path for the transmission of light signals. This process ensures a low-loss connection between the fibers, allowing for efficient and reliable communication through the optical fiber network.
2.
Berikut ini adalah kelebihan dari kabel fiber optik, Kecuali...
Correct Answer
E. Memiliki redaman transmisi yang besar
Explanation
The given answer states that "Memiliki redaman transmisi yang besar" (having high transmission loss) is not an advantage of fiber optic cables. This means that fiber optic cables do not have a large amount of signal loss during transmission. This is a key advantage of fiber optic cables as they can transmit data over long distances without significant loss of signal strength.
3.
Pemanfaatan serat optik pada sisem komunikasi data akan memberikan nilai tambah dari sutu teknologi berupa... Kecuali
Correct Answer
A. Biaya yang mahal
Explanation
The utilization of optical fibers in data communication systems provides several advantages, including high data transmission capacity, high speed, and accurate data reception. However, the one drawback is that it can be expensive.
4.
Pemandu gelombang optik dibentuk dari dua lapisan utama yaitu...
Correct Answer
B. Core dan Cladding
Explanation
Pemandu gelombang optik dibentuk dari dua lapisan utama yaitu core dan cladding. Core adalah bagian tengah dari serat optik yang memiliki indeks bias yang lebih tinggi daripada cladding. Core berfungsi untuk menghantarkan cahaya melalui serat optik. Cladding adalah lapisan luar yang mengelilingi core dan memiliki indeks bias yang lebih rendah. Cladding berfungsi untuk menjaga cahaya tetap terperangkap di dalam core dengan memantulkannya kembali ke dalam core saat mencoba keluar. Dengan adanya core dan cladding, serat optik dapat menghantarkan sinyal optik dengan efisien dan minim kehilangan sinyal.
5.
Kinerja suatu sistem komunikasi serat optik dapat ditinjau dari 4 komponen, kecuali...
Correct Answer
C. Jumlah redaman
Explanation
The performance of an optical fiber communication system can be evaluated based on four components: source transmitter, detector receiver, number of losses, and optical fiber cable. The number of losses refers to the amount of signal loss that occurs during transmission. Therefore, it is not included in the evaluation of the system's performance.
6.
Salah satu perlengkapan kabel serat optik yang berfungsi sebagai penghubung serat adalah...
Correct Answer
D. Konektor Serat Optik
Explanation
A fiber optic connector is a device used to connect fiber optic cables together. It allows for the transfer of light signals between two optical fibers with minimal loss of signal quality. The other options mentioned, such as coating, cladding, core, and micron, are all components of a fiber optic cable but do not serve the specific purpose of connecting fibers together. Therefore, the correct answer is "Konektor Serat Optik" (Fiber Optic Connector).
7.
Terdapat 2 tipe sumber pengiriman optik yag digunakan untuk mengirim cahaya informasi melalui serat optik yaitu...
Correct Answer
E. LED dan LD
Explanation
The correct answer is LED dan LD. LED stands for Light Emitting Diode, which is a type of semiconductor device that emits light when an electric current is applied to it. LD stands for Laser Diode, which is a type of semiconductor device that emits a highly coherent and focused beam of light. Both LED and LD are commonly used as optical sources in fiber optic communication systems.
8.
Berfungsi sebagai penerima dalam sistem komunikasi optik, adalah...
Correct Answer
A. Detektor Optik
Explanation
Detektor Optik berfungsi sebagai penerima dalam sistem komunikasi optik. Detektor ini bertugas untuk mendeteksi dan mengubah sinyal optik menjadi sinyal listrik yang dapat diproses oleh perangkat elektronik. Dengan demikian, detektor optik memainkan peran penting dalam mengirimkan informasi melalui serat optik dalam bentuk sinyal optik.
9.
Terdapat dua tipe detektor optik yaitu...
Correct Answer
B. PIN dan APD
Explanation
The correct answer is PIN dan APD. PIN (Positive-Intrinsic-Negative) dan APD (Avalanche Photodiode) adalah dua tipe detektor optik yang umum digunakan. PIN digunakan untuk mendeteksi intensitas cahaya yang rendah, sedangkan APD digunakan untuk mendeteksi intensitas cahaya yang tinggi. Keduanya memiliki perbedaan dalam mekanisme deteksi dan karakteristik kinerja, sehingga digunakan sesuai dengan kebutuhan aplikasi optik yang berbeda.
10.
Jenis kabel jaringan FO yang memiliki inti yang relatif kecil dengan diameter sekitar 0.00035 inch atau 9 micron adalah...
Correct Answer
A. Single Mode
Explanation
The correct answer is Single Mode. Single mode fiber optic cables have a small core diameter of around 0.00035 inch or 9 micron. This allows for a single mode of light to propagate through the cable, resulting in a higher bandwidth and longer transmission distances compared to multi-mode fibers.
11.
Berikut ini merupakan keunggulan kabel serat optik, Kecuali...
Correct Answer
B. Konstruksi serat optik lemah dan Rentan
Explanation
The given answer states that "Konstruksi serat optik lemah dan Rentan" (Optical fiber construction is weak and vulnerable) is not an advantage of optical fiber cables. This is because optical fiber cables are known for their strength and durability. They are made of materials that can withstand harsh environments, such as extreme temperatures and moisture. Additionally, optical fiber cables are resistant to electromagnetic interference and can transmit data over long distances without signal loss. Therefore, the statement that optical fiber construction is weak and vulnerable is incorrect.
12.
Berikut kekurangan kabel serat optik, kecuali....
Correct Answer
C. Crosstalk rendah
Explanation
The given options describe the disadvantages of optical fiber cables, except for "crosstalk rendah." This means that one of the advantages of optical fiber cables is that they have low crosstalk. Crosstalk refers to the interference or signal leakage between adjacent cables or channels. In optical fiber cables, the signals are transmitted using light, which minimizes the chances of crosstalk occurring. Therefore, the correct answer is "crosstalk rendah."
13.
Kabel yang memiliki karakteristik indeks bias core konstan adalah...
Correct Answer
B. Multi mode step index
Explanation
The correct answer is Multi mode step index. Multi mode step index cables have a constant refractive index throughout the core, which allows multiple modes of light to propagate through the cable. This type of cable is commonly used for short-distance communication applications, as it allows for higher bandwidth and faster data transmission compared to single mode cables.
14.
Kabel yang memiliki saluran transmisi atau sejenis kabel yang terbuat dari kaca atau plastikyang sangat halus dan lebih kecil dari sehelai rambut dan dapat digunakan untukmentransmisikan sinyal cahaya dari suatu tempat ke tempat lain.
Correct Answer
D. Serat Optik
Explanation
The correct answer is "Serat Optik" because it is the only option that fits the description provided in the question. Serat Optik refers to a cable made of glass or plastic that is very thin and smaller than a hair strand. It is used to transmit light signals from one place to another. The other options mentioned (Multi mode step index, Single Mode Step Index, Coaxial, Multi mode graded index) do not match the given description.
15.

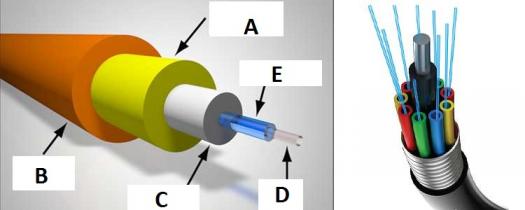

"B" merupakan bagian yang bernama...
Correct Answer
C. Outer Jacket
Explanation
The correct answer is "Outer Jacket". The outer jacket is a protective layer that surrounds the core, cladding, and other components of a cable or wire. It provides additional insulation and protection against environmental factors such as moisture, abrasion, and impact. The outer jacket also helps to maintain the structural integrity of the cable and prevents damage to the inner components.
16.
Ukuran Core yang jauh leih kecil dari cladding-nya dibuat demikian agar rugi-rugi transmisi berkurang akibat Fading, merupakan ciri khas dari kabel...
Correct Answer
B. Single Mode Step Index
Explanation
The given correct answer is "Single Mode Step Index". In single mode step index cables, the core size is significantly smaller than the cladding size. This design reduces transmission losses caused by fading. Fading occurs when different paths of light rays within the cable arrive at different times, causing interference and signal degradation. By having a smaller core size, the single mode step index cable minimizes the number of light paths, resulting in less fading and improved transmission quality.
17.
Single mode step index memiliki karakteristik sebagai berikut; Kecuali...
Correct Answer
A. Banyak terjadi dispersi
Explanation
Single mode step index fibers memiliki karakteristik sebagai berikut: memiliki diameter yang sangat kecil jika dibandingkan dengan Cladding nya, memiliki redaman yang sangat kecil, dan digunakan untuk transmisi data dengan bit rate tinggi. Oleh karena itu, jawaban yang benar adalah "Banyak terjadi dispersi" karena single mode step index fibers memiliki dispersi yang rendah, sehingga tidak banyak terjadi dispersi dalam transmisi data.
18.
Multi mode step index digunakan untuk transmisi jarak....
Correct Answer
A. Pendek
Explanation
Multi mode step index digunakan untuk transmisi jarak pendek. Ini karena multi mode step index memiliki inti serat yang lebih besar dan indeks lapisan yang lebih tinggi dibandingkan dengan serat single mode, yang memungkinkannya untuk mengirimkan cahaya melalui jarak yang lebih pendek dengan sedikit atau tanpa dispersi. Dalam pengaturan jarak pendek seperti dalam satu wilayah (MAN), multi mode step index sering digunakan karena biaya produksi yang lebih rendah dan kemampuan untuk mengirimkan cahaya dengan efisiensi yang baik dalam jarak yang lebih pendek.
19.
Indeks bias tertinggi terdapat pada pusat core dan berangsur-angsur turun hingga yang terendah terdapat pada batas antar core dan cladding, merupakan ciri dari...
Correct Answer
D. Multi Mode Graded Index
Explanation
The given statement describes the characteristic of a multi-mode graded index fiber. In this type of fiber, the refractive index is highest at the center core and gradually decreases towards the boundary between the core and cladding. This gradual decrease in refractive index helps in reducing the modal dispersion, allowing multiple modes of light to propagate through the fiber. Therefore, the correct answer is Multi Mode Graded Index.
20.
Karakteristik multi mode step index adalah sebagai berikut
Correct Answer(s)
A. A. Indeks bias core konstan
B. B. Lebar pita frekuensi terbatas/sempit
C. C. Hanya digunakan untuk jarak pendek dan transmisi data bit rate rendah
D. D. Harga relatif murah
Explanation
The correct answer for this question is A. Indeks bias core konstan, B. Lebar pita frekuensi terbatas/sempit, C. Hanya digunakan untuk jarak pendek dan transmisi data bit rate rendah, D. Harga relatif murah. This is because multi-mode step index fibers have a constant refractive index in the core, which allows for multiple modes of light to propagate. These fibers also have a limited bandwidth and are typically used for short-distance and low-bit rate data transmission. Additionally, they are relatively inexpensive compared to other types of fibers.
21.
Berikut ini karakteristik multi mode graded index adalah...
Correct Answer
D. D. Digunakan untuk jarak menengah dan lebar pita frekuensi besar
Explanation
Multi mode graded index digunakan untuk jarak menengah dan lebar pita frekuensi besar. Ini berarti serat optik ini dapat mengirimkan sinyal data dalam jarak yang cukup jauh dan juga dapat mendukung frekuensi yang lebih tinggi. Karakteristik ini membuatnya cocok untuk digunakan dalam aplikasi yang membutuhkan transmisi data yang cepat dan jarak yang lebih jauh, seperti dalam jaringan komunikasi dan sistem telekomunikasi.
22.
Yang dimaksud bending yaitu...
Correct Answer
B. B. Ketidak normalan seperti bengkokan
Explanation
The correct answer is B. Ketidak normalan seperti bengkokan. Bending refers to an abnormality or deformation in an object, usually resulting in a curved or bent shape. This can occur in various materials or structures, such as pipes, beams, or cables. Bending can affect the performance, strength, and integrity of the object, and it is important to identify and address any bending issues to ensure safety and functionality.
23.
Penyambungan serat optik yang dilakukan dengan cara melakukan pemanasan pada ujung sambungan dan menggunakan lelehanya sebagai perekatnya sehingga terbentuk suatu sambungan continu adalah...
Correct Answer
A. A. Fusion Splicing
Explanation
Fusion splicing is the correct answer because it involves heating the ends of the optical fibers and fusing them together using the melted material as an adhesive. This creates a continuous connection between the fibers, ensuring minimal loss of signal and maintaining the strength and integrity of the joint. Core splicing, tube splicing, bending splicing, and fiber cleaver are not appropriate terms for this type of fiber optic connection.
24.
Berikut ini adalah alat dan bahan yang digunakan untuk penyambungan kabel serat optik
Correct Answer(s)
A. A. Optical Fiber fusion splicer
B. B. Sumber listrik
D. D. Minyak pembersih gel
E. E. Kain Majun/Tisu
Explanation
The given correct answer includes the tools and materials used for fiber optic cable connection. The Optical Fiber fusion splicer is used to join two fiber optic cables together. A power source is required to provide electricity for the splicer. Minyak pembersih gel, which translates to gel cleaning oil, is used to clean the fiber optic cables before splicing. Kain Majun/Tisu, which translates to cotton cloth/tissue, is used to wipe and clean the cables during the splicing process. The Metallic messenger is not included in the correct answer, as it is not directly related to the cable splicing process.
25.
Untuk melindungi core yang telah dikupas adalah...
Correct Answer
B. B. Slip protection
Explanation
The correct answer is B. Slip protection. Slip protection is used to protect the core that has been stripped during fiber optic cable installation. It is a protective covering that prevents damage to the exposed core and ensures the integrity of the fiber optic connection. This protection is necessary to maintain the performance and reliability of the fiber optic system.
26.
Langkah pertama yang harus dilakukan pada prosedur penyambungan kabel yaitu...
Correct Answer
A. A. Mengukur panjang kabel yang akan kita kupas untuk proses penyambungan
Explanation
The first step in the cable connection procedure is to measure the length of the cable that needs to be stripped for the connection process. This is important because it ensures that the correct amount of cable is stripped and prepared for the connection. By measuring the length, one can avoid stripping too much or too little of the cable, which could affect the quality and effectiveness of the connection.
27.
Fiber stripper berfungsi untuk...
Correct Answer
C. C. Tang pengupas
Explanation
The correct answer is C. Tang pengupas. Fiber stripper berfungsi untuk mengupas lapisan luar serat optik, yang disebut jacket. Tang pengupas digunakan untuk mengupas lapisan luar serat optik dengan tepat dan akurat, sehingga memungkinkan akses ke serat optik yang ada di dalamnya. Dengan menggunakan tang pengupas, lapisan luar serat optik dapat dihilangkan tanpa merusak serat optik yang ada di dalamnya.
28.
Prinsip kerja fusion splicer adalah menggunakan kontrol...
Correct Answer
C. C. Kontrol Komputer dalam melakukan penyambungan
Explanation
The correct answer is C. Kontrol Komputer dalam melakukan penyambungan (Computer control in performing the connection). Fusion splicers are used to join optical fibers together. They use computer control to precisely align the fibers and apply heat to fuse them together. This allows for a strong and low-loss connection between the fibers. The computer control ensures accuracy and consistency in the fusion splicing process.
29.
Menurut rekomendasi ITU-T, kabel serat optik harus mempunyai koefisien redaman sebesar...
Correct Answer
D. D. 0.5 dB/km
Explanation
According to the ITU-T recommendation, fiber optic cables should have a attenuation coefficient of 0.5 dB/km. This means that for every kilometer of cable, the signal strength decreases by 0.5 dB. This low attenuation coefficient is desirable because it allows for longer transmission distances without significant loss of signal strength.
30.
Salah satu parameter yang menjadi penentu kualitas suatu serat optik adalah...
Correct Answer
B. B. Menghitung faktor redaman
Explanation
Faktor redaman adalah ukuran yang digunakan untuk mengukur seberapa besar serat optik dapat mengurangi intensitas sinyal yang melewati serat tersebut. Dalam menghitung faktor redaman, kita dapat mengetahui seberapa baik kualitas serat optik tersebut dalam menghantarkan sinyal. Oleh karena itu, faktor redaman merupakan salah satu parameter yang menjadi penentu kualitas suatu serat optik.
