CCNA 2 - Chapitre 8

When the lease of a DHCPv4 client expires, the client sends a DHCPREQUEST message to the DHCP server. This message is used by the client to request the renewal of its IP address lease from the server.

When an IPv4 host receives a DHCPOFFER message from a DHCP server, it will respond with a DHCPREQUEST message. This message is used by the host to formally request the offered IP address from the DHCP server.

Lorsqu'un hôte IPv4 envoie un message DHCPDISCOVER, il envoie une demande de découverte pour obtenir une adresse IP auprès d'un serveur DHCP. La destination de ce message est l'adresse de diffusion (broadcast) 255.255.255.255. Cette adresse permet à l'hôte d'envoyer le message à tous les hôtes présents sur le réseau, afin que le serveur DHCP puisse recevoir la demande et y répondre.

La méthode d'allocation d'adresses DHCPv4 qui attribue les adresses IPv4 pendant une période de bail limitée est l'allocation dynamique. Cette méthode permet aux clients DHCP de recevoir une adresse IP pour une durée déterminée, après quoi ils doivent renouveler leur bail pour continuer à utiliser cette adresse.

The correct answer is "Router# show ip dhcp binding". This command allows a network administrator to verify the IP address assigned to a given MAC address.

The correct answer is "Il doit utiliser les informations contenues dans le message d'annonce de routeur et contacter un serveur DHCPv6 pour les informations supplémentaires". This is because when the router is configured to send router advertisement messages with the M flag set to 0 and the O flag set to 1, it indicates that the router is not providing the complete set of network configuration information. Therefore, the PC must use the information contained in the router advertisement message to configure its IPv6 address, but it still needs to contact a DHCPv6 server to obtain additional information such as the prefix, prefix length, and unique interface ID.

Le routeur fournit dynamiquement des informations de configuration IPv6 aux hôtes via le protocole SLAAC (Stateless Address Autoconfiguration). SLAAC permet aux hôtes de générer automatiquement leur adresse IPv6 en utilisant l'adresse de préfixe fournie par le routeur et leur identifiant d'interface. Cela permet aux hôtes de configurer leur adresse IPv6 sans avoir besoin d'un serveur DHCPv6. ARP est un protocole utilisé pour résoudre les adresses IP en adresses MAC, EUI-64 est un format d'adressage utilisé pour générer des adresses IPv6 basées sur l'adresse MAC de l'interface réseau, et ICMPv6 est un protocole utilisé pour les messages de contrôle et d'erreur dans IPv6.

The most likely scenario is that the router is a SOHO (Small Office/Home Office) router or a home broadband router. These types of routers are commonly configured to act as DHCP servers, allowing them to assign dynamic IP addresses to devices on the local network. In this case, the WAN interface of the router can be configured as a DHCP client to receive a dynamic IP address from the ISP. The presence of a web server or the router acting as a gateway for a local network does not necessarily indicate that the WAN interface will be configured as a DHCP client.

The message sent by the employee's workstation to obtain an IP address contains the destination Layer 2 address FF-FF-FF-FF-FF-FF (broadcast address) and the destination Layer 3 address 255.255.255.255.255 (broadcast address). This is because the workstation does not know the IP address of the DHCP server and sends a broadcast message to all devices on the network, requesting an IP address. The broadcast address is used to ensure that the message reaches all devices on the network, including the DHCP server.

The client may have received offers from multiple servers, so the broadcast is used to implicitly decline the other offers.

The command "ip dhcp excluded-address 10.0.15.1 10.0.15.15" on a Cisco router excludes a range of 15 IP addresses from being assigned to DHCP clients. This means that these specific IP addresses (10.0.15.1 to 10.0.15.15) will not be available for lease to DHCP clients, ensuring that they are not assigned to any devices on the network.

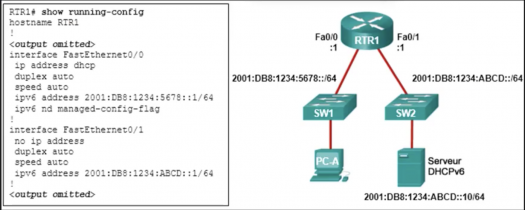

To allow PC-A to receive an IPv6 address from the DHCPv6 server, the command "ipv6 dhcp relay" needs to be added to the Fa0/0 interface. This command enables the interface to forward DHCPv6 messages between the client and the server, allowing PC-A to request and receive an IPv6 address from the server.

DAD, which stands for Duplicate Address Detection, is the process used in ICMPv6 for a host to verify that an IPv6 address is unique before configuring it on an interface. This process ensures that there are no duplicate addresses within the network, preventing any potential conflicts or communication issues.

The correct answer is "ipv6 address dhcp". This command should be configured on the router's interface to configure the router as a DHCPv6 client with state. This command enables the interface to obtain IPv6 addresses dynamically from a DHCPv6 server, allowing the router to receive configuration information and addresses from the server.

The problem is that the "ipv6 dhcp relay" command should be applied to the Gig0/0 interface.

When an IPv6 host sends a DHCPv6 SOLICIT message to locate a DHCPv6 server, it uses the destination IP address FF02::1:2.

The correct answer is "Il manque la commande ip helper-address." This is because the "ip helper-address" command is used to enable the router to forward DHCP requests from clients to a DHCP server located on a different subnet. Without this command, the router will not forward the DHCP requests, resulting in the clients not receiving the IP parameters from the DHCP server.

The correct answer is "L'adresse link-local de l'interface du routeur connectée au réseau." In the SLAAC method, the link-local address of the router's interface connected to the network is used as the default gateway address for the client. This address allows the client to communicate with other devices on the same link or network segment.

A client sends a DHCPREQUEST message to accept an offered IPv4 address from a DHCP server. This message is broadcasted to all DHCP servers on the network to inform them of the client's acceptance of the offered address.

Après le démarrage, lorsque le client reçoit un message d'annonce de routeur ICMPv6 avec l'indicateur M à 0 et l'indicateur O à 1, cela indique que le client doit configurer automatiquement une adresse IPv6. Cependant, il doit également contacter un serveur DHCPv6 pour obtenir des informations supplémentaires telles que les paramètres de configuration réseau. Donc, le client utilise la configuration automatique initiale, mais a besoin du serveur DHCPv6 pour compléter sa configuration IPv6.

The given commands indicate that the router is configured for stateless DHCPv6 operation. This can be inferred from the fact that the server name is ACAD_CLASS, which is a common name used for stateless DHCPv6 servers. Additionally, there is no mention of any specific DHCPv6 pool configuration, suggesting that the router is not assigning specific addresses to clients, but rather allowing them to configure their own addresses based on the network prefix provided by the router. Therefore, the conclusion is that the router is configured for stateless DHCPv6 operation.

The administrator wants to configure the hosts to automatically assign IPv6 addresses to themselves using router advertisement messages, but also wants them to obtain DNS server addresses from a DHCPv6 server. In this scenario, the most suitable method of address allocation would be stateless DHCPv6. This method allows hosts to generate their own IPv6 addresses using SLAAC (Stateless Address Autoconfiguration) but still obtain additional configuration information, such as DNS server addresses, from a DHCPv6 server.

The probable cause of the problem is that the router is configured for SLAAC (Stateless Address Autoconfiguration). SLAAC allows clients to automatically configure their IPv6 addresses without the need for a DHCPv6 server. However, SLAAC does not provide information about DNS servers or domain names. Therefore, if the router is configured for SLAAC, the clients will not be able to retrieve the DNS server addresses and the configured domain name from the DHCPv6 server.

L'adresse MAC de l'interface compatible IPv6 est utilisée dans le processus EUI-64 pour créer un ID d'interface IPv6 sur une interface IPv6.

The administrator is trying to configure the router to obtain IP parameters from a DHCPv4 server. This can be inferred from the command "ip address dhcp" which indicates that the router is requesting an IP address dynamically from a DHCP server.

Lors de l'envoi d'un message DHCPOFFER à un client qui effectue une demande d'adresse, un serveur DHCPv4 cible l'adresse matérielle du client. Cette adresse matérielle, également connue sous le nom d'adresse MAC (Media Access Control), est une identifiant unique attribué à chaque carte réseau. En ciblant l'adresse matérielle du client, le serveur DHCPv4 peut s'assurer que l'offre d'adresse IP est spécifiquement destinée à ce client.

After receiving the messages from multiple DHCPv6 servers indicating their availability for the DHCPv6 service, the workstation sends a DHCPv6 INFORMATION-REQUEST message to a server to request configuration information.

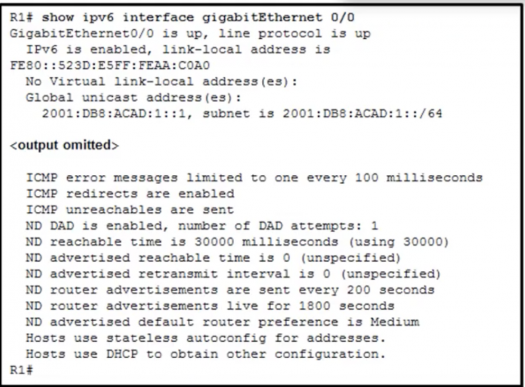

Based on the displayed result, the type of IPv6 addressing configured is stateless DHCPv6.

The probable cause of the problem is that the router is configured for stateless DHCPv6 operation. This means that the clients are not receiving the prefix and prefix length information from the DHCPv6 pool, as stateless DHCPv6 does not provide this information.

A router is generally configured as a DHCPv4 client in two cases: when the router is intended to be used as a SOHO gateway and when the Internet Service Provider (ISP) requires it. In the first case, the router is configured to provide network connectivity to a small office or home network. In the second case, the ISP may require the router to obtain its IP address dynamically through DHCPv4 for network management and troubleshooting purposes.

The two methods that can be used to generate an interface ID by an IPv6 host using the SLAAC method are "Generation aléatoire" (random generation) and "EUI-64". The random generation method involves the host randomly generating an interface ID, while the EUI-64 method involves using the host's MAC address to create an interface ID.

After configuring their IPv6 address using the SLAAC method, a client verifies its uniqueness by sending a Neighbor Discovery ICMPv6 Neighbor Solicitation message, using its IPv6 address as the target IPv6 address. This message is sent to the solicited-node multicast address, which is derived from the client's IPv6 address. By sending this message, the client can check if any other device on the network is already using the same IPv6 address.

La configuration d'un routeur Cisco comme agent de relais permet de fournir des services de relais pour plusieurs services UDP. Cela signifie que le routeur peut transmettre des messages entre différents réseaux, permettant ainsi la communication entre les clients et les serveurs utilisant des protocoles UDP tels que DHCP, DNS, TFTP, etc. Cela offre une plus grande flexibilité et efficacité dans la gestion du trafic réseau.

The correct answer is "server events" because when the administrator executes the "debug ip dhcp" command on the router, it enables the display of real-time IP address assignments performed by the router. The "server events" option specifically allows the administrator to view events related to the DHCP server functionality, such as lease requests, renewals, and releases. This can help in troubleshooting DHCPv4 issues on the router.
