Q-sys Level One Training: Audio Player & Media Drive
You are about to take the assessment for Audio Player & Media Drive Please watch ALL videos in Audio Player & Media Drive Overview before attempting this assessment. You must correctly answer 80% of the questions to complete this assessment.
- 1.
Multiple Choice How can you add an Audio Player to your design?
- A.
Drag one into the Schematic from the Audio Components branch of the Schematic Library
- B.
Click on the Plus icon in the Inventory panel, select Peripherals, then Audio Player
- C.
Go to the Audio Files tab of Administrator and change the Audio Player count
Correct Answer
A. Drag one into the Schematic from the Audio Components branch of the Schematic LibraryExplanation
To add an Audio Player to your design, you need to drag one into the Schematic from the Audio Components branch of the Schematic Library. This action will allow you to incorporate an Audio Player into your design and utilize its functionality within your project.Rate this question:
-
- 2.
Multiple Choice What sort of pin configuration does a default Audio Player have?
- A.
0 input pins, 2 output pins
- B.
0 input pins, 1 output pin
- C.
2 input pins, 2 output pins
Correct Answer
A. 0 input pins, 2 output pinsExplanation
A default Audio Player typically does not have any input pins because it is designed to play audio files and not receive signals or inputs from external devices. However, it usually has two output pins - one for connecting headphones or speakers to listen to the audio and another for connecting to other audio devices or amplifiers for external audio output.Rate this question:
-
- 3.
Check all that apply Which of the following buttons will you find in an Audio Player’s control panel? Check all that apply.
- A.
Play
- B.
Stop
- C.
Mute
Correct Answer(s)
A. Play
B. Stop
C. MuteExplanation
An audio player's control panel typically includes buttons for Play, Stop, and Mute. The Play button is used to start or resume playing the audio, the Stop button is used to halt the audio playback, and the Mute button is used to silence the audio output. These buttons are commonly found in audio players to provide basic control over the playback of audio files.Rate this question:
-
- 4.
Multiple Choice What is the function of the Root field in the Audio Player’s control panel?
- A.
It selects which root directory to use for selecting an audio file to be played.
- B.
It moves your selected audio file to the first position in a playlist.
Correct Answer
A. It selects which root directory to use for selecting an audio file to be played.Explanation
The function of the Root field in the Audio Player's control panel is to select the root directory to use for selecting an audio file to be played. This means that the user can choose the specific location or folder where their audio files are stored, and the audio player will navigate through that directory to find and play the selected file.Rate this question:
-
- 5.
Multiple Choice What does the Auto Play button do?
- A.
Causes an Audio Player to automatically start when the design is loaded to the Core.
- B.
Causes each song of a playlist to start automatically rather than prompting the user.
- C.
Establishes a wireless connection to a Core 100i for playback inside an automobile.
Correct Answer
A. Causes an Audio Player to automatically start when the design is loaded to the Core.Explanation
The Auto Play button causes an Audio Player to automatically start when the design is loaded to the Core.Rate this question:
-
- 6.
Multiple Choice What does the Time indicator display?
- A.
The total elapsed time of the current track
- B.
The total remaining time of the current track
- C.
The total elapsed time of all tracks in the playlist
Correct Answer
A. The total elapsed time of the current trackExplanation
The Time indicator displays the total elapsed time of the current track.Rate this question:
-
- 7.

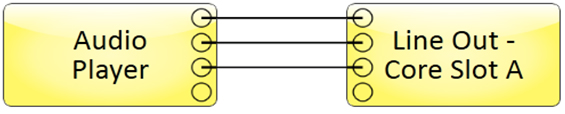

Multiple Choice How many Audio Player Tracks are being used in this design?
- A.
4
- B.
3
- C.
1
Correct Answer
A. 4Explanation
The design is using 4 Audio Player Tracks.Rate this question:
-
- 8.
Multiple Choice How can you check the number of Audio Player Tracks your design is currently using?
- A.
Go to the File Menu and select Check Design
- B.
It is displayed in every Audio Player’s control panel in the Usage field
- C.
Access the Q-Sys Administrator and go to the Check Design tab
Correct Answer
A. Go to the File Menu and select Check DesignExplanation
To check the number of Audio Player Tracks your design is currently using, you need to go to the File Menu and select Check Design. This option will provide you with the information you need.Rate this question:
-
- 9.
True/False If your Audio Player is not wired to another component, it will not count against your total Audio Player Track count.
- A.
True
- B.
False
Correct Answer
B. FalseExplanation
If your Audio Player is not wired to another component, it will still count against your total Audio Player Track count. This means that even if the Audio Player is not connected to any other device, it will still be considered as one track in the total count.Rate this question:
-
- 10.
True/False If your Audio Player is not playing a file, it will not count against your total Audio Player Track count.
- A.
True
- B.
False
Correct Answer
B. FalseExplanation
If your Audio Player is not playing a file, it will still count against your total Audio Player Track count. This means that even if the file is not playing, it will still be considered as one of the tracks in your Audio Player's total count.Rate this question:
-
- 11.
True/False If you play a mono file from an Audio Player with two output track pins, both pins will carry the same mono information.
- A.
True
- B.
False
Correct Answer
B. FalseExplanation
False. If you play a mono file from an Audio Player with two output track pins, each pin will carry a separate channel of the mono information.Rate this question:
-
- 12.
True/False If you fan-out a single output track pin to multiple destinations, this does not count against your total Audio Player Track count.
- A.
True
- B.
False
Correct Answer
A. TrueExplanation
When you fan-out a single output track pin to multiple destinations, it means that you are splitting the audio signal from that track to multiple places. In this case, although the audio is being sent to multiple destinations, it still counts as a single track in terms of the total Audio Player Track count. Therefore, the statement is true.Rate this question:
-
- 13.
Multiple Choice How do you change the number of output track pins on an Audio Player?
- A.
Select the Audio Player, go to its Properties panel, and change the Track Count field
- B.
Open the Audio Player’s control panel and change the Track Count field
- C.
Select the Audio Player, go to its Control Pins panel, and select additional output pins
Correct Answer
A. Select the Audio Player, go to its Properties panel, and change the Track Count fieldExplanation
To change the number of output track pins on an Audio Player, you need to select the Audio Player and go to its Properties panel. In the Properties panel, there should be a Track Count field where you can modify the number of output track pins. This allows you to customize the audio player according to your needs and requirements.Rate this question:
-
- 14.
Check Boxes What new controls appear in the control panel of a playlist-capable Audio Player? Check all that apply.
- A.
Shuffle
- B.
Repeat
- C.
First
Correct Answer(s)
A. Shuffle
B. Repeat
C. FirstExplanation
The new controls that appear in the control panel of a playlist-capable Audio Player are Shuffle, Repeat, and First. The Shuffle control allows the user to randomly play songs from the playlist. The Repeat control enables the user to repeat the playlist or a specific song. The First control allows the user to go back to the first song in the playlist.Rate this question:
-
- 15.
Multiple Choice How do you make an Audio Player capable of playing playlists?
- A.
Go to its Properties panel and change the Playlist Capable field to Yes
- B.
Create a playlist in the Q-Sys Administrator and all Audio Players will be able to access it
- C.
Create a playlist in the Q-Sys Administrator and specify which Audio Players have access to it
Correct Answer
A. Go to its Properties panel and change the Playlist Capable field to Yes -
- 16.
What is the maximum number of Audio Player Tracks that can be played on a Core after it has been upgraded?
Correct Answer
128, 128 Tracks, 128 Audio Player TracksExplanation
After upgrading a Core, the maximum number of Audio Player Tracks that can be played is 128. This is indicated by the options provided in the question, which all state the same answer. Therefore, the correct answer is 128, 128 Tracks, 128 Audio Player Tracks.Rate this question:
- 17.
Check all that apply. The Audio Player can access audio files that are located in which locations? Check all that apply.
- A.
The Core’s media drive
- B.
A desktop computer on the Q-LAN network
- C.
An iPod connected through an I/O Card
Correct Answer
A. The Core’s media driveExplanation
The Audio Player can access audio files that are located in the Core's media drive.Rate this question:
-
- 18.
True/False If you want to upgrade the onboard media drive, install an e-SATA drive into the Core
- A.
True
- B.
False
Correct Answer
B. FalseExplanation
The statement is false because to upgrade the onboard media drive, you do not need to install an e-SATA drive into the Core. The correct way to upgrade the onboard media drive would depend on the specific system or device, but it could involve replacing the existing drive with a larger capacity drive or using an external storage device.Rate this question:
-
- 19.
Multiple Choice How do you manage and customize a new playlist?
- A.
Use the Q-Sys Administrator
- B.
Drag multiple audio files into an Audio Player
- C.
Add a Playlist Editor component into your Schematic
Correct Answer
A. Use the Q-Sys AdministratorExplanation
To manage and customize a new playlist, you can use the Q-Sys Administrator. This software allows you to easily organize and modify playlists by adding or removing audio files, rearranging the order of songs, and adjusting settings such as volume and playback options. The Q-Sys Administrator provides a user-friendly interface that simplifies the process of creating and editing playlists, making it an efficient tool for managing your audio content.Rate this question:
-
- 20.
True/FalseAn MP3 or WAV file can be saved to the Core for playback.
- A.
True
- B.
False
Correct Answer
A. TrueExplanation
An MP3 or WAV file can be saved to the Core for playback because the Core is capable of storing and playing audio files in these formats. MP3 and WAV are common audio file formats that can be easily played on various devices, including the Core. Therefore, it is true that an MP3 or WAV file can be saved to the Core for playback.Rate this question:
-
- 21.
True/False By default a Core can play up to 16 Audio Tracks simultaneously.
- A.
True
- B.
False
Correct Answer
A. TrueExplanation
By default, a Core is capable of playing up to 16 Audio Tracks simultaneously. This means that the Core has the ability to handle and play back 16 different audio tracks at the same time without any issues. This feature allows for more complex and layered audio compositions or sound effects to be created and played back in a seamless manner.Rate this question:
-
- 22.
True/False You can upgrade the Media Drive personally with any e-SATA hard drive.
- A.
True
- B.
False
Correct Answer
B. FalseExplanation
The statement is false because not all media drives can be upgraded personally with any e-SATA hard drive. The compatibility of the media drive with a specific e-SATA hard drive depends on various factors such as the specifications and requirements of the media drive. Therefore, it is not always possible to upgrade the media drive with any e-SATA hard drive.Rate this question:
-
- 23.
Multiple Choice By upgrading to the MTP-128, what will you be able to do?
- A.
Increase your multi-track player capability to 128 tracks
- B.
Increase your media drive’s hard drive space to 128 GB
- C.
Finally beat the last level of “Wolfenstein 3-D”
Correct Answer
A. Increase your multi-track player capability to 128 tracksExplanation
By upgrading to the MTP-128, you will be able to increase your multi-track player capability to 128 tracks. This means that you will have the ability to play and record up to 128 different audio tracks simultaneously, allowing for more complex and layered audio production.Rate this question:
-
